Bostitch N89RH17-2MCN Type REV E Nailer Spare Parts

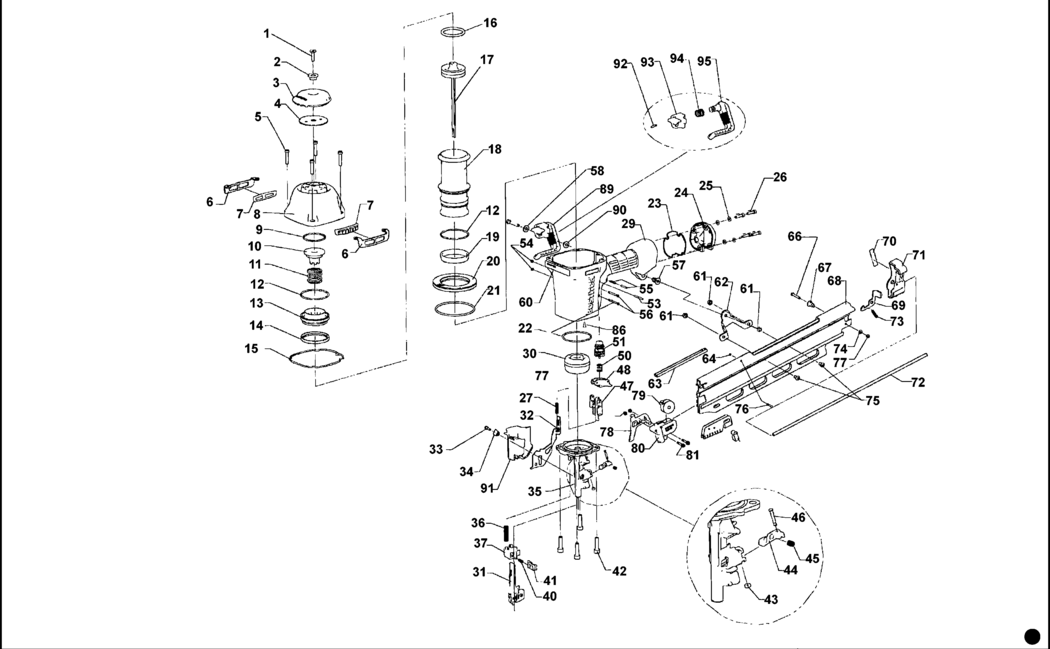

An exploded drawing and spare parts listing for the Bostitch N89RH17-2MCN Type REV E Nailer

	Ex VAT	Inc VAT
1 - SCREW BDE-MSF6100-25.A11 MSF6100-25	£1.50	£1.80
2 - BUSHING BDE-163859.A11 163859	£2.78	£3.34
3 - EXHAUST BDE-163818.A9 163818	£3.30	£3.96
4 - PLATE BDE-163830.A8 163830	£1.50	£1.80
5 - SCREW BDE-MSC6100-30.A35 MSC6100-30	£1.50	£1.80
6 - PLATE BDE-163827.A8 163827	£1.82	£2.19
7 - GUIDE BDE-149819.A13 149819	£1.50	£1.80
8 - END CAP BDE-163848.A4 163848	£34.00	£40.80
9 - O RING BDE-105814.A13 105814	£10.85	£13.02
10 - BUMPER BDE-163820.A4 163820	£2.26	£2.71
11 - SPRING BDE-163844.A8 163844	£1.50	£1.80
12 - O RING BDE-163822.A4 163822	£3.80	£4.56
13 - VALVE BODY BDE-163821.A10 163821	£1.50	£1.80
14 - SEAL BDE-163823.A10 163823	£1.50	£1.80
15 - SEAL BDE-163845.A6 163845	£1.50	£1.80
16 - O RING BDE-851606-S.A5 851606-S	£1.50	£1.80
17 - PISTON SA BDE-163921.A4 163921	£58.69	£70.43
18 - SLEEVE BDE-163824.A4 163824	£30.08	£36.10
19 - SEAL BDE-175520.A1 175520	£1.50	£1.80
20 - RING BDE-163855.A3 163855	£2.78	£3.34
21 - O RING BDE-108718.A8 108718	£1.50	£1.80
22 - O RING BDE-89673.A17 89673	£2.26	£2.71
23 - SEAL BDE-163856.A11 163856	£1.50	£1.80
24 - END CAP BDE-163843.A7 163843	£10.85	£13.02
25 - WASHER BDE-T50118.A15 T50118	£1.50	£1.80
26 - SCREW BDE-MSC5080-20.A49 MSC5080-20	£1.50	£1.80
27 - SPRING BDE-166781.A8 166781	£1.50	£1.80
29 - HOUSING BDE-171127.A1 171127	£78.12	£93.74
30 - BUMPER BDE-107231.A17 107231	£14.57	£17.48
31 - KIT BDE-MCN-KIT3.A3 MCN-KIT3	£51.90	£62.28
32 - ARM BDE-163900.A7 163900	£1.82	£2.19
33 - SCREW BDE-MSC4070-16.A9 MSC4070-16	£1.50	£1.80
34 - BUSHING BDE-163903.A3 163903	£2.26	£2.71
35 - NOSE BDE-166790.A0 166790	£93.62	£112.35
36 - SPRING BDE-166772.A4 166772	£1.50	£1.80
37 - CASTING BDE-166791.A2 166791	£9.41	£11.29
40 - SPRING BDE-115230.A9 115230	£1.50	£1.80
41 - CASTING BDE-166777.A5 166777	£4.69	£5.63
42 - SCREW BDE-MSC8125-30.A8 MSC8125-30	£1.50	£1.80
43 - WASHER BDE-854004.A10 854004	£1.50	£1.80
44 - PAWL BDE-163877.A1 163877	£3.80	£4.56
45 - SPRING BDE-163878.A6 163878	£1.50	£1.80
46 - PIN BDE-149882.A4 149882	£1.50	£1.80
47 - GUIDE BDE-163883.A11 163883	£1.50	£1.80
48 - SWITCH KIT BDE-SEQ7.A0 SEQ7	£5.88	£7.06
50 - SPRING BDE-100387.A28 100387	£1.50	£1.80
51 - VALVE BDE-TVA6.A62 TVA6	£16.03	£19.24
53 - SCREW BDE-108562.A8 108562	£1.50	£1.80
54 - NUT BDE-MHE3050-100.A13 MHE3050-100	£1.50	£1.80
55 - PIN BDE-100298.A15 100298	£1.50	£1.80
56 - PIN BDE-MPP030020.A69 MPP030020	£1.50	£1.80
57 - BUSHING BDE-123859.A10 123859	£1.50	£1.80
58 - WASHER BDE-MPW6.2.A11 MPW6.2	£1.50	£1.80
61 - NUT BDE-MHE6100-100.A64 MHE6100-100	£1.50	£1.80
62 - BRACKET BDE-166786.A0 166786	£3.80	£4.56
63 - LINER BDE-159976.A1 159976	£3.22	£3.86
64 - O RING BDE-166797.A0 166797	£1.50	£1.80
66 - SCREW BDE-100261.A14 100261	£1.50	£1.80
67 - SPACER BDE-121472.A1 121472	£1.50	£1.80
68 - MAGAZINE BDE-163932 163932	£58.69	£70.43
69 - LATCH BDE-166778.A4 166778	£1.50	£1.80
70 - LABEL BDE-120927.A5 120927	£1.50	£1.80
71 - END CAP BDE-163912.A5 163912	£4.69	£5.63
72 - GUIDE ROD BDE-163866.A2 163866	£1.50	£1.80
73 - SPRING BDE-120878.A10 120878	£1.50	£1.80
74 - WASHER BDE-MPW4.A8 MPW4	£1.50	£1.80
75 - BOLT BDE-MSB6100-12.A14 MSB6100-12	£1.50	£1.80
76 - PIN BDE-121407.A12 121407	£1.50	£1.80
77 - NUT M4 BDE-MHE4070-100.A64 MHE4070-100	£1.50	£1.80
78 - PUSHER BDE-166770.A0 166770	£12.17	£14.60
79 - SPRING BDE-115143.A13 115143	£7.18	£8.62
80 - HANDLE BDE-163902.A5 163902	£1.82	£2.19
81 - SCREW BDE-121052.A6 121052	£1.50	£1.80
82 - SHIELD BDE-112630.A10 112630	£2.26	£2.71
83 - SPRING BDE-112631.A5 112631	£1.50	£1.80
86 - PLUG BDE-163858.A3 163858	£1.50	£1.80
88 - SCREW BDE-MSC6100-35.A16 MSC6100-35	£1.50	£1.80
89 - HOOK BDE-171354.A9 171354	£12.17	£14.60
90 - WASHER BDE-171342.A4 171342	£1.50	£1.80
91 - COVER BDE-171338.A4 171338	£2.26	£2.71
92 - SPIROL PIN BDE-UB3811.2.A1 UB3811.2	£1.50	£1.80
93 - MOUNT BDE-171340.A5 171340	£3.80	£4.56
94 - SPRING BDE-171341.A1 171341	£1.50	£1.80
95 - HOOK BDE-171339.A1 171339	£4.69	£5.63

Attribute Name	Value
Brand	Bostitch
