Fein BLK 3.5 (60Hz 220V) / 72323000628 Spare Parts

Fein BLK 3.5 ⡠Hz 220V) / 72323000628 Spare Parts
Home Details Reviews Delivery

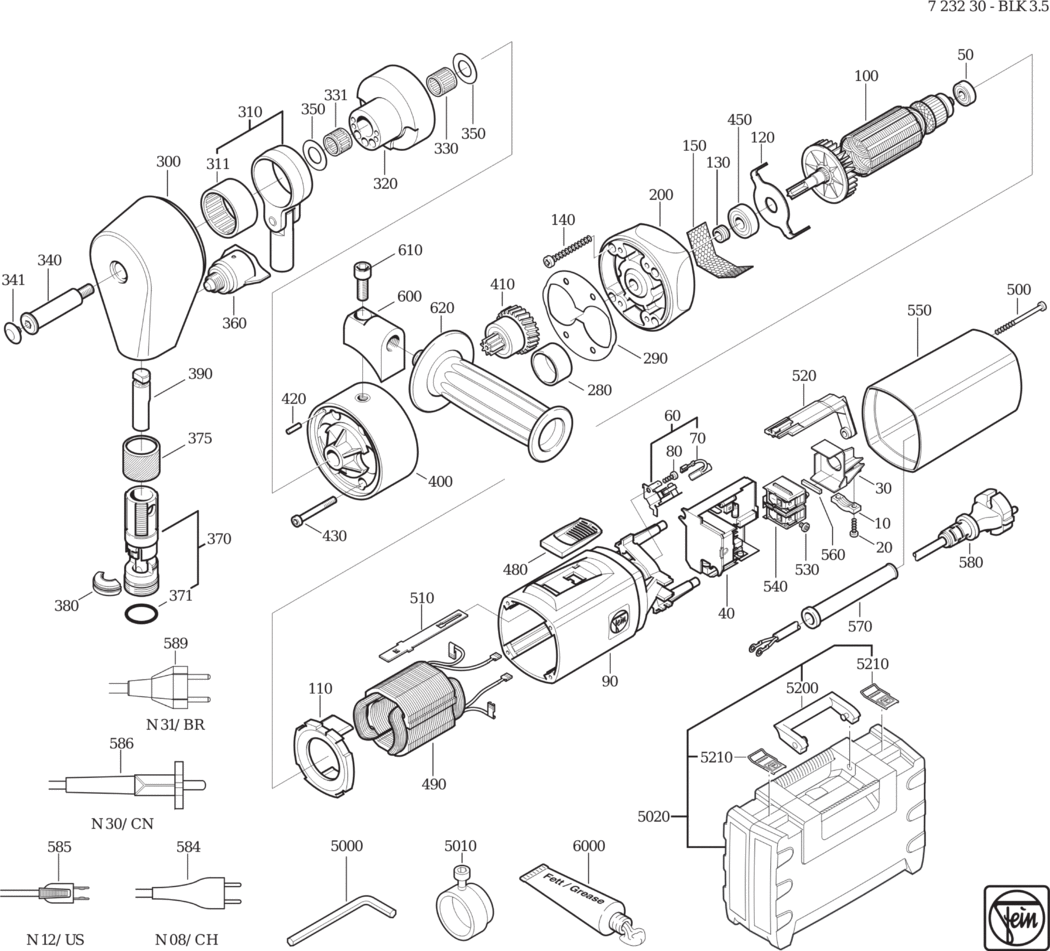

An exploded diagram and spare parts listing for the Fein BLK 3.5 (60Hz 220V) / 72323000628
Ex VAT Inc VAT
10 - CABLE CLAMPING PIECE FEI-32431021007.A162 32431021007 £1.60 £1.92
20 - SCREW FEI-43070001006.A46 43070001006 £1.60 £1.92
30 - CABLE CLAMPING PIECE FEI-32431040006.A4 32431040006 £2.78 £3.33
40 - ELECTRONICS FEI-30762224998.A1 30762224998 £106.36 £127.63
50 - GROOVED BALL BEARING FEI-41701001260.A329 41701001260 £7.11 £8.53
60 - BRUSH HOLDER FEI-30712088013.A25 30712088013 £17.61 £21.13
70 - CARBON BRUSH (SOLD SINGLY) FEI-30711132003.A21 30711132003 £10.52 £12.63
80 - SCREW FEI-43070018009.A78 43070018009 £1.60 £1.92
90 - MOTOR HOUSING FEI-31901114014.A1 31901114014 £46.03 £55.24
100 - ARMATURE 50/60HZ230V FEI-53273002236.A8 53273002236 £163.59 £196.31
110 - AIR GUIDE RING FEI-31428118007.A36 31428118007 £3.52 £4.22
120 - PLATE FEI-32416098005.A2 32416098005 £1.60 £1.92
130 - SEALING RING FEI-32612123008.A0 32612123008 £27.57 £33.08
140 - SCREW FEI-43070007002.A101 43070007002 £1.60 £1.92
150 - PROTECTIVE GRILLE FEI-32901046006.A5 32901046006 £7.17 £8.60
200 - INTERMEDIATE GEAR BOX FEI-31506352003.A5 31506352003 £69.88 £83.86
280 - PLUG FEI-31420110009.A4 31420110009 -
290 - SEAL FEI-30610030004.A2 30610030004 £4.88 £5.85
300 - HOUSING FEI-31309130002.A2 31309130002 £228.89 £274.67
310 - CON ROD FEI-31309087012.A6 31309087012 £387.64 £465.17
311 - NEEDLE SLEEVE FEI-41705031001.A8 41705031001 £38.51 £46.21
320 - HOLLOW WHEEL FEI-31308089004.A6 31308089004 £530.94 £637.13
330 - NEEDLE CAGE FEI-41715047005.A6 41715047005 £32.70 £39.24
331 - NEEDLE CAGE FEI-41715043006.A9 41715043006 £25.42 £30.51
340 - SHAFT FEI-31309089005.A0 31309089005 £84.76 £101.71
341 - CAP FEI-31309103001.A8 31309103001 £1.60 £1.92
350 - DISC FEI-31309090007.A13 31309090007 £1.60 £1.92
360 - ROTARY KNOB FEI-31309129019.A4 31309129019 £116.51 £139.81
370 - CUTTING HEAD FEI-31309092018.A0 31309092018 £493.22 £591.87
371 - SEALING RING FEI-40612146003.A2 40612146003 -
375 - SLEEVE FEI-31309096008.A0 31309096008 £60.92 £73.10
380 - DIE FEI-31309093003.A2 31309093003 £95.98 £115.17
390 - PUNCH FEI-31309097002.A2 31309097002 £87.11 £104.53
400 - INTERMEDIATE GEAR BOX FEI-31309085006.A6 31309085006 £260.64 £312.77
410 - GEAR-WHEEL FEI-31309086018.A4 31309086018 £283.12 £339.75
420 - PIN FEI-40242053007.A5 40242053007 £1.60 £1.92
430 - CYLINDER HEAD SCREW FEI-43064019053.A7 43064019053 £1.60 £1.92
450 - GROOVED BALL BEARING FEI-41701210224.A2 41701210224 £15.09 £18.11
480 - SLIDE SWITCH FEI-32805156008.A48 32805156008 £2.76 £3.31
490 - STATOR FEI-51273001231.A17 51273001231 £103.33 £124.00
500 - SCREW FEI-43070017001.A14 43070017001 £1.60 £1.92
510 - CONTROL ROD FEI-32816055000.A37 32816055000 £3.29 £3.95
520 - CONTROL ROD FEI-32816052004.A37 32816052004 £2.73 £3.28
530 - FILLISTER HEAD SCREW FEI-43041039999.A51 43041039999 £1.60 £1.92
540 - SWITCH FEI-30701285000.A69 30701285000 £17.50 £21.00
550 - COVER FEI-31201100009.A2 31201100009 £9.43 £11.32
560 - PRESSURE PIECE FEI-31415082004.A36 31415082004 £1.60 £1.92
570 - CABLE GROMMET FEI-31413007007.A64 31413007007 £1.60 £1.92
580 - CABLE WITH PLUG FEI-30707386018.A4 30707386018 £24.62 £29.55
600 - HOLDER FEI-30240193002.A8 30240193002 £35.46 £42.55
610 - CYLINDER HEAD SCREW M8X22 FEI-43035074085.A2 43035074085 £1.60 £1.92
620 - SIDE HANDLE FEI-32119032002.A62 32119032002 £12.89 £15.47
5000 - ALLEN KEY SW6 FEI-62907004005.A42 62907004005 £3.35 £4.02
5010 - SPACER SLEEVE FEI-31309100014.A1 31309100014 £148.25 £177.90
6000 - LUBRICANT TUBE 0 080KG FEI-32160003182.A3 32160003182 -
9020 - SAFETY INSTRUCTION FEI-34130054061.A546 34130054061 -
