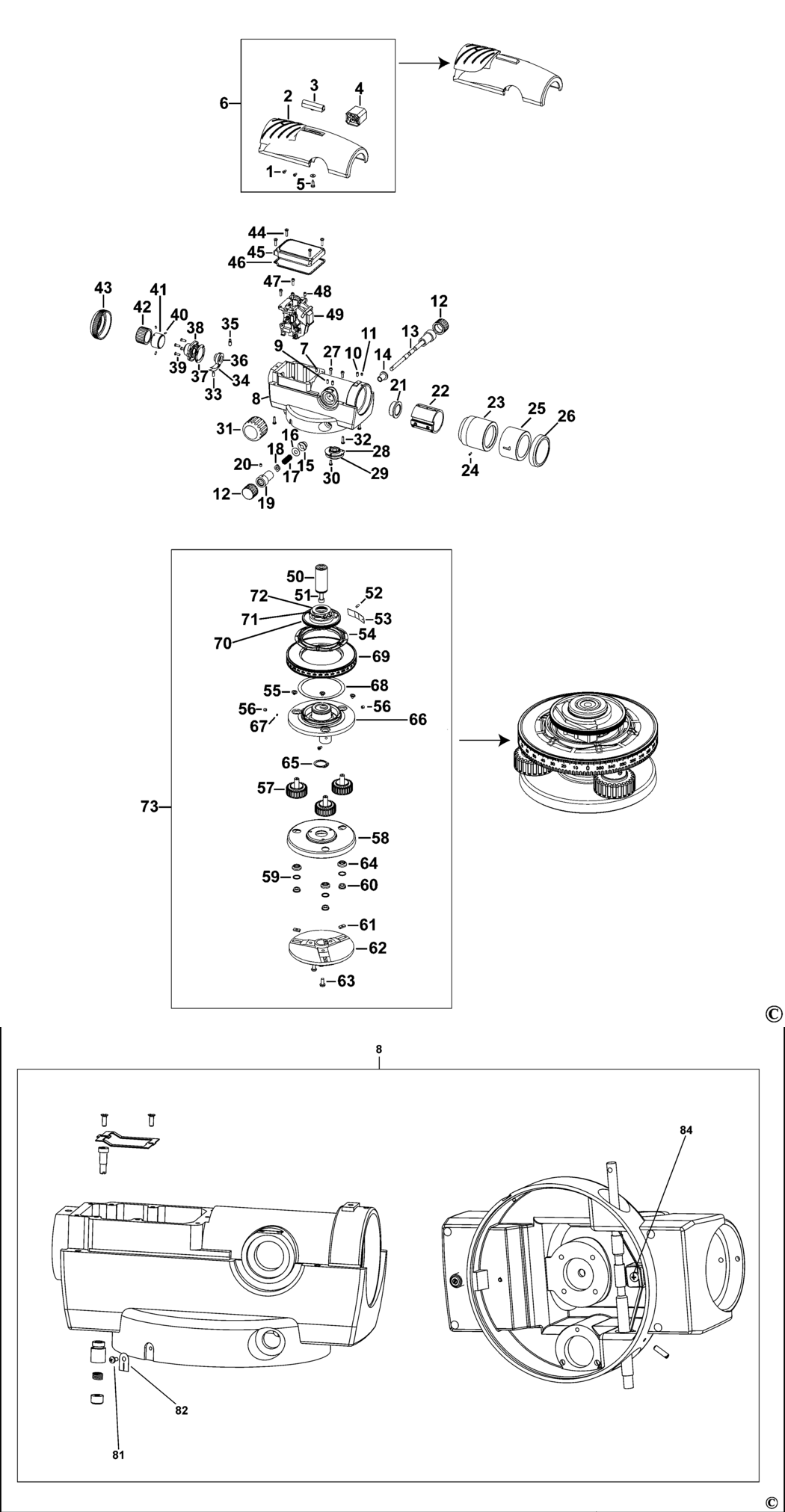

An exploded drawing and spare parts listing for the Stanley AL24G Type 1 Optical Instrument
Ex VAT Inc VAT
1 - SCREW BDE-ST2.5X7 GB845-85.A1 ST2.5X7 GB845-85 £1.42 £1.70
2 - COVER-TOP BDE-07ZS-P03.A0 07ZS-P03 £12.17 £14.60
3 - LENS BDE-55-70345.A1 55-70345 £2.78 £3.34
4 - MIRROR BDE-55-70347.A0 55-70347 £12.17 £14.60
6 - COVER SA BDE-07ZS-SG.A0 07ZS-SG £30.08 £36.10
7 - SCREW BDE-M2.5X6 GB71-85.A2 M2.5X6 GB71-85 £1.42 £1.70
8 - BODY BDE-07Z-A01A-Z.A1 07Z-A01A-Z £93.62 £112.35
9 - SCREW BDE-M3X7 GB71-85.A2 M3X7 GB71-85 £1.42 £1.70
10 - SCREW BDE-M3X7 GB71-85.A3 M3X7 GB71-85 £1.42 £1.70
11 - SCREW BDE-M3X4 GB71-85.A1 M3X4 GB71-85 £1.42 £1.70
12 - KNOB BDE-X001.A2 X001 £1.50 £1.80
13 - ADJUSTER SA BDE-M002A.A0 M002A £7.85 £9.42
14 - BUSHING BDE-P004.A2 P004 £1.50 £1.80
15 - BUSHING BDE-L18-P03.A0 L18-P03 £1.50 £1.80
16 - BUSHING BDE-C002.A2 C002 £1.50 £1.80
17 - SPRING BDE-C003.A1 C003 £1.50 £1.80
18 - SPACER BDE-P016.A2 P016 £1.50 £1.80
19 - KNOB BDE-P006.A1 P006 £3.30 £3.96
20 - SCREW BDE-M3X5 GB71-85.A0 M3X5 GB71-85 £1.42 £1.70
21 - BUSH BDE-1004704-86.A0 1004704-86 £18.91 £22.69
22 - SLIDER SA BDE-D1006-B01.A0 D1006-B01 £34.00 £40.80
23 - LENS BDE-07BB-1.A0 07BB-1 £60.94 £73.13
24 - SCREW BDE-07BB-M04A.A0 07BB-M04A £1.50 £1.80
25 - FILTER BDE-07BB-C01.A1 07BB-C01 £7.85 £9.42
26 - COVER BDE-P047.A0 P047 £1.50 £1.80
27 - SCREW BDE-M2.5X8 GB70-85.A0 M2.5X8 GB70-85 £1.42 £1.70
28 - GASKET BDE-C018.A1 C018 £1.50 £1.80
29 - LEVEL BDE-D3003A.A3 D3003A £16.03 £19.24
30 - SCREW BDE-M2.5X6 GB818-85.A1 M2.5X6 GB818-85 £1.42 £1.70
31 - KNOB SA BDE-55-70391.A1 55-70391 £16.03 £19.24
33 - PISTON BDE-M033A.A1 M033A £1.50 £1.80
34 - SHIM BDE-C010.A0 C010 £1.50 £1.80
35 - CONTROL SCREW BDE-M034B.A3 M034B £1.50 £1.80
36 - MOUNT BDE-07BC-B01.A0 07BC-B01 £37.35 £44.82
37 - O RING BDE-07BC-X02.A0 07BC-X02 £1.50 £1.80
38 - LENS BDE-07BC-2.A1 07BC-2 £51.90 £62.28
39 - SCREW BDE-M2.5X8 GB819-85.A2 M2.5X8 GB819-85 £1.42 £1.70
40 - SCREW BDE-M2X5 GB71-85.A2 M2X5 GB71-85 £1.42 £1.70
41 - KNOB BDE-07BC-M10.A1 07BC-M10 £7.18 £8.62
42 - COVER BDE-07BC-X01.A1 07BC-X01 £1.82 £2.19
43 - CAP BDE-07BC-P01.A0 07BC-P01 £2.26 £2.71
45 - COVER BDE-07Z-P01.A0 07Z-P01 £1.50 £1.80
46 - GASKET BDE-07Z-X05.A1 07Z-X05 £1.50 £1.80
47 - SCREW BDE-M2.5X8 GB70-85.A3 M2.5X8 GB70-85 £1.42 £1.70
48 - PIN BDE-07Z-BZ04.A1 07Z-BZ04 £1.50 £1.80
50 - SHAFT BDE-M001B.A3 M001B £9.41 £11.29
51 - SCREW BDE-M5X12 GB70-85.A1 M5X12 GB70-85 £1.42 £1.70
52 - SCREW BDE-M2.5X8 GB71-85.A0 M2.5X8 GB71-85 £1.42 £1.70
53 - SHIM BDE-C007.A3 C007 £1.50 £1.80
54 - RING BDE-4-15.A3 4-15 £1.42 £1.70
56 - SCREW BDE-M4X4 GB73-85.A1 M4X4 GB73-85 £1.42 £1.70
57 - WHEEL ADJUSTER BDE-P021A.A1 P021A £5.88 £7.06
58 - COVER BDE-A002.A2 A002 £16.03 £19.24
59 - BUSHING BDE-C004.A1 C004 £1.50 £1.80
60 - SUPPORT BDE-M005.A2 M005 £1.50 £1.80
61 - BALL BDE-M004.A1 M004 £1.50 £1.80
62 - BASE BDE-07ZS-P03P.A1 07ZS-P03P £5.88 £7.06
63 - SCREW BDE-M4X8 GB823-88.A1 M4X8 GB823-88 £1.42 £1.70
64 - SUPPORT BDE-M007.A1 M007 £1.50 £1.80
65 - CIRCLIP BDE-GB89401-86.A1 GB89401-86 £1.50 £1.80
66 - BASE BDE-A004NB.A2 A004NB £38.80 £46.56
67 - BUSHING BDE-06BG-C01.A1 06BG-C01 £1.50 £1.80
68 - WASHER BDE-C005.A2 C005 £4.69 £5.63
69 - SCALE BDE-P008.A0 P008 £7.85 £9.42
70 - GEAR BDE-P010.A2 P010 £7.18 £8.62
71 - CIRCLIP BDE-GB894.1-86.A4 GB894.1-86 £1.50 £1.80
72 - BUSHING BDE-C001.A0 C001 £1.50 £1.80
81 - SCREW BDE-M2X4 GB818-85.A3 M2X4 GB818-85 £1.42 £1.70
82 - INDICATOR BDE-P002.A0 P002 £1.50 £1.80
84 - SCREW BDE-M2.5X4 GB818-85.A2 M2.5X4 GB818-85 £1.42 £1.70
