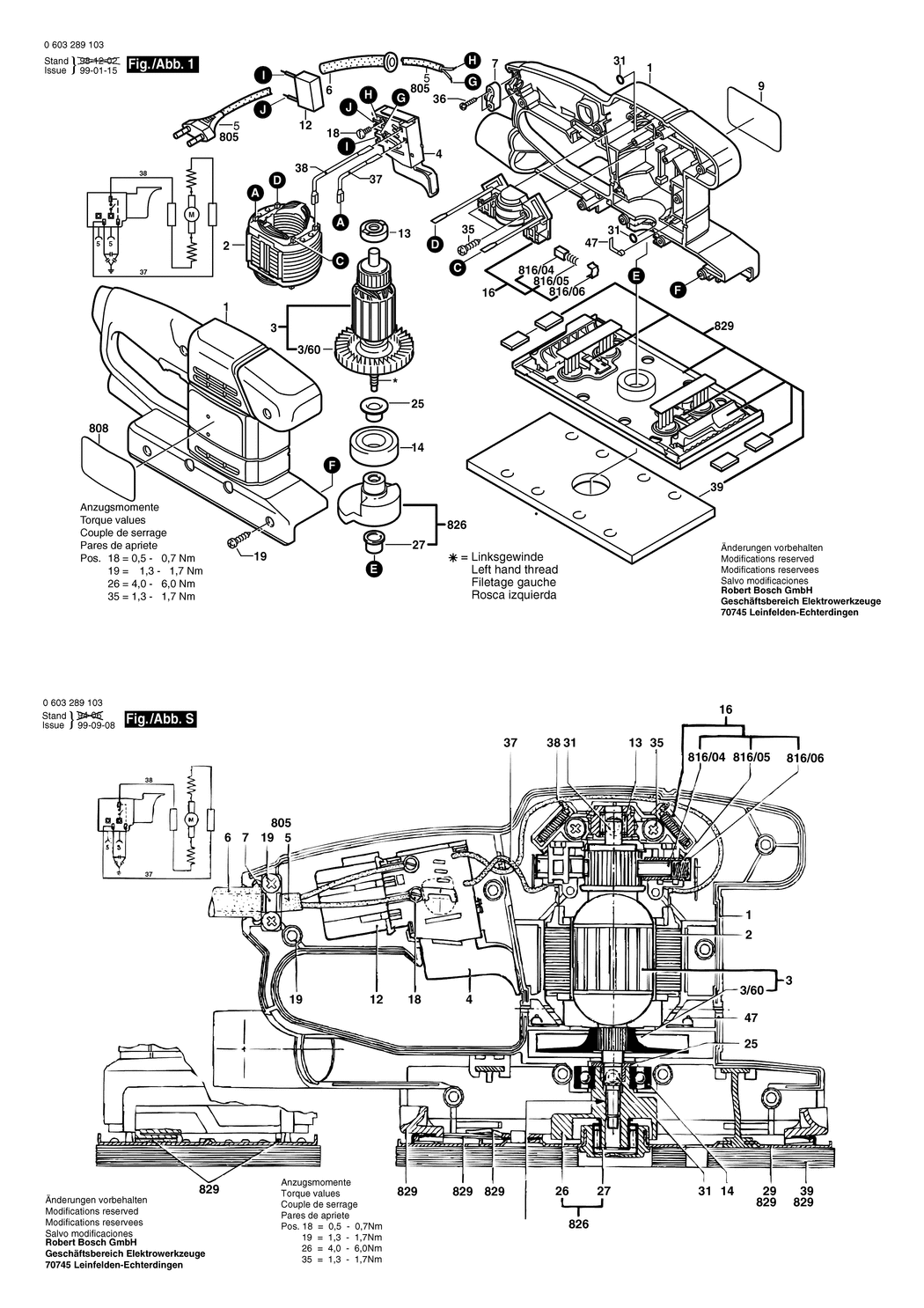

1 - HOUSING SECTION
BSD-2605104338.A12
2605104338
|
-
|
|
|
2 - FIELD 220-240V
BSD-2604220535.A4
2604220535
|
-
|
|
|
3 - ARMATURE 220-240V
BSD-2604011014.A4
2604011014
|
-
|
|
|
3/60 - FAN
BSD-2606610055.A17
2606610055
|
£4.26
|
£5.11
|
|
4 - SWITCH
BSD-2607200260.A52
2607200260
|
£11.30
|
£13.56
|
|
5 - POWER SUPPLY CORD I / BR 2.65m 2 x 1.0mm H05VV-F
BSD-2604460280.A2
2604460280
|
£14.91
|
£17.89
|
|
6 - GROMMET dia7 MM
BSD-2600703007.A103
2600703007
|
-
|
|
|
7 - CABLE CLIP
BSD-2601035004.A11
2601035004
|
£2.16
|
£2.59
|
|
9 - MANUFACTURER'S NAMEPLATE PSS 23
BSD-2601118644.A2
2601118644
|
-
|
|
|
12 - SUPPRESSION FILTER
BSD-1607328028.A691
1607328028
|
£5.30
|
£6.36
|
|
13 - CARTRIDGE BEARING
BSD-2605805005.A51
2605805005
|
£4.75
|
£5.70
|
|
14 - GROOVE BALL BEARING
BSD-2600905034.A4
2600905034
|
£13.12
|
£15.75
|
|
16 - BRUSH PLATE
BSD-2604337118.A19
2604337118
|
£23.86
|
£28.63
|
|
18 - SOCKET HEAD CAP SCREW M3x6.5-4.8
BSD-2603410001.A372
2603410001
|
£1.75
|
£2.10
|
|
19 - SCREW 4x16
BSD-2603490022.A1305
2603490022
|
£1.75
|
£2.10
|
|
25 - STOP SLEEVE
BSD-2600422004.A8
2600422004
|
£1.32
|
£1.58
|
|
27 - BEARING SLEEVE
BSD-2600590007.A13
2600590007
|
-
|
|
|
31 - O-RING 5.0x1.5 MM
BSD-1900210000.A456
1900210000
|
£1.75
|
£2.10
|
|
33 - RUBBER STRIP
BSD-2601006002.A7
2601006002
|
-
|
|
|
35 - TORX OVAL-HEAD SCREW 4x20
BSD-2603490023.A845
2603490023
|
£1.75
|
£2.10
|
|
36 - TORX OVAL-HEAD SCREW 4x12
BSD-2603490021.A238
2603490021
|
£1.75
|
£2.10
|
|
37 - CABLE L=103MM
BSD-2604448140.A86
2604448140
|
£1.32
|
£1.58
|
|
38 - CABLE L=233 MM
BSD-1614431010.A117
1614431010
|
£3.72
|
£4.47
|
|
39 - RUBBER PLATE
BSD-2602388010.A16
2602388010
|
-
|
|
|
47 - CONTACT SPRING
BSD-2601329057.A5
2601329057
|
-
|
|
|
808 - NAMEPLATE
BSD-2601119242.A0
2601119242
|
-
|
|
|
816/04 - CARBON-BRUSH SET
BSD-2604321917.A91
2604321917
|
-
|
|
|
816/05 - COMPRESSION SPRING
BSD-2604610026.A170
2604610026
|
£2.61
|
£3.13
|
|
816/06 - RATCHET CAP
BSD-2601322013.A13
2601322013
|
£1.75
|
£2.10
|
|
816/06 - RATCHET CAP
BSD-2601329051.A196
2601329051
|
£2.33
|
£2.80
|
|
826 - ECCENTRIC DISC
BSD-2602210907.A8
2602210907
|
-
|
|
|
829 - SWING-PLATE
BSD-2608000910.A15
2608000910
|
-
|
|
|
