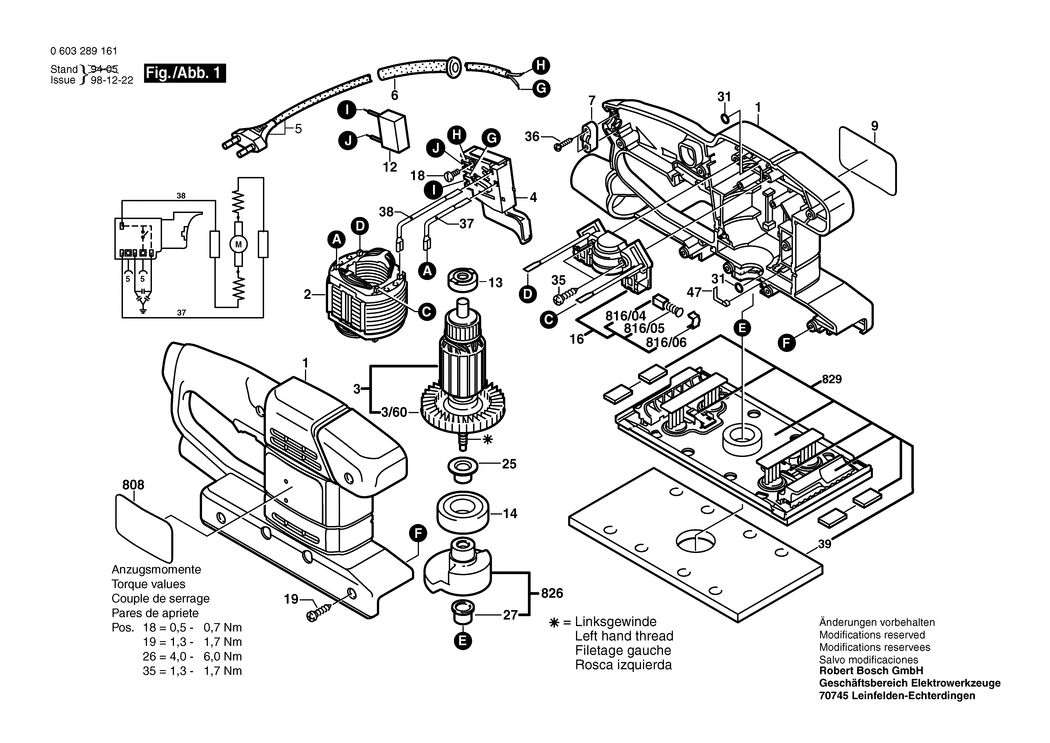

An exploded drawing and listing for the Bosch PSS 23 / 0603289161 / CH 230 Volt
Ex VAT Inc VAT
1 - HOUSING SECTION BSD-2605104414.A0 2605104414 -
2 - FIELD 220-240V BSD-2604220535.A1 2604220535 -
3 - ARMATURE 220-240V BSD-2604011014.A7 2604011014 -
3/60 - FAN BSD-2606610055.A22 2606610055 £4.26 £5.11
4 - SWITCH BSD-2607200260.A49 2607200260 £11.30 £13.56
5 - POWER SUPPLY CORD CH 2.65m 2 x 1.0mm H05VV-F BSD-2604460125.A3 2604460125 £8.49 £10.19
6 - GROMMET dia7 MM BSD-2600703007.A107 2600703007 -
7 - CABLE CLIP BSD-2601035004.A8 2601035004 £2.16 £2.59
9 - STICKER PSS 23 BSD-2601118350.A1 2601118350 -
12 - SUPPRESSION FILTER BSD-1607328028.A685 1607328028 £5.30 £6.36
13 - CARTRIDGE BEARING BSD-2605805005.A46 2605805005 -
14 - GROOVE BALL BEARING BSD-2600905034.A8 2600905034 £13.12 £15.75
16 - BRUSH PLATE BSD-2604337118.A15 2604337118 £23.86 £28.63
18 - SOCKET HEAD CAP SCREW M3x6.5-4.8 BSD-2603410001.A377 2603410001 £1.75 £2.10
19 - SCREW 4x16 BSD-2603490022.A1310 2603490022 £1.75 £2.10
25 - STOP SLEEVE BSD-2600422004.A11 2600422004 £1.32 £1.58
27 - BEARING SLEEVE BSD-2600590007.A10 2600590007 -
31 - O-RING 5.0x1.5 MM BSD-1900210000.A450 1900210000 £1.75 £2.10
33 - RUBBER STRIP BSD-2601006002.A10 2601006002 -
35 - TORX OVAL-HEAD SCREW 4x20 BSD-2603490023.A840 2603490023 £1.75 £2.10
36 - TORX OVAL-HEAD SCREW 4x12 BSD-2603490021.A233 2603490021 £1.75 £2.10
37 - CABLE L=103MM BSD-2604448140.A91 2604448140 £1.32 £1.58
38 - CABLE L=233 MM BSD-1614431010.A123 1614431010 £3.72 £4.47
39 - RUBBER PLATE BSD-2602388010.A11 2602388010 -
47 - CONTACT SPRING BSD-2601329057.A0 2601329057 -
808 - NAMEPLATE BSD-2601119243.A0 2601119243 -
816/04 - CARBON-BRUSH SET BSD-2604321917.A94 2604321917 -
816/05 - COMPRESSION SPRING BSD-2604610026.A177 2604610026 £2.61 £3.13
816/06 - RATCHET CAP BSD-2601322013.A12 2601322013 £1.75 £2.10
816/06 - RATCHET CAP BSD-2601329051.A197 2601329051 £2.33 £2.80
826 - ECCENTRIC DISC BSD-2602210907.A7 2602210907 -
829 - SWING-PLATE BSD-2608000910.A16 2608000910 -
