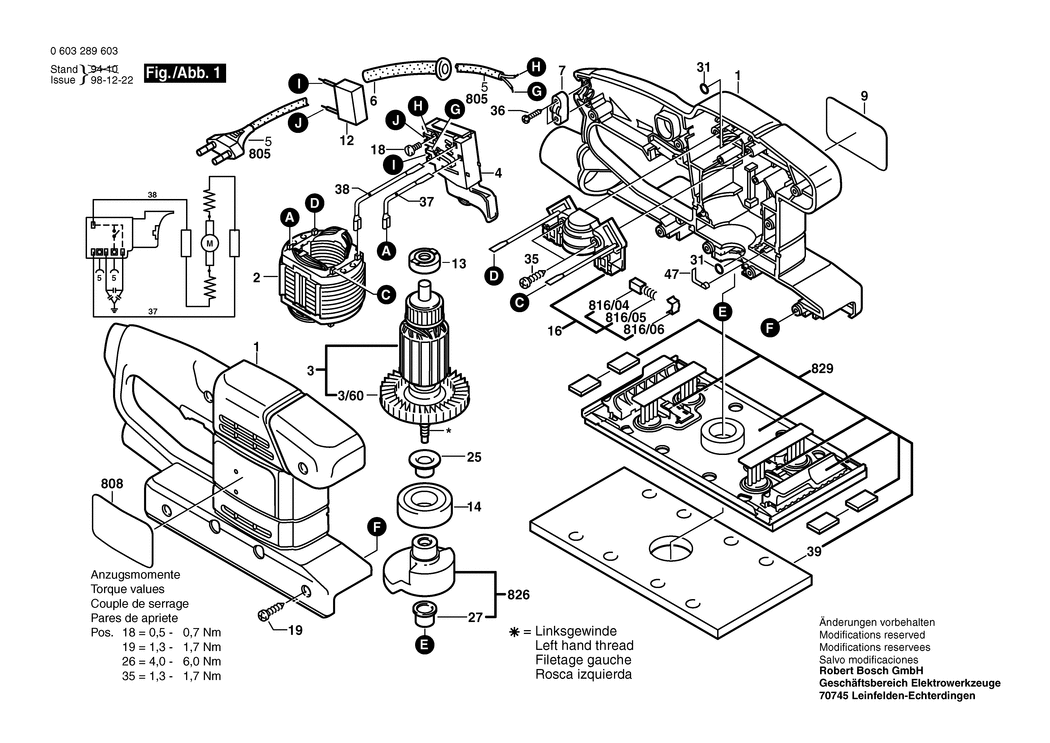

1 - HOUSING SECTION
BSD-2605104338.A15
2605104338
|
-
|
|
|
|
2 - FIELD 220-240V
BSD-2604220535.A0
2604220535
|
-
|
|
|
|
3 - ARMATURE 220-240V
BSD-2604011014.A0
2604011014
|
-
|
|
|
|
3/60 - FAN
BSD-2606610055.A23
2606610055
|
£4.26
|
£5.11
|
|
|
4 - ON-OFF SWITCH
BSD-2607200223.A4
2607200223
|
-
|
|
|
|
5 - POWER SUPPLY CORD GB 240V 2.65m 2 x 1.0mm H05 VV-F
BSD-2604460124.A54
2604460124
|
-
|
|
|
|
6 - GROMMET dia7 MM
BSD-2600703007.A114
2600703007
|
-
|
|
|
|
7 - CABLE CLIP
BSD-2601035004.A1
2601035004
|
£2.16
|
£2.59
|
|
|
9 - MANUFACTURER'S NAMEPLATE
BSD-2601118647.A1
2601118647
|
-
|
|
|
|
12 - SUPPRESSION CAPACITOR
BSD-2607328028.A0
2607328028
|
-
|
|
|
|
13 - CARTRIDGE BEARING
BSD-2605805005.A45
2605805005
|
£4.75
|
£5.70
|
|
|
14 - GROOVE BALL BEARING
BSD-2600905034.A15
2600905034
|
£13.12
|
£15.75
|
|
|
16 - BRUSH PLATE
BSD-2604337118.A14
2604337118
|
£23.86
|
£28.63
|
|
|
18 - SOCKET HEAD CAP SCREW M3x6.5-4.8
BSD-2603410001.A383
2603410001
|
£1.75
|
£2.10
|
|
|
19 - SCREW 4x16
BSD-2603490022.A1311
2603490022
|
£1.75
|
£2.10
|
|
|
25 - STOP SLEEVE
BSD-2600422004.A15
2600422004
|
£1.32
|
£1.58
|
|
|
27 - BEARING SLEEVE
BSD-2600590007.A1
2600590007
|
-
|
|
|
|
31 - O-RING 5.0x1.5 MM
BSD-1900210000.A459
1900210000
|
£1.75
|
£2.10
|
|
|
33 - RUBBER STRIP
BSD-2601006002.A19
2601006002
|
-
|
|
|
|
35 - TORX OVAL-HEAD SCREW 4x20
BSD-2603490023.A834
2603490023
|
£1.75
|
£2.10
|
|
|
36 - TORX OVAL-HEAD SCREW 4x12
BSD-2603490021.A227
2603490021
|
£1.75
|
£2.10
|
|
|
37 - CABLE L=103MM
BSD-2604448140.A81
2604448140
|
£1.32
|
£1.58
|
|
|
38 - CABLE L=233 MM
BSD-1614431010.A114
1614431010
|
£3.72
|
£4.47
|
|
|
39 - RUBBER PLATE
BSD-2602388010.A5
2602388010
|
-
|
|
|
|
47 - CONTACT SPRING
BSD-2601329057.A9
2601329057
|
-
|
|
|
|
808 - NAMEPLATE
BSD-2601119234.A0
2601119234
|
-
|
|
|
|
816/04 - CARBON-BRUSH SET
BSD-2604321917.A95
2604321917
|
-
|
|
|
|
816/05 - COMPRESSION SPRING
BSD-2604610026.A166
2604610026
|
£2.61
|
£3.13
|
|
|
816/06 - RATCHET CAP
BSD-2601322013.A19
2601322013
|
£1.75
|
£2.10
|
|
|
816/06 - RATCHET CAP
BSD-2601329051.A190
2601329051
|
£2.33
|
£2.80
|
|
|
826 - ECCENTRIC DISC
BSD-2602210907.A9
2602210907
|
-
|
|
|
|
829 - SWING-PLATE
BSD-2608000910.A10
2608000910
|
-
|
|
|
