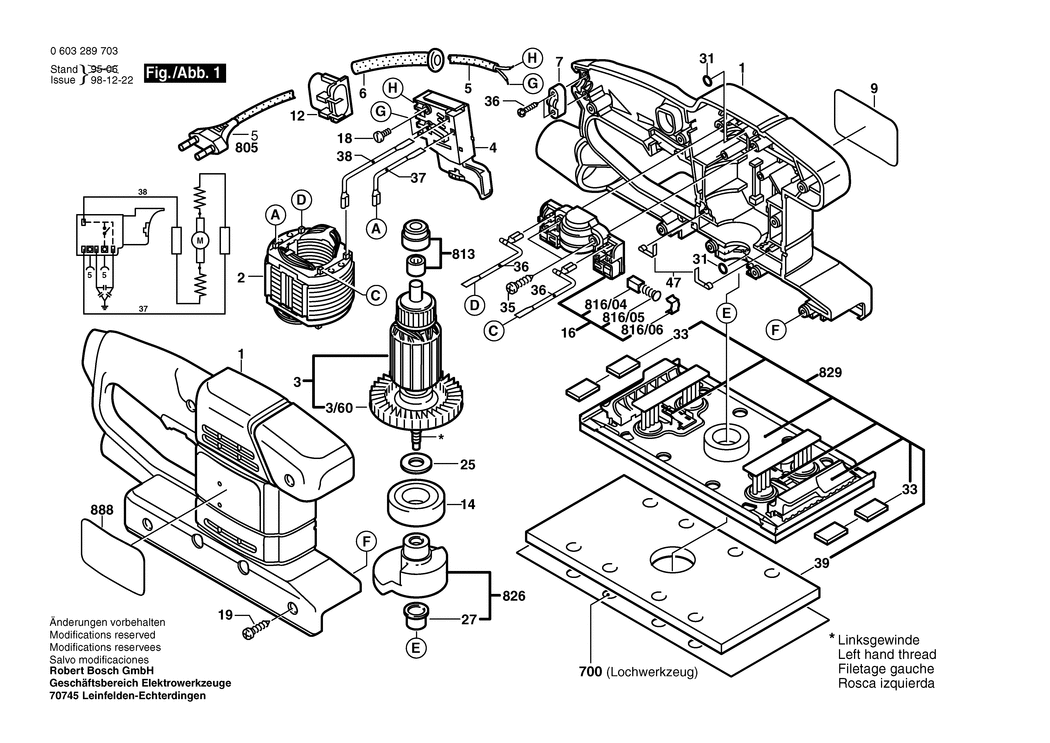

1 - HOUSING SECTION
BSD-2605104338.A17
2605104338
|
-
|
|
|
|
2 - FIELD 230-240V
BSD-2604220507.A23
2604220507
|
£14.75
|
£17.70
|
|
|
3 - ARMATURE 240V
BSD-2604010751.A10
2604010751
|
-
|
|
|
|
3/60 - FAN
BSD-2606610055.A26
2606610055
|
£4.26
|
£5.11
|
|
|
4 - ON-OFF SWITCH
BSD-2607200358.A27
2607200358
|
-
|
|
|
|
5 - POWER SUPPLY CORD I / BR 2.65m 2 x 1.0mm H05VV-F
BSD-2604460280.A3
2604460280
|
£14.91
|
£17.89
|
|
|
6 - GROMMET dia7 MM
BSD-2600703007.A109
2600703007
|
-
|
|
|
|
7 - CABLE CLIP
BSD-2601035004.A5
2601035004
|
£2.16
|
£2.59
|
|
|
9 - MANUFACTURER'S NAMEPLATE
BSD-2601118137.A1
2601118137
|
-
|
|
|
|
12 - SUPPRESSION CAPACITOR
BSD-2607329138.A109
2607329138
|
-
|
|
|
|
14 - GROOVE BALL BEARING
BSD-2600905034.A10
2600905034
|
£13.12
|
£15.75
|
|
|
16 - BRUSH PLATE
BSD-2604337118.A10
2604337118
|
£23.86
|
£28.63
|
|
|
18 - SOCKET HEAD CAP SCREW M3x6.5-4.8
BSD-2603410001.A379
2603410001
|
£1.75
|
£2.10
|
|
|
19 - TORX OVAL-HEAD SCREW 4x12
BSD-2603490021.A231
2603490021
|
£1.75
|
£2.10
|
|
|
25 - PLAIN WASHER DIN 315-M8-GT-C
BSD-2600100041.A56
2600100041
|
£1.75
|
£2.10
|
|
|
27 - BEARING SLEEVE
BSD-2600590007.A5
2600590007
|
-
|
|
|
|
31 - O-RING 5.0x1.5 MM
BSD-1900210000.A461
1900210000
|
£1.75
|
£2.10
|
|
|
33 - RUBBER STRIP
BSD-2601006002.A14
2601006002
|
-
|
|
|
|
35 - TORX OVAL-HEAD SCREW 4x20
BSD-2603490023.A839
2603490023
|
£1.75
|
£2.10
|
|
|
36 - CONNECTING CABLE L=115 MM
BSD-2604448109.A12
2604448109
|
£1.75
|
£2.10
|
|
|
37 - CABLE L=103MM
BSD-2604448140.A77
2604448140
|
£1.32
|
£1.58
|
|
|
38 - CABLE L=233 MM
BSD-1614431010.A112
1614431010
|
£3.72
|
£4.47
|
|
|
39 - RUBBER PLATE
BSD-2602388010.A9
2602388010
|
-
|
|
|
|
47 - CONTACT SPRING
BSD-2601329057.A14
2601329057
|
-
|
|
|
|
700 - PUNCHING TOOL
BSD-2608190016.A10
2608190016
|
£13.37
|
£16.04
|
|
|
701 - AIR HOSE dia 19 MM. 3/4. L= 3 M
BSD-2600793009.A7
2600793009
|
£30.82
|
£36.99
|
|
|
813 - NEEDLE BEARING
BSD-2600917902.A90
2600917902
|
-
|
|
|
|
816/04 - CARBON-BRUSH SET
BSD-2604321917.A99
2604321917
|
-
|
|
|
|
816/05 - COMPRESSION SPRING
BSD-2604610026.A168
2604610026
|
£2.61
|
£3.13
|
|
|
816/06 - RATCHET CAP
BSD-2601329051.A186
2601329051
|
£2.33
|
£2.80
|
|
|
816/06 - RATCHET CAP
BSD-2601322013.A23
2601322013
|
£1.75
|
£2.10
|
|
|
826 - ECCENTRIC DISC
BSD-2602210900.A5
2602210900
|
-
|
|
|
|
829 - SWING-PLATE
BSD-2608000910.A5
2608000910
|
-
|
|
|
|
888 - NAMEPLATE
BSD-2601118135.A0
2601118135
|
-
|
|
|
