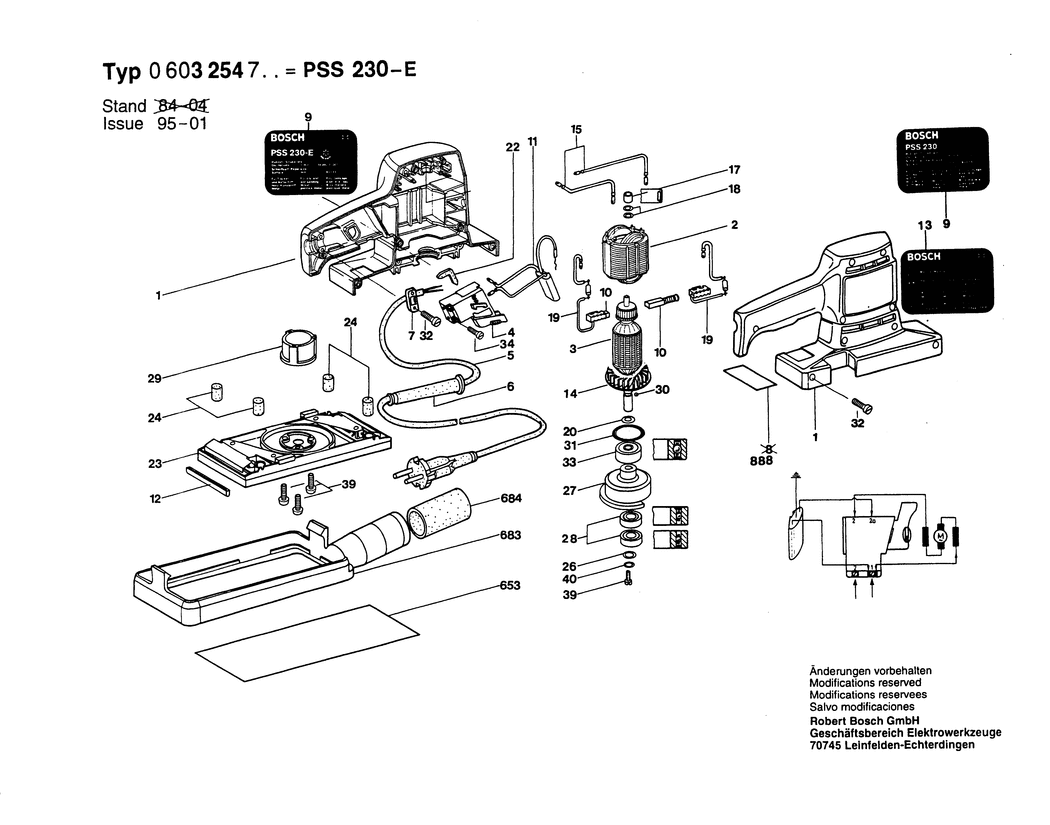

2 - FIELD 220-230V
BSD-1604220149.A7
1604220149
|
-
|
|
|
|
3 - ARMATURE 220-230V
BSD-1604010228.A8
1604010228
|
-
|
|
|
|
4 - ON-OFF SWITCH
BSD-2607200164.A3
2607200164
|
-
|
|
|
|
6 - GROMMET dia7 MM
BSD-2600703007.A305
2600703007
|
-
|
|
|
|
6 - GROMMET dia9.5 MM
BSD-2600703006.A61
2600703006
|
-
|
|
|
|
6 - GROMMET dia8.2 MM
BSD-2600703008.A27
2600703008
|
£1.75
|
£2.10
|
|
|
7 - CABLE CLIP
BSD-2601035001.A2139
2601035001
|
£1.75
|
£2.10
|
|
|
9 - STICKER
BSD-2601110648.A2
2601110648
|
-
|
|
|
|
11 - SUPPRESSION CAPACITOR
BSD-2607328004.A1
2607328004
|
-
|
|
|
|
12 - PRESSURE BAR
BSD-2605510008.A17
2605510008
|
-
|
|
|
|
13 - STICKER
BSD-2601110979.A1
2601110979
|
-
|
|
|
|
14 - FAN
BSD-2606610027.A125
2606610027
|
£2.80
|
£3.36
|
|
|
15 - CONNECTING CABLE L=184 MM
BSD-2604448001.A21
2604448001
|
£1.95
|
£2.34
|
|
|
16 - COMPRESSION SPRING
BSD-2604610009.A10
2604610009
|
-
|
|
|
|
17 - NEEDLE BEARING
BSD-2600910005.A42
2600910005
|
-
|
|
|
|
18 - O-RING 8.0x2.5 MM
BSD-1610210014.A189
1610210014
|
-
|
|
|
|
19 - CARB BRUSH HOLD W-SUPR
BSD-2604465081.A46
2604465081
|
-
|
|
|
|
20 - PLAIN WASHER DIN 315-M8-GT-C
BSD-2600100041.A173
2600100041
|
£1.75
|
£2.10
|
|
|
22 - DAMPING PLATE
BSD-2601022000.A299
2601022000
|
£1.75
|
£2.10
|
|
|
24 - ROUND RUBBER dia 11.3x23.5 MM
BSD-1603101018.A25
1603101018
|
-
|
|
|
|
26 - PLAIN WASHER
BSD-1600100020.A10
1600100020
|
-
|
|
|
|
27 - ECCENTRIC DISC
BSD-2602210009.A9
2602210009
|
-
|
|
|
|
28 - GROOVE BALL BEARING 12x28x8
BSD-2600905013.A53
2600905013
|
-
|
|
|
|
29 - BEARING FLANGE
BSD-2600501004.A6
2600501004
|
-
|
|
|
|
30 - BALL DIN 5401-3 MM-III-ST
BSD-1903230004.A388
1903230004
|
£2.16
|
£2.59
|
|
|
31 - O-RING 28x2.5 MM
BSD-1900210128.A42
1900210128
|
£2.61
|
£3.13
|
|
|
33 - GROOVE BALL BEARING 15x32x9
BSD-2600905068.A23
2600905068
|
£14.91
|
£17.89
|
|
|
34 - SOCKET HEAD CAP SCREW M3x6.5-4.8
BSD-2603410001.A1657
2603410001
|
£1.75
|
£2.10
|
|
|
38 - SCREW 4x16
BSD-2603490022.A1761
2603490022
|
£1.75
|
£2.10
|
|
|
39 - SOCKET HEAD CAP SCREW DIN 84-AM5x12-8.8
BSD-2910021154.A299
2910021154
|
£1.75
|
£2.10
|
|
|
40 - SPRING WASHER DIN 137-A5-FST
BSD-2916060006.A321
2916060006
|
£1.32
|
£1.58
|
|
|
41 - SPRING RETAINING RING DIN 472-28x1.2 MM
BSD-2916660011.A149
2916660011
|
£1.75
|
£2.10
|
|
|
653 - SANDING SHEET KORN 120
BSD-1608604140.A7
1608604140
|
-
|
|
|
|
683 - SUCTION FRAME
BSD-1605190018.A14
1605190018
|
-
|
|
|
|
801 - HOUSING SECTION
BSD-2605104997.A14
2605104997
|
-
|
|
|
|
805 - POWER SUPPLY CORD EU 230V 4.15m 2 x 1.0mm H05 RN-F
BSD-1607000386.A414
1607000386
|
£21.52
|
£25.83
|
|
|
810 - CARBON BRUSH
BSD-1604321900.A143
1604321900
|
-
|
|
|
|
823 - PARTS SET
BSD-1607000902.A8
1607000902
|
-
|
|
|
|
888 - NAMEPLATE
BSD-160111A3H3.A4535
160111A3H3
|
£2.61
|
£3.13
|
|
