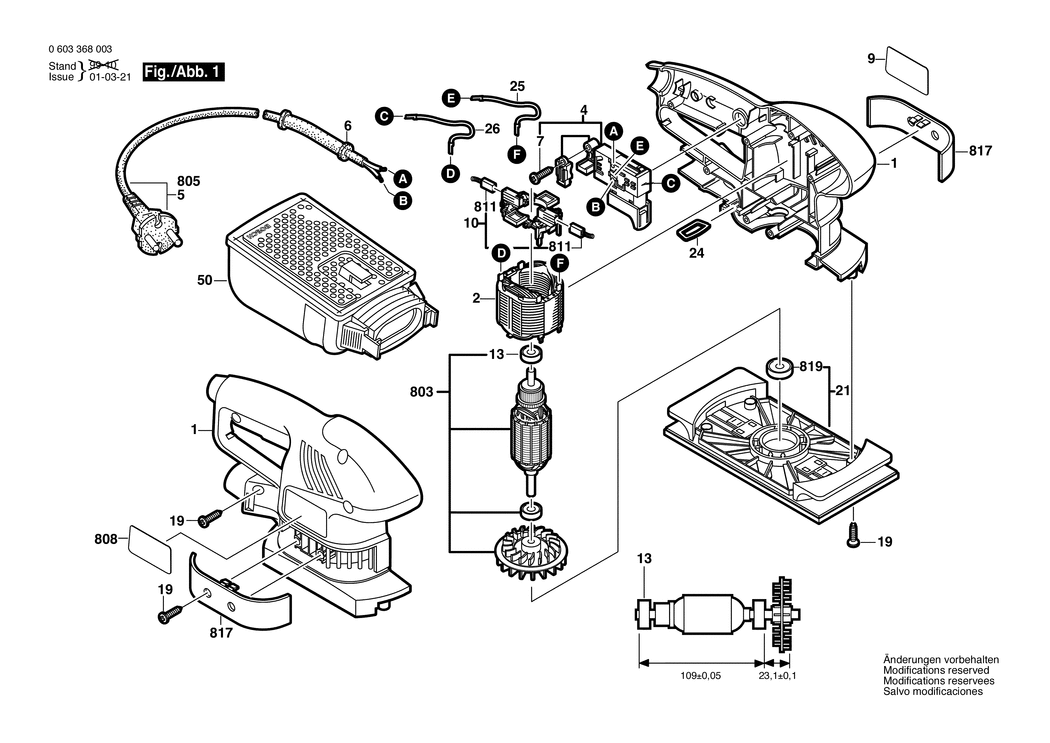

1 - HOUSING SECTION
BSD-2605104641.A5
2605104641
|
-
|
|
|
|
2 - FIELD 220-240V
BSD-2604220636.A10
2604220636
|
£18.96
|
£22.75
|
|
|
4 - SWITCH
BSD-2607200526.A38
2607200526
|
-
|
|
|
|
6 - GROMMET dia6.4-dia7.2x76 MM
BSD-2600703017.A489
2600703017
|
£2.61
|
£3.13
|
|
|
7 - TORX OVAL-HEAD SCREW 3x10
BSD-2603490017.A188
2603490017
|
£2.16
|
£2.59
|
|
|
9 - MANUFACTURER'S NAMEPLATE
BSD-2601119893.A2
2601119893
|
£3.72
|
£4.47
|
|
|
10 - BRUSH PLATE
BSD-2604337091.A9
2604337091
|
-
|
|
|
|
13 - GROOVE BALL BEARING
BSD-2600905078.A73
2600905078
|
£6.52
|
£7.83
|
|
|
19 - SCREW 4x16
BSD-2603490022.A2501
2603490022
|
£1.75
|
£2.10
|
|
|
21 - SANDER PLATE
BSD-2608000230.A9
2608000230
|
-
|
|
|
|
24 - SEAL RING
BSD-2600290039.A16
2600290039
|
£1.75
|
£2.10
|
|
|
25 - CONNECTING CABLE L=160 MM
BSD-2604448247.A4
2604448247
|
-
|
|
|
|
26 - CONNECTING CABLE L=63 MM
BSD-3604440527.A18
3604440527
|
£1.75
|
£2.10
|
|
|
28 - DAMPING RUBBER
BSD-2603100056.A68
2603100056
|
£1.75
|
£2.10
|
|
|
50 - DUST CONTAINER
BSD-2605411121.A17
2605411121
|
-
|
|
|
|
803 - ARMATURE 220-240V
BSD-2604010974.A6
2604010974
|
-
|
|
|
|
805 - POWER SUPPLY CORD CN 2.65m 2 x 0.75mm H05 W-F
BSD-1607000387.A6
1607000387
|
£11.30
|
£13.56
|
|
|
808 - NAMEPLATE
BSD-2601117150.A0
2601117150
|
-
|
|
|
|
811 - CARBON-BRUSH SET
BSD-2604321925.A103
2604321925
|
£8.67
|
£10.41
|
|
|
817 - COVER PANEL
BSD-2605500910.A25
2605500910
|
£5.01
|
£6.01
|
|
|
819 - GROOVE BALL BEARING 12x28x8
BSD-2600905045.A26
2600905045
|
£16.41
|
£19.69
|
|
