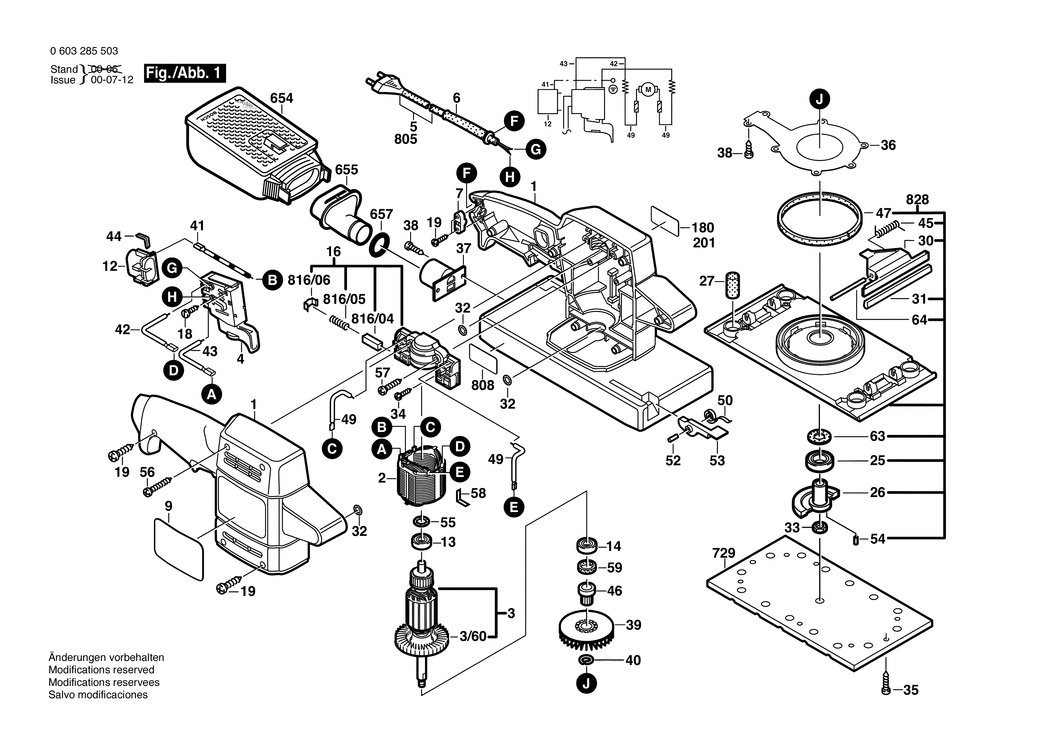

1 - MOTOR HOUSING
BSD-2605104542.A6
2605104542
|
-
|
|
|
|
2 - FIELD 220-240V
BSD-2604220476.A11
2604220476
|
-
|
|
|
|
3 - ARMATURE 230-240V
BSD-2604011057.A4
2604011057
|
-
|
|
|
|
3/60 - FAN
BSD-2606610062.A9
2606610062
|
-
|
|
|
|
4 - SWITCH
BSD-2607200222.A14
2607200222
|
-
|
|
|
|
6 - GROMMET dia7 MM
BSD-2600703007.A229
2600703007
|
-
|
|
|
|
7 - CABLE CLIP
BSD-2601035001.A2737
2601035001
|
£1.75
|
£2.10
|
|
|
9 - REFERENCE PLATE
BSD-2601117753.A0
2601117753
|
-
|
|
|
|
12 - SUPPRESSION FILTER
BSD-2607329114.A476
2607329114
|
-
|
|
|
|
13 - GROOVE BALL BEARING 7x19x6
BSD-1900905044.A68
1900905044
|
£7.36
|
£8.83
|
|
|
14 - GROOVE BALL BEARING 8x22x7
BSD-1900905041.A100
1900905041
|
£13.12
|
£15.75
|
|
|
16 - BRUSH PLATE
BSD-2609992604.A49
2609992604
|
-
|
|
|
|
18 - SOCKET HEAD CAP SCREW M3x6.5-4.8
BSD-2603410001.A2054
2603410001
|
£1.75
|
£2.10
|
|
|
19 - SCREW 4x16
BSD-2603490022.A2571
2603490022
|
£1.75
|
£2.10
|
|
|
25 - GROOVE BALL BEARING 15x32x9
BSD-2600905068.A11
2600905068
|
£14.91
|
£17.89
|
|
|
26 - ECCENTRIC DISC
BSD-2600499037.A11
2600499037
|
-
|
|
|
|
27 - ROUND RUBBER
BSD-2603100050.A16
2603100050
|
-
|
|
|
|
30 - TENSIONING LEVER
BSD-2601923007.A16
2601923007
|
£3.80
|
£4.56
|
|
|
31 - PRESSURE BAR
BSD-2601099030.A23
2601099030
|
-
|
|
|
|
32 - O-RING 5.0x1.5 MM
BSD-1900210000.A55
1900210000
|
£1.75
|
£2.10
|
|
|
33 - HEX NUT DIN 985-M6-8
BSD-2603300013.A2
2603300013
|
-
|
|
|
|
34 - TORX OVAL-HEAD SCREW 3x18
BSD-2603490018.A843
2603490018
|
£1.75
|
£2.10
|
|
|
35 - THREAD-FORMING TAP. SCREW M4x8
BSD-2603410048.A128
2603410048
|
£1.75
|
£2.10
|
|
|
36 - SHEET METAL COVER
BSD-2600034004.A20
2600034004
|
-
|
|
|
|
37 - FITTING
BSD-2605702018.A8
2605702018
|
-
|
|
|
|
38 - TORX OVAL-HEAD SCREW 4x8
BSD-2603490020.A64
2603490020
|
£1.75
|
£2.10
|
|
|
39 - FAN
BSD-2606610026.A38
2606610026
|
-
|
|
|
|
40 - SPRING LOCK WASHER DIN 127-A6-FST
BSD-2916680033.A5
2916680033
|
-
|
|
|
|
41 - EARTH CONDUCTOR
BSD-2604448097.A27
2604448097
|
£1.75
|
£2.10
|
|
|
42 - CABLE L=98 MM
BSD-2604448045.A269
2604448045
|
-
|
|
|
|
43 - CABLE L=249 MM
BSD-2604448057.A55
2604448057
|
£1.32
|
£1.58
|
|
|
44 - DAMPING PLATE
BSD-2601022000.A96
2601022000
|
£1.75
|
£2.10
|
|
|
45 - COILED SPRING
BSD-2604651008.A13
2604651008
|
-
|
|
|
|
46 - SPACER SLEEVE
BSD-2600320018.A7
2600320018
|
-
|
|
|
|
47 - FELT STRIP
BSD-2601005014.A7
2601005014
|
-
|
|
|
|
49 - CONNECTING CABLE L=115 MM
BSD-2604448109.A59
2604448109
|
£1.75
|
£2.10
|
|
|
50 - SPIRAL SPRING
BSD-1604652004.A99
1604652004
|
£2.61
|
£3.13
|
|
|
52 - SPLIT PIN
BSD-2604681001.A21
2604681001
|
-
|
|
|
|
53 - CONTROL LEVER
BSD-2602010000.A13
2602010000
|
-
|
|
|
|
54 - CYLINDRICAL ROLLER
BSD-2603200022.A9
2603200022
|
-
|
|
|
|
55 - O-RING 65.7x1.78 MM
BSD-2600210042.A11
2600210042
|
-
|
|
|
|
56 - TORX OVAL-HEAD SCREW 4x25
BSD-2603490024.A944
2603490024
|
£1.75
|
£2.10
|
|
|
57 - TORX OVAL-HEAD SCREW 4x20
BSD-2603490023.A302
2603490023
|
£1.75
|
£2.10
|
|
|
58 - CONTACT SPRING
BSD-2601329057.A166
2601329057
|
-
|
|
|
|
59 - SEAL RING
BSD-2600290029.A14
2600290029
|
-
|
|
|
|
64 - STRAIGHT PIN
BSD-2603201085.A17
2603201085
|
£1.75
|
£2.10
|
|
|
63 - SEAL RING
BSD-2600290028.A0
2600290028
|
-
|
|
|
|
654 - DUST CONTAINER
BSD-2605411121.A9
2605411121
|
-
|
|
|
|
655 - FITTING
BSD-2605702035.A2
2605702035
|
-
|
|
|
|
657 - O-RING 20.0x1.5 MM
BSD-1610210075.A64
1610210075
|
£2.61
|
£3.13
|
|
|
729 - SANDER PLATE
BSD-2608000106.A17
2608000106
|
-
|
|
|
|
729 - CLOSING PLATE
BSD-2608000107.A1
2608000107
|
-
|
|
|
|
805 - POWER SUPPLY CORD EU 2.65m 2 x 1.0mm H05 RN-F
BSD-1607000388.A246
1607000388
|
£12.04
|
£14.45
|
|
|
808 - NAMEPLATE
BSD-2601117774.A0
2601117774
|
-
|
|
|
|
816/04 - CARBON-BRUSH SET
BSD-2607014001.A52
2607014001
|
-
|
|
|
|
816/05 - COMPRESSION SPRING
BSD-2604610026.A126
2604610026
|
£2.61
|
£3.13
|
|
|
816/06 - RATCHET CAP
BSD-2601322013.A410
2601322013
|
£1.75
|
£2.10
|
|
|
828 - SWING-PLATE
BSD-2608000916.A10
2608000916
|
£51.22
|
£61.47
|
|
