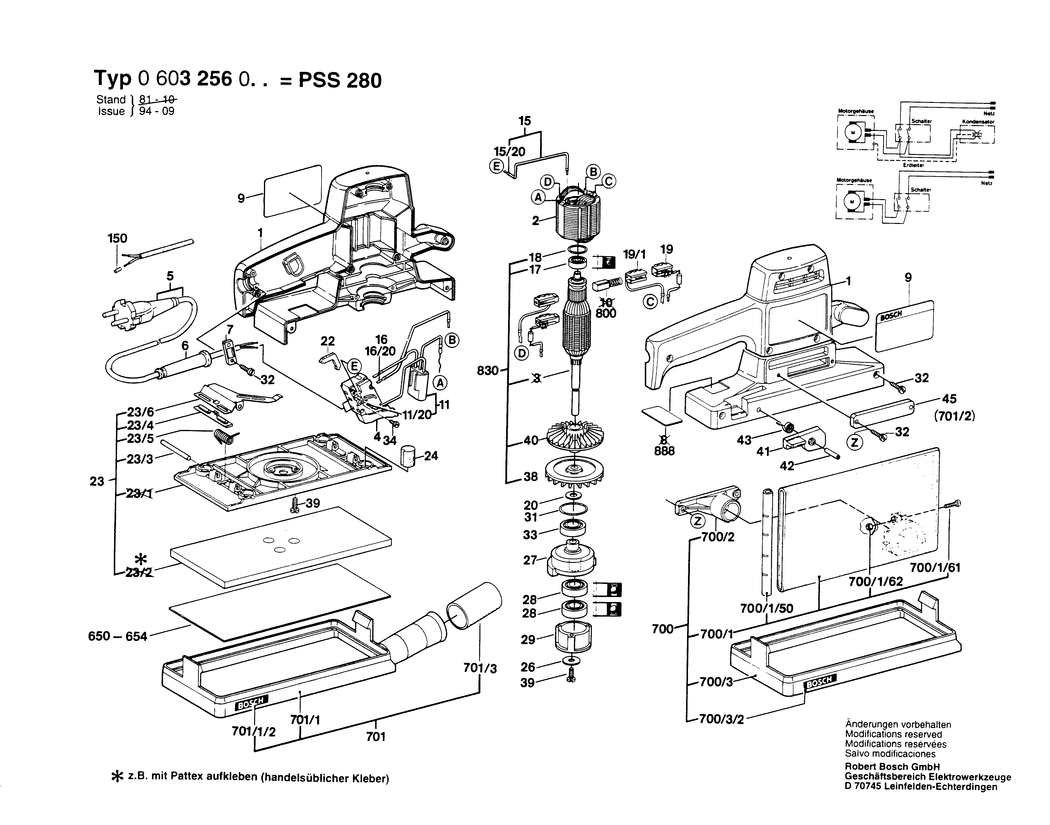

1 - HOUSING SECTION
BSD-2605104971.A0
2605104971
|
-
|
|
|
|
2 - POLE SHOE 110-115V
BSD-1604220209.A0
1604220209
|
-
|
|
|
|
4 - SWITCH
BSD-2607200260.A381
2607200260
|
£11.30
|
£13.56
|
|
|
4 - SWITCH
BSD-2607200084.A72
2607200084
|
£10.10
|
£12.12
|
|
|
5 - POWER SUPPLY CORD GB 110V 2.65m 2 x 1.0mm H05 VV-F
BSD-2604460205.A87
2604460205
|
£27.23
|
£32.68
|
|
|
6 - GROMMET dia6.4-dia7.5x75 MM
BSD-1600703016.A135
1600703016
|
£1.75
|
£2.10
|
|
|
6 - GROMMET dia9.5 MM
BSD-2600703006.A79
2600703006
|
-
|
|
|
|
7 - CABLE CLIP
BSD-2601035001.A2165
2601035001
|
£1.75
|
£2.10
|
|
|
9 - STICKER
BSD-2601110603.A1
2601110603
|
-
|
|
|
|
11 - SUPPRESSION CAPACITOR
BSD-2607329095.A26
2607329095
|
-
|
|
|
|
11/20 - BLADE TERMINAL
BSD-2601355007.A106
2601355007
|
-
|
|
|
|
15 - CONNECTING CABLE L=184 MM
BSD-2604448001.A30
2604448001
|
£1.95
|
£2.34
|
|
|
15/20 - BLADE TERMINAL
BSD-2601355007.A104
2601355007
|
-
|
|
|
|
16 - CABLE L=233 MM
BSD-1614431010.A52
1614431010
|
£3.72
|
£4.47
|
|
|
16/20 - BLADE TERMINAL
BSD-2601355007.A105
2601355007
|
-
|
|
|
|
17 - BALL BEARING 7x22x7
BSD-1900905018.A36
1900905018
|
£18.96
|
£22.75
|
|
|
17 - BALL BEARING
BSD-2600905027.A9
2600905027
|
-
|
|
|
|
18 - O-RING 20x2.5 MM
BSD-1900210119.A39
1900210119
|
-
|
|
|
|
19 - SUPPRESSION FILTER
BSD-2604465054.A43
2604465054
|
-
|
|
|
|
20 - PLAIN WASHER DIN 315-M8-GT-C
BSD-2600100041.A145
2600100041
|
£1.75
|
£2.10
|
|
|
22 - DAMPING PLATE
BSD-2601022000.A318
2601022000
|
£1.75
|
£2.10
|
|
|
23 - BASE PLATE
BSD-1601038029.A6
1601038029
|
-
|
|
|
|
23/3 - STRAIGHT PIN
BSD-2603101029.A7
2603101029
|
-
|
|
|
|
23/4 - PRESSURE BAR
BSD-2602329022.A9
2602329022
|
-
|
|
|
|
23/5 - COMPRESSION SPRING
BSD-1604651004.A32
1604651004
|
-
|
|
|
|
23/6 - CLAMPING LEVER
BSD-2601961000.A8
2601961000
|
-
|
|
|
|
24 - ROUND RUBBER
BSD-1603106001.A2
1603106001
|
-
|
|
|
|
26 - PLAIN WASHER
BSD-1600100025.A2
1600100025
|
-
|
|
|
|
27 - ECCENTRIC DISC
BSD-1602210015.A10
1602210015
|
-
|
|
|
|
28 - GROOVE BALL BEARING 15x32x9
BSD-1900905122.A108
1900905122
|
£10.10
|
£12.12
|
|
|
29 - BEARING FLANGE
BSD-1600501066.A15
1600501066
|
-
|
|
|
|
31 - O-RING 28x2.5 MM
BSD-1900210128.A11
1900210128
|
£2.61
|
£3.13
|
|
|
32 - TAPPING SCREW DIN 7981-ST3.9x16-C-H
BSD-2910611019.A455
2910611019
|
£2.80
|
£3.36
|
|
|
32 - TAPPING SCREW DIN 7981-3.9x19-C-Z-ST
BSD-2912401020.A209
2912401020
|
£2.16
|
£2.59
|
|
|
32 - TAPPING SCREW DIN 7981-ST3.9x16-C-H
BSD-2910611019.A454
2910611019
|
£2.80
|
£3.36
|
|
|
33 - GROOVE BALL BEARING 15x32x9
BSD-1900905162.A101
1900905162
|
£18.96
|
£22.75
|
|
|
34 - SOCKET HEAD CAP SCREW M3x6.5-4.8
BSD-2603410001.A1677
2603410001
|
£1.75
|
£2.10
|
|
|
38 - FAN
BSD-1606610117.A17
1606610117
|
-
|
|
|
|
39 - SOCKET HEAD CAP SCREW DIN 84-AM5x12-8.8
BSD-2910021154.A284
2910021154
|
£1.75
|
£2.10
|
|
|
40 - FAN
BSD-1606610118.A0
1606610118
|
-
|
|
|
|
41 - CONTROL LEVER
BSD-1602099001.A7
1602099001
|
-
|
|
|
|
42 - SPLIT PIN
BSD-2604681000.A9
2604681000
|
-
|
|
|
|
43 - SPIRAL SPRING
BSD-1604652004.A15
1604652004
|
£2.61
|
£3.13
|
|
|
45 - SEALING CAP
BSD-1605500115.A17
1605500115
|
-
|
|
|
|
150 - END SPLICE DIN 46 228-A1-6
BSD-1900452012.A297
1900452012
|
£1.75
|
£2.10
|
|
|
700 - SUCTION FRAME
BSD-1607000130.A6
1607000130
|
-
|
|
|
|
700/1 - DUST BAG
BSD-2605411900.A8
2605411900
|
£22.74
|
£27.29
|
|
|
700/1/50 - SUPPORT CLAMP
BSD-2601314002.A24
2601314002
|
-
|
|
|
|
700/1/61 - SOCKET HEAD CAP SCREW DIN 84-AM4x18-8.8
BSD-2910021128.A108
2910021128
|
-
|
|
|
|
700/1/62 - HEX NUT DIN 439-BM 4-04
BSD-2915051104.A46
2915051104
|
-
|
|
|
|
700/2 - FLANGED FITTING
BSD-1605702006.A5
1605702006
|
-
|
|
|
|
700/3 - SUCTION FRAME
BSD-1605190026.A14
1605190026
|
-
|
|
|
|
700/3/2 - MANUFACTURER'S NAMEPLATE
BSD-1601110013.A246
1601110013
|
-
|
|
|
|
701 - SUCTION FRAME
BSD-1607000131.A4
1607000131
|
-
|
|
|
|
701 - SUCTION FRAME
BSD-1605190027.A3
1605190027
|
-
|
|
|
|
701/1 - SEALING CAP
BSD-1605500115.A6
1605500115
|
-
|
|
|
|
701/1/2 - MANUFACTURER'S NAMEPLATE
BSD-1601110013.A247
1601110013
|
-
|
|
|
|
800 - CARBON-BRUSH SET
BSD-1607014124.A9
1607014124
|
-
|
|
|
|
830 - ARMATURE 110-115V
BSD-1604010234.A3
1604010234
|
-
|
|
|
|
888 - NAMEPLATE
BSD-160111A3H3.A4481
160111A3H3
|
£2.61
|
£3.13
|
|
