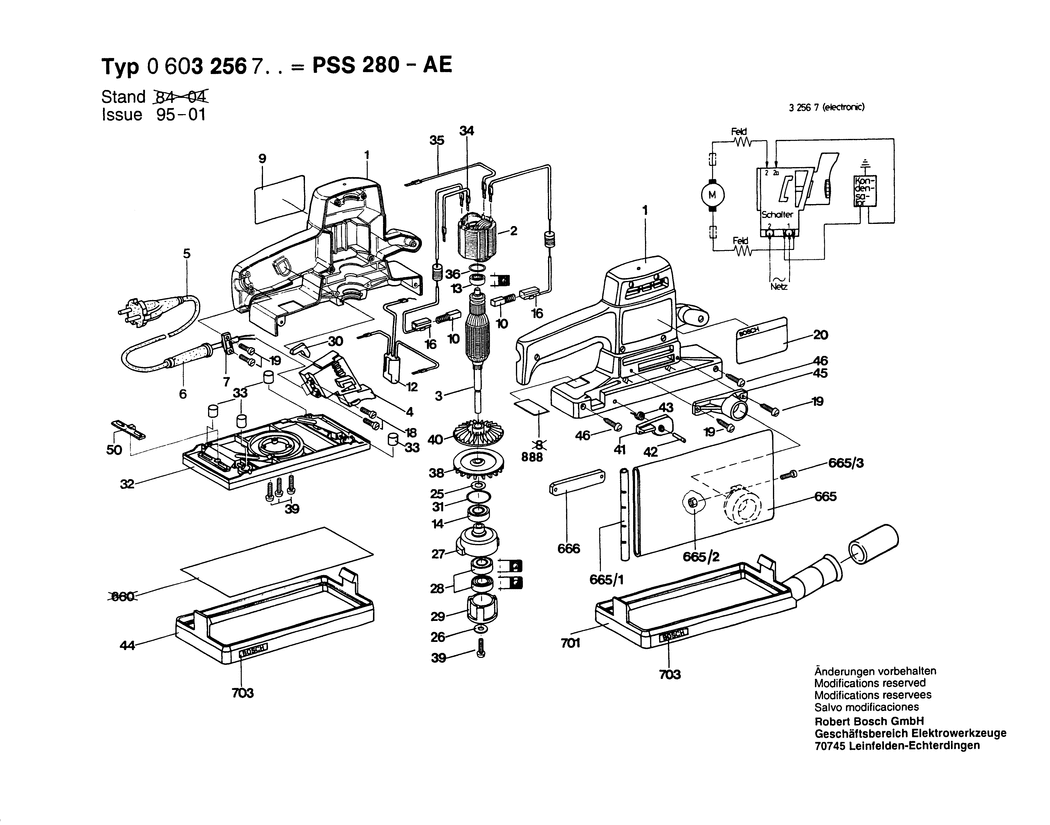

1 - HOUSING SECTION
BSD-2605104970.A5
2605104970
|
-
|
|
|
|
2 - FIELD 220V
BSD-1604220207.A3
1604220207
|
-
|
|
|
|
3 - ARMATURE 220V
BSD-1604010232.A4
1604010232
|
-
|
|
|
|
4 - ON-OFF SWITCH
BSD-2607200164.A6
2607200164
|
-
|
|
|
|
5 - POWER SUPPLY CORD CH 2.65m 2 x 1.0mm H05 VV-F
BSD-1604460427.A73
1604460427
|
£12.04
|
£14.45
|
|
|
6 - GROMMET dia6.4-dia7.5x75 MM
BSD-1600703016.A141
1600703016
|
£1.75
|
£2.10
|
|
|
6 - GROMMET dia9.5 MM
BSD-2600703006.A86
2600703006
|
-
|
|
|
|
6 - GROMMET dia8.2 MM
BSD-2600703008.A34
2600703008
|
£1.75
|
£2.10
|
|
|
7 - CABLE CLIP
BSD-2601035001.A2161
2601035001
|
£1.75
|
£2.10
|
|
|
9 - STICKER
BSD-2601110649.A2
2601110649
|
-
|
|
|
|
12 - SUPPRESSION CAPACITOR
BSD-2607329108.A43
2607329108
|
-
|
|
|
|
13 - BALL BEARING
BSD-2600905027.A15
2600905027
|
-
|
|
|
|
14 - GROOVE BALL BEARING 15x32x9
BSD-1900905162.A96
1900905162
|
£18.96
|
£22.75
|
|
|
16 - SUPPRESSION FILTER
BSD-2604465054.A48
2604465054
|
-
|
|
|
|
16 - CARBON BRUSH
BSD-1607014117.A107
1607014117
|
£10.10
|
£12.12
|
|
|
18 - SOCKET HEAD CAP SCREW M3x6.5-4.8
BSD-2603410001.A1694
2603410001
|
£1.75
|
£2.10
|
|
|
19 - TAPPING SCREW DIN 7981-ST3.9x16-C-H
BSD-2910611019.A461
2910611019
|
£2.80
|
£3.36
|
|
|
20 - STICKER
BSD-2601110651.A1
2601110651
|
-
|
|
|
|
25 - PLAIN WASHER DIN 315-M8-GT-C
BSD-2600100041.A150
2600100041
|
£1.75
|
£2.10
|
|
|
26 - PLAIN WASHER
BSD-1600100025.A8
1600100025
|
-
|
|
|
|
27 - ECCENTRIC DISC
BSD-1602210015.A4
1602210015
|
-
|
|
|
|
28 - GROOVE BALL BEARING 15x32x9
BSD-1900905122.A113
1900905122
|
£10.10
|
£12.12
|
|
|
29 - BEARING FLANGE
BSD-1600501066.A9
1600501066
|
-
|
|
|
|
30 - DAMPING PLATE
BSD-2601022000.A324
2601022000
|
£1.75
|
£2.10
|
|
|
31 - O-RING 28x2.5 MM
BSD-1900210128.A21
1900210128
|
£2.61
|
£3.13
|
|
|
32 - BASE PLATE
BSD-1601038029.A12
1601038029
|
-
|
|
|
|
33 - ROUND RUBBER
BSD-1603106001.A8
1603106001
|
-
|
|
|
|
34 - CONNECTING CABLE L=184 MM
BSD-2604448001.A31
2604448001
|
£1.95
|
£2.34
|
|
|
35 - CABLE L=233 MM
BSD-1614431010.A62
1614431010
|
£3.72
|
£4.47
|
|
|
36 - O-RING 20x2.5 MM
BSD-1900210119.A29
1900210119
|
-
|
|
|
|
38 - FAN
BSD-1606610117.A13
1606610117
|
-
|
|
|
|
39 - SOCKET HEAD CAP SCREW DIN 84-AM5x12-8.8
BSD-2910021154.A279
2910021154
|
£1.75
|
£2.10
|
|
|
40 - FAN
BSD-1606610118.A4
1606610118
|
-
|
|
|
|
41 - CONTROL LEVER
BSD-1602099001.A13
1602099001
|
-
|
|
|
|
42 - SPLIT PIN
BSD-2604681000.A18
2604681000
|
-
|
|
|
|
43 - SPIRAL SPRING
BSD-1604652004.A26
1604652004
|
£2.61
|
£3.13
|
|
|
44 - SUCTION FRAME
BSD-1605190026.A6
1605190026
|
-
|
|
|
|
45 - FLANGED FITTING
BSD-1605702006.A9
1605702006
|
-
|
|
|
|
46 - TAPPING SCREW DIN 7981-3.9x19-C-Z-ST
BSD-2912401020.A205
2912401020
|
£2.16
|
£2.59
|
|
|
50 - PRESSURE BAR
BSD-2602329022.A19
2602329022
|
-
|
|
|
|
665 - DUST BAG
BSD-2605411900.A14
2605411900
|
£22.74
|
£27.29
|
|
|
665/1 - SUPPORT CLAMP
BSD-2601314002.A13
2601314002
|
-
|
|
|
|
665/2 - HEX NUT DIN 439-BM 4-04
BSD-2915051104.A51
2915051104
|
-
|
|
|
|
665/3 - SOCKET HEAD CAP SCREW DIN 84-AM4x18-5.8
BSD-2910011128.A86
2910011128
|
£1.75
|
£2.10
|
|
|
666 - SEALING CAP
BSD-1605500115.A11
1605500115
|
-
|
|
|
|
701 - SUCTION FRAME
BSD-1607000131.A9
1607000131
|
-
|
|
|
|
703 - MANUFACTURER'S NAMEPLATE
BSD-1601110013.A256
1601110013
|
-
|
|
|
|
810 - CARBON-BRUSH SET
BSD-1607014124.A1
1607014124
|
-
|
|
|
|
835 - POWER SUPPLY CORD EU 230V 4.15m 2 x 1.0mm H05 RN-F
BSD-1607000386.A423
1607000386
|
£21.52
|
£25.83
|
|
|
888 - NAMEPLATE
BSD-160111A3H3.A4475
160111A3H3
|
£2.61
|
£3.13
|
|
