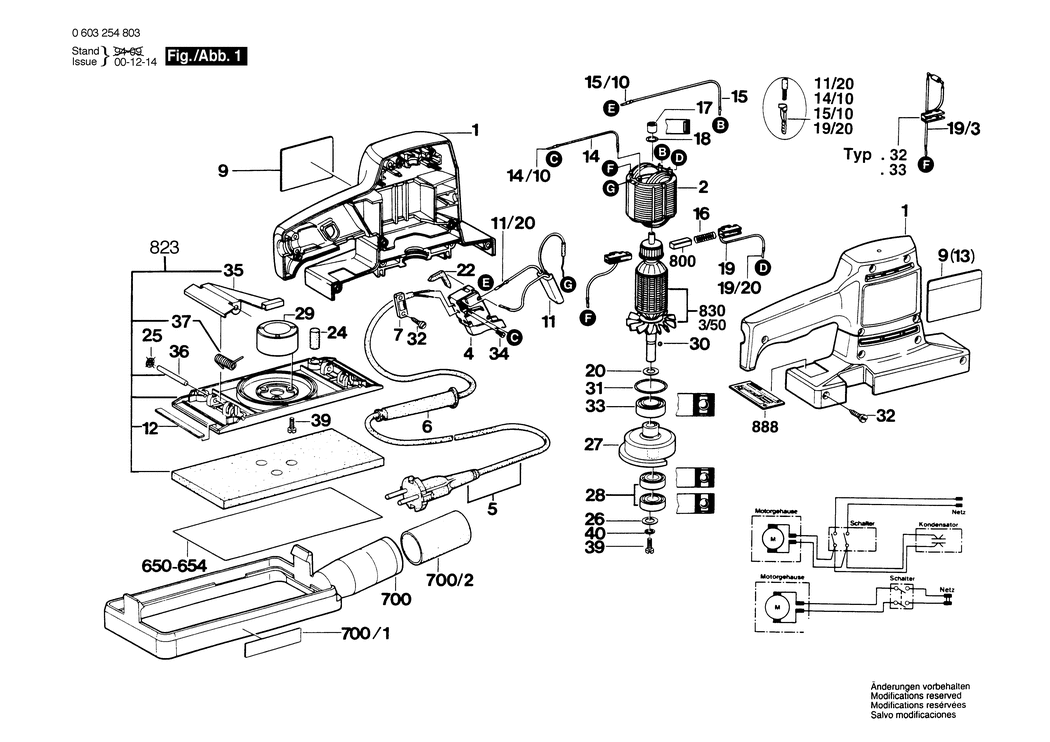

1 - HOUSING SECTION
BSD-2605104997.A12
2605104997
|
-
|
|
|
|
2 - FIELD 220-230V
BSD-1604220149.A12
1604220149
|
-
|
|
|
|
3/50 - FAN
BSD-2606610027.A124
2606610027
|
£2.80
|
£3.36
|
|
|
4 - SWITCH
BSD-2607200260.A368
2607200260
|
£11.30
|
£13.56
|
|
|
4 - SWITCH
BSD-2607200084.A88
2607200084
|
£10.10
|
£12.12
|
|
|
5 - POWER SUPPLY CORD EU 4.15m 2 x 1.0mm H07 RN-F
BSD-1607000227.A656
1607000227
|
£23.86
|
£28.63
|
|
|
6 - GROMMET dia7 MM
BSD-2600703007.A308
2600703007
|
-
|
|
|
|
6 - GROMMET dia9.5 MM
BSD-2600703006.A58
2600703006
|
-
|
|
|
|
6 - GROMMET dia8.2 MM
BSD-2600703008.A24
2600703008
|
£1.75
|
£2.10
|
|
|
7 - CABLE CLIP
BSD-2601035001.A2145
2601035001
|
£1.75
|
£2.10
|
|
|
9 - STICKER
BSD-2601110980.A2
2601110980
|
-
|
|
|
|
11 - SUPPRESSION FILTER
BSD-1607328028.A286
1607328028
|
£5.30
|
£6.36
|
|
|
12 - PRESSURE BAR
BSD-2605510008.A18
2605510008
|
-
|
|
|
|
13 - STICKER
BSD-2601110981.A0
2601110981
|
-
|
|
|
|
15 - CONNECTING CABLE L=184 MM
BSD-2604448001.A9
2604448001
|
£1.95
|
£2.34
|
|
|
16 - COMPRESSION SPRING
BSD-2604610009.A15
2604610009
|
-
|
|
|
|
17 - NEEDLE BEARING
BSD-2600910005.A49
2600910005
|
-
|
|
|
|
18 - O-RING 8.0x2.5 MM
BSD-1610210014.A184
1610210014
|
-
|
|
|
|
19 - CARB BRUSH HOLD W-SUPR
BSD-2604465081.A41
2604465081
|
-
|
|
|
|
20 - PLAIN WASHER DIN 315-M8-GT-C
BSD-2600100041.A170
2600100041
|
£1.75
|
£2.10
|
|
|
22 - DAMPING PLATE
BSD-2601022000.A292
2601022000
|
£1.75
|
£2.10
|
|
|
24 - ROUND RUBBER dia 11.3x23.5 MM
BSD-1603101018.A30
1603101018
|
-
|
|
|
|
26 - PLAIN WASHER
BSD-1600100020.A18
1600100020
|
-
|
|
|
|
27 - ECCENTRIC DISC
BSD-2602210009.A21
2602210009
|
-
|
|
|
|
27 - ECCENTRIC DISC
BSD-1602210012.A0
1602210012
|
-
|
|
|
|
28 - GROOVE BALL BEARING 12x28x8
BSD-2600905013.A56
2600905013
|
-
|
|
|
|
29 - BEARING FLANGE
BSD-2600501004.A8
2600501004
|
-
|
|
|
|
30 - BALL DIN 5401-3 MM-III-ST
BSD-1903230004.A391
1903230004
|
£2.16
|
£2.59
|
|
|
31 - O-RING 28x2.5 MM
BSD-1900210128.A46
1900210128
|
£2.61
|
£3.13
|
|
|
33 - GROOVE BALL BEARING 15x32x9
BSD-1900905122.A102
1900905122
|
£10.10
|
£12.12
|
|
|
34 - SOCKET HEAD CAP SCREW M3x6.5-4.8
BSD-2603410001.A1645
2603410001
|
£1.75
|
£2.10
|
|
|
35 - CLAMPING SADDLE
BSD-1601329009.A13
1601329009
|
-
|
|
|
|
36 - STRAIGHT PIN
BSD-1603201023.A13
1603201023
|
-
|
|
|
|
37 - COMPRESSION SPRING
BSD-1604651004.A9
1604651004
|
-
|
|
|
|
38 - SCREW 4x16
BSD-2603490022.A1773
2603490022
|
£1.75
|
£2.10
|
|
|
39 - SOCKET HEAD CAP SCREW DIN 84-AM5x12-8.8
BSD-2910021154.A305
2910021154
|
£1.75
|
£2.10
|
|
|
40 - SPRING WASHER DIN 137-A5-FST
BSD-2916060006.A333
2916060006
|
£1.32
|
£1.58
|
|
|
41 - SPRING RETAINING RING DIN 472-28x1.2 MM
BSD-2916660011.A137
2916660011
|
£1.75
|
£2.10
|
|
|
700 - SUCTION FRAME
BSD-1605190018.A6
1605190018
|
-
|
|
|
|
810 - CARBON BRUSH
BSD-1604321900.A152
1604321900
|
-
|
|
|
|
823 - PARTS SET
BSD-1607000902.A20
1607000902
|
-
|
|
|
|
830 - ARMATURE 220-230V
BSD-1604010228.A11
1604010228
|
-
|
|
|
|
888 - NAMEPLATE
BSD-160111A3H3.A4527
160111A3H3
|
£2.61
|
£3.13
|
|
