Fein FMM 250 Q (50/60Hz 110/120V) / 72293724110 Spare Parts

Fein FMM 250 Q ⡐/60Hz 110/120V) / 72293724110 Spare Parts

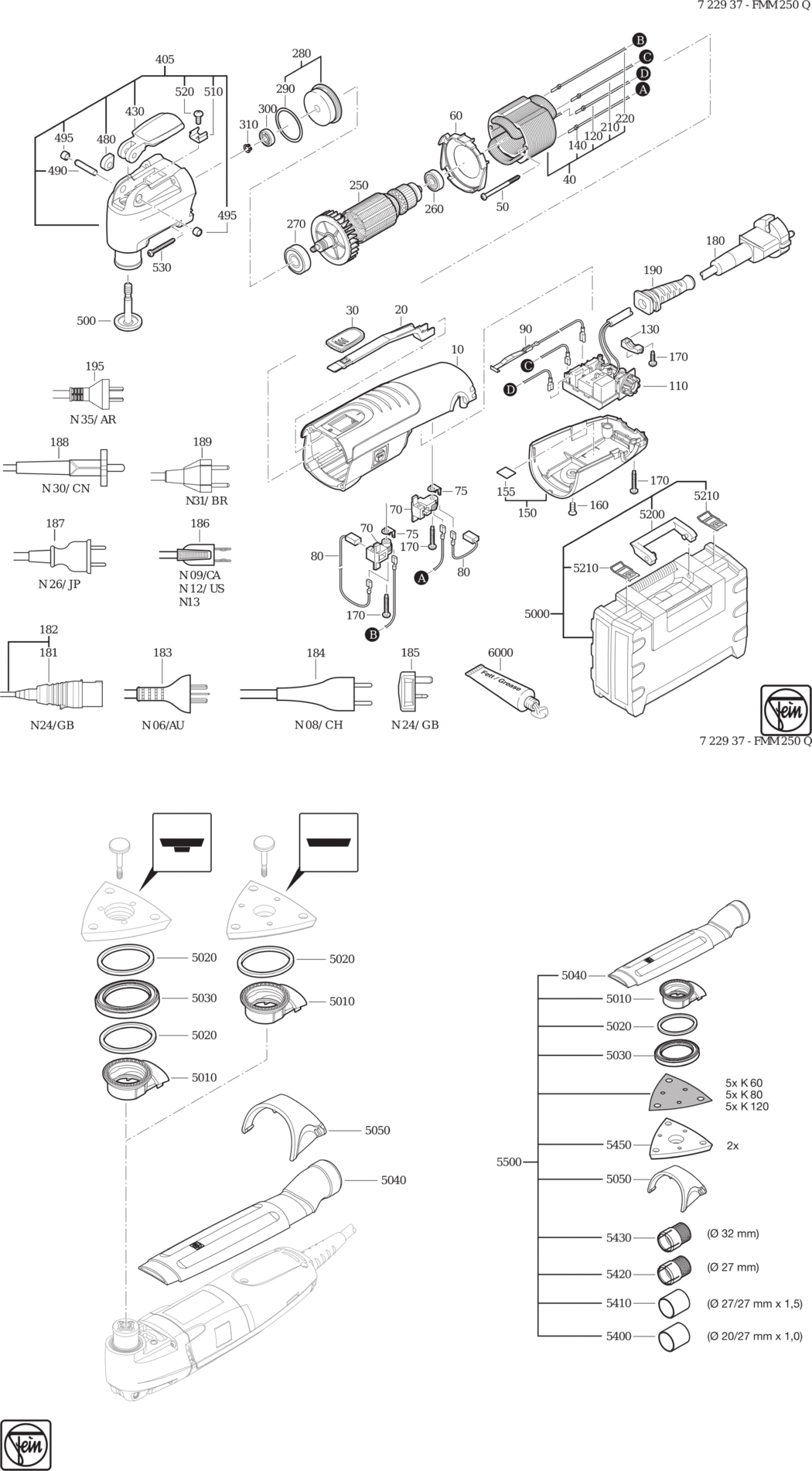

An exploded diagram and spare parts listing for the Fein FMM 250 Q (50/60Hz 110/120V) / 72293724110

	Ex VAT	Inc VAT
10 - MOTOR HOUSING FEI-31901146000.A0 31901146000	£37.80	£45.36
20 - CONTROL ROD FEI-32816066000.A18 32816066000	£9.62	£11.54
30 - SLIDE SWITCH FEI-32805226000.A5 32805226000	£2.91	£3.49
40 - STATOR FEI-51278002110.A7 51278002110	£70.66	£84.79
50 - SCREW FEI-43074005000.A46 43074005000	£1.60	£1.92
60 - AIR GUIDE RING FEI-31428161000.A47 31428161000	£4.59	£5.51
70 - BRUSH HOLDER FEI-30712087015.A50 30712087015	£7.02	£8.43
75 - CONNECTOR FEI-30717193000.A61 30717193000	£1.60	£1.92
80 - CARBON BRUSH (SOLD SINGLY) FEI-30711129009.A41 30711129009	£6.73	£8.08
90 - CONTACT SPRING FEI-32803019010.A40 32803019010	£10.44	£12.53
110 - ELECTRONICS 100-230V 50/60HZ FEI-30762412990.A7 30762412990	£68.25	£81.90
120 - CONNECTING CABLE FEI-30719642010.A0 30719642010	£1.60	£1.92
130 - CABLE CLAMPING PIECE FEI-32431045000.A56 32431045000	£1.60	£1.92
140 - CONNECTING CABLE FEI-30719641010.A51 30719641010	£1.60	£1.92
150 - COVER FEI-32427127000.A21 32427127000	£8.25	£9.90
155 - PRESSURE PIECE FEI-31415099000.A18 31415099000	£1.60	£1.92
160 - SCREW FEI-43074003000.A37 43074003000	£1.60	£1.92
170 - SCREW 35X20 FEI-43074002000.A27 43074002000	£1.60	£1.92
181 - PLUG CEE 16A/110V FEI-30728288004.A66 30728288004	£14.25	£17.10
182 - CABLE WITH PLUG FEI-30707396017.A15 30707396017	£41.68	£50.01
190 - CABLE GROMMET FEI-31413229000.A16 31413229000	£2.25	£2.70
210 - CONNECTING CABLE FEI-30719644010.A1 30719644010	£1.60	£1.92
220 - CONNECTING CABLE FEI-30719643010.A50 30719643010	£1.60	£1.92
250 - ARMATURE FEI-53278001110.A2 53278001110	£88.65	£106.38
260 - GROOVED BALL BEARING FEI-41701001032.A18 41701001032	£10.89	£13.07
270 - GROOVED BALL BEARING FEI-41701007038.A101 41701007038	£10.17	£12.20
280 - BUSH SET FEI-30508043010.A0 30508043010	£11.88	£14.25
290 - SEALING RING FEI-40612167000.A14 40612167000	£1.60	£1.92
300 - GROOVED BALL BEARING FEI-41701000020.A24 41701000020	£13.58	£16.30
310 - CIRCLIP FEI-42616046003.A35 42616046003	£1.60	£1.92
405 - TOOL HEAD FEI-31508261020.A0 31508261020	£134.89	£161.87
430 - LEVER FEI-32805238000.A2 32805238000	£14.63	£17.56
480 - ECCENTRIC RING FEI-32636042000.A20 32636042000	£3.54	£4.25
490 - STRAIGHT PIN FEI-40242064000.A26 40242064000	£1.60	£1.92
495 - BUSH FEI-30507220000.A26 30507220000	£2.60	£3.12
500 - CLAMPING UNIT FEI-30240271000.A8 30240271000	£27.06	£32.47
510 - LOCKING SPRING FEI-30907067000.A20 30907067000	£1.60	£1.92
520 - FILLISTER HEAD SCREW FEI-43064023045.A77 43064023045	£1.60	£1.92
530 - SCREW FEI-43074004000.A9 43074004000	£1.60	£1.92
5000 - CARRYING CASE UNFILLED FEI-33901131980.A5 33901131980	£62.68	£75.21
5010 - EXTRACTOR HOOD FEI-33218151000.A15 33218151000	£6.03	£7.24
5020 - FELT RING FEI-30601106007.A19 30601106007	£2.38	£2.86
5030 - ADAPTER FEI-30605112000.A2 30605112000	£6.71	£8.05
5040 - PIPE FEI-33218123000.A6 33218123000	-
5050 - HOLDER FEI-30232049000.A0 30232049000	£10.48	£12.57
5200 - HANDLE FEI-32119122000.A119 32119122000	-
5210 - WIRE CLAMP FEI-30232050000.A105 30232050000	£10.78	£12.94
5400 - ADAPTER HOSE FEI-30605110008.A13 30605110008	£2.37	£2.84
5410 - ADAPTER HOSE FEI-30605109006.A2 30605109006	£2.37	£2.84
5420 - HOSE SLEEVE FEI-30517029001.A10 30517029001	£6.26	£7.51
5430 - HOSE SLEEVE FEI-30517028007.A5 30517028007	£5.12	£6.15
5450 - SANDING PAD SET PERFORATED FEI-63806136220.A7 63806136220	£25.44	£30.53
5500 - DUST EXTRACTION SET FEI-92602092000.A11 92602092000	£70.78	£84.93
6000 - LUBRICANT TUBE 0 085 KG FEI-32160003014.A18 32160003014	-
