Fein MSxe 636 II (50Hz 230V) / 72292724239 Spare Parts

Fein MSxe 636 II ⡐Hz 230V) / 72292724239 Spare Parts

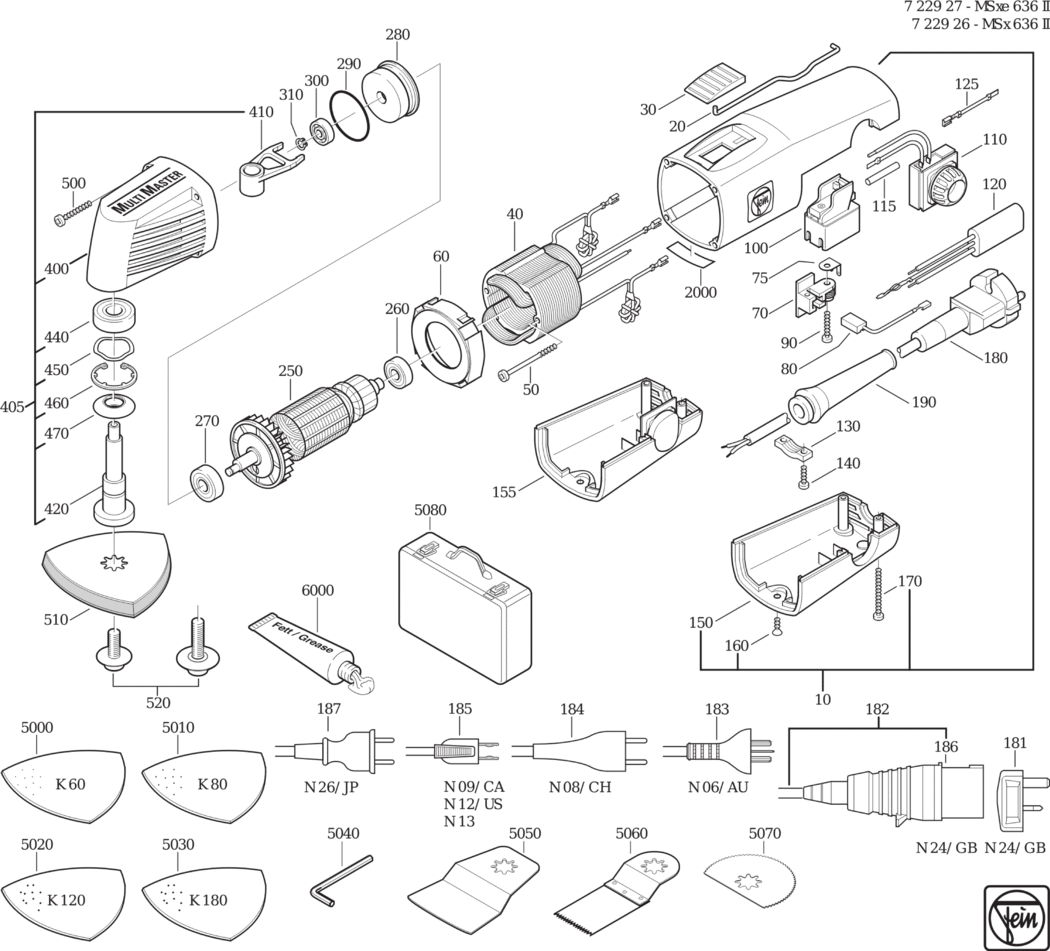

An exploded diagram and spare parts listing for the Fein MSxe 636 II (50Hz 230V) / 72292724239

	Ex VAT	Inc VAT
10 - MOTOR HOUSING FEI-31901109024.A43 31901109024	£39.47	£47.36
20 - CONTROL ROD FEI-32816051001.A29 32816051001	£9.34	£11.21
30 - SLIDE SWITCH FEI-32805152009.A17 32805152009	£2.91	£3.49
40 - STATOR FEI-51272001230.A2 51272001230	£81.02	£97.23
50 - SCREW FEI-43070014000.A58 43070014000	£1.60	£1.92
60 - AIR GUIDE RING FEI-31428114008.A15 31428114008	£3.01	£3.61
70 - BRUSH HOLDER FEI-30712087015.A58 30712087015	£7.02	£8.43
75 - CONNECTOR FEI-30717193000.A66 30717193000	£1.60	£1.92
80 - CARBON BRUSH (SOLD SINGLY) FEI-30711129009.A46 30711129009	£6.73	£8.08
90 - SCREW FEI-43070015004.A25 43070015004	£1.60	£1.92
100 - SWITCH FEI-30701060000.A30 30701060000	£22.32	£26.78
110 - SPEED SETTING SWITCH FEI-30762198013.A1 30762198013	-
115 - INSULATING HOSE FEI-31413187008.A3 31413187008	£1.60	£1.92
120 - CAPACITOR FEI-30722178016.A12 30722178016	£10.08	£12.10
130 - CABLE CLAMPING PIECE FEI-32431026009.A71 32431026009	£1.60	£1.92
140 - SCREW FEI-43070001006.A64 43070001006	£1.60	£1.92
150 - COVER FEI-32427108007.A4 32427108007	£5.35	£6.42
160 - SCREW FEI-43070036005.A27 43070036005	£1.60	£1.92
170 - SCREW FEI-43070016007.A18 43070016007	£1.60	£1.92
181 - CABLE WITH PLUG FEI-30707350010.A4 30707350010	£30.95	£37.14
190 - CABLE GROMMET FEI-31413142009.A66 31413142009	£1.60	£1.92
250 - ARMATURE FEI-53272001232.A0 53272001232	-
260 - GROOVED BALL BEARING FEI-41701001172.A188 41701001172	£9.63	£11.56
270 - GROOVED BALL BEARING FEI-41701004177.A1 41701004177	£11.05	£13.26
280 - BUSH FEI-30508036002.A8 30508036002	£26.08	£31.30
290 - SEALING RING FEI-40612121003.A4 40612121003	£1.60	£1.92
300 - GROOVED BALL BEARING FEI-41701000020.A37 41701000020	£13.58	£16.30
310 - CIRCLIP FEI-42616046003.A19 42616046003	£1.60	£1.92
400 - GEARBOX HOUSING FEI-31508237047.A0 31508237047	£66.45	£79.74
405 - GEARBOX HOUSING FEI-31508237053.A14 31508237053	£141.29	£169.55
410 - LEVER FEI-33218090008.A5 33218090008	£40.68	£48.82
420 - SHAFT FEI-33406277001.A10 33406277001	£38.23	£45.88
440 - GROOVED BALL BEARING FEI-41701007050.A24 41701007050	£15.15	£18.18
450 - DISC FEI-42446015000.A10 42446015000	£1.60	£1.92
460 - CIRCLIP FEI-42635003004.A18 42635003004	£1.60	£1.92
470 - SLEEVE FEI-30606040001.A12 30606040001	£1.60	£1.92
500 - SCREW FEI-43070013002.A11 43070013002	£1.60	£1.92
510 - SANDING PAD SET UNPERFORATED FEI-63806129220.A6 63806129220	£16.60	£19.92
520 - SET OF CLAMPING SCREWS FEI-43033087065.A0 43033087065	£12.99	£15.59
5040 - ALLEN KEY FEI-62907037003.A33 62907037003	£4.06	£4.87
6000 - LUBRICANT TUBE 0 085 KG FEI-32160003014.A24 32160003014	-
