Fein FSC 1.6 Q (50/60Hz 110/120V) / 72364224110 Spare Parts

Fein FSC 1.6 Q ⡐/60Hz 110/120V) / 72364224110 Spare Parts
Home Details Reviews Delivery

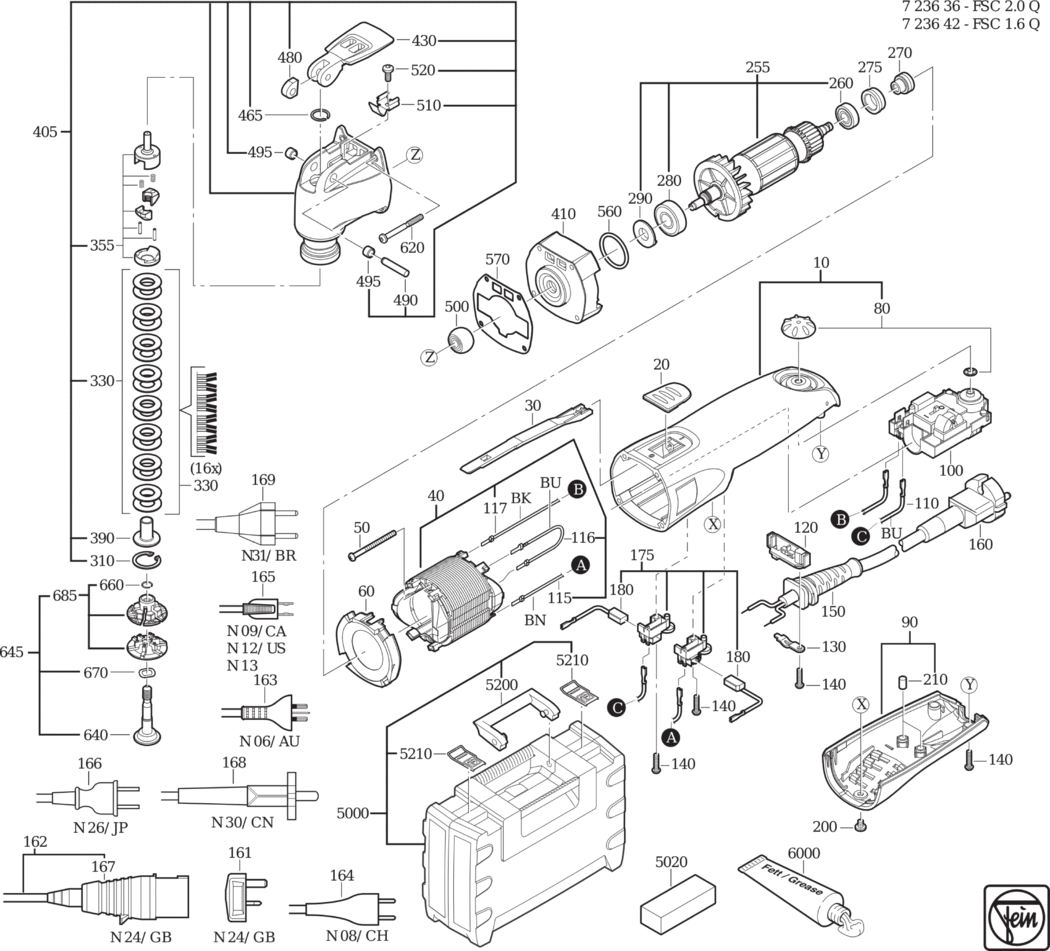

An exploded diagram and spare parts listing for the Fein FSC 1.6 Q (50/60Hz 110/120V) / 72364224110
Ex VAT Inc VAT
10 - MOTOR HOUSING FEI-31901150010.A0 31901150010 £45.19 £54.23
20 - SLIDE SWITCH FEI-32805195001.A27 32805195001 £3.36 £4.03
30 - CONTROL ROD FEI-32816060001.A25 32816060001 £10.15 £12.18
40 - STATOR FEI-51274010110.A0 51274010110 £72.00 £86.40
50 - SCREW FEI-43074005000.A26 43074005000 £1.60 £1.92
60 - AIR GUIDE RING FEI-31428151009.A3 31428151009 £4.35 £5.22
80 - ROTARY KNOB SET FEI-32805194016.A3 32805194016 £7.08 £8.50
90 - COVER FEI-32427120011.A3 32427120011 £13.28 £15.94
100 - SPEED SETTING SWITCH 100-120V/50 60HZ FEI-30762483990.A8 30762483990 £129.15 £154.98
110 - CONNECTING CABLE FEI-30719696010.A24 30719696010 £1.60 £1.92
115 - CONNECTING CABLE FEI-30719693010.A0 30719693010 £1.60 £1.92
116 - CONNECTING CABLE FEI-30719695010.A0 30719695010 £2.31 £2.77
117 - CONNECTING CABLE FEI-30719694010.A17 30719694010 £1.60 £1.92
120 - CABLE CLAMPING PIECE FEI-32431044000.A24 32431044000 -
130 - CABLE CLAMPING PIECE FEI-32431043002.A6 32431043002 £1.60 £1.92
140 - SCREW FEI-43070038007.A134 43070038007 £1.60 £1.92
150 - CABLE GROMMET FEI-31413229000.A48 31413229000 £2.25 £2.70
162 - CABLE WITH PLUG FEI-30707409018.A0 30707409018 -
175 - BRUSH HOLDER FEI-30712091024.A3 30712091024 £42.30 £50.76
180 - CARBON BRUSH (SOLD SINGLY) FEI-30711146001.A6 30711146001 £12.88 £15.46
200 - FILLISTER HEAD SCREW FEI-43041040048.A2 43041040048 £1.60 £1.92
210 - PRESSURE PIECE FEI-31415095009.A6 31415095009 £1.60 £1.92
255 - ARMATURE FEI-53274016110.A3 53274016110 £200.42 £240.51
260 - GROOVED BALL BEARING FEI-41701001260.A213 41701001260 £7.11 £8.53
270 - RING MAGNET FEI-31428152002.A27 31428152002 £25.65 £30.78
275 - RING FEI-32619024000.A0 32619024000 £3.78 £4.54
280 - GROOVED BALL BEARING FEI-41701007038.A53 41701007038 £10.17 £12.20
290 - RING FEI-32603036005.A6 32603036005 £26.17 £31.40
310 - CIRCLIP 20X1 FEI-42616077000.A5 42616077000 £1.60 £1.92
330 - CUP SPRING PACKAGE FEI-30905077010.A2 30905077010 £15.98 £19.17
355 - PRESSURE PIECE FEI-30220067010.A9 30220067010 £35.42 £42.50
390 - SLEEVE FEI-30503158000.A3 30503158000 £7.24 £8.69
405 - TOOL HEAD QUICK IN FEI-31508264040.A1 31508264040 £194.08 £232.89
410 - INTERMEDIATE GEAR BOX FEI-31506369007.A1 31506369007 £40.32 £48.38
430 - LEVER FEI-32805229000.A1 32805229000 £30.18 £36.22
465 - CIRCLIP FEI-42615110009.A37 42615110009 £1.60 £1.92
480 - ECCENTRIC RING FEI-32636042000.A10 32636042000 £3.54 £4.25
490 - STRAIGHT PIN FEI-40242064000.A11 40242064000 £1.60 £1.92
495 - BUSH FEI-30507220000.A69 30507220000 £2.60 £3.12
500 - NEEDLE BEARING FEI-41706041005.A26 41706041005 £28.72 £34.46
510 - LOCKING SPRING FEI-30907069000.A4 30907069000 £8.55 £10.26
520 - FILLISTER HEAD SCREW FEI-43064023045.A32 43064023045 £1.60 £1.92
560 - SEALING RING FEI-40612093004.A59 40612093004 £1.60 £1.92
570 - SEAL FEI-30610035002.A30 30610035002 £2.65 £3.18
620 - SCREW FEI-43074006000.A16 43074006000 £1.60 £1.92
640 - CLAMPING UNIT FEI-30240277000.A6 30240277000 £16.51 £19.81
645 - CLAMPING UNIT SET FEI-30240277010.A6 30240277010 £53.94 £64.73
660 - CIRCLIP FEI-42615092004.A8 42615092004 £1.60 £1.92
670 - SPRING WASHER FEI-42446023000.A34 42446023000 £1.60 £1.92
685 - SEAL FEI-30610036010.A0 30610036010 £40.58 £48.70
5000 - TOOL CASE FEI-33901118200.A27 33901118200 £63.76 £76.51
5020 - SHARPENING STONE FEI-63719010014.A24 63719010014 £18.00 £21.60
5200 - HANDLE FEI-32119122000.A33 32119122000 -
5210 - WIRE CLAMP FEI-30232050000.A96 30232050000 £10.78 £12.94
6000 - LUBRICANT TUBE 0 085 KG FEI-32160003014.A395 32160003014 -
