Fein FSC 1.6 Q (50/60Hz 220/230V) / 72364200230 Spare Parts

Fein FSC 1.6 Q ⡐/60Hz 220/230V) / 72364200230 Spare Parts

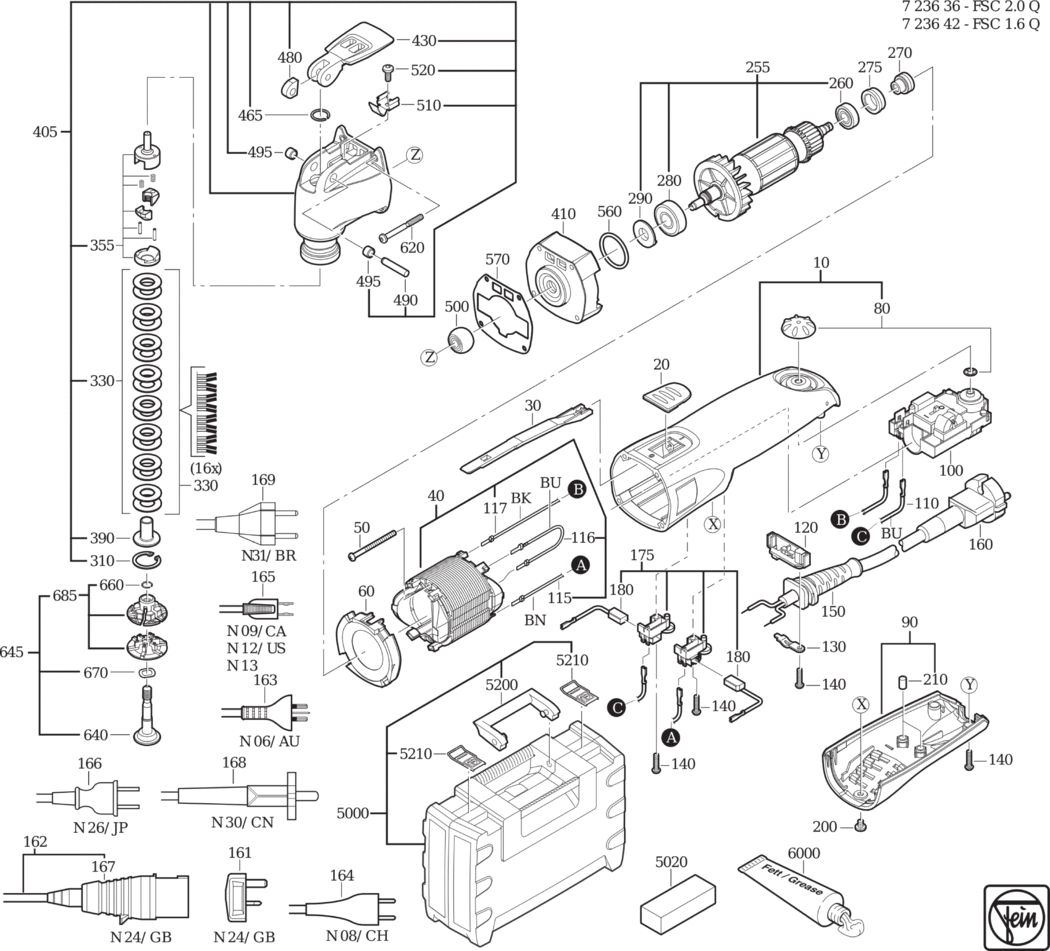

An exploded diagram and spare parts listing for the Fein FSC 1.6 Q (50/60Hz 220/230V) / 72364200230

	Ex VAT	Inc VAT
10 - MOTOR HOUSING FEI-31901150010.A1 31901150010	£45.19	£54.23
20 - SLIDE SWITCH FEI-32805195001.A28 32805195001	£3.36	£4.03
30 - CONTROL ROD FEI-32816060001.A24 32816060001	£10.15	£12.18
40 - STATOR FEI-51274010230.A7 51274010230	£72.00	£86.40
50 - SCREW FEI-43074005000.A27 43074005000	£1.60	£1.92
60 - AIR GUIDE RING FEI-31428151009.A2 31428151009	£4.35	£5.22
80 - ROTARY KNOB SET FEI-32805194016.A2 32805194016	£7.08	£8.50
90 - COVER FEI-32427120011.A4 32427120011	£13.28	£15.94
100 - SPEED SETTING SWITCH 220-240V/50 60HZ FEI-30762484990.A0 30762484990	£136.99	£164.39
110 - CONNECTING CABLE FEI-30719696010.A23 30719696010	£1.60	£1.92
115 - CONNECTING CABLE FEI-30719693010.A1 30719693010	£1.60	£1.92
116 - CONNECTING CABLE FEI-30719695010.A1 30719695010	£2.31	£2.77
117 - CONNECTING CABLE FEI-30719694010.A16 30719694010	£1.60	£1.92
120 - CABLE CLAMPING PIECE FEI-32431044000.A25 32431044000	-
130 - CABLE CLAMPING PIECE FEI-32431043002.A5 32431043002	£1.60	£1.92
140 - SCREW FEI-43070038007.A132 43070038007	£1.60	£1.92
150 - CABLE GROMMET FEI-31413229000.A47 31413229000	£2.25	£2.70
160 - CABLE WITH PLUG FEI-30707401010.A1 30707401010	£22.79	£27.35
175 - BRUSH HOLDER FEI-30712091024.A2 30712091024	£42.30	£50.76
180 - CARBON BRUSH (SOLD SINGLY) FEI-30711146001.A7 30711146001	£12.88	£15.46
200 - FILLISTER HEAD SCREW FEI-43041040048.A4 43041040048	£1.60	£1.92
210 - PRESSURE PIECE FEI-31415095009.A7 31415095009	£1.60	£1.92
255 - ARMATURE FEI-53274016230.A0 53274016230	£201.76	£242.11
260 - GROOVED BALL BEARING FEI-41701001260.A214 41701001260	£7.11	£8.53
270 - RING MAGNET FEI-31428152002.A28 31428152002	£25.65	£30.78
275 - RING FEI-32619024000.A1 32619024000	£3.78	£4.54
280 - GROOVED BALL BEARING FEI-41701007038.A54 41701007038	£10.17	£12.20
290 - RING FEI-32603036005.A5 32603036005	£26.17	£31.40
310 - CIRCLIP 20X1 FEI-42616077000.A4 42616077000	£1.60	£1.92
330 - CUP SPRING PACKAGE FEI-30905077010.A3 30905077010	£15.98	£19.17
355 - PRESSURE PIECE FEI-30220067010.A10 30220067010	£35.42	£42.50
390 - SLEEVE FEI-30503158000.A2 30503158000	£7.24	£8.69
405 - TOOL HEAD QUICK IN FEI-31508264040.A0 31508264040	£194.08	£232.89
410 - INTERMEDIATE GEAR BOX FEI-31506369007.A0 31506369007	£40.32	£48.38
430 - LEVER FEI-32805229000.A2 32805229000	£30.18	£36.22
465 - CIRCLIP FEI-42615110009.A38 42615110009	£1.60	£1.92
480 - ECCENTRIC RING FEI-32636042000.A9 32636042000	£3.54	£4.25
490 - STRAIGHT PIN FEI-40242064000.A12 40242064000	£1.60	£1.92
495 - BUSH FEI-30507220000.A68 30507220000	£2.60	£3.12
500 - NEEDLE BEARING FEI-41706041005.A25 41706041005	£28.72	£34.46
510 - LOCKING SPRING FEI-30907069000.A3 30907069000	£8.55	£10.26
520 - FILLISTER HEAD SCREW FEI-43064023045.A31 43064023045	£1.60	£1.92
560 - SEALING RING FEI-40612093004.A53 40612093004	£1.60	£1.92
570 - SEAL FEI-30610035002.A31 30610035002	£2.65	£3.18
620 - SCREW FEI-43074006000.A17 43074006000	£1.60	£1.92
640 - CLAMPING UNIT FEI-30240277000.A3 30240277000	£16.51	£19.81
645 - CLAMPING UNIT SET FEI-30240277010.A9 30240277010	£53.94	£64.73
660 - CIRCLIP FEI-42615092004.A11 42615092004	£1.60	£1.92
670 - SPRING WASHER FEI-42446023000.A31 42446023000	£1.60	£1.92
685 - SEAL FEI-30610036010.A2 30610036010	£40.58	£48.70
5000 - TOOL CASE FEI-33901118200.A29 33901118200	£63.76	£76.51
5020 - SHARPENING STONE FEI-63719010014.A17 63719010014	£18.00	£21.60
5200 - HANDLE FEI-32119122000.A36 32119122000	-
5210 - WIRE CLAMP FEI-30232050000.A99 30232050000	£10.78	£12.94
6000 - LUBRICANT TUBE 0 085 KG FEI-32160003014.A393 32160003014	-
