Fein FSC 1.7 Q (50/60Hz 110/120V) / 72294824110 Spare Parts

Fein FSC 1.7 Q ⡐/60Hz 110/120V) / 72294824110 Spare Parts

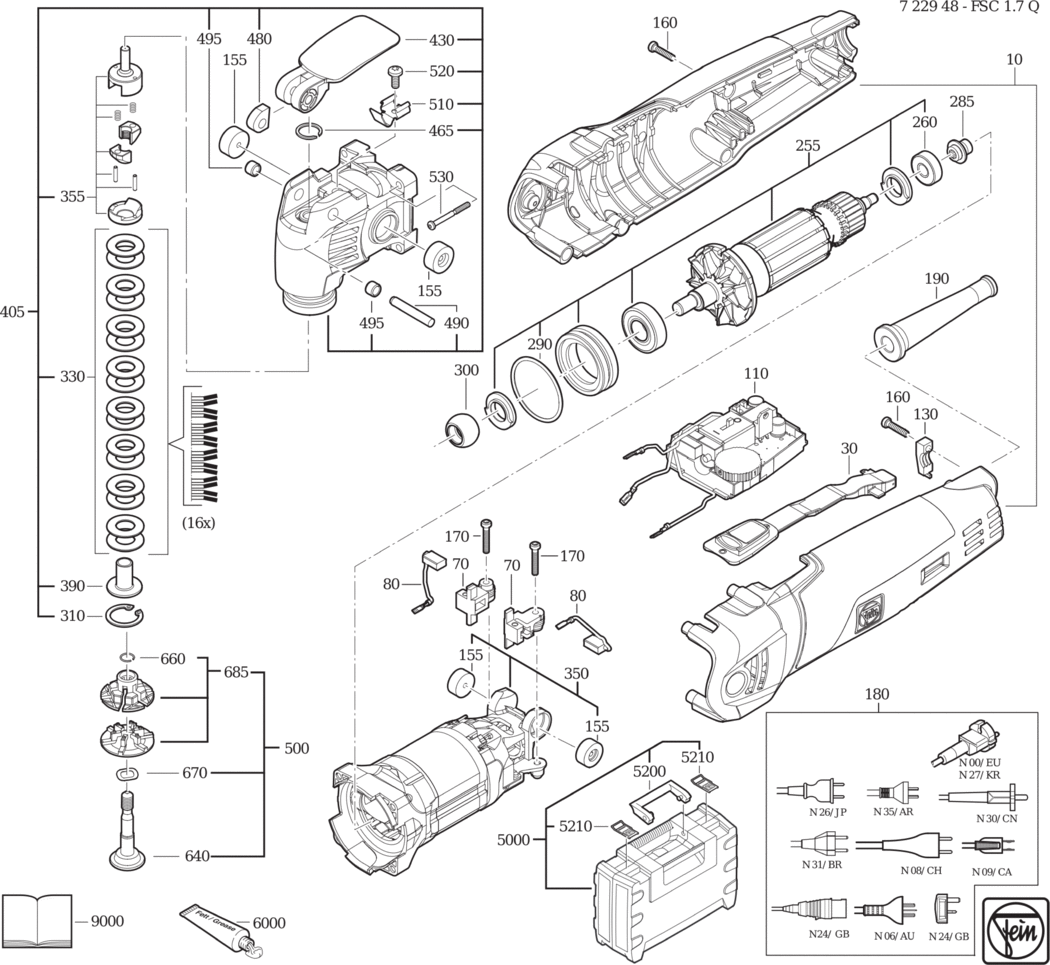

An exploded diagram and spare parts listing for the Fein FSC 1.7 Q (50/60Hz 110/120V) / 72294824110

	Ex VAT	Inc VAT
10 - MOTOR HOUSING FEI-31901190010.A0 31901190010	£54.08	£64.90
30 - SLIDE SWITCH FEI-32805315000.A4 32805315000	£3.88	£4.65
70 - BRUSH HOLDER FEI-30712087015.A45 30712087015	£7.02	£8.43
80 - CARBON BRUSH (SOLD SINGLY) FEI-30711157000.A9 30711157000	£6.85	£8.22
110 - SPEED SETTING SWITCH FEI-30762453990.A8 30762453990	£73.42	£88.11
130 - CABLE CLAMPING PIECE FEI-32431045000.A62 32431045000	£1.60	£1.92
155 - PRESSURE PIECE FEI-31415110000.A10 31415110000	£2.69	£3.23
160 - SCREW FEI-43074010000.A67 43074010000	£1.60	£1.92
170 - SCREW 35X20 FEI-43074002000.A17 43074002000	£1.60	£1.92
180 - CABLE WITH PLUG FEI-30707396017.A20 30707396017	£41.68	£50.01
190 - CABLE GROMMET FEI-31413233000.A63 31413233000	£2.60	£3.12
255 - ARMATURE 60HZ110V FEI-53278008110.A3 53278008110	£184.21	£221.05
260 - GROOVED BALL BEARING FEI-41701001260.A411 41701001260	£7.11	£8.53
285 - MAGNET FEI-32172014020.A1 32172014020	£9.42	£11.31
290 - SEALING RING FEI-40612000004.A5 40612000004	£1.60	£1.92
300 - NEEDLE BEARING FEI-41706000001.A7 41706000001	£43.50	£52.20
310 - CIRCLIP 20X1 FEI-42616077000.A9 42616077000	£1.60	£1.92
330 - CUP SPRING PACKAGE FEI-30905077010.A12 30905077010	£15.98	£19.17
350 - STATOR 60HZ110V FEI-52278051110.A3 52278051110	£100.37	£120.44
355 - PRESSURE PIECE FEI-30220067010.A5 30220067010	£35.42	£42.50
390 - SLEEVE FEI-30503158000.A9 30503158000	£7.24	£8.69
405 - TOOL HEAD QUICK IN FEI-31508299010.A4 31508299010	£187.06	£224.47
430 - LEVER FEI-32805316000.A4 32805316000	£17.23	£20.68
465 - CIRCLIP FEI-42615110009.A6 42615110009	£1.60	£1.92
480 - ECCENTRIC RING FEI-32636042000.A18 32636042000	£3.54	£4.25
490 - PIN FEI-40242043008.A6 40242043008	£2.52	£3.02
495 - BUSH FEI-30507220000.A17 30507220000	£2.60	£3.12
500 - CLAMPING UNIT SET FEI-30240277010.A2 30240277010	£53.94	£64.73
510 - LOCKING SPRING FEI-30907069000.A10 30907069000	£8.55	£10.26
520 - FILLISTER HEAD SCREW FEI-43064023045.A86 43064023045	£1.60	£1.92
530 - SCREW FEI-43082000000.A0 43082000000	£1.60	£1.92
640 - CLAMPING UNIT FEI-30240277000.A10 30240277000	£16.51	£19.81
660 - CIRCLIP FEI-42615092004.A4 42615092004	£1.60	£1.92
670 - SPRING WASHER FEI-42446023000.A8 42446023000	£1.60	£1.92
685 - SEAL FEI-30610036010.A7 30610036010	£40.58	£48.70
5000 - PLASTIC TOOL CASES FEI-33901154030.A6 33901154030	£60.17	£72.20
5200 - HANDLE FEI-32119122000.A130 32119122000	-
5210 - WIRE CLAMP FEI-30232050000.A122 30232050000	£10.78	£12.94
6000 - LUBRICANT TUBE 0 080KG FEI-32160005000.A7 32160005000	-
