Fein MOtlx 6-24 / 75360200004 Spare Parts

Home Details Reviews Delivery

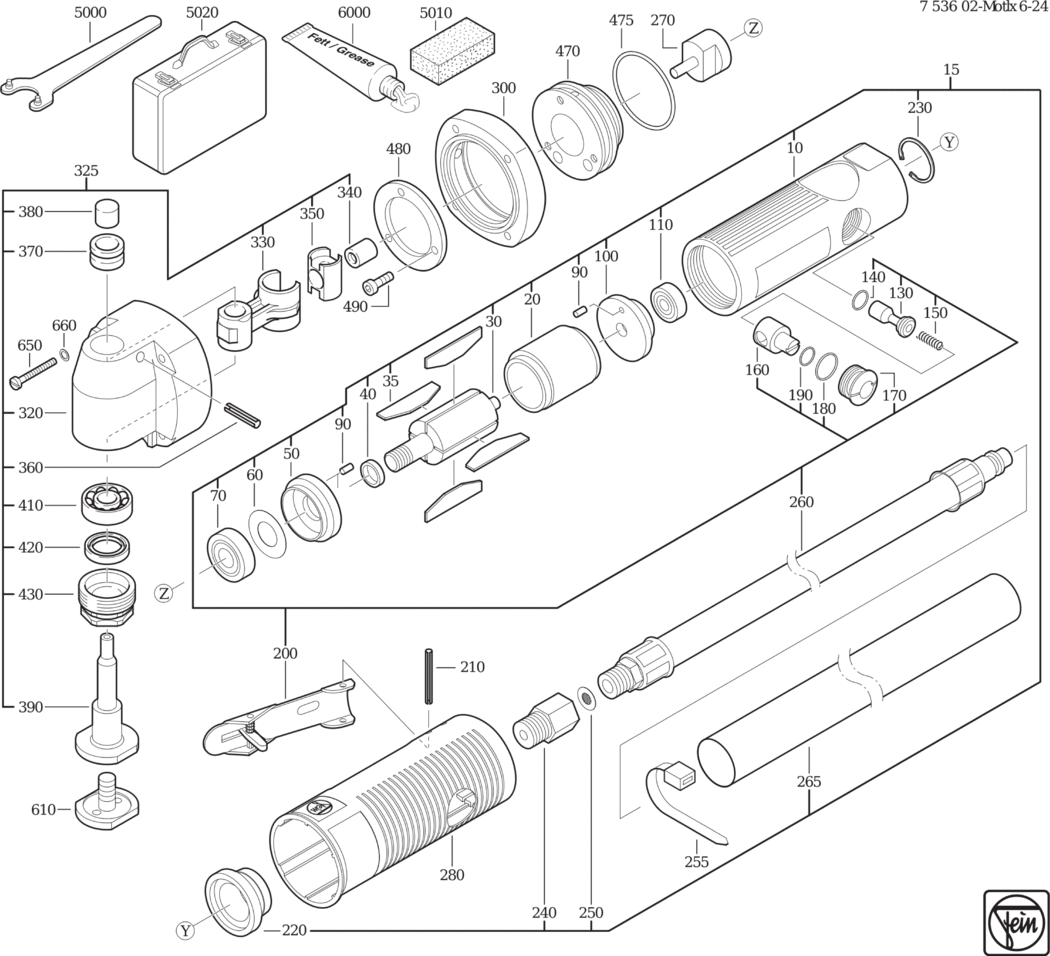

An exploded diagram and spare parts listing for the Fein MOtlx 6-24 / 75360200004

	Ex VAT	Inc VAT
10 - MOTOR HOUSING FEI-31305282001.A0 31305282001	£227.80	£273.36
15 - MOTOR FEI-75752400002.A0 75752400002	-
20 - BUSH FEI-31305288002.A0 31305288002	£128.30	£153.96
30 - ROTOR FEI-31305290008.A0 31305290008	-
35 - FLAP FEI-31305289006.A0 31305289006	£15.81	£18.97
40 - GUIDE FEI-32636033009.A0 32636033009	-
50 - COVER FEI-31305292000.A0 31305292000	£93.28	£111.94
70 - GROOVED BALL BEARING FEI-41701007038.A56 41701007038	£10.17	£12.20
90 - STRAIGHT PIN FEI-31305287004.A0 31305287004	£7.14	£8.57
100 - COVER FEI-31305286000.A0 31305286000	-
110 - GROOVED BALL BEARING FEI-41701234023.A7 41701234023	£10.89	£13.07
130 - PLUNGER FEI-31305279007.A0 31305279007	£21.84	£26.21
140 - SEALING RING FEI-31305278003.A0 31305278003	-
150 - SPRING FEI-31305277005.A0 31305277005	-
160 - REGULATOR FEI-31305276001.A0 31305276001	-
170 - SCREW FEI-31305273006.A0 31305273006	-
180 - SEALING RING FEI-31305274004.A0 31305274004	-
190 - SEALING RING FEI-31305275008.A0 31305275008	-
200 - LEVER FEI-31305281008.A0 31305281008	£42.29	£50.75
210 - PIN FEI-40238067009.A0 40238067009	£1.60	£1.92
220 - SILENCER FEI-31305283005.A0 31305283005	-
230 - RING FEI-31305284003.A0 31305284003	-
240 - CONNECTING PIECE FEI-31305294002.A0 31305294002	-
250 - FILTER FEI-31305285007.A0 31305285007	-
255 - CABLE TIE FEI-30234033002.A0 30234033002	-
260 - HOSE FEI-31305295015.A0 31305295015	-
270 - ECCENTRIC SHAFT FEI-33405040009.A0 33405040009	-
280 - SLEEVE FEI-31428109011.A0 31428109011	-
300 - INTERMEDIATE GEAR BOX FEI-31506342004.A0 31506342004	£51.64	£61.97
320 - GEARBOX HOUSING FEI-31508236006.A0 31508236006	-
325 - GEARBOX HOUSING FEI-31508236015.A0 31508236015	-
330 - LEVER FEI-33218018009.A0 33218018009	-
340 - NEEDLE BEARING FEI-41706033003.A0 41706033003	£15.69	£18.83
350 - PISTON FEI-32313034000.A0 32313034000	£91.78	£110.14
360 - CLAMPING SLEEVE FEI-40238017004.A0 40238017004	£1.60	£1.92
370 - BUSH FEI-30507180008.A1 30507180008	£17.32	£20.78
380 - BUSH FEI-41705022005.A0 41705022005	£6.20	£7.44
390 - SHAFT FEI-33406207008.A0 33406207008	-
410 - GROOVED BALL BEARING FEI-41701007038.A57 41701007038	£10.17	£12.20
420 - SEALING RING FEI-40608030007.A0 40608030007	-
430 - THREAD RING FEI-30509041000.A8 30509041000	£18.72	£22.46
470 - CLAMPING RING FEI-32607060014.A0 32607060014	£75.93	£91.12
475 - SEALING RING FEI-40612131002.A0 40612131002	-
480 - DISC FEI-32410063004.A0 32410063004	-
490 - CYLINDER HEAD SCREW FEI-43035006048.A2 43035006048	-
610 - SCREW FEI-33024062004.A9 33024062004	£28.72	£34.47
650 - CYLINDER HEAD SCREW FEI-43002019991.A0 43002019991	-
660 - CIRCLIP FEI-42443002992.A27 42443002992	£1.60	£1.92
5000 - BI-DIRECTIONAL NUT SPANNER FEI-62910031008.A9 62910031008	£15.25	£18.30
5010 - SHARPENING STONE FEI-63719010014.A15 63719010014	£18.00	£21.60
5020 - TOOL CASE FEI-33901045060.A0 33901045060	-
5200 - HANDLE FEI-32119122000.A38 32119122000	-
5210 - WIRE CLAMP FEI-30232050000.A101 30232050000	£10.78	£12.94
6000 - LUBRICANT TUBE 0 085 KG FEI-32160003083.A48 32160003083	-
