Bosch ---- / 1609351012 / --- Spare Parts

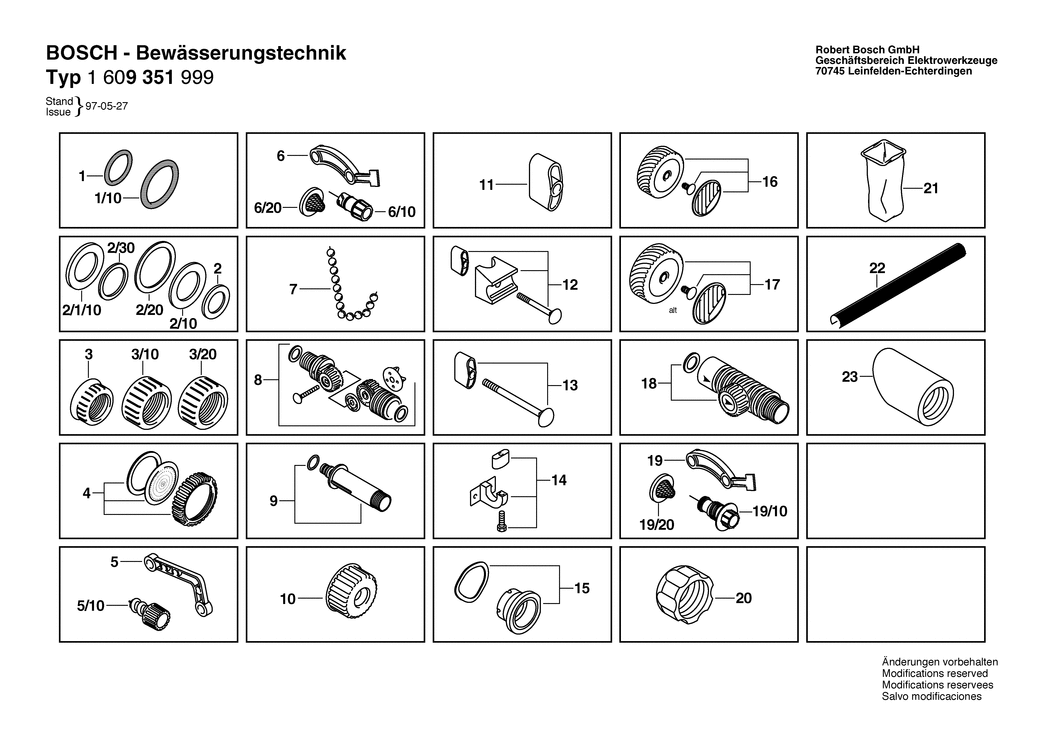

An exploded drawing and listing for the Bosch ---- / 1609351012 / ---

	Ex VAT	Inc VAT
2/10 - GASKET dia15xdia24x3=3/4 BSD-1609351002.A50 1609351002	-
2/10 - GASKET dia15xdia24x4.5=3/4 BSD-1609351029.A13 1609351029	£1.75	£2.10
2/20 - GASKET dia22xdia30x3=1 BSD-1609351003.A20 1609351003	-
2/30 - GASKET dia12xdia21x3.FUER 5/8 BSD-1609351043.A19 1609351043	-
3 - UNION NUT 1/2 BSD-1609351004.A19 1609351004	-
3/10 - UNION NUT 5/8 BSD-1609351005.A19 1609351005	-
3/20 - UNION NUT 3/4 BSD-1609351006.A19 1609351006	-
4 - PARTS SET BSD-1609351007.A19 1609351007	-
5 - SWIVELLING LEVER BSD-1609351008.A15 1609351008	-
5/10 - SCREW PLUG BSD-1609351011.A19 1609351011	-
6 - SWIVELLING LEVER BSD-1609351009.A39 1609351009	-
6/10 - SCREW PLUG BSD-1609351012.A15 1609351012	-
6/20 - STRAINER G 3/4.dia24x3 MM BSD-1609351010.A35 1609351010	£1.32	£1.58
7 - CHAIN L=35 M BSD-1609351013.A20 1609351013	-
8 - CONNECTING PIECE BSD-1609351014.A15 1609351014	£21.52	£25.83
9 - HOLLOW AXLE BSD-1609351015.A20 1609351015	£7.36	£8.83
10 - UNION NUT BSD-1609351016.A18 1609351016	-
11 - WING NUT M6 BSD-1609351017.A20 1609351017	-
12 - PARTS SET M6x55 MM BSD-1609351018.A18 1609351018	-
13 - PARTS SET M 6x90 MM BSD-1609351019.A20 1609351019	-
14 - PARTS SET M 6x16 MM BSD-1609351020.A14 1609351020	-
15 - SEAL KIT BSD-1609351021.A20 1609351021	-
16 - WHEEL dia 140 MM BSD-1609351022.A14 1609351022	-
17 - WHEEL dia200 MM BSD-1609351088.A25 1609351088	£12.04	£14.45
18 - VALVE BSD-1609351025.A29 1609351025	-
19 - SWIVELLING LEVER BSD-1609351009.A40 1609351009	-
19/10 - SCREW PLUG BSD-1609351026.A11 1609351026	-
19/20 - STRAINER G 3/4.dia24x3 MM BSD-1609351010.A37 1609351010	£1.32	£1.58
20 - UNION NUT BSD-1609351027.A26 1609351027	-
21 - PLASTIC BAG BSD-1609351042.A13 1609351042	-
22 - PICKUP CLIP BSD-1609351079.A13 1609351079	-
23 - PROTECTIVE CAP BSD-1609351031.A24 1609351031	-
