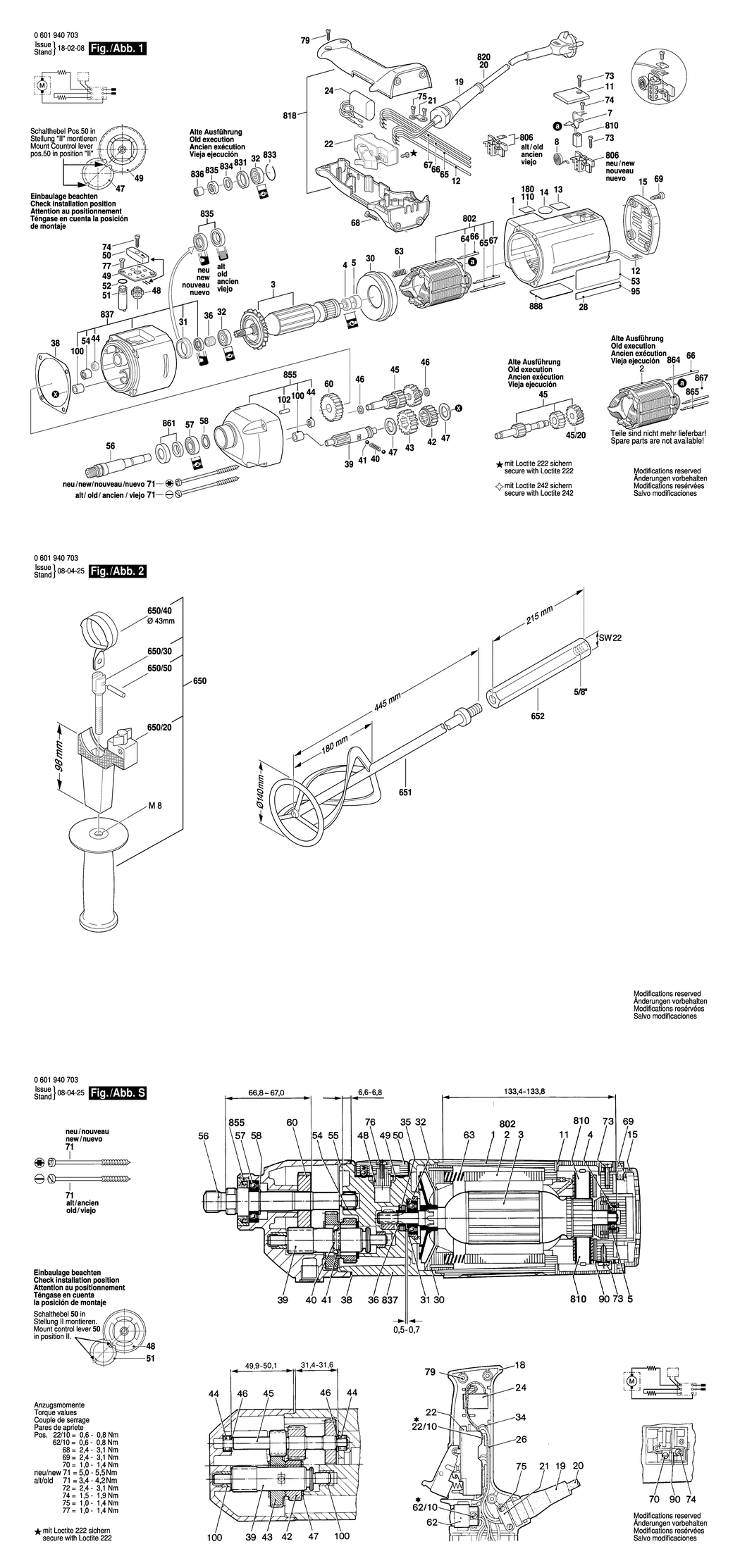

1 - MOTOR HOUSING
BSD-3605108091.A32
3605108091
|
£33.74
|
£40.49
|
|
|
3 - ARMATURE
BSD-1619P13611.A9
1619P13611
|
£40.80
|
£48.96
|
|
|
4 - BALL BEARING 7x19x6
BSD-2600905032.A1100
2600905032
|
£5.30
|
£6.36
|
|
|
5 - INTERMEDIATE RING
BSD-1600502011.A170
1600502011
|
£2.61
|
£3.13
|
|
|
7 - BLADE TERMINAL
BSD-1604477001.A135
1604477001
|
£1.75
|
£2.10
|
|
|
8 - SPIRAL SPRING
BSD-1604652006.A18
1604652006
|
£1.75
|
£2.10
|
|
|
11 - SEALING CAP
BSD-3605500063.A7
3605500063
|
£4.26
|
£5.11
|
|
|
12 - CONNECTING CABLE L=290 MM
BSD-1604445006.A43
1604445006
|
£5.58
|
£6.70
|
|
|
14 - STICKER
BSD-3601110368.A3
3601110368
|
£2.16
|
£2.59
|
|
|
15 - SEALING CAP
BSD-3605500062.A24
3605500062
|
£13.12
|
£15.75
|
|
|
19 - GROMMET dia9.2-dia12x120 MM
BSD-3600703011.A1247
3600703011
|
£2.80
|
£3.36
|
|
|
20 - POWER SUPPLY CORD GB 240V 4.15m 2 x 1.0mm H07RN-F
BSD-3604460077.A5
3604460077
|
£23.86
|
£28.63
|
|
|
21 - FASTENING CLAMP
BSD-1601302014.A822
1601302014
|
£2.61
|
£3.13
|
|
|
22 - SWITCH
BSD-1607200075.A33
1607200075
|
£68.42
|
£82.10
|
|
|
24 - SUPPRESSION FILTER
BSD-1607328028.A504
1607328028
|
£5.30
|
£6.36
|
|
|
30 - AIR-DEFLECTOR RING
BSD-1600502019.A122
1600502019
|
£3.72
|
£4.47
|
|
|
31 - INTERMEDIATE RING
BSD-1600221003.A52
1600221003
|
£2.61
|
£3.13
|
|
|
32 - GROOVE BALL BEARING 9x26x8
BSD-3600905131.A80
3600905131
|
£11.30
|
£13.56
|
|
|
36 - INTERMEDIATE RING
BSD-1600300090.A115
1600300090
|
£3.72
|
£4.47
|
|
|
38 - SEALING PLATE
BSD-1601015013.A62
1601015013
|
£1.75
|
£2.10
|
|
|
39 - TOOTHED SHAFT Z=9
BSD-1606309066.A2
1606309066
|
£81.81
|
£98.17
|
|
|
40 - COMPRESSION SPRING
BSD-1604611022.A3
1604611022
|
£1.75
|
£2.10
|
|
|
41 - BALL DIN 5401-5 G28
BSD-1903230009.A89
1903230009
|
£1.75
|
£2.10
|
|
|
42 - CYLINDRICAL GEAR Z=32
BSD-1606317074.A30
1606317074
|
£31.64
|
£37.97
|
|
|
43 - CYLINDRICAL GEAR Z=43
BSD-1606317082.A28
1606317082
|
£37.27
|
£44.72
|
|
|
44 - NEEDLE BEARING
BSD-1600910013.A161
1600910013
|
£5.58
|
£6.70
|
|
|
45 - PINION SHAFT Z=14/24/33
BSD-1606309065.A50
1606309065
|
£81.81
|
£98.17
|
|
|
45/20 - CYLINDRICAL GEAR Z=33
BSD-1606320077.A13
1606320077
|
£23.86
|
£28.63
|
|
|
46 - SHIM 0.5 MM
BSD-1600100631.A223
1600100631
|
£1.75
|
£2.10
|
|
|
47 - SHIM 0.6 MM
BSD-1600101647.A9
1600101647
|
£2.16
|
£2.59
|
|
|
48 - CONTROL SHAFT Z=20
BSD-1606325025.A1
1606325025
|
£2.80
|
£3.36
|
|
|
49 - NOTCHED PLATE
BSD-1601038025.A107
1601038025
|
£1.75
|
£2.10
|
|
|
50 - CONTROL LEVER
BSD-1602026044.A31
1602026044
|
£7.36
|
£8.83
|
|
|
51 - CONTROL SHAFT Z=10
BSD-1606325027.A66
1606325027
|
£8.67
|
£10.41
|
|
|
52 - O-RING 8x2.5 MM
BSD-1900210105.A7
1900210105
|
£1.75
|
£2.10
|
|
|
53 - STICKER
BSD-3601110362.A3
3601110362
|
£2.80
|
£3.36
|
|
|
54 - NEEDLE-ROLLER BEARING dia14 MM
BSD-2600910001.A710
2600910001
|
£4.26
|
£5.11
|
|
|
56 - DRILLING SPINDLE 5/8
BSD-1603523087.A1
1603523087
|
£48.38
|
£58.06
|
|
|
57 - GROOVE BALL BEARING 15x32x9
BSD-1900905162.A25
1900905162
|
£18.96
|
£22.75
|
|
|
58 - RETAINING CLIP DIN 471-15x1-FSt
BSD-2916650006.A433
2916650006
|
£1.75
|
£2.10
|
|
|
60 - CYLINDRICAL GEAR Z=39
BSD-3606317009.A2
3606317009
|
£40.80
|
£48.96
|
|
|
63 - COMPRESSION SPRING
BSD-1604613006.A138
1604613006
|
£1.75
|
£2.10
|
|
|
64 - WIRE GUIDE
BSD-3601025003.A139
3601025003
|
£1.75
|
£2.10
|
|
|
65 - CONNECTING CABLE L=375 MM
BSD-3604438027.A26
3604438027
|
£10.10
|
£12.12
|
|
|
66 - CONNECTING CABLE L=330 MM
BSD-1604438012.A34
1604438012
|
£7.36
|
£8.83
|
|
|
67 - CONNECTING CABLE L=470 MM
BSD-3604438025.A6
3604438025
|
£7.36
|
£8.83
|
|
|
68 - TAPPING SCREW 5x30
BSD-3603435027.A61
3603435027
|
£1.75
|
£2.10
|
|
|
69 - TAPPING SCREW DIN 7971-B4.8x19
BSD-2910211234.A49
2910211234
|
£1.75
|
£2.10
|
|
|
71 - LENS HEAD SCREW
BSD-3603435042.A4
3603435042
|
£1.75
|
£2.10
|
|
|
73 - TAPPING SCREW DIN 7971-ST3.9x16-F
BSD-2910211019.A2068
2910211019
|
£1.75
|
£2.10
|
|
|
74 - SOCKET HEAD CAP SCREW DIN 84-AM4x8-8.8
BSD-2910021118.A1716
2910021118
|
£1.75
|
£2.10
|
|
|
75 - TAPPING SCREW DIN 7971-ST3.9x16-F
BSD-2910211019.A2066
2910211019
|
£1.75
|
£2.10
|
|
|
76 - TAPPING SCREW DIN 7971-ST3.9x16-F
BSD-2910211019.A2067
2910211019
|
£1.75
|
£2.10
|
|
|
77 - COUNTERSUNK-HEAD SCREW DIN 63-AM4x10-5.8
BSD-2910501120.A62
2910501120
|
£1.75
|
£2.10
|
|
|
79 - TAPPING SCREW DIN 7971-ST3.9x22-F
BSD-2910211021.A897
2910211021
|
£1.75
|
£2.10
|
|
|
100 - BUSHING
BSD-3600328033.A13
3600328033
|
£8.49
|
£10.19
|
|
|
102 - STRAIGHT PIN 5 H 8x18 DIN 7
BSD-2917500121.A165
2917500121
|
£1.75
|
£2.10
|
|
|
650 - AUXILIARY HANDLE dia 43 MM
BSD-3602025012.A4
3602025012
|
£27.23
|
£32.68
|
|
|
650/20 - SUPPORT CLAMP
BSD-1618040077.A148
1618040077
|
-
|
|
|
|
650/30 - STUD BOLT M8
BSD-1613521001.A118
1613521001
|
£5.58
|
£6.70
|
|
|
650/40 - CLAMPING BAND dia43 MM
BSD-3601038048.A14
3601038048
|
£18.96
|
£22.75
|
|
|
650/50 - STRAIGHT PIN
BSD-1613100012.A194
1613100012
|
£2.61
|
£3.13
|
|
|
651 - MIXER ATTACHMENT dia 140 MM. M14
BSD-3609201036.A4
3609201036
|
£81.81
|
£98.17
|
|
|
652 - THREADED FITTING 215 MM. 5/8. M14
BSD-3609201353.A2
3609201353
|
£16.41
|
£19.69
|
|
|
802 - FIELD 240V
BSD-3604220150.A0
3604220150
|
£54.42
|
£65.30
|
|
|
806 - BRUSH HOLDER
BSD-3604336012.A30
3604336012
|
£5.58
|
£6.70
|
|
|
810 - CARBON-BRUSH SET
BSD-3607014012.A6
3607014012
|
£23.86
|
£28.63
|
|
|
818 - HANDLE
BSD-3605132031.A34
3605132031
|
£31.64
|
£37.97
|
|
|
831 - INTERMEDIATE RING
BSD-1600206026.A55
1600206026
|
£1.75
|
£2.10
|
|
|
833 - RETAINING RING DIN 9045 - dia 30MM
BSD-2916600016.A21
2916600016
|
£1.75
|
£2.10
|
|
|
834 - SUPPORTING DISC
BSD-1600102680.A16
1600102680
|
£1.75
|
£2.10
|
|
|
835 - ROTARY SHAFT LIP SEAL
BSD-3600290070.A20
3600290070
|
£12.04
|
£14.45
|
|
|
836 - INTERMEDIATE RING
BSD-1600300090.A116
1600300090
|
£3.72
|
£4.47
|
|
|
837 - INTERMEDIATE BEARING
BSD-3607030436.A4
3607030436
|
£93.88
|
£112.65
|
|
|
855 - SPINDLE BEARING M14
BSD-1605806368.A1
1605806368
|
£72.18
|
£86.62
|
|
|
861 - RETAINING SNAP RING
BSD-3607030355.A42
3607030355
|
£18.96
|
£22.75
|
|
|
864 - WIRE GUIDE
BSD-1601025001.A39
1601025001
|
£1.75
|
£2.10
|
|
|
865 - CONNECTING CABLE L=345 MM
BSD-1604438013.A32
1604438013
|
£7.36
|
£8.83
|
|
|
867 - CONNECTING CABLE L=450 MM
BSD-3604460009.A15
3604460009
|
£6.52
|
£7.83
|
|
|
888 - NAMEPLATE
BSD-160111A3H3.A2740
160111A3H3
|
£2.61
|
£3.13
|
|
