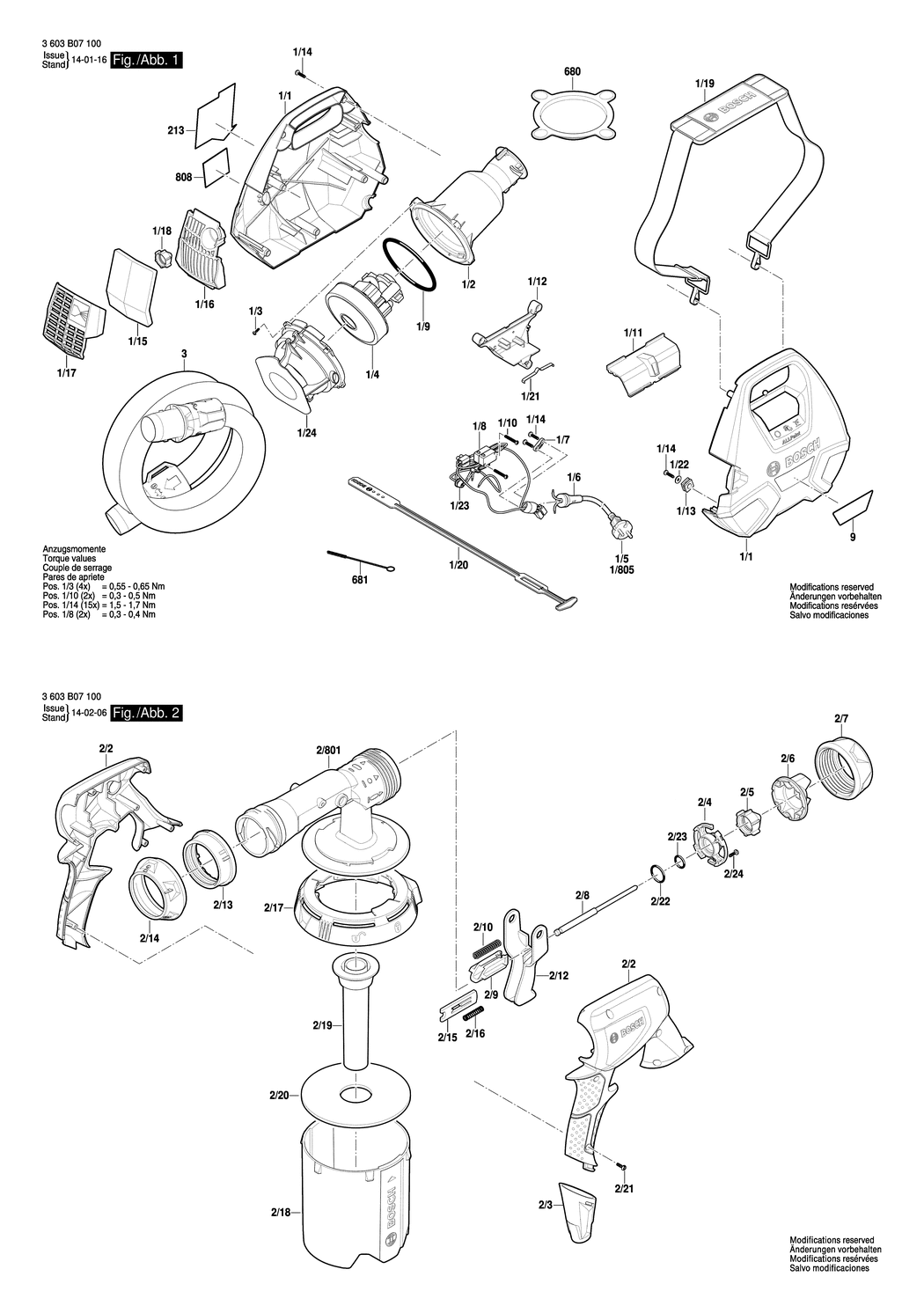

1/1 - HOUSING SECTION
BSD-2609006541.A0
2609006541
|
£31.64
|
£37.97
|
|
1/2 - MOTOR HOUSING
BSD-2609006543.A0
2609006543
|
£6.52
|
£7.83
|
|
1/3 - TORX OVAL-HEAD SCREW 3x10
BSD-2603490017.A860
2603490017
|
£2.16
|
£2.59
|
|
1/4 - MOTOR
BSD-2609006540.A2
2609006540
|
-
|
|
|
1/6 - GROMMET
BSD-2609002019.A114
2609002019
|
£2.61
|
£3.13
|
|
1/7 - CABLE CLIP
BSD-2601035001.A871
2601035001
|
£1.75
|
£2.10
|
|
1/8 - WIRING HARNESS
BSD-2609006802.A1
2609006802
|
£18.96
|
£22.75
|
|
1/9 - SEAL RING
BSD-2609006882.A1
2609006882
|
£3.72
|
£4.47
|
|
1/10 - PLASTIC-CUTTING SCREW
BSD-1609280149.A0
1609280149
|
£1.75
|
£2.10
|
|
1/11 - SLIDE BUTTON
BSD-2609006542.A2
2609006542
|
£3.72
|
£4.47
|
|
1/12 - SWITCH PLATE
BSD-2609006546.A2
2609006546
|
£2.16
|
£2.59
|
|
1/13 - VIBRATION DAMPER
BSD-2609006797.A4
2609006797
|
£1.75
|
£2.10
|
|
1/14 - SCREW 4x16
BSD-2603490022.A1048
2603490022
|
£1.75
|
£2.10
|
|
1/15 - AIR FILTER
BSD-2609006555.A1
2609006555
|
£7.36
|
£8.83
|
|
1/16 - HOLDER
BSD-2609006556.A1
2609006556
|
£3.72
|
£4.47
|
|
1/17 - FILTER COVER
BSD-2609006547.A1
2609006547
|
£3.72
|
£4.47
|
|
1/18 - NOZZLE
BSD-2609006620.A0
2609006620
|
£1.75
|
£2.10
|
|
1/19 - SHOULDER STRAP
BSD-2609006815.A1
2609006815
|
£10.10
|
£12.12
|
|
1/20 - CABLE TIE
BSD-2609006816.A1
2609006816
|
£6.52
|
£7.83
|
|
1/21 - LEAF SPRING
BSD-2609006817.A1
2609006817
|
£1.75
|
£2.10
|
|
1/22 - PLAIN WASHER DIN 9021-B 4.3-ST
BSD-2916011892.A8
2916011892
|
£1.75
|
£2.10
|
|
1/23 - CABLE SLEEVE
BSD-2609006881.A1
2609006881
|
£1.75
|
£2.10
|
|
1/24 - MOTOR HOUSING
BSD-16051082A8.A1
16051082A8
|
£8.67
|
£10.41
|
|
1/805 - POWER SUPPLY CORD CN 2.65m 2 x 0.75mm H05 W-F
BSD-1607000387.A44
1607000387
|
£11.30
|
£13.56
|
|
2/2 - HOUSING
BSD-2609006611.A5
2609006611
|
£14.75
|
£17.70
|
|
2/3 - END CAP
BSD-2609006612.A0
2609006612
|
£1.32
|
£1.58
|
|
2/4 - INSERT
BSD-2609006613.A5
2609006613
|
£1.75
|
£2.10
|
|
2/5 - NOZZLE
BSD-2609006614.A0
2609006614
|
£1.75
|
£2.10
|
|
2/6 - SPRAYING NOZZLE
BSD-2609006615.A5
2609006615
|
£7.36
|
£8.83
|
|
2/7 - UNION NUT
BSD-2609006616.A0
2609006616
|
£5.30
|
£6.36
|
|
2/8 - VALVE NEEDLE
BSD-2609006617.A5
2609006617
|
-
|
|
|
2/9 - SWITCHING BUSHING
BSD-2609006618.A0
2609006618
|
£2.33
|
£2.80
|
|
2/10 - COMPRESSION SPRING
BSD-2609006630.A1
2609006630
|
£1.32
|
£1.58
|
|
2/12 - TRIGGER
BSD-2609006622.A5
2609006622
|
£2.33
|
£2.80
|
|
2/13 - UNION NUT
BSD-2609006624.A5
2609006624
|
£3.80
|
£4.56
|
|
2/14 - UNION NUT
BSD-2609006619.A5
2609006619
|
£3.80
|
£4.56
|
|
2/15 - ADJUSTING PIN
BSD-2609006623.A0
2609006623
|
£1.95
|
£2.34
|
|
2/16 - COMPRESSION SPRING
BSD-2604610073.A81
2604610073
|
-
|
|
|
2/17 - RESERVOIR CAP
BSD-2609006625.A0
2609006625
|
£6.61
|
£7.93
|
|
2/18 - INK RESERVOIR
BSD-2609006626.A5
2609006626
|
-
|
|
|
2/19 - SUCTION PIPE
BSD-2609006627.A0
2609006627
|
-
|
|
|
2/20 - SEALING PLATE
BSD-2609006628.A5
2609006628
|
£2.70
|
£3.24
|
|
2/21 - TORX OVAL-HEAD SCREW 3x10
BSD-2603490017.A864
2603490017
|
£2.16
|
£2.59
|
|
2/22 - O-RING 17.0x2.0 MM
BSD-1610210201.A10
1610210201
|
£1.75
|
£2.10
|
|
2/23 - O-RING 10.82x1.78 MM
BSD-2600210004.A1
2600210004
|
£4.26
|
£5.11
|
|
2/24 - TORX OVAL-HEAD SCREW 3x18
BSD-2603490018.A340
2603490018
|
£1.75
|
£2.10
|
|
2/801 - HOUSING BASE
BSD-2609007309.A0
2609007309
|
-
|
|
|
3 - AIR HOSE
BSD-2609007100.A2
2609007100
|
£40.80
|
£48.96
|
|
9 - MANUFACTURER'S NAMEPLATE PFS 3000-2
BSD-2609007306.A2
2609007306
|
£2.61
|
£3.13
|
|
213 - STICKER
BSD-2609007310.A2
2609007310
|
£2.61
|
£3.13
|
|
680 - FILTER
BSD-2609007097.A0
2609007097
|
£5.58
|
£6.70
|
|
681 - BRUSH
BSD-2609007096.A5
2609007096
|
£4.26
|
£5.11
|
|
808 - NAMEPLATE
BSD-160111A2LZ.A0
160111A2LZ
|
£2.61
|
£3.13
|
|
