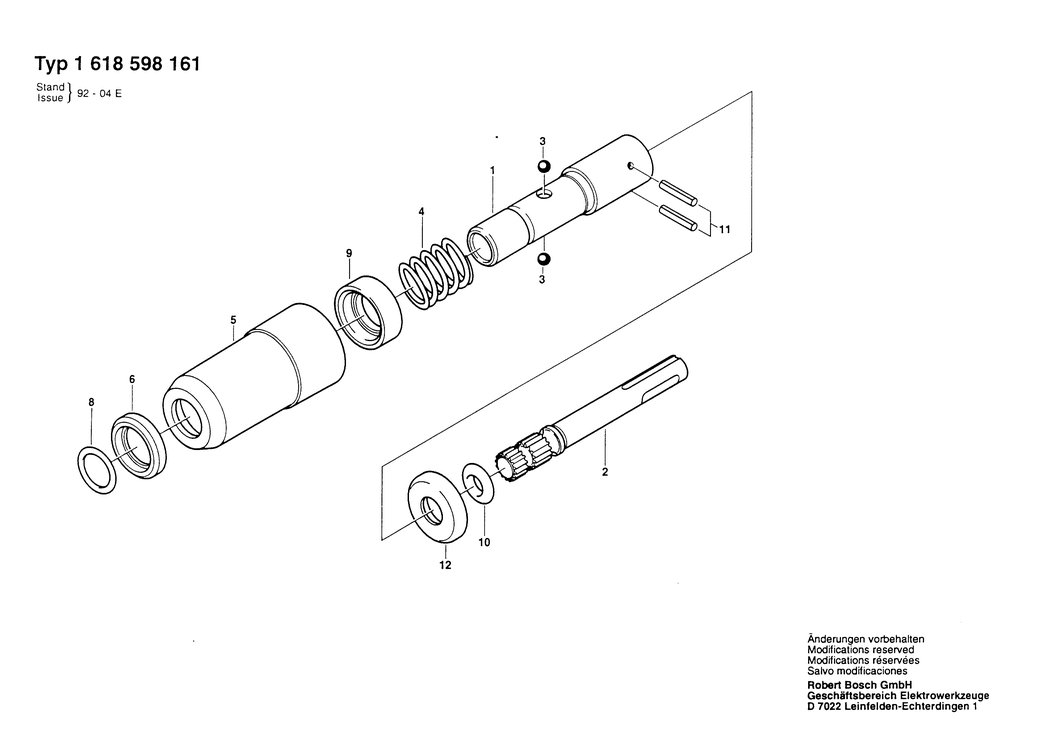

An exploded drawing and listing for the Bosch ---- / 1618598161 / ---
Ex VAT Inc VAT
1 - TOOLHOLDER BSD-2608598010.A0 2608598010 £72.18 £86.62
2 - MOUNTING SHANK BSD-2608598011.A0 2608598011 -
3 - BALL 10 MM III DIN 5401ST BSD-1903230016.A1 1903230016 £3.72 £4.47
4 - COMPRESSION SPRING BSD-2604616004.A0 2604616004 -
5 - PROTECTION SLEEVE BSD-2600499026.A0 2600499026 £10.10 £12.12
6 - STOP RING BSD-2600114011.A0 2600114011 -
8 - O-RING 25.0x6.0 MM BSD-2600210038.A0 2600210038 £2.16 £2.59
9 - STOP SLEEVE BSD-2600114012.A0 2600114012 -
10 - O-RING 15.0x7.0 MM BSD-2600210037.A0 2600210037 £2.61 £3.13
11 - HOLDING PIN BSD-2603239014.A0 2603239014 £4.26 £5.11
12 - STOP DISC BSD-2600502003.A0 2600502003 £2.61 £3.13
