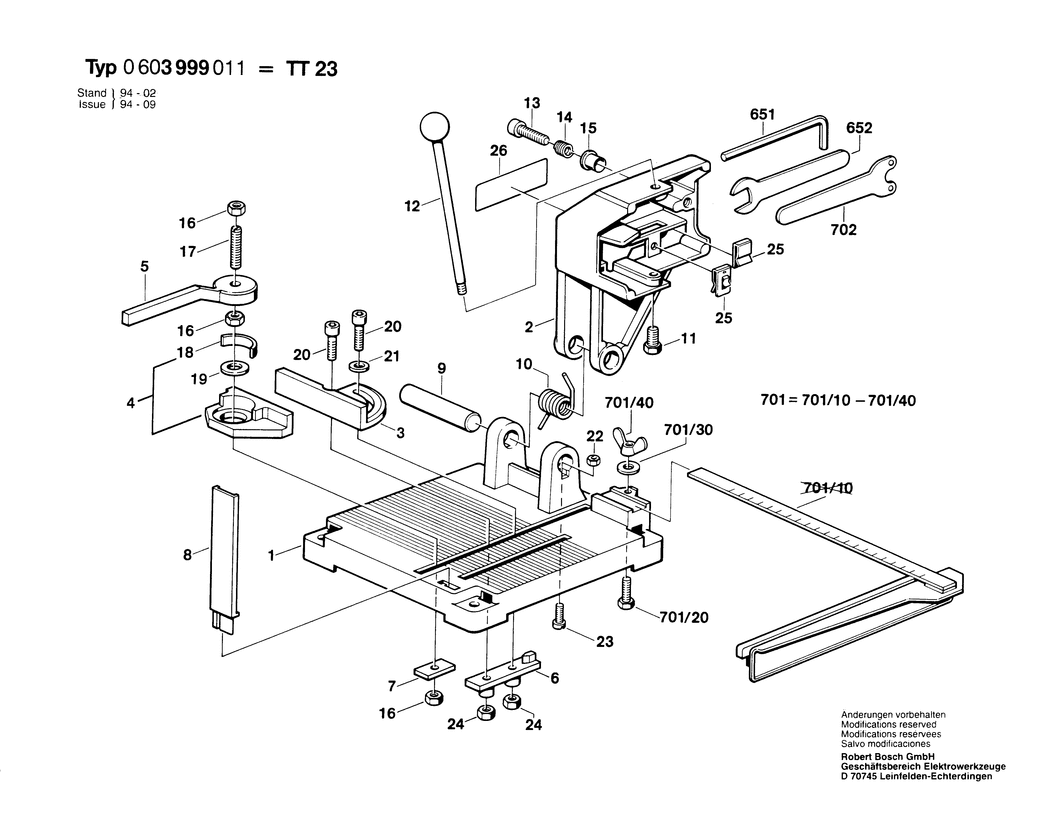

1 - BASE PLATE
BSD-1609202201.A0
1609202201
|
-
|
|
|
|
2 - DRIVE-MACHINE HOLDER
BSD-1609202202.A0
1609202202
|
£30.28
|
£36.33
|
|
|
3 - MITER SQUARE
BSD-1609202203.A0
1609202203
|
-
|
|
|
|
4 - CLAMPING JAWS
BSD-1609202204.A0
1609202204
|
-
|
|
|
|
5 - TENSIONING LEVER
BSD-1609202205.A0
1609202205
|
-
|
|
|
|
6 - CLAMPING PIECE
BSD-1609202206.A0
1609202206
|
-
|
|
|
|
7 - T-SLOT STONE
BSD-1609202207.A0
1609202207
|
-
|
|
|
|
8 - PROTECTIVE SHIELD
BSD-1609202208.A0
1609202208
|
£8.49
|
£10.19
|
|
|
9 - AXLE
BSD-1609202209.A0
1609202209
|
-
|
|
|
|
10 - COILED SPRING
BSD-1609202210.A0
1609202210
|
£2.33
|
£2.80
|
|
|
11 - HEX SCREW M10X20 DIN 933-8.8
BSD-2911061289.A0
2911061289
|
-
|
|
|
|
12 - SWIVELLING LEVER
BSD-1609202211.A0
1609202211
|
-
|
|
|
|
13 - HEX SOCKET HEAD CAP SCREW DIN 912-M8x35-8.8
BSD-2910141248.A27
2910141248
|
£1.75
|
£2.10
|
|
|
14 - COMPRESSION SPRING
BSD-1609202212.A0
1609202212
|
-
|
|
|
|
15 - CAP
BSD-1609202213.A0
1609202213
|
£1.75
|
£2.10
|
|
|
16 - HEX NUT DIN 934-M 10-m-8
BSD-2915011010.A24
2915011010
|
-
|
|
|
|
17 - SET SCREW
BSD-1609202214.A0
1609202214
|
£2.52
|
£3.02
|
|
|
18 - THRUST MEMBER
BSD-1609202215.A0
1609202215
|
£1.95
|
£2.34
|
|
|
19 - CONICAL SPRING WASHER
BSD-1609202216.A0
1609202216
|
-
|
|
|
|
20 - HEX SOCKET HEAD CAP SCREW DIN 912-M8x30-8.8
BSD-2910141246.A0
2910141246
|
-
|
|
|
|
21 - PLAIN WASHER 8.4 DIN 433-ST
BSD-2916011015.A36
2916011015
|
£1.75
|
£2.10
|
|
|
22 - HEX NUT DIN 934 -M4-m-8
BSD-2915011005.A696
2915011005
|
£1.75
|
£2.10
|
|
|
23 - SET SCREW DIN 913-M5x20-45H
BSD-2912041162.A0
2912041162
|
-
|
|
|
|
24 - HEX NUT M 7 DIN 934-M-8
BSD-2915011008.A0
2915011008
|
-
|
|
|
|
25 - PICKUP CLIP
BSD-1609202217.A0
1609202217
|
-
|
|
|
|
26 - MANUFACTURER'S NAMEPLATE
BSD-1601110546.A0
1601110546
|
-
|
|
|
|
651 - OFFSET SCREWDRIVER DIN 911;SW6
BSD-1907950007.A400
1907950007
|
£5.30
|
£6.36
|
|
|
652 - SINGLE-HEAD ENG. WRENCH SW17
BSD-1607950508.A0
1607950508
|
-
|
|
|
|
701 - EDGE GUIDE
BSD-1607000200.A0
1607000200
|
-
|
|
|
|
701/20 - HEX SCREW DIN 933-M 6x16-8.8
BSD-2911061197.A0
2911061197
|
-
|
|
|
|
701/30 - PLAIN WASHER DIN 9021-A6.4-ST
BSD-2916011884.A47
2916011884
|
-
|
|
|
|
701/40 - WING NUT DIN 1709 BM 6 VERZINKT
BSD-2915191106.A36
2915191106
|
-
|
|
|
|
702 - PIN-TYPE FACE-WRENCH
BSD-1607950052.A238
1607950052
|
£3.72
|
£4.47
|
|
