Fein RDG 18-3a / 75602300009 Spare Parts

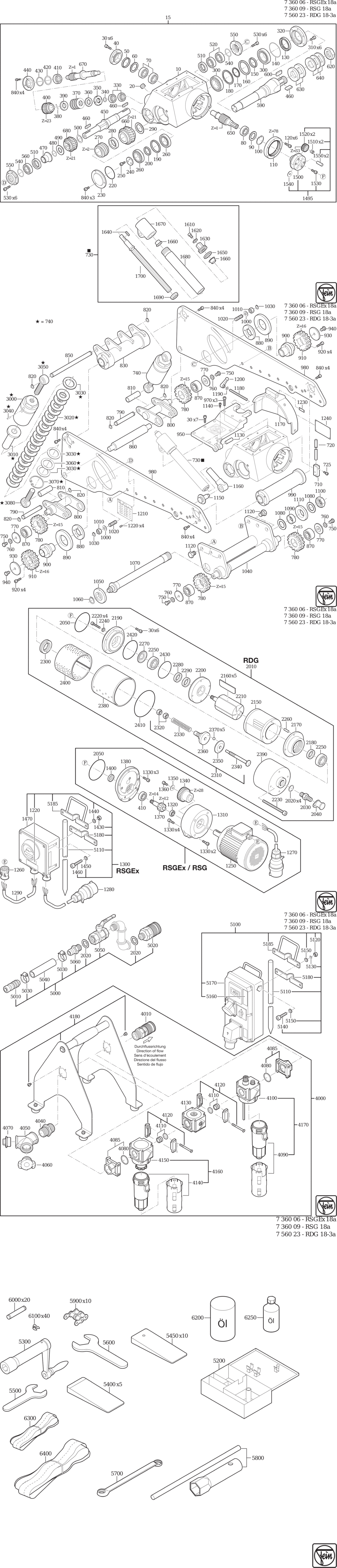

An exploded diagram and spare parts listing for the Fein RDG 18-3a / 75602300009

	Ex VAT	Inc VAT
10 - HOUSING FEI-31207063009.A1 31207063009	£2619.39	£3143.27
15 - GEARBOX FEI-31207063024.A1 31207063024	-
20 - SCREW FEI-43043001009.A6 43043001009	-
30 - CYLINDER HEAD SCREW FEI-43035032065.A6 43035032065	-
40 - COVER FEI-32419057000.A10 32419057000	£114.20	£137.04
50 - SEALING RING FEI-40612015004.A8 40612015004	-
60 - DISC FEI-32624012038.A7 32624012038	-
60 - DISC FEI-32624012022.A4 32624012022	-
70 - INCLINED BALL BEARING FEI-41723002010.A2 41723002010	-
80 - GROOVED BALL BEARING FEI-41701016011.A10 41701016011	-
90 - DISC FEI-32408211003.A6 32408211003	£3.22	£3.86
100 - CIRCLIP FEI-42616022006.A8 42616022006	-
110 - GEAR-WHEEL FEI-33804011006.A7 33804011006	£181.90	£218.28
120 - CYLINDER HEAD SCREW FEI-43035009044.A9 43035009044	-
130 - SEALING RING FEI-40608000008.A1 40608000008	-
140 - SEALING RING FEI-40612018009.A1 40612018009	-
150 - RING FEI-32601165003.A4 32601165003	£56.69	£68.03
160 - RING FEI-32601167000.A4 32601167000	£60.98	£73.17
170 - DISC FEI-32624070024.A11 32624070024	£3.92	£4.70
180 - DISC FEI-32624080023.A9 32624080023	£7.07	£8.48
190 - RING FEI-32601168008.A7 32601168008	£52.56	£63.07
200 - RING FEI-32601166006.A7 32601166006	£58.37	£70.04
220 - SEALING RING FEI-40612021004.A10 40612021004	£3.88	£4.65
230 - COVER FEI-32419062006.A1 32419062006	£91.65	£109.98
240 - DISC FEI-32408452000.A10 32408452000	-
250 - CYLINDER HEAD SCREW FEI-43035031062.A7 43035031062	-
260 - TAPERED ROLLER BEARING FEI-41713006007.A5 41713006007	-
270 - WORM FEI-33805006000.A4 33805006000	-
280 - RING FEI-32601169002.A4 32601169002	£42.46	£50.95
290 - DISC FEI-32624071039.A11 32624071039	£5.89	£7.07
290 - DISC FEI-32624071023.A0 32624071023	£2.60	£3.12
300 - TAPERED ROLLER BEARING FEI-41713008009.A6 41713008009	-
310 - CYLINDER HEAD SCREW FEI-43035086069.A1 43035086069	-
320 - COVER FEI-32419060004.A3 32419060004	£194.68	£233.62
330 - INCLINED BALL BEARING FEI-41723001017.A9 41723001017	-
340 - DISC FEI-32624084027.A4 32624084027	£2.78	£3.34
340 - DISC FEI-32624084011.A7 32624084011	£3.72	£4.47
340 - DISC FEI-32624084033.A7 32624084033	£3.70	£4.44
350 - NUT FEI-42008021008.A2 42008021008	-
360 - RING FEI-32601170004.A5 32601170004	£39.83	£47.80
370 - CUP SPRING FEI-30905022007.A9 30905022007	-
380 - STRAIGHT PIN FEI-40201041003.A9 40201041003	-
390 - RING FEI-32601171003.A6 32601171003	£81.92	£98.30
400 - WORM FEI-33807013000.A10 33807013000	-
410 - GROOVED BALL BEARING FEI-41701222016.A10 41701222016	-
420 - DISC FEI-32624019027.A10 32624019027	£6.01	£7.21
420 - DISC FEI-32624019011.A1 32624019011	£6.01	£7.21
430 - SEALING RING FEI-40612022007.A5 40612022007	-
440 - COVER FEI-32419056006.A3 32419056006	£82.56	£99.07
450 - SHAFT FEI-33406099006.A1 33406099006	£938.77	£1126.52
460 - FEATHER KEY FEI-40221044000.A7 40221044000	£3.78	£4.54
470 - SLEEVE FEI-30503064001.A11 30503064001	£162.34	£194.81
480 - SEALING RING FEI-40612016007.A5 40612016007	-
490 - DISC FEI-32408191009.A4 32408191009	£14.52	£17.42
500 - DISC FEI-32624072032.A6 32624072032	£6.51	£7.81
500 - DISC FEI-32624072026.A5 32624072026	£1.60	£1.92
510 - SEALING RING FEI-40608026009.A11 40608026009	-
520 - INCLINED BALL BEARING FEI-41723003014.A7 41723003014	-
530 - CYLINDER HEAD SCREW FEI-43035005045.A10 43035005045	-
540 - SEALING RING FEI-40612019003.A7 40612019003	-
550 - COVER FEI-32419061003.A8 32419061003	£218.93	£262.72
560 - GROOVED BALL BEARING FEI-41701017015.A5 41701017015	-
590 - SHAFT FEI-33406098002.A4 33406098002	£1722.35	£2066.82
600 - FEATHER KEY FEI-40221050005.A7 40221050005	£6.28	£7.53
620 - HEX NUT FEI-42003009007.A7 42003009007	-
630 - DISC FEI-32408188004.A7 32408188004	£77.29	£92.75
640 - DISC FEI-32408187006.A4 32408187006	£93.68	£112.41
650 - WORM FEI-33806002006.A5 33806002006	-
660 - WORM FEI-33807008008.A0 33807008008	-
670 - WORM FEI-33806005002.A11 33806005002	£663.12	£795.75
680 - WORM FEI-33807011003.A3 33807011003	-
710 - PLATE FEI-32433027008.A0 32433027008	-
720 - MOUNTING SHAFT FEI-32715112003.A2 32715112003	-
725 - CYLINDER HEAD SCREW FEI-43033083066.A10 43033083066	£1.60	£1.92
730 - DELIVERY FIXTURE FEI-30520068017.A4 30520068017	£764.38	£917.26
740 - CLAMPING UNIT FEI-32715069041.A2 32715069041	£387.69	£465.23
750 - HEXAGON SOCKET SCREW FEI-43048054109.A3 43048054109	-
760 - DISC FEI-42401017104.A14 42401017104	-
770 - DISC FEI-32415059008.A9 32415059008	-
780 - HOOK AND LOOP WHEEL FEI-32715115009.A10 32715115009	£83.08	£99.70
790 - BOLT FEI-30217317004.A3 30217317004	-
800 - HINGE FEI-33406279012.A8 33406279012	-
810 - SLEEVE FEI-30501340005.A6 30501340005	-
820 - CIRCLIP FEI-42616023000.A34 42616023000	-
830 - CROSSBAR FEI-32715118013.A1 32715118013	-
840 - CYLINDER HEAD SCREW FEI-43033083066.A9 43033083066	£1.60	£1.92
850 - BOLT FEI-30217213009.A2 30217213009	£30.08	£36.09
860 - BOLT FEI-30217316000.A8 30217316000	-
870 - INCLINED BALL BEARING FEI-41711021008.A7 41711021008	-
880 - DISC FEI-32408378007.A6 32408378007	-
890 - DISC FEI-32715117006.A4 32715117006	£136.72	£164.06
900 - SLEEVE FEI-32715122002.A10 32715122002	-
910 - HOOK AND LOOP WHEEL FEI-32715116002.A1 32715116002	£103.88	£124.66
920 - CYLINDER HEAD SCREW FEI-43035097059.A5 43035097059	£1.60	£1.92
930 - DISC FEI-32408374008.A3 32408374008	-
940 - HEXAGON SOCKET SCREW FEI-43001041105.A9 43001041105	-
950 - COVER FEI-32429120000.A9 32429120000	£535.71	£642.85
970 - CYLINDER HEAD SCREW FEI-43035037068.A1 43035037068	-
980 - PAIR OF SIDE PLATES FEI-32715113016.A5 32715113016	-
990 - CROSSBAR FEI-30240361010.A3 30240361010	-
1000 - DISC FEI-42401020139.A2 42401020139	£1.60	£1.92
1010 - HEX NUT FEI-42001034120.A0 42001034120	-
1020 - THREAD BOLT FEI-33021098000.A2 33021098000	£40.53	£48.64
1030 - CIRCLIP FEI-42616013001.A55 42616013001	£1.60	£1.92
1040 - SHAFT FEI-33406283010.A8 33406283010	-
1050 - DISC FEI-32715120000.A11 32715120000	£170.66	£204.79
1060 - CIRCLIP FEI-42616044006.A10 42616044006	-
1070 - SHAFT FEI-33406336000.A2 33406336000	-
1080 - DISC FEI-32408376005.A5 32408376005	£50.00	£60.00
1090 - SLEEVE FEI-30501339003.A5 30501339003	£57.22	£68.67
1100 - HEX NUT FEI-30509052000.A11 30509052000	-
1110 - DISC FEI-32715121009.A0 32715121009	£157.99	£189.59
1120 - SCREW FEI-43012051122.A5 43012051122	-
1130 - BOLT FEI-30217314003.A2 30217314003	£16.47	£19.76
1140 - CYLINDER HEAD SCREW FEI-43033084045.A6 43033084045	-
1150 - THREAD BOLT FEI-33021097002.A8 33021097002	£102.96	£123.55
1160 - HINGE FEI-30509019010.A0 30509019010	£138.71	£166.45
1170 - SAFETY HOOD FEI-31810234000.A11 31810234000	-
1180 - STUD BOLT FEI-43007059080.A2 43007059080	£5.21	£6.25
1190 - DISC FEI-42401019085.A58 42401019085	£1.60	£1.92
1200 - LEVER FEI-32170002005.A8 32170002005	£52.40	£62.88
1210 - INFORMATION SIGN FEI-32215103069.A0 32215103069	-
1220 - RIVET FEI-40204001009.A3 40204001009	-
1230 - INFORMATION SIGN FEI-32215026007.A3 32215026007	£1.60	£1.92
1240 - INFORMATION SIGN FEI-32215104067.A9 32215104067	-
1495 - PLANETARY GEAR FEI-32715055021.A2 32715055021	£784.80	£941.76
1500 - PLANETARY CARRIER FEI-32715055015.A9 32715055015	£628.10	£753.72
1510 - NEEDLE CAGE FEI-41715016004.A11 41715016004	-
1520 - GEAR-WHEEL FEI-33613071004.A9 33613071004	£66.63	£79.96
1530 - CYLINDER HEAD SCREW FEI-43033064066.A61 43033064066	£1.60	£1.92
1540 - DISC FEI-32402002000.A0 32402002000	£14.39	£17.27
1550 - PIN FEI-40242017000.A6 40242017000	-
1610 - CYLINDER HEAD SCREW FEI-43035029061.A0 43035029061	£1.60	£1.92
1620 - DISC FEI-32402001007.A11 32402001007	£31.64	£37.97
1630 - CLUTCH PART FEI-30101026001.A8 30101026001	£94.46	£113.35
1640 - FEATHER KEY FEI-40221018002.A8 40221018002	-
1650 - SEALING RING FEI-40612020005.A5 40612020005	-
1660 - BUSH FEI-31602087007.A3 31602087007	£8.60	£10.32
1670 - BEARING PIECE FEI-32715114005.A0 32715114005	£244.44	£293.33
1680 - PIPE FEI-30520068008.A6 30520068008	-
1690 - RING FEI-30606008008.A2 30606008008	£24.01	£28.81
1700 - THREAD BOLT FEI-33406146004.A2 33406146004	£233.70	£280.44
2010 - MOTOR FEI-75752700016.A2 75752700016	-
2020 - SEALING RING FEI-40611006004.A2 40611006004	-
2030 - CLUTCH PART FEI-41135002009.A2 41135002009	-
2040 - CAP FEI-31415084006.A1 31415084006	£35.02	£42.03
2050 - SEALING RING FEI-40612017001.A6 40612017001	£8.16	£9.79
2150 - CYLINDER FEI-31305427000.A1 31305427000	£2515.82	£3018.99
2160 - FLAP FEI-31305428000.A2 31305428000	£226.54	£271.85
2170 - COVER FEI-31305429000.A1 31305429000	£631.25	£757.50
2180 - RING FEI-31305430000.A2 31305430000	£232.26	£278.71
2190 - FLANGE FEI-31305431000.A1 31305431000	-
2200 - SEAL FEI-31305432000.A2 31305432000	-
2210 - ROTOR FEI-31305433000.A1 31305433000	-
2220 - CYLINDER HEAD SCREW FEI-31305434000.A2 31305434000	-
2230 - CYLINDER HEAD SCREW FEI-31305435000.A1 31305435000	-
2240 - SEALING RING FEI-31305436000.A2 31305436000	-
2250 - GROOVED BALL BEARING FEI-31305437000.A1 31305437000	£86.24	£103.49
2260 - PIN FEI-31305438000.A2 31305438000	£15.02	£18.03
2270 - RING FEI-31305439000.A1 31305439000	£16.16	£19.39
2280 - SEALING RING FEI-31305440000.A2 31305440000	£23.74	£28.49
2290 - SEALING RING FEI-31305441000.A1 31305441000	£117.58	£141.10
2300 - NUT FEI-31305442000.A2 31305442000	-
2310 - REGULATOR FEI-31305443000.A1 31305443000	-
2320 - HEX NUT FEI-31305444000.A2 31305444000	-
2330 - SPRING FEI-31305445000.A1 31305445000	-
2340 - REGULATOR FEI-31305446000.A2 31305446000	-
2350 - REGULATOR FEI-31305447000.A1 31305447000	-
2360 - BEARING FEI-31305448000.A2 31305448000	-
2370 - BALL FEI-31305449000.A1 31305449000	-
2380 - HOOD FEI-31305450000.A2 31305450000	-
2390 - AIR GUIDE FEI-31305451000.A1 31305451000	-
2400 - SILENCER FEI-31305452000.A2 31305452000	£39.22	£47.07
2410 - SEALING RING FEI-31305453000.A1 31305453000	£15.98	£19.17
2420 - SEALING RING FEI-31305454000.A1 31305454000	£21.68	£26.02
2430 - SEALING RING FEI-31305455000.A2 31305455000	£8.79	£10.55
3000 - CLAMPING SLEEVE FEI-32715069013.A8 32715069013	£150.26	£180.31
3010 - BOLT FEI-32715071005.A7 32715071005	£96.34	£115.61
3020 - CUP SPRING FEI-30905023001.A6 30905023001	£11.03	£13.24
3030 - RING FEI-32601172006.A9 32601172006	£19.99	£23.99
3040 - PIN FEI-40247005009.A2 40247005009	-
3050 - RING BOLT FEI-43040004165.A9 43040004165	-
3060 - DISC FEI-32624078049.A6 32624078049	£7.35	£8.82
3070 - CIRCLIP FEI-42616048005.A4 42616048005	-
3080 - RING BOLT FEI-43040005004.A2 43040005004	-
4000 - MAINTENANCE UNIT FEI-32715129020.A0 32715129020	-
4010 - CLUTCH PART FEI-41136004006.A3 41136004006	-
4040 - NIPPLE FEI-41129005005.A0 41129005005	-
4050 - DISTRIBUTOR FEI-41120002003.A3 41120002003	-
4060 - CLUTCH PART FEI-41140010002.A2 41140010002	-
4070 - PLUG 1 FEI-41115003006.A2 41115003006	-
4080 - SEALING RING FEI-40612162002.A2 40612162002	-
4085 - CONNECTING PIECE FEI-34300000015.A0 34300000015	-
4090 - CONTAINER OEL/OIL FEI-34300000032.A1 34300000032	-
4100 - VALVE FEI-34300000021.A3 34300000021	-
4110 - SEAL SET FEI-34300000024.A3 34300000024	-
4120 - CONNECTOR SET FEI-34300000023.A0 34300000023	-
4130 - DISTRIBUTOR FEI-34300000019.A3 34300000019	-
4140 - CONTAINER AIR FEI-34300000033.A2 34300000033	-
4150 - FILTER FEI-34300000017.A0 34300000017	-
4160 - FILTER SET FEI-34300000016.A3 34300000016	-
4170 - VALVE SET FEI-34300000020.A0 34300000020	-
4180 - HOUSING SET FEI-34300000014.A3 34300000014	-
5000 - HOSE FEI-31414001023.A0 31414001023	£624.78	£749.74
5010 - CLUTCH PART FEI-41135006008.A0 41135006008	-
5020 - CLUTCH FEI-41136020000.A0 41136020000	-
5030 - TERMINAL FEI-30234035004.A3 30234035004	-
5040 - HOSE FEI-31414001008.A3 31414001008	-
5050 - STOPCOCK 2 FEI-41109004009.A1 41109004009	-
5060 - NIPPLE FEI-41138028001.A0 41138028001	-
5200 - TOOL CASE FEI-33901031001.A11 33901031001	-
5300 - N.A. FEI-32122007017.A5 32122007017	-
5450 - SPLITTER WEDGE FEI-63305006008.A5 63305006008	£17.89	£21.47
5500 - JAW SPANNER SW46 FEI-62901016002.A4 62901016002	£31.91	£38.29
5600 - SINGLE HEAD WRENCH FEI-62903010006.A6 62903010006	-
5700 - RING SPANNER 17X19 FEI-62911010000.A4 62911010000	-
5800 - PIPE SOCKET WRENCH FEI-62906014000.A5 62906014000	-
5900 - ROLLER CHAIN FEI-30231029002.A6 30231029002	-
6000 - BOLT FEI-30217216004.A7 30217216004	£3.50	£4.20
6100 - CIRCLIP FEI-42634020005.A2 42634020005	£1.60	£1.92
6200 - LUBRICANT CAN 1.800 KG FEI-32132009013.A4 32132009013	-
6250 - LUBRICANT BOTTLE 0 25 KG FEI-32132017050.A1 32132017050	-
6250 - LUBRICANT CAN 0.500 KG FEI-32132006017.A2 32132006017	-
6300 - WRIST STRAP FEI-32174009001.A2 32174009001	-
6400 - WRIST STRAP FEI-32174010003.A9 32174010003	-

Attribute Name	Value
Brand	Fein

Reviews Write your own review!

There are currently no reviews of this product.

Fill in the form below to add your review for Fein RDG 18-3a / 75602300009 Spare Parts

Your Review
Title Required!
Rating Required!
Your Review Required!
Your Details
Your Name Required!
Your Location Required!
Email Address Required!Invalid email!

United Kingdom (Including N. Ireland)

On orders up to £40.00	Add £4.00 inc VAT (Royal Mail post)
On orders £40.00 to £130.00	Add £7.00 inc VAT (Courier)
On orders over £130.00	FREE (Courier)

Shopping Basket (0) £0.00

Fein RDG 18-3a / 75602300009 Spare Parts

Your Review

Your Details

Carry On Shopping

Try these categories

Recently Viewed

Your Order

About Us

Other Links

Search

Customization

Shopping Basket (0) £0.00

Information

Fein RDG 18-3a / 75602300009 Spare Parts

Notify me

Your Review

Your Details

Carry On Shopping

Try these categories

Recently Viewed

Your Order

About Us

Other Links

Search
