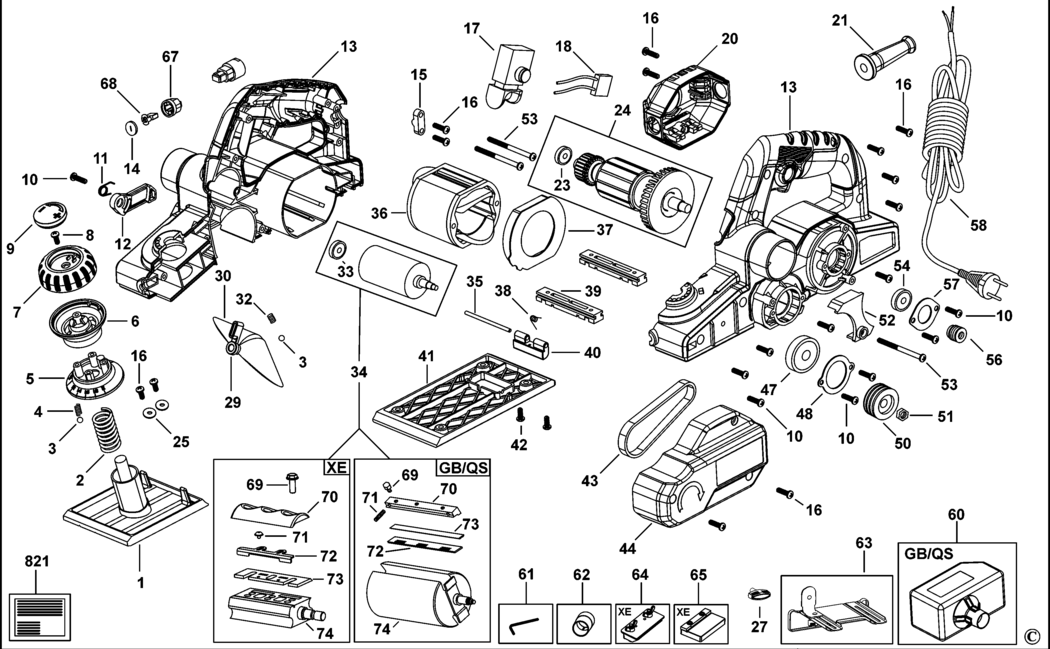

1 - SHOE
BDE-1004526-00.A4
1004526-00
|
£12.17
|
£14.60
|
|
|
2 - SPRING
BDE-1004526-01.A2
1004526-01
|
£1.50
|
£1.80
|
|
|
3 - BALL STEEL
BDE-1004526-02.A5
1004526-02
|
£1.50
|
£1.80
|
|
|
4 - SPRING
BDE-1004526-03.A2
1004526-03
|
£1.50
|
£1.80
|
|
|
5 - DIAL PLATE
BDE-1004526-04.A1
1004526-04
|
£1.50
|
£1.80
|
|
|
6 - KNOB LOWER
BDE-1004526-05.A0
1004526-05
|
£1.50
|
£1.80
|
|
|
7 - KNOB UPPER
BDE-1004526-06.A1
1004526-06
|
£1.50
|
£1.80
|
|
|
8 - SCREW
BDE-1004526-07.A0
1004526-07
|
£1.50
|
£1.80
|
|
|
9 - COVER
BDE-1004526-08.A5
1004526-08
|
£1.50
|
£1.80
|
|
|
10 - SCREW
BDE-1004526-09.A0
1004526-09
|
£1.50
|
£1.80
|
|
|
11 - SPRING
BDE-1004526-10.A7
1004526-10
|
£1.50
|
£1.80
|
|
|
12 - GUARD COVER
BDE-1004526-11.A0
1004526-11
|
£1.50
|
£1.80
|
|
|
13 - CLAMSHELL SA GB
BDE-1004526-12.A1
1004526-12
|
£45.14
|
£54.17
|
|
|
14 - BRUSH CAP
BDE-1004526-14.A1
1004526-14
|
£1.50
|
£1.80
|
|
|
15 - CORD CLAMP
BDE-1004526-17.A6
1004526-17
|
£1.50
|
£1.80
|
|
|
16 - SCREW
BDE-1004526-18.A1
1004526-18
|
£1.50
|
£1.80
|
|
|
17 - SWITCH GB
BDE-1004526-19.A4
1004526-19
|
£9.41
|
£11.29
|
|
|
18 - CAPACITOR
BDE-1004526-21.A1
1004526-21
|
£1.50
|
£1.80
|
|
|
20 - MOTOR COVER
BDE-1004526-23.A5
1004526-23
|
£3.30
|
£3.96
|
|
|
21 - CORD PROTECTOR
BDE-1004526-24.A1
1004526-24
|
£1.50
|
£1.80
|
|
|
23 - BEARING
BDE-1004526-26.A6
1004526-26
|
£2.78
|
£3.34
|
|
|
24 - ARMATURE SA Incl. 23
BDE-1004526-27.A0
1004526-27
|
£41.24
|
£49.49
|
|
|
25 - WASHER LOCK
BDE-1004526-29.A6
1004526-29
|
£1.50
|
£1.80
|
|
|
27 - KNOB SA
BDE-1004526-31.A1
1004526-31
|
£1.50
|
£1.80
|
|
|
29 - LEVER
BDE-1004526-33.A1
1004526-33
|
£1.50
|
£1.80
|
|
|
30 - DEFLECTOR
BDE-1004526-34.A6
1004526-34
|
£1.50
|
£1.80
|
|
|
32 - SPRING
BDE-1004526-36.A1
1004526-36
|
£1.50
|
£1.80
|
|
|
33 - BEARING
BDE-1004526-37.A6
1004526-37
|
£3.30
|
£3.96
|
|
|
34 - BLADEDRUM SA Incl. 33 GB
BDE-1004526-38.A0
1004526-38
|
£44.14
|
£52.97
|
|
|
35 - PIN
BDE-1004526-46.A1
1004526-46
|
£4.69
|
£5.63
|
|
|
36 - FIELD
BDE-1004526-47.A4
1004526-47
|
£30.08
|
£36.10
|
|
|
37 - BAFFLE FAN
BDE-1004526-49.A0
1004526-49
|
£1.50
|
£1.80
|
|
|
38 - SPRING
BDE-1004526-50.A7
1004526-50
|
£1.50
|
£1.80
|
|
|
39 - CLAMPING BAR
BDE-1004526-51.A0
1004526-51
|
£1.50
|
£1.80
|
|
|
40 - STAND
BDE-1004526-52.A7
1004526-52
|
£1.50
|
£1.80
|
|
|
41 - SHOE
BDE-1004526-53.A0
1004526-53
|
£12.17
|
£14.60
|
|
|
42 - SCREW
BDE-1004526-54.A7
1004526-54
|
£1.50
|
£1.80
|
|
|
43 - BELT
BDE-1004526-55.A0
1004526-55
|
£5.88
|
£7.06
|
|
|
44 - COVER BELT
BDE-1004526-56.A5
1004526-56
|
£1.50
|
£1.80
|
|
|
47 - BEARING
BDE-1004526-59.A0
1004526-59
|
£5.88
|
£7.06
|
|
|
48 - BEARING PLATE
BDE-1004526-60.A7
1004526-60
|
£1.50
|
£1.80
|
|
|
50 - WHEEL LARGE
BDE-1004526-62.A0
1004526-62
|
£1.82
|
£2.19
|
|
|
51 - NUT
BDE-1004526-63.A6
1004526-63
|
£1.50
|
£1.80
|
|
|
52 - BAFFLE
BDE-1004526-64.A0
1004526-64
|
£1.50
|
£1.80
|
|
|
53 - SCREW
BDE-1004526-65.A7
1004526-65
|
£1.50
|
£1.80
|
|
|
54 - BEARING
BDE-1004526-66.A0
1004526-66
|
£2.78
|
£3.34
|
|
|
56 - WHEEL DRIVING
BDE-1004526-68.A7
1004526-68
|
£3.30
|
£3.96
|
|
|
57 - BEARING PLATE
BDE-1004526-69.A0
1004526-69
|
£1.50
|
£1.80
|
|
|
58 - CORDSET GB
BDE-1004526-88
1004526-88
|
£16.03
|
£19.24
|
|
|
60 - DUSTBAG GB
BDE-1004526-75.A2
1004526-75
|
£12.17
|
£14.60
|
|
|
61 - SPANNER GB
BDE-1004526-76.A1
1004526-76
|
£2.26
|
£2.71
|
|
|
62 - ADAPTOR TUBE
BDE-1004526-78.A1
1004526-78
|
£1.50
|
£1.80
|
|
|
63 - FENCE SA Inc. Washer & 1 Knob GB
BDE-1004526-79.A2
1004526-79
|
£14.57
|
£17.48
|
|
|
67 - BRUSH HOLDER
BDE-1004526-15.A6
1004526-15
|
£2.26
|
£2.71
|
|
|
68 - BRUSH PAIR
BDE-1004526-16.A1
1004526-16
|
£1.50
|
£1.80
|
|
|
69 - SCREW GB
BDE-1004526-90.A0
1004526-90
|
£1.50
|
£1.80
|
|
|
70 - BLADE CLAMP GB
BDE-1004526-91.A3
1004526-91
|
£1.82
|
£2.19
|
|
|
71 - SCREW GB
BDE-1004526-92.A0
1004526-92
|
£1.50
|
£1.80
|
|
|
72 - SUPPORT GB
BDE-1004526-93.A3
1004526-93
|
£1.82
|
£2.19
|
|
|
73 - BLADE GB
BDE-1004526-94.A0
1004526-94
|
£12.17
|
£14.60
|
|
|
74 - CUTTER BLOCK GB
BDE-1004526-95.A3
1004526-95
|
£16.03
|
£19.24
|
|
|
821 - RATING PLATE GB
BDE-1004526-89
1004526-89
|
£1.50
|
£1.80
|
|
