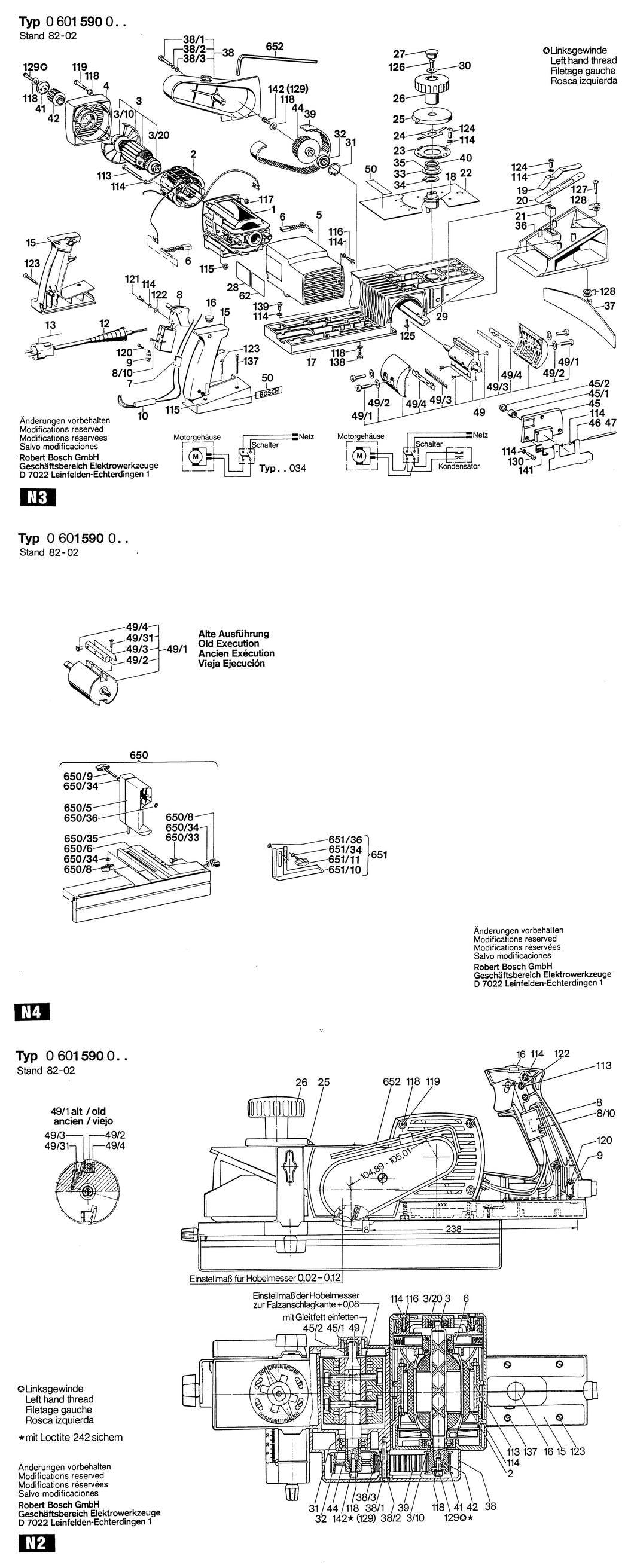

An exploded drawing and listing for the Bosch ---- / 0601590047 / F 110 Volt
Ex VAT Inc VAT
1 - MOTOR HOUSING BSD-1609251023.A10 1609251023 -
2 - POLE SHOE 110V BSD-1609242029.A1 1609242029 -
3 - ARMATURE 110V BSD-1609240029.A0 1609240029 £306.81 £368.17
3/10 - GROOVE BALL BEARING 12x32x10 BSD-1900905231.A21 1900905231 -
3/20 - GROOVE BALL BEARING 7x22x7 BSD-1610900025.A252 1610900025 £16.41 £19.69
4 - FLANGED BEARING BSD-1609258007.A3 1609258007 -
5 - PROTECTIVE COVER BSD-1609255024.A11 1609255024 -
6 - CARBON-BRUSH SET BSD-1609243000.A34 1609243000 -
7 - GROMMET dia9x90 MM BSD-1609207001.A122 1609207001 -
8 - ON-OFF SWITCH BSD-1609272003.A10 1609272003 -
9 - FASTENING CLAMP BSD-1609213000.A36 1609213000 -
10 - SUPPRESSION CAPACITOR BSD-1609200750.A119 1609200750 -
12 - GROMMET dia9x90 MM BSD-1609207001.A129 1609207001 -
13 - POWER SUPPLY CORD EU 4.15m 2 x 1.0mm H07 RN-F BSD-1607000227.A730 1607000227 £23.86 £28.63
15 - HANDLE COVER BSD-1609251024.A12 1609251024 -
16 - PROTECTIVE COVER BSD-1609255025.A12 1609255025 -
17 - BASE PLATE BSD-1609280034.A3 1609280034 -
18 - PARTS SET BSD-1609202401.A7 1609202401 -
19 - LEAF SPRING BSD-1609213008.A7 1609213008 -
20 - SLIDE PLATE BSD-1609210010.A7 1609210010 -
21 - SLIDER BSD-1609223009.A7 1609223009 -
22 - SCALE PLATE BSD-1609255019.A2 1609255019 -
23 - LOCATING WASHER BSD-1609264000.A3 1609264000 -
24 - RATCHET SPRING BSD-1609201013.A12 1609201013 -
25 - INDEX PLATE BSD-1609255022.A12 1609255022 -
26 - HANDLE BSD-1609232003.A7 1609232003 -
27 - SEALING CAP BSD-1609255021.A2 1609255021 -
29 - GUIDE BSD-1609223011.A7 1609223011 -
30 - PLAIN WASHER dia6.4xdia16x2 MM BSD-1609201082.A7 1609201082 -
31 - RETAINING CLIP DIN 472-32x1.2 MM BSD-2916660013.A520 2916660013 £2.16 £2.59
32 - GROOVE BALL BEARING 12x32x10 BSD-1900905231.A6 1900905231 -
33 - SHIM WASHER DIN 988-25x35x1 BSD-2916190173.A14 2916190173 -
34 - SPRING RETAINING RING DIN 471 25x1.2 BSD-2916650014.A41 2916650014 £1.75 £2.10
35 - SHIM RING DIN 988-17x24x1.5 BSD-2916190116.A0 2916190116 -
36 - ADJUSTING SLIDE BSD-1609280035.A11 1609280035 -
37 - CHIP DEFLECTOR BSD-1609223008.A7 1609223008 -
38 - GEAR COVER BSD-1609255020.A12 1609255020 -
38/1 - SOCKET HEAD CAP SCREW DIN 84-BM6x40-8.8 BSD-2910021209.A14 2910021209 -
38/2 - SPRING WASHER DIN 137-A 6-ST BSD-2916060007.A19 2916060007 £1.75 £2.10
38/3 - RUBBER RING G 9x13x3 MM BSD-1609200056.A20 1609200056 -
39 - TOOTHED BELT Z=65 BSD-1609247005.A11 1609247005 -
40 - SHIM RING DIN 988-17x24x0.5 BSD-2916190114.A14 2916190114 -
41 - GUIDE PULLEY BSD-1609205007.A7 1609205007 -
42 - PULLEY Z=16 BSD-1609266005.A11 1609266005 -
44 - PULLEY Z=31 BSD-1609266006.A3 1609266006 -
45 - BEARING COVER BSD-1609258006.A2 1609258006 -
45/1 - NEEDLE BEARING BSD-1609209006.A14 1609209006 -
45/2 - SEAL RING BSD-1609202009.A14 1609202009 -
46 - PROTECTIVE CAP BSD-1609213009.A7 1609213009 -
47 - STRAIGHT PIN BSD-1609231006.A6 1609231006 -
49 - CUTTER HEAD BSD-1609201120.A7 1609201120 -
49/1 - HEX SOCKET HEAD CAP SCREW BSD-1609201086.A9 1609201086 -
49/2 - PLAIN WASHER DIN 126-9-A2 BSD-2918660004.A32 2918660004 £1.75 £2.10
49/3 - PLANING KNIFE BSD-1609200978.A18 1609200978 -
49/4 - RECEIVER RAIL BSD-1609201129.A7 1609201129 -
50 - MANUFACTURER'S NAMEPLATE BSD-1601110481.A301 1601110481 £2.16 £2.59
62 - REFERENCE PLATE BSD-1601110058.A34 1601110058 £1.75 £2.10
113 - SOCKET HEAD CAP SCREW DIN 84-B 4x60-5.8 BSD-2910011146.A13 2910011146 -
114 - SPRING WASHER BSD-2916006000.A0 2916006000 -
115 - HEX NUT DIN 934 -M4-m-8 BSD-2915011005.A249 2915011005 £1.75 £2.10
116 - SOCKET HEAD CAP SCREW BSD-1609234001.A59 1609234001 -
117 - HEX NUT DIN 934-M 5-m-8 BSD-2915011006.A118 2915011006 -
118 - SPRING WASHER DIN 137-A5-FST BSD-2916060006.A263 2916060006 £1.32 £1.58
119 - HEX SOCKET HEAD CAP SCREW DIN 912-M 5x35-8.8 BSD-2910141168.A175 2910141168 £3.80 £4.56
120 - TAPPING SCREW DIN 7971-B 3.9x19 BSD-2910211220.A257 2910211220 -
121 - TAPPING SCREW DIN 7971-ST3.9x13-F BSD-2910211018.A360 2910211018 £1.75 £2.10
122 - PLAIN WASHER DIN 125-A4.3-ST BSD-2916011010.A356 2916011010 £1.75 £2.10
123 - COUNTERSUNK-HEAD SCREW DIN 63-BM4x30-5.8 BSD-2910501134.A142 2910501134 -
124 - SOCKET HEAD CAP SCREW DIN 84-AM4x10-8.8 BSD-2910021120.A87 2910021120 £1.75 £2.10
125 - COUNTERSUNK-HEAD SCREW DIN 63-AM 4x15-5.8 BSD-2910501125.A25 2910501125 -
126 - SOCKET HEAD CAP SCREW DIN 84-AM6x15-8.8 BSD-2910021196.A41 2910021196 -
127 - TAPPING SCREW B 4.8x45 DIN 7981 BSD-2910611039.A5 2910611039 -
128 - SPRING WASHER DIN 137-A5-FST BSD-2916060006.A262 2916060006 £1.32 £1.58
129 - HEX SOCKET HEAD CAP SCREW M 5x16 MM BSD-1609234023.A16 1609234023 -
130 - HEX SOCKET HEAD CAP SCREW DIN 912-M 4x12-8.8 BSD-2910141122.A259 2910141122 £2.16 £2.59
137 - COUNTERSUNK-HEAD SCREW BM 4x40 DIN 63-5.8 BSD-2910501138.A8 2910501138 -
138 - SCREW DIN 7982-ST4.8x19 BSD-2910611034.A9 2910611034 -
141 - COILED SPRING BSD-1609246015.A2 1609246015 -
142 - HEX SOCKET HEAD CAP SCREW DIN 912-M5X16-8.8 BSD-2910141158.A212 2910141158 £1.75 £2.10
650 - WIDTH STOP BSD-1609280038.A12 1609280038 -
650/5 - INTERMEDIATE PIECE BSD-1609280032.A12 1609280032 -
650/6 - STOP BRACKET BSD-1609280036.A2 1609280036 -
650/8 - WING NUT M6 BSD-1609233000.A7 1609233000 -
650/9 - STUD BM 6x25 DIN 835-5.8 BSD-2912111203.A9 2912111203 -
650/34 - PLAIN WASHER DIN 125-A 6.4-ST BSD-2916011014.A474 2916011014 £1.75 £2.10
650/35 - STUD BM 6x25 DIN 835-5.8 BSD-2912111203.A8 2912111203 -
650/36 - RUBBER RING G 9x13x3 MM BSD-1609200056.A22 1609200056 -
651 - END STOP BSD-1609280039.A2 1609280039 -
651/10 - DEPTH-GAUGE BSD-1609280030.A2 1609280030 -
651/11 - WING SCREW BSD-1609234017.A19 1609234017 -
651/34 - PLAIN WASHER DIN 125-A 6.4-ST BSD-2916011014.A475 2916011014 £1.75 £2.10
651/36 - RUBBER RING G 9x13x3 MM BSD-1609200056.A21 1609200056 -
652 - SCREWDRIVER SW5 BSD-1609201069.A11 1609201069 -
888 - NAMEPLATE BSD-160111A3H3.A5371 160111A3H3 £2.61 £3.13
