Festool EHL 65 E 230V / 489875 Spare Parts

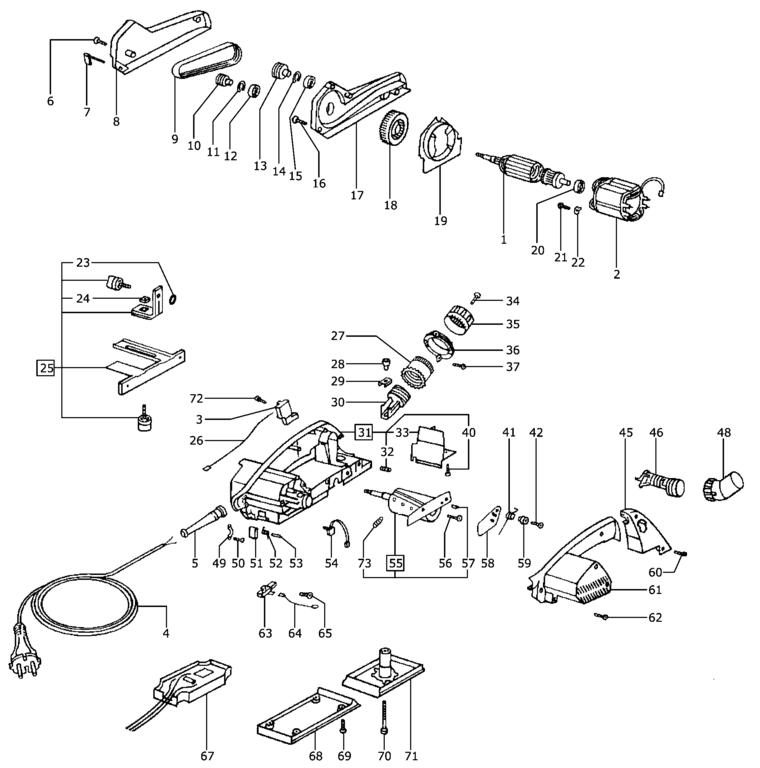

An exploded diagram and spare parts listing for the Festool EHL 65 E 230V / 489875

	Ex VAT	Inc VAT
1 - ARMATURE FSP-499676.A0 499676	£78.42	£94.11
2 - FIELD ASSEMBLY FSP-495162.A3 495162	£42.65	£51.18
3 - CONVERSION KIT FSP-490839.A3 490839	£17.32	£20.79
4 - CABLE EU FSP-461121.A1 461121	£25.08	£30.09
5 - CABLE GROMMET FSP-445738.A7 445738	£2.00	£2.40
6 - RAISED-HEAD SCREW M3 X 8 FSP-228743.A6 228743	£2.00	£2.40
7 - PIN KEY FSP-439803.A6 439803	£5.05	£6.06
8 - COVER FSP-488506.A2 488506	£11.18	£13.41
9 - V-RIBBED BELT FSP-448235.A0 448235	£21.87	£26.24
10 - BELT DISC FSP-448927.A1 448927	£11.01	£13.21
11 - SNAP RING FSP-204471.A3 204471	£2.00	£2.40
12 - BALL BEARING FSP-400225.A6 400225	£6.29	£7.55
13 - BELT DISC FSP-448928.A7 448928	£16.89	£20.27
14 - SNAP RING FSP-204471.A4 204471	£2.00	£2.40
15 - BALL BEARING FSP-400225.A7 400225	£6.29	£7.55
16 - RAISED-HEAD SCREW 3.5 X 14 MM FSP-400468.A74 400468	£2.00	£2.40
17 - BEARING COVER FSP-444863.A0 444863	£32.44	£38.93
18 - FAN FSP-444869.A0 444869	£3.14	£3.77
19 - AIR GUIDE WASHER FSP-444870.A8 444870	£2.64	£3.17
20 - BALL BEARING FSP-400230.A4 400230	£6.72	£8.07
21 - RAISED-HEAD SCREW 3.0 X 12 MM FSP-219069.A37 219069	£2.00	£2.40
22 - SHEET METAL FSP-444865.A3 444865	£2.00	£2.40
23 - O-RING FSP-447299.A0 447299	£2.00	£2.40
24 - SQUARE NUT M6 FSP-228566.A112 228566	£2.00	£2.40
25 - PARALLEL SIDE FENCE PA - EHL FSP-488544.A1 488544	£13.64	£16.37
26 - FLEXIBLE LEAD FSP-450074.A0 450074	£2.00	£2.40
27 - ADJUSTING KNOB FSP-444887.A0 444887	£3.14	£3.77
28 - NUT FSP-446297.A0 446297	£6.34	£7.61
29 - PLATE SPRING FSP-446295.A0 446295	£2.00	£2.40
30 - SEGMENT FSP-444885.A3 444885	£2.00	£2.40
31 - HOUSING FSP-488932.A0 488932	£55.89	£67.07
32 - QUICKSERT FSP-448930.A1 448930	£3.78	£4.53
33 - AIR DUCT FSP-446299.A8 446299	£2.79	£3.35
34 - RAISED-HEAD SCREW 3.5 X 14 MM FSP-400468.A69 400468	£2.00	£2.40
35 - SCALE RING FSP-446294.A3 446294	£6.39	£7.67
36 - BEARING RING FSP-446293.A0 446293	£2.00	£2.40
37 - RAISED-HEAD SCREW 3.5 X 14 MM FSP-400468.A72 400468	£2.00	£2.40
40 - RAISED-HEAD SCREW 3.5 X 14 MM FSP-400468.A73 400468	£2.00	£2.40
41 - LEG SPRING FSP-444878.A0 444878	£2.00	£2.40
42 - RAISED-HEAD SCREW 3.5 X 14 MM FSP-400468.A70 400468	£2.00	£2.40
45 - HOUSING COVER FSP-444881.A3 444881	£5.24	£6.29
46 - CHIP EJECTION FSP-444883.A0 444883	£4.28	£5.14
48 - ANGLE PIECE FSP-448785.A4 448785	£3.72	£4.47
49 - CABLE CLAMP FSP-439288.A106 439288	£2.00	£2.40
50 - RAISED-HEAD SCREW 3.5 X 14 MM FSP-400468.A71 400468	£2.00	£2.40
51 - SUPPORT FSP-447306.A3 447306	£2.00	£2.40
52 - TORSION SPRING FSP-715033.A6 715033	£2.00	£2.40
53 - CYLINDER PIN 4 X 26 MM FSP-770080.A1 770080	£2.00	£2.40
54 - SPEED INDICATOR FSP-487923.A1 487923	£10.32	£12.39
55 - PLANING HEAD FSP-10009233.A1 10009233	£118.40	£142.08
56 - RAISED-HEAD SCREW 3.5 X 14 MM FSP-400468.A66 400468	£2.00	£2.40
57 - DOWEL PIN FSP-400482.A2 400482	£2.00	£2.40
58 - SHEET METAL FSP-444880.A0 444880	£3.68	£4.42
59 - SLEEVE FSP-444879.A3 444879	£4.32	£5.19
60 - RAISED-HEAD SCREW 3.5 X 14 MM FSP-400468.A67 400468	£2.00	£2.40
61 - COVER FSP-444859.A3 444859	£11.15	£13.38
62 - RAISED-HEAD SCREW 3.5 X 14 MM FSP-400468.A68 400468	£2.00	£2.40
63 - BRUSH (PAIR) 230V FSP-488505.A2 488505	£10.48	£12.58
64 - FLEXIBLE LEAD FSP-450072.A3 450072	£3.00	£3.60
65 - RAISED-HEAD SCREW 3.0 X 10 MM FSP-400231.A0 400231	£2.00	£2.40
67 - CONTROL ELECTRONICS 230-240V FSP-488413.A1 488413	£59.78	£71.74
68 - PLANER FOOT FSP-447290.A3 447290	£26.08	£31.30
69 - RAISED-HEAD SCREW 4.0 X 16 MM FSP-228713.A135 228713	£2.00	£2.40
70 - CHEESE HEAD SCREW M4 X 40 FSP-446296.A3 446296	£2.00	£2.40
71 - ADJUSTING TABLE FSP-446302.A0 446302	£31.20	£37.44
72 - RAISED-HEAD SCREW M3 X 6.5 FSP-228718.A32 228718	£2.00	£2.40
73 - THREADED PIN M4 X 12 FSP-462187.A6 462187	£3.07	£3.68

Attribute Name	Value
Brand	Festool
