Stanley STGP1318 Type 2 Polisher Spare Parts

Home Details Reviews Delivery

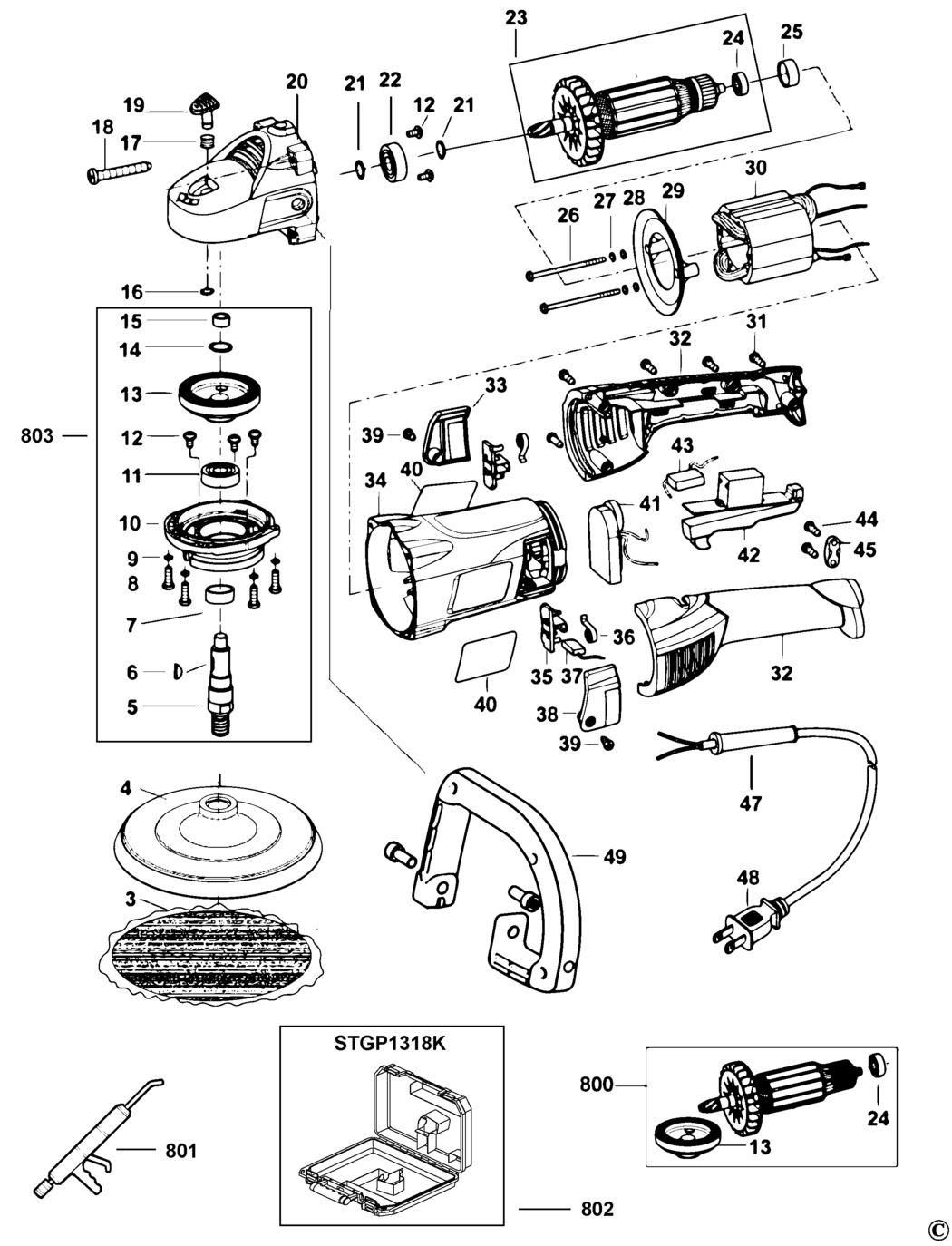

An exploded drawing and spare parts listing for the Stanley STGP1318 Type 2 Polisher

	Ex VAT	Inc VAT
3 - BONNET BDE-5140090-57.A3 5140090-57	£16.03	£19.24
4 - PAD BDE-5140090-58.A2 5140090-58	£12.17	£14.60
5 - SPINDLE BDE-5140090-59.A3 5140090-59	£7.18	£8.62
6 - WOODRUFF KEY BDE-5140090-60.A2 5140090-60	£1.50	£1.80
7 - SEAL BDE-5140090-61.A3 5140090-61	£1.50	£1.80
8 - SCREW BDE-5140090-62.A2 5140090-62	£1.50	£1.80
9 - WASHER BDE-5140090-63.A5 5140090-63	£1.50	£1.80
10 - HOUSING GEAR BDE-5140090-64.A2 5140090-64	£7.85	£9.42
11 - BEARING BDE-5140090-65.A3 5140090-65	£7.85	£9.42
12 - SCREW.SPECIAL BDE-5140090-66.A2 5140090-66	£1.50	£1.80
13 - GEAR BDE-5140090-67.A3 5140090-67	£16.03	£19.24
14 - RING BDE-5140090-68.A2 5140090-68	£1.50	£1.80
15 - SLEEVE BEARING BDE-5140090-69.A3 5140090-69	£1.82	£2.19
16 - RING BDE-5140090-70.A2 5140090-70	£1.50	£1.80
17 - SPRING BDE-5140090-71.A3 5140090-71	£1.50	£1.80
18 - SCREW BDE-5140090-72.A2 5140090-72	£1.50	£1.80
19 - LOCK PIN BDE-5140090-73.A3 5140090-73	£1.50	£1.80
20 - HOUSING GEARBOX BDE-1004731-11 1004731-11	£17.48	£20.97
21 - RING BDE-5140090-75.A3 5140090-75	£1.50	£1.80
22 - BEARING BDE-5140090-76.A2 5140090-76	£5.88	£7.06
23 - ARMATURE SA 23 + 24 BDE-1004727-63 1004727-63	£80.98	£97.18
24 - BEARING BDE-5140090-79.A3 5140090-79	£1.82	£2.19
25 - SLEEVE BEARING BDE-5140090-80.A2 5140090-80	£1.50	£1.80
26 - SCREW BDE-5140090-81.A3 5140090-81	£1.50	£1.80
27 - WASHER BDE-5140090-82.A2 5140090-82	£1.50	£1.80
28 - WASHER BDE-5140090-83.A3 5140090-83	£1.50	£1.80
29 - BAFFLE FAN BDE-5140090-84.A2 5140090-84	£1.50	£1.80
30 - FIELD BDE-5140090-85.A3 5140090-85	£51.90	£62.28
31 - SCREW BDE-5140090-87.A3 5140090-87	£1.50	£1.80
32 - HANDLE SA BDE-5170025-09.A1 5170025-09	£17.48	£20.97
33 - BRUSH COVER BDE-6010358-22.A1 6010358-22	£1.50	£1.80
34 - FIELD CASE BDE-6010358-23.A1 6010358-23	£16.03	£19.24
35 - BRUSH HOLDER BDE-5140090-91.A4 5140090-91	£3.80	£4.56
36 - BRUSH SPRING BDE-5140090-92.A2 5140090-92	£1.50	£1.80
37 - BRUSH PAIR BDE-5170025-10.A0 5170025-10	£12.17	£14.60
38 - BRUSH CAP BDE-6010358-24.A1 6010358-24	£1.50	£1.80
39 - SCREW BDE-5140090-95.A2 5140090-95	£1.50	£1.80
43 - CAPACITOR BDE-5140091-01.A1 5140091-01	£1.50	£1.80
44 - SCREW BDE-5140091-02.A2 5140091-02	£1.50	£1.80
45 - CORD CLAMP BDE-5140091-03.A3 5140091-03	£1.50	£1.80
47 - CORD PROTECTOR BDE-5140091-04.A2 5140091-04	£1.50	£1.80
49 - HANDLE BDE-1004731-17 1004731-17	-
800 - GEAR SA BDE-1004727-64 1004727-64	£99.47	£119.36
801 - GREASE BDE-5140061-28.A6 5140061-28	£51.90	£62.28
803 - SPINDLE SA BDE-1004732-92 1004732-92	£37.35	£44.82
