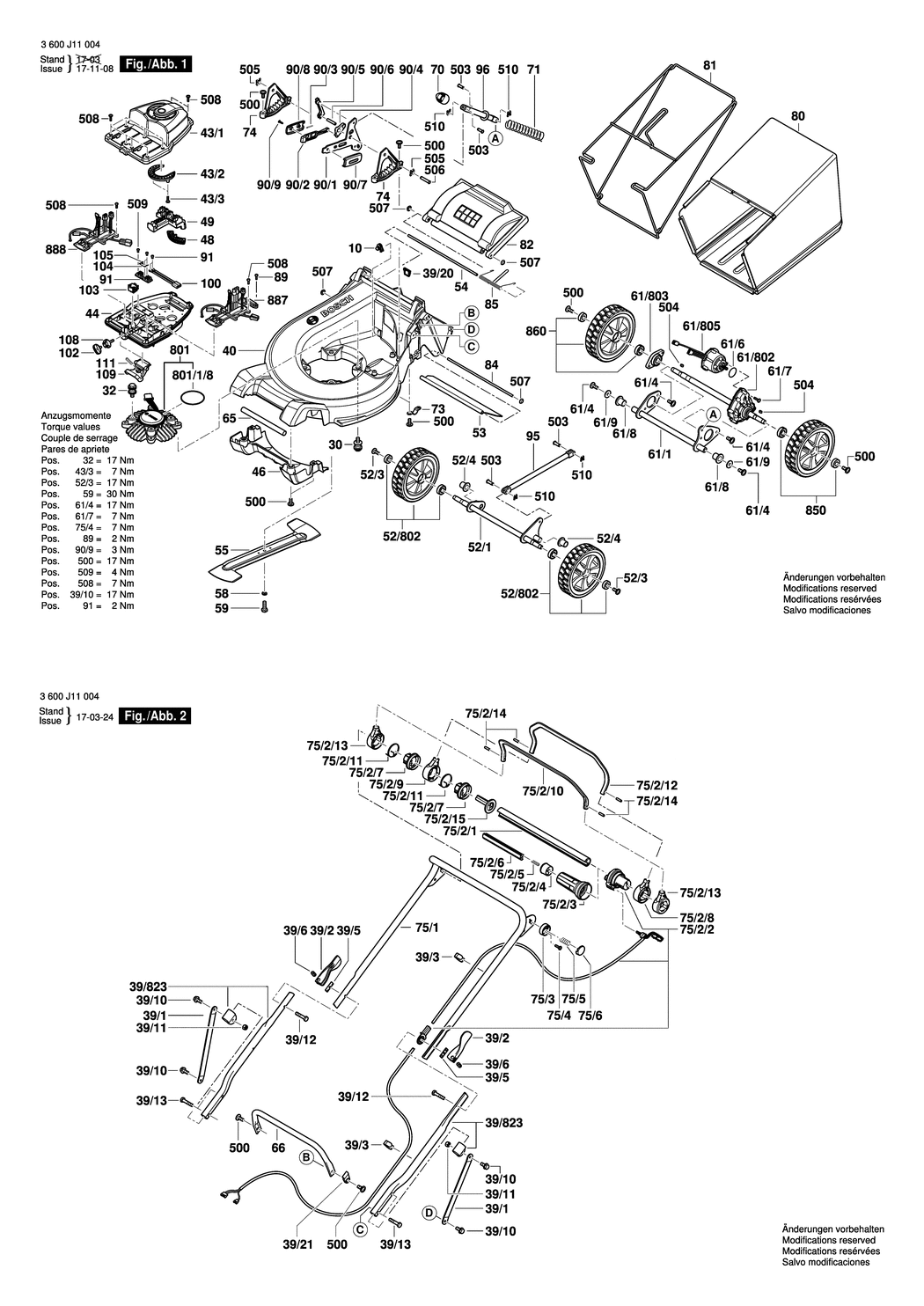

An exploded drawing and listing for the Bosch 53-PRO VARIO AC / 3600J11004 / EU 230 Volt
Ex VAT Inc VAT
10 - GROMMET BSD-F016L76343.A4 F016L76343 £1.95 £2.34
30 - DAMPING BUSHING BSD-F016L76018.A1 F016L76018 £1.75 £2.10
32 - BOLT M10x20 BSD-F016L76017.A6 F016L76017 £2.61 £3.13
39/1 - ANGLE SUPPORT BSD-F016L76263.A6 F016L76263 £16.74 £20.09
39/2 - ADJUSTING CAM BSD-F016105059.A2 F016105059 £18.96 £22.75
39/3 - CABLE CLIP BSD-F016L76160.A8 F016L76160 £2.61 £3.13
39/5 - INSERT BSD-F016L76189.A0 F016L76189 £24.45 £29.34
39/6 - PIVOT BSD-F016L76159.A0 F016L76159 £3.34 £4.01
39/10 - HEX SCREW BSD-F016L76294.A6 F016L76294 £1.75 £2.10
39/11 - LOCK NUT BSD-F016L76293.A1 F016L76293 £1.75 £2.10
39/12 - BOLT BSD-F016L76158.A8 F016L76158 £1.75 £2.10
39/13 - BOLT BSD-F016L76990.A0 F016L76990 £5.30 £6.36
39/20 - CLAMP BSD-F016L76344.A4 F016L76344 £1.75 £2.10
39/21 - CABLE GUIDE BSD-F016L76345.A4 F016L76345 £1.75 £2.10
39/823 - HANDLE BSD-F016105042.A4 F016105042 £54.42 £65.30
40 - CHASSIS 53 cm BSD-F016105056.A1 F016105056 £393.74 £472.49
43/1 - MOTOR COVER BSD-F016L77579.A2 F016L77579 £27.23 £32.68
43/2 - AXIAL FLOW FAN BSD-F016L76273.A5 F016L76273 £21.52 £25.83
43/3 - SCREW M5x20 BSD-F016L76058.A29 F016L76058 £1.75 £2.10
44 - HOUSING BASE BSD-F016L76274.A3 F016L76274 £68.42 £82.10
46 - CLOSING PLATE BSD-F016105060.A2 F016105060 £54.42 £65.30
48 - SEALING RUBBER BSD-F016L76186.A7 F016L76186 £2.80 £3.36
49 - CABLE BRACKET BSD-F016L76291.A6 F016L76291 £4.26 £5.11
52/1 - AXLE BSD-F016L76280.A6 F016L76280 £72.18 £86.62
52/3 - SCREW M8x20 BSD-F016L76173.A25 F016L76173 £1.75 £2.10
52/4 - BUSHING BSD-F016L76044.A7 F016L76044 £1.75 £2.10
52/802 - WHEEL BSD-F016104466.A0 F016104466 £63.50 £76.20
53 - FLAP BSD-F016L76089.A4 F016L76089 £16.74 £20.09
54 - INFEED SPINDLE BSD-F016L76090.A4 F016L76090 £2.80 £3.36
55 - CUTTER BLADE 53 cm BSD-F016L77580.A0 F016L77580 £33.74 £40.49
58 - SPRING WASHER 1/2 BSD-F016L66173.A61 F016L66173 £1.75 £2.10
59 - BOLT M10x30 BSD-F016L66141.A41 F016L66141 £2.61 £3.13
61/1 - AXLE BSD-F016L76281.A2 F016L76281 £68.42 £82.10
61/4 - SCREW M8x20 BSD-F016L76173.A26 F016L76173 £1.75 £2.10
61/6 - O-RING BSD-F016L76082.A3 F016L76082 £1.75 £2.10
61/7 - SCREW M5x20 BSD-F016L76058.A30 F016L76058 £1.75 £2.10
61/8 - BUSHING BSD-F016L76044.A6 F016L76044 £1.75 £2.10
61/9 - WASHER BSD-F016L76332.A3 F016L76332 £1.75 £2.10
61/802 - DRIVE UNIT BSD-F016104472.A2 F016104472 £179.37 £215.24
61/803 - BEARING HOUSING BSD-F016104560.A2 F016104560 £21.52 £25.83
61/805 - DC MOTOR BSD-F016104473.A6 F016104473 £243.45 £292.14
65 - CARRYING HANDLE BSD-F016L76279.A2 F016L76279 £11.30 £13.56
66 - HANDLE BSD-F016L76265.A2 F016L76265 £40.80 £48.96
70 - SLEEVE BSD-F016L76178.A0 F016L76178 £1.95 £2.34
71 - SPRING BSD-F016L76087.A4 F016L76087 £4.26 £5.11
73 - CLAMPING PIECE BSD-F016L76088.A4 F016L76088 £1.75 £2.10
74 - BASE-INSERT BSD-F016L76272.A3 F016L76272 £54.42 £65.30
75/1 - HANDLE TOP ASSEMBLY BSD-F016105058.A2 F016105058 £68.42 £82.10
75/2/1 - THROTTLE CARRIER BSD-F016L76114.A3 F016L76114 £24.45 £29.34
75/2/2 - SWITCHING UNIT BSD-F016L76115.A2 F016L76115 £135.25 £162.30
75/2/3 - CONTROL THROTTLE BSD-F016L76128.A1 F016L76128 £9.49 £11.39
75/2/4 - BUSHING BSD-F016L76129.A4 F016L76129 £2.80 £3.36
75/2/5 - SPRING BSD-F016L76130.A1 F016L76130 £1.75 £2.10
75/2/6 - BLANK COVER BSD-F016L76131.A4 F016L76131 £7.36 £8.83
75/2/7 - BUSHING BSD-F016L76132.A1 F016L76132 £4.26 £5.11
75/2/8 - PIVOT BSD-F016L76135.A4 F016L76135 £3.80 £4.56
75/2/9 - PIVOT BSD-F016L76136.A1 F016L76136 £3.34 £4.01
75/2/10 - CONTROL BAR BSD-F016L76268.A4 F016L76268 £30.28 £36.33
75/2/11 - SPRING BSD-F016L76138.A4 F016L76138 £6.52 £7.83
75/2/12 - CONTROL BAR BSD-F016L76267.A4 F016L76267 £36.62 £43.95
75/2/13 - PIVOT BSD-F016L76141.A4 F016L76141 £3.80 £4.56
75/2/14 - COILED SPRING PIN BSD-F016L76481.A3 F016L76481 £1.95 £2.34
75/2/15 - STOP BUSHING BSD-F016L68665.A4 F016L68665 £1.95 £2.34
75/3 - KNOB SLEEVE BSD-F016L76143.A4 F016L76143 £1.95 £2.34
75/4 - SCREW M5x20 BSD-F016L76058.A25 F016L76058 £1.75 £2.10
75/5 - SPRING BSD-F016L76144.A4 F016L76144 £1.75 £2.10
75/6 - SWITCH BUTTON BSD-F016L76145.A4 F016L76145 £11.30 £13.56
80 - COLLECTION BOX BSD-F016L77585.A3 F016L77585 £54.42 £65.30
81 - FRAME PROFILE BSD-F016L76151.A1 F016L76151 £36.62 £43.95
82 - FLAP GUARD BSD-F016L77582.A0 F016L77582 £21.52 £25.83
84 - INFEED SPINDLE BSD-F016L76106.A3 F016L76106 £2.33 £2.80
85 - SPRING BSD-F016L76107.A5 F016L76107 £2.80 £3.36
89 - SCREW M3x10 BSD-F016L76402.A5 F016L76402 £1.75 £2.10
90/1 - ADJUSTING LEVER BSD-F016L76271.A3 F016L76271 £23.86 £28.63
90/2 - BUTTON BSD-F016L76094.A3 F016L76094 £1.95 £2.34
90/3 - SPRING BSD-F016L76095.A5 F016L76095 £3.72 £4.47
90/4 - LINKAGE BSD-F016L76096.A3 F016L76096 £2.61 £3.13
90/5 - SLIDER BSD-F016L76097.A5 F016L76097 £2.61 £3.13
90/6 - LOCKING PIN BSD-F016L76098.A3 F016L76098 £3.72 £4.47
90/7 - PALM GRIP BSD-F016L76102.A1 F016L76102 £5.30 £6.36
90/8 - PALM GRIP BSD-F016L76190.A5 F016L76190 £5.30 £6.36
90/9 - SCREW M5x20 BSD-F016L76187.A5 F016L76187 £1.75 £2.10
91 - DIODE MODULE BSD-F016L76166.A2 F016L76166 £33.45 £40.14
95 - LINKAGE BSD-F016L76270.A2 F016L76270 £31.64 £37.97
96 - LINKAGE BSD-F016L76277.A4 F016L76277 £31.64 £37.97
100 - CONNECTING CABLE BSD-F016L76086.A4 F016L76086 £7.36 £8.83
102 - SWITCH KEY BSD-F016L76146.A4 F016L76146 £3.80 £4.56
103 - SWITCH BSD-F016L66928.A4 F016L66928 £8.49 £10.19
104 - COUPLING PLATE BSD-F016L76185.A3 F016L76185 £1.95 £2.34
105 - COUPLING PLATE BSD-F016L76473.A6 F016L76473 £1.95 £2.34
108 - CAM BSD-F016L76180.A5 F016L76180 £1.95 £2.34
109 - TRIGGER BSD-F016L76027.A4 F016L76027 £2.61 £3.13
111 - SPRING BSD-F016L76028.A4 F016L76028 £1.75 £2.10
500 - SCREW M8x20 BSD-F016L76173.A17 F016L76173 £1.75 £2.10
503 - CLEVIS BSD-F016L76100.A4 F016L76100 £8.49 £10.19
504 - KEY BSD-F016L76091.A4 F016L76091 £2.61 £3.13
505 - CLIP BSD-F016L76101.A4 F016L76101 £2.61 £3.13
506 - CLEVIS BSD-F016L76099.A4 F016L76099 £18.96 £22.75
507 - SECURING CAP dia8 MM BSD-F016T48990.A34 F016T48990 £1.75 £2.10
508 - SCREW M5x20 BSD-F016L76058.A24 F016L76058 £1.75 £2.10
509 - SCREW BSD-F016L76188.A5 F016L76188 £1.75 £2.10
510 - RETAINING CLIP BSD-F016L68664.A4 F016L68664 £1.95 £2.34
801 - DC MOTOR 36V BSD-F016104471.A3 F016104471 £357.27 £428.72
801/1/8 - O-RING BSD-F016L76214.A3 F016L76214 £1.75 £2.10
850 - WHEEL BSD-F016104467.A5 F016104467 £72.18 £86.62
860 - WHEEL BSD-F016104468.A3 F016104468 £72.18 £86.62
887 - DRIVE ELECTRONICS BSD-F016104469.A2 F016104469 £218.41 £262.09
888 - DRIVE ELECTRONICS BSD-F016104470.A3 F016104470 £195.26 £234.31
