Bosch GSR 12-2-LI / 3601H68101 / --- 12 Volt Spare Parts

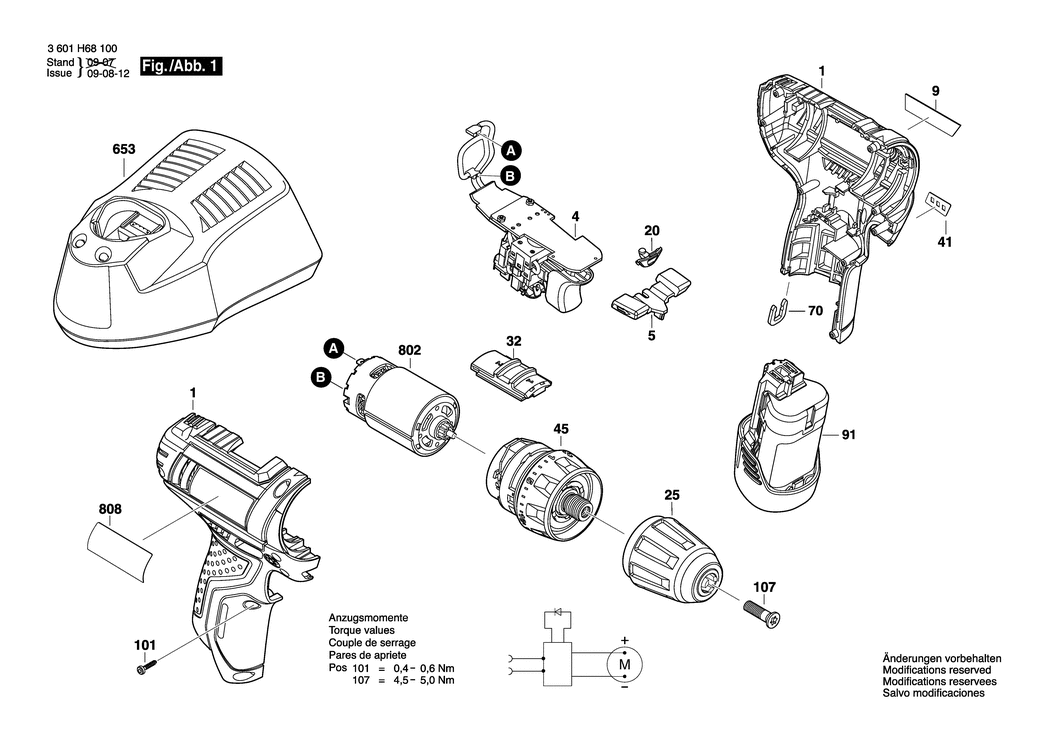

An exploded drawing and listing for the Bosch GSR 12-2-LI / 3601H68101 / --- 12 Volt

	Ex VAT	Inc VAT
1 - HOUSING BSD-2609100824.A3 2609100824	£21.52	£25.83
4 - ELECTRONICS MODULE BSD-16072335DK.A1 16072335DK	£33.74	£40.49
5 - CHANGEOVER LEVER BSD-2609100825.A6 2609100825	£2.16	£2.59
9 - MANUFACTURER'S NAMEPLATE GSR 12-2-LI BSD-F00062107D.A0 F00062107D	£2.61	£3.13
20 - LENS BSD-2609100826.A2 2609100826	£2.61	£3.13
25 - KEYLESS CHUCK BSD-2609110967.A1 2609110967	£24.45	£29.34
32 - SWITCHOVER UNIT BSD-2609199279.A31 2609199279	£1.75	£2.10
41 - STICKER BSD-2609132378.A2 2609132378	£2.61	£3.13
45 - GEAR BOX BSD-2609199786.A6 2609199786	£36.63	£43.96
70 - CLIP BSD-2609110537.A85 2609110537	£1.75	£2.10
91 - BATTERY PACK 10.8V. 2.0Ah. LI BSD-2607336879.A2 2607336879	£51.22	£61.47
91 - BATTERY PACK BAT 414 10.8/12V 2.0Ah BSD-1607A350C8.A1 1607A350C8	-
91 - BATTERY PACK BAT 415 10.8V712V 2.5AH BSD-2607337237.A0 2607337237	£93.88	£112.65
101 - SCREW BSD-2609110883.A12 2609110883	£2.16	£2.59
107 - COUNTERSUNK-HEAD SCREW M6x23 BSD-2603421229.A178 2603421229	£1.75	£2.10
653 - FAST CHARGER SAM 115/10.8V. 30 MIN. BSD-2607225141.A7 2607225141	£59.53	£71.44
653 - FAST CHARGER ARG 220/10.8V BSD-2607225711.A2 2607225711	£51.22	£61.47
653 - FAST CHARGER BR 220/10.8V BSD-2607225179.A4 2607225179	£51.22	£61.47
802 - DC MOTOR 10.8V - 12V BSD-2609199258.A18 2609199258	£21.52	£25.83
808 - NAMEPLATE BSD-160111A6J2.A0 160111A6J2	-
