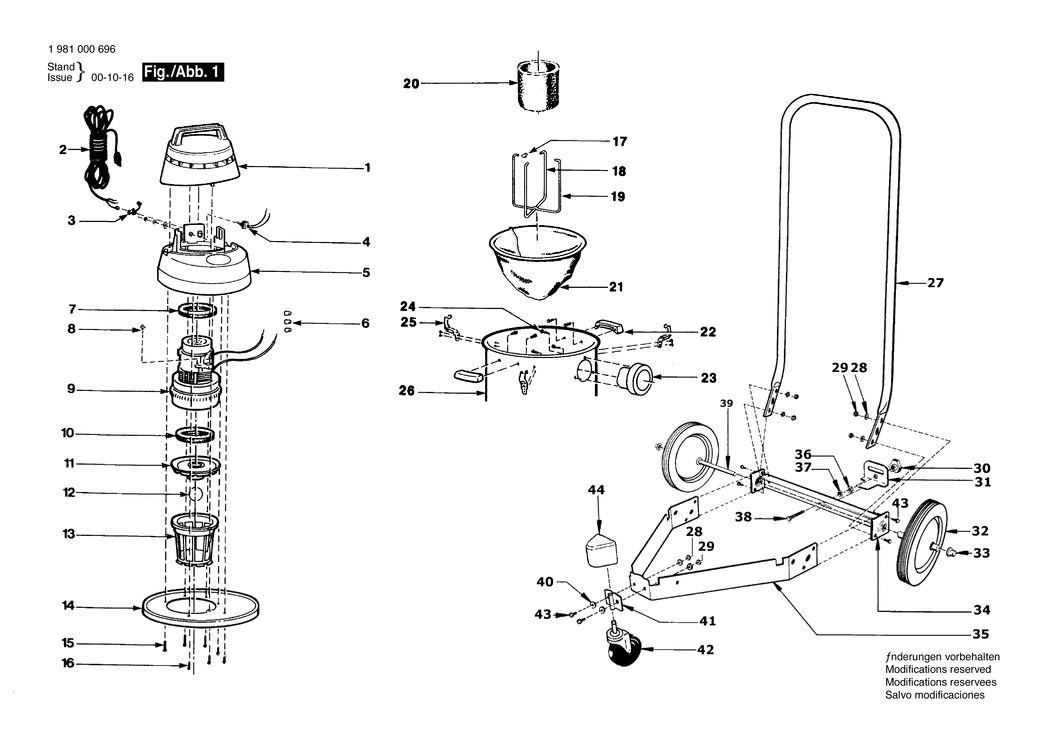

An exploded drawing and listing for the Bosch 1702 / 1981000696 / ---
Ex VAT Inc VAT
1 - COVER BSD-1981000697.A0 1981000697 -
2 - POWER SUPPLY CORD BSD-1981000698.A0 1981000698 -
3 - GROMMET BSD-1981000656.A0 1981000656 -
4 - HOUSING BSD-1981000657.A0 1981000657 -
5 - SEALING PLATE BSD-1981000658.A0 1981000658 -
6 - CONNECTOR BSD-2610016167.A0 2610016167 -
7 - CAGE BSD-1981000659.A0 1981000659 -
8 - CROSS RECESSED-HEAD SCREW BSD-2610306005.A0 2610306005 -
9 - MOTOR BSD-1981000700.A0 1981000700 -
10 - SEALING PLATE BSD-1981000701.A0 1981000701 -
11 - PLATE BSD-1981000662.A0 1981000662 -
12 - BALL BSD-1981000663.A0 1981000663 -
13 - STATOR BSD-1981000664.A0 1981000664 -
14 - CLIP BSD-1981000665.A0 1981000665 -
15 - SCREW BSD-2610319718.A0 2610319718 -
16 - SCREW BSD-2610319717.A0 2610319717 -
17 - CLIP BSD-1981000666.A0 1981000666 -
18 - CAGE BSD-1981000667.A0 1981000667 -
19 - CAGE BSD-1981000668.A0 1981000668 -
20 - FILTER BSD-2610995006.A0 2610995006 -
21 - FILTER BSD-1981000642.A0 1981000642 -
22 - HANDLE BSD-1981000670.A0 1981000670 -
23 - ADAPTING PIECE BSD-1981000671.A0 1981000671 -
24 - SCREW BSD-1619X00504.A131 1619X00504 £1.75 £2.10
25 - CLAMP BSD-1981000672.A0 1981000672 -
26 - DRUM BSD-1981000673.A0 1981000673 -
27 - HANDLE BSD-1981000643.A0 1981000643 -
28 - LOCKING WASHER BSD-2610004155.A0 2610004155 -
29 - NUT BSD-2610011489.A7 2610011489 -
30 - NUT BSD-1981000644.A0 1981000644 -
31 - SPRING RETAINING RING BSD-1981000645.A0 1981000645 -
32 - IMPELLER BSD-1981000646.A0 1981000646 -
33 - FRAME BSD-1981000648.A0 1981000648 -
34 - FRAME BSD-1981000649.A0 1981000649 -
35 - AXLE BSD-1981000650.A0 1981000650 -
36 - NUT BSD-2610044563.A0 2610044563 -
37 - WASHER BSD-2610044549.A0 2610044549 -
38 - TRUNNION BSD-2610350039.A0 2610350039 -
39 - AXLE BSD-1981000651.A0 1981000651 -
40 - WASHER BSD-2610318822.A0 2610318822 -
41 - SOCKET BSD-1981000652.A0 1981000652 -
42 - COVER BSD-1981000653.A0 1981000653 -
43 - SCREW BSD-2610304524.A0 2610304524 -
44 - DAMPING RUBBER BSD-1981000647.A0 1981000647 -
