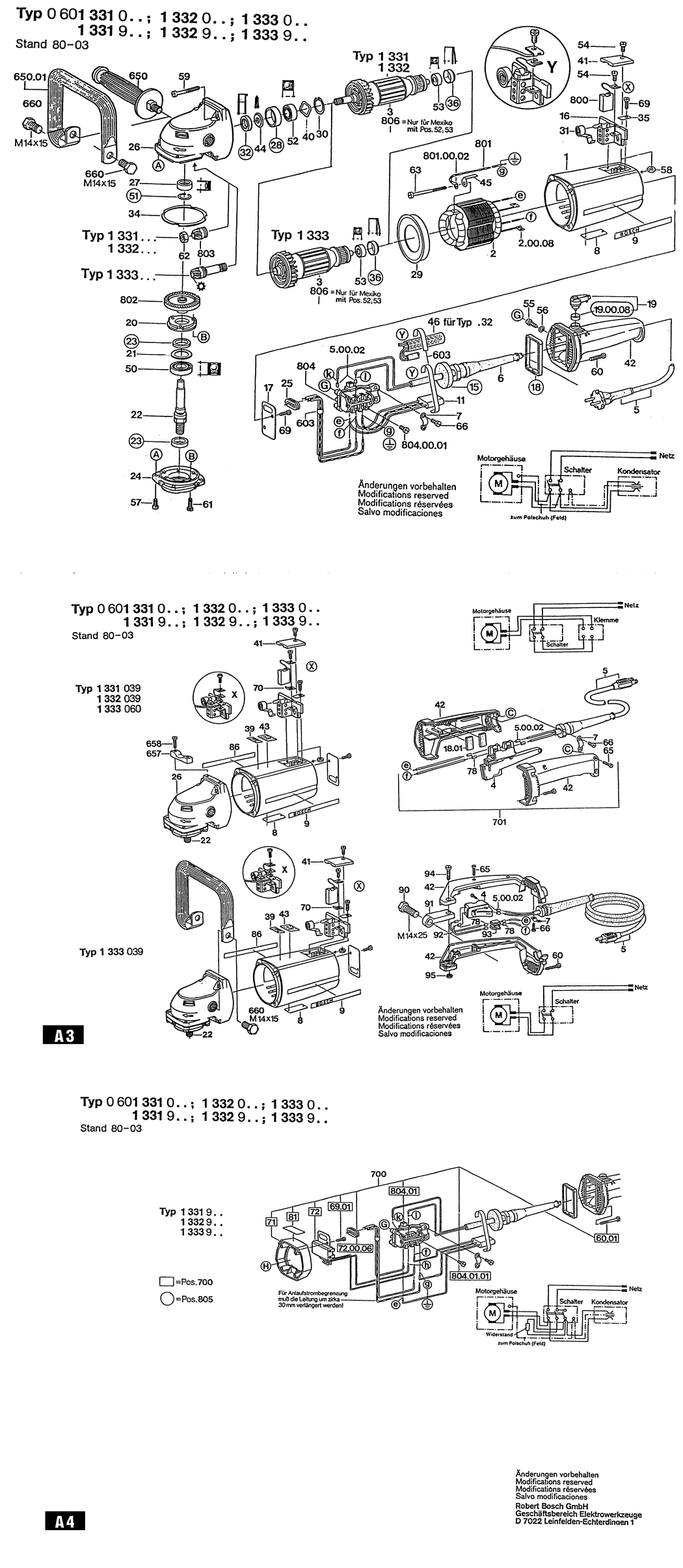

1 - MOTOR HOUSING
BSD-1605108124.A99
1605108124
|
-
|
|
|
|
2 - FIELD 230V
BSD-1604220245.A36
1604220245
|
-
|
|
|
|
2/00/08 - TERMINAL LUG 1.5-4x4
BSD-1901350003.A280
1901350003
|
£1.75
|
£2.10
|
|
|
5 - CABLE
BSD-1604460079.A9
1604460079
|
-
|
|
|
|
6 - GROMMET dia9.2-dia12x120 MM
BSD-3600703011.A1338
3600703011
|
£2.80
|
£3.36
|
|
|
7 - FASTENING CLAMP
BSD-1601302013.A215
1601302013
|
£1.75
|
£2.10
|
|
|
11 - SUPPRESSION FILTER
BSD-1607328034.A286
1607328034
|
£4.26
|
£5.11
|
|
|
15 - SEAL
BSD-1600113002.A398
1600113002
|
£1.75
|
£2.10
|
|
|
16 - BRUSH HOLDER
BSD-1604336008.A2
1604336008
|
£21.52
|
£25.83
|
|
|
17 - COVER PLATE
BSD-1601037006.A0
1601037006
|
-
|
|
|
|
18 - PROFILE STRIP 3.4x7x240 MM
BSD-1601014005.A110
1601014005
|
-
|
|
|
|
19 - CONTROL LEVER
BSD-1602026041.A127
1602026041
|
-
|
|
|
|
20 - BEARING COVER
BSD-1605808054.A34
1605808054
|
-
|
|
|
|
21 - COVER DISC
BSD-1600102012.A127
1600102012
|
-
|
|
|
|
22 - GRINDING SPINDLE M14x1.5 MM
BSD-1603523032.A131
1603523032
|
£37.27
|
£44.72
|
|
|
23 - SEALING DISK
BSD-1600108055.A311
1600108055
|
£1.75
|
£2.10
|
|
|
25 - GROMMET
BSD-1600306001.A196
1600306001
|
£2.61
|
£3.13
|
|
|
26 - GEAR HOUSING
BSD-1605806394.A0
1605806394
|
-
|
|
|
|
27 - NEEDLE BEARING dia22x11.3 MM
BSD-1600910010.A25
1600910010
|
£45.67
|
£54.80
|
|
|
28 - RETAINING SNAP RING
BSD-1600206019.A22
1600206019
|
-
|
|
|
|
29 - GUIDE PULLEY
BSD-1600502013.A0
1600502013
|
-
|
|
|
|
30 - SPRING RETAINING RING
BSD-1600119004.A27
1600119004
|
£2.80
|
£3.36
|
|
|
31 - SPIRAL SPRING
BSD-1604652015.A126
1604652015
|
£2.80
|
£3.36
|
|
|
32 - ROTARY SHAFT LIP SEAL
BSD-1600290008.A98
1600290008
|
£2.61
|
£3.13
|
|
|
34 - SHIM 0.1 MM
BSD-1600190004.A277
1600190004
|
-
|
|
|
|
34 - SHIM 0.2 MM
BSD-1600190005.A7
1600190005
|
£1.32
|
£1.58
|
|
|
35 - TAB WASHER
BSD-1601030022.A96
1601030022
|
£1.75
|
£2.10
|
|
|
36 - RUBBER BUSHING
BSD-1600502006.A12
1600502006
|
£1.75
|
£2.10
|
|
|
40 - SPRING WASHER dia32.3xdia43.5x0.6 MM
BSD-1600150009.A91
1600150009
|
£2.80
|
£3.36
|
|
|
41 - SEALING CAP
BSD-1605500089.A317
1605500089
|
-
|
|
|
|
42 - HANDLE
BSD-1605132079.A47
1605132079
|
-
|
|
|
|
43 - REFERENCE PLATE
BSD-1601110058.A302
1601110058
|
£1.75
|
£2.10
|
|
|
44 - FACEPLATE
BSD-1600120070.A16
1600120070
|
-
|
|
|
|
45 - HOLDING BRACKET
BSD-1601331032.A15
1601331032
|
-
|
|
|
|
50 - GROOVE BALL BEARING 6203-2 Z DIN 625
BSD-1900905227.A192
1900905227
|
-
|
|
|
|
51 - RETAINING RING dia22 MM
BSD-2916620011.A279
2916620011
|
£1.75
|
£2.10
|
|
|
52 - GROOVE BALL BEARING 6203-TH/C3 DIN 625
BSD-1900900413.A119
1900900413
|
-
|
|
|
|
53 - GROOVE BALL BEARING
BSD-1600900029.A244
1600900029
|
-
|
|
|
|
54 - SOCKET HEAD CAP SCREW DIN 84-AM4x8-8.8
BSD-2910021118.A1530
2910021118
|
£1.75
|
£2.10
|
|
|
55 - TAPPING SCREW DIN 7971-BZ2.9x13
BSD-2910211006.A507
2910211006
|
£1.75
|
£2.10
|
|
|
56 - PLAIN WASHER DIN 433-3.2-ST 50
BSD-2916011005.A685
2916011005
|
£1.75
|
£2.10
|
|
|
57 - SOCKET HEAD CAP SCREW DIN 84-AM5x15-5.8
BSD-2910011157.A189
2910011157
|
-
|
|
|
|
58 - HEX NUT DIN 934 -M4-m-8
BSD-2915011005.A469
2915011005
|
£1.75
|
£2.10
|
|
|
59 - SCREW B 4.8x45 MM
BSD-3603415560.A28
3603415560
|
£1.75
|
£2.10
|
|
|
60 - TAPPING SCREW DIN 7971-ST4.8x25-F
BSD-2910211036.A125
2910211036
|
£1.75
|
£2.10
|
|
|
61 - SOCKET HEAD CAP SCREW DIN 84-AM5x20-5.8
BSD-2910011162.A53
2910011162
|
£1.75
|
£2.10
|
|
|
62 - HEX NUT M12x1.5 MM
BSD-1603300009.A118
1603300009
|
£1.75
|
£2.10
|
|
|
63 - TAPPING SCREW B4.8x85 MM
BSD-1603429001.A94
1603429001
|
-
|
|
|
|
66 - SOCKET HEAD CAP SCREW DIN 84-AM4x12-8.8
BSD-2910021122.A914
2910021122
|
£2.16
|
£2.59
|
|
|
650 - AUXILIARY HANDLE M14
BSD-1602025022.A949
1602025022
|
£13.41
|
£16.09
|
|
|
650/01 - AUXILIARY HANDLE M14. dia37x115 MM
BSD-1602025030.A118
1602025030
|
£18.96
|
£22.75
|
|
|
651 - SINGLE-HEAD ENG. WRENCH SW17
BSD-2607950511.A492
2607950511
|
£4.26
|
£5.11
|
|
|
652 - PROTECTIVE COVER dia180 MM
BSD-1605510176.A45
1605510176
|
-
|
|
|
|
653 - OFFSET SCREWDRIVER DIN 911-4
BSD-2607950004.A250
2607950004
|
£1.75
|
£2.10
|
|
|
654 - CLAMPING-FLANGE dia45 MM
BSD-2600501006.A335
2600501006
|
£16.43
|
£19.72
|
|
|
655 - ROUND NUT M14
BSD-2603345004.A353
2603345004
|
£6.52
|
£7.83
|
|
|
656 - OFFSET SCREWDRIVER DIN 911;SW6
BSD-1907950007.A510
1907950007
|
£5.30
|
£6.36
|
|
|
660 - ROUND-HEAD BOLT DIN 603-M 8x25
BSD-2910281244.A203
2910281244
|
-
|
|
|
|
700 - PARTS SET
BSD-1607000151.A8
1607000151
|
-
|
|
|
|
702 - TENSIONER PARTS SET
BSD-1607000030.A24
1607000030
|
-
|
|
|
|
703 - PARTS SET
BSD-1607000140.A0
1607000140
|
-
|
|
|
|
712 - PARTS SET dia180 MM
BSD-1607000176.A27
1607000176
|
-
|
|
|
|
800 - CARBON-BRUSH SET
BSD-1607014103.A226
1607014103
|
£14.91
|
£17.89
|
|
|
801 - CONNECTING CABLE
BSD-1604440004.A96
1604440004
|
-
|
|
|
|
801/020 - TERMINAL LUG
BSD-1601353003.A184
1601353003
|
-
|
|
|
|
802 - CROWN GEAR Z=51
BSD-1606333210.A16
1606333210
|
-
|
|
|
|
803 - BEVEL GEAR Z=18
BSD-1606333209.A14
1606333209
|
-
|
|
|
|
804 - SWITCH KIT
BSD-1607000034.A118
1607000034
|
-
|
|
|
|
805 - SEAL KIT
BSD-1607000060.A1
1607000060
|
-
|
|
|
|
806 - ARMATURE 220V
BSD-1604012044.A4
1604012044
|
-
|
|
|
|
817 - BEARING FLANGE
BSD-1607000229.A80
1607000229
|
-
|
|
|
|
817/029 - O-RING 79.0x1.78 MM
BSD-1600210033.A15
1600210033
|
£1.75
|
£2.10
|
|
|
835 - POWER SUPPLY CORD EU 4.15m 2 x 1.0mm H07 RN-F
BSD-1607000227.A283
1607000227
|
£23.86
|
£28.63
|
|
|
888 - NAMEPLATE
BSD-160111A3H3.A1863
160111A3H3
|
£2.61
|
£3.13
|
|
