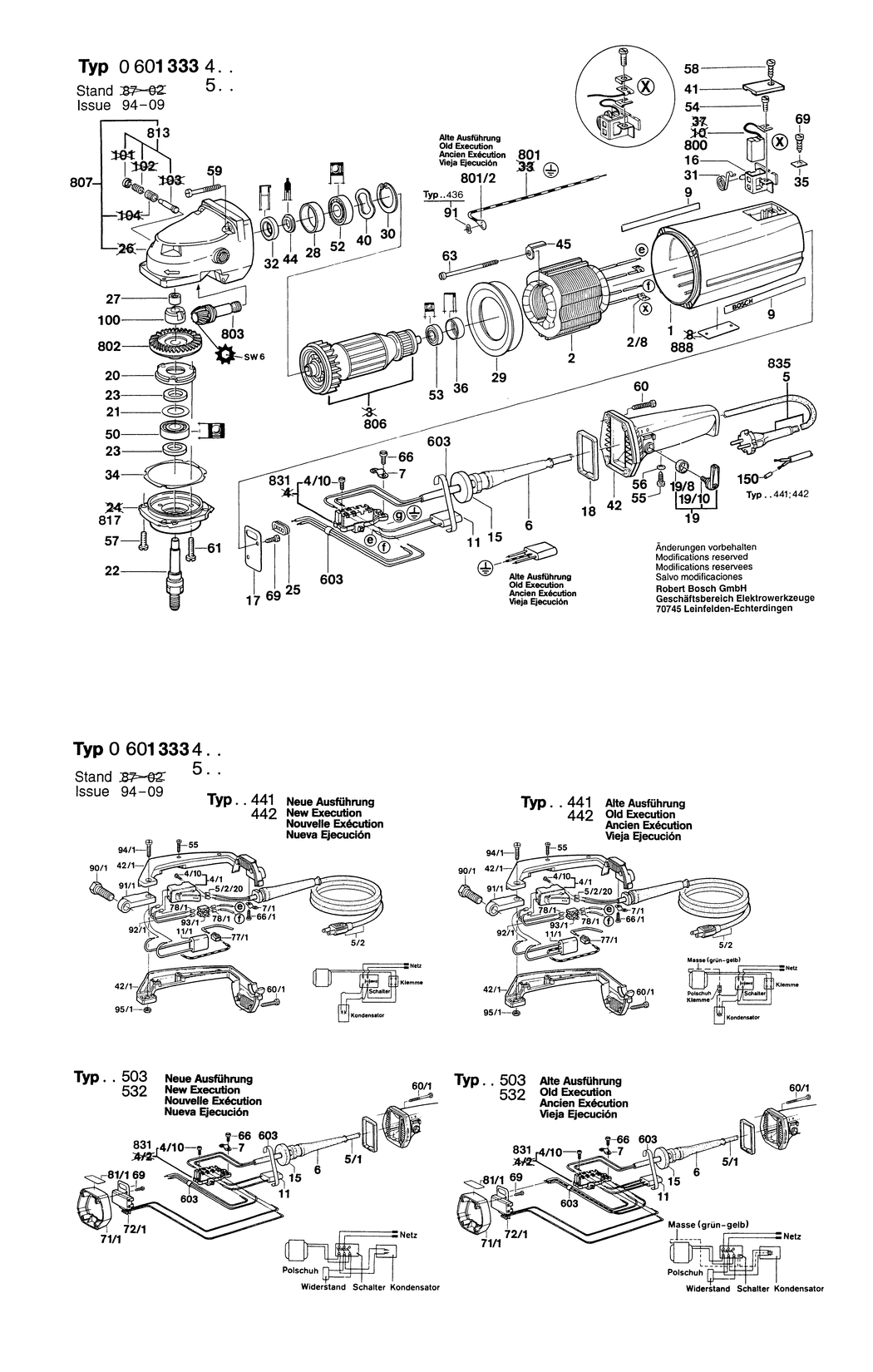

1 - MOTOR HOUSING
BSD-1605108124.A48
1605108124
|
-
|
|
|
|
2 - FIELD 115V
BSD-1604220247.A6
1604220247
|
-
|
|
|
|
2/8 - TERMINAL LUG 1.5-4x4
BSD-1901350003.A106
1901350003
|
£1.75
|
£2.10
|
|
|
4/1 - ON-OFF SWITCH
BSD-1609200060.A10
1609200060
|
-
|
|
|
|
5/2 - POWER SUPPLY CORD GB 110V 4.15m 2 x 2.5mm H07 RN-F
BSD-1604460202.A5
1604460202
|
£45.67
|
£54.80
|
|
|
5/2/20 - END SPLICE DIN 46 228-A2.5-7
BSD-1900452003.A18
1900452003
|
£2.61
|
£3.13
|
|
|
6 - GROMMET dia11.5-dia15.0x150 MM
BSD-1600703009.A17
1600703009
|
£5.58
|
£6.70
|
|
|
7/1 - FASTENING CLAMP
BSD-1601302014.A219
1601302014
|
£2.61
|
£3.13
|
|
|
9 - MANUFACTURER'S NAMEPLATE
BSD-1601110003.A206
1601110003
|
-
|
|
|
|
11 - SUPPRESSION FILTER
BSD-1607328034.A130
1607328034
|
£4.26
|
£5.11
|
|
|
16 - BRUSH HOLDER
BSD-1604336008.A203
1604336008
|
£21.52
|
£25.83
|
|
|
19 - CONTROL LEVER
BSD-1602026058.A47
1602026058
|
-
|
|
|
|
19/8 - FELT WASHER
BSD-1600205019.A122
1600205019
|
£1.75
|
£2.10
|
|
|
20 - BEARING COVER
BSD-1605808054.A236
1605808054
|
-
|
|
|
|
21 - COVER DISC
BSD-1600102012.A246
1600102012
|
-
|
|
|
|
22 - GRINDING SPINDLE M14. L=101 MM
BSD-1603523090.A104
1603523090
|
-
|
|
|
|
23 - SEALING DISK
BSD-1600108055.A116
1600108055
|
£1.75
|
£2.10
|
|
|
27 - NEEDLE-ROLLER BEARING dia14 MM
BSD-2600910001.A241
2600910001
|
£4.26
|
£5.11
|
|
|
28 - RUBBER RING
BSD-1600206022.A10
1600206022
|
£2.16
|
£2.59
|
|
|
29 - GUIDE PULLEY
BSD-1600502013.A57
1600502013
|
-
|
|
|
|
30 - SPRING RETAINING RING
BSD-1600119004.A100
1600119004
|
£2.80
|
£3.36
|
|
|
31 - SPIRAL SPRING
BSD-1604652015.A393
1604652015
|
£2.80
|
£3.36
|
|
|
32 - ROTARY SHAFT LIP SEAL
BSD-1600290008.A63
1600290008
|
£2.61
|
£3.13
|
|
|
34 - SHIM 0.1 MM
BSD-1600190004.A101
1600190004
|
-
|
|
|
|
34 - SHIM 0.2 MM
BSD-1600190005.A182
1600190005
|
£1.32
|
£1.58
|
|
|
35 - TAB WASHER
BSD-1601030022.A446
1601030022
|
£1.75
|
£2.10
|
|
|
36 - RUBBER RING
BSD-1600206015.A103
1600206015
|
£2.16
|
£2.59
|
|
|
40 - SPRING WASHER dia32.3xdia43.5x0.6 MM
BSD-1600150009.A47
1600150009
|
£2.80
|
£3.36
|
|
|
41 - SEALING CAP
BSD-1605500089.A58
1605500089
|
-
|
|
|
|
42/1 - HANDLE
BSD-1609251029.A9
1609251029
|
-
|
|
|
|
44 - FACEPLATE
BSD-1600120070.A42
1600120070
|
-
|
|
|
|
45 - HOLDING BRACKET
BSD-1601331032.A125
1601331032
|
-
|
|
|
|
50 - GROOVE BALL BEARING 6203-2 Z DIN 625
BSD-1900905227.A10
1900905227
|
-
|
|
|
|
52 - GROOVE BALL BEARING 6203-TH/C3 DIN 625
BSD-1900900413.A36
1900900413
|
-
|
|
|
|
53 - GROOVE BALL BEARING
BSD-1600900029.A13
1600900029
|
-
|
|
|
|
54 - SOCKET HEAD CAP SCREW DIN 84-AM4x8-8.8
BSD-2910021118.A242
2910021118
|
£1.75
|
£2.10
|
|
|
55 - TAPPING SCREW DIN 7971 BZ4.2x22
BSD-2910211028.A17
2910211028
|
-
|
|
|
|
57 - SOCKET HEAD CAP SCREW DIN 84-AM5x15-5.8
BSD-2910011157.A325
2910011157
|
-
|
|
|
|
58 - TAPPING SCREW DIN 7971-B 3.9x19
BSD-2910211220.A211
2910211220
|
-
|
|
|
|
59 - SCREW B 4.8x45 MM
BSD-3603415560.A190
3603415560
|
£1.75
|
£2.10
|
|
|
60/1 - TORX OVAL-HEAD SCREW
BSD-2914201529.A50
2914201529
|
£1.75
|
£2.10
|
|
|
61 - SOCKET HEAD CAP SCREW DIN 84-AM5x20-5.8
BSD-2910011162.A364
2910011162
|
£1.75
|
£2.10
|
|
|
63 - TAPPING SCREW B4.8x85 MM
BSD-1603429001.A56
1603429001
|
-
|
|
|
|
66/1 - SCREW 4x16
BSD-2603490022.A2202
2603490022
|
£1.75
|
£2.10
|
|
|
69 - TAPPING SCREW DIN 7971-BZ3.5x13
BSD-2910211011.A467
2910211011
|
£1.75
|
£2.10
|
|
|
78/1 - END SPLICE DIN 46 228-A2.5-7
BSD-1900452003.A17
1900452003
|
£2.61
|
£3.13
|
|
|
90/1 - HEX SCREW M 14x25 DIN 933-8.8
BSD-2911061388.A1
2911061388
|
-
|
|
|
|
92/1 - CONNECTING CABLE
BSD-1604413000.A1
1604413000
|
-
|
|
|
|
93/1 - STRIP TERMINAL
BSD-1901091110.A46
1901091110
|
£1.75
|
£2.10
|
|
|
94/1 - SOCKET HEAD CAP SCREW DIN 84-AM6x25-5.8
BSD-2910011203.A0
2910011203
|
-
|
|
|
|
95/1 - HEX NUT AM 6 DIN 439-04
BSD-2915051006.A8
2915051006
|
-
|
|
|
|
100 - GROOVED RING
BSD-1600390011.A58
1600390011
|
-
|
|
|
|
150 - END SPLICE
BSD-3604477009.A44
3604477009
|
£2.61
|
£3.13
|
|
|
650 - STRAP-SHAPED HANDLE
BSD-1600793004.A4
1600793004
|
-
|
|
|
|
651/10 - OFFSET SCREWDRIVER DIN 911 SW10
BSD-1907950009.A75
1907950009
|
£21.68
|
£26.01
|
|
|
651/11 - CLAMPING-FLANGE
BSD-1605703137.A10
1605703137
|
-
|
|
|
|
651/12 - ROUND NUT WITH 2 HOLES
BSD-1619P09976.A17
1619P09976
|
£2.16
|
£2.59
|
|
|
651/13 - OFFSET SCREWDRIVER DIN 911;SW6
BSD-1907950007.A295
1907950007
|
£5.30
|
£6.36
|
|
|
651/15 - CONICAL SPRING WASHER
BSD-2605703022.A13
2605703022
|
£54.42
|
£65.30
|
|
|
651/16 - OFFSET SCREWDRIVER DIN 911-4
BSD-2607950004.A484
2607950004
|
£1.75
|
£2.10
|
|
|
652 - PROTECTIVE COVER dia 300 MM
BSD-2605510079.A6
2605510079
|
-
|
|
|
|
652/20 - HEX SOCKET HEAD CAP SCREW DIN 912-M8x18-8.8
BSD-2910141240.A76
2910141240
|
£1.32
|
£1.58
|
|
|
653 - GUIDE BLOCK
BSD-1608190002.A4
1608190002
|
-
|
|
|
|
653/1 - ROUND-HEAD BOLT DIN 603-M 8x25
BSD-2910281244.A41
2910281244
|
-
|
|
|
|
653/2 - WING NUT DIN 315-M8-GT-C
BSD-2915191007.A188
2915191007
|
£3.72
|
£4.47
|
|
|
653/3 - PLAIN WASHER DIN 315-M8-GT-C
BSD-2600100041.A227
2600100041
|
£1.75
|
£2.10
|
|
|
653/4 - COMPRESSION SPRING
BSD-1604643003.A38
1604643003
|
£6.52
|
£7.83
|
|
|
702 - SUCTION HOOD dia 300 MM (12)
BSD-1605510215.A4
1605510215
|
£87.49
|
£104.99
|
|
|
702 - UNION dia32.3xdia34.9x75 MM
BSD-1600309009.A18
1600309009
|
-
|
|
|
|
702/10 - WING NUT DIN 315-M8-GT-C
BSD-2915191007.A189
2915191007
|
£3.72
|
£4.47
|
|
|
702/11 - PLAIN WASHER DIN 125-A 8.4-ST
BSD-2916011016.A60
2916011016
|
£1.75
|
£2.10
|
|
|
702/20 - HEX SOCKET HEAD CAP SCREW DIN 912-M8x18-8.8
BSD-2910141240.A77
2910141240
|
£1.32
|
£1.58
|
|
|
703 - PARTS SET
BSD-1607000140.A111
1607000140
|
-
|
|
|
|
703/11 - HEX SCREW M14x16x1.5 MM
BSD-2603450007.A410
2603450007
|
£5.58
|
£6.70
|
|
|
800 - CARBON-BRUSH SET
BSD-1607014103.A124
1607014103
|
£14.91
|
£17.89
|
|
|
801 - CONNECTING CABLE
BSD-1604440004.A54
1604440004
|
-
|
|
|
|
801/2 - TERMINAL LUG
BSD-1601353003.A19
1601353003
|
-
|
|
|
|
802 - CROWN GEAR Z=62. M8
BSD-1606333206.A18
1606333206
|
-
|
|
|
|
803 - BEVEL GEAR Z=13. M12
BSD-1606333185.A9
1606333185
|
-
|
|
|
|
806 - ARMATURE 110-115V
BSD-1604012055.A0
1604012055
|
-
|
|
|
|
807 - PARTS SET
BSD-1607000913.A4
1607000913
|
-
|
|
|
|
813 - PARTS SET
BSD-1607000161.A47
1607000161
|
-
|
|
|
|
817 - BEARING FLANGE
BSD-1607000229.A138
1607000229
|
-
|
|
|
|
817/029 - O-RING 79.0x1.78 MM
BSD-1600210033.A703
1600210033
|
£1.75
|
£2.10
|
|
|
818 - PROFILE STRIP 3.4x7x240 MM
BSD-1601014005.A15
1601014005
|
-
|
|
|
|
888 - NAMEPLATE
BSD-160111A3H3.A3786
160111A3H3
|
£2.61
|
£3.13
|
|
