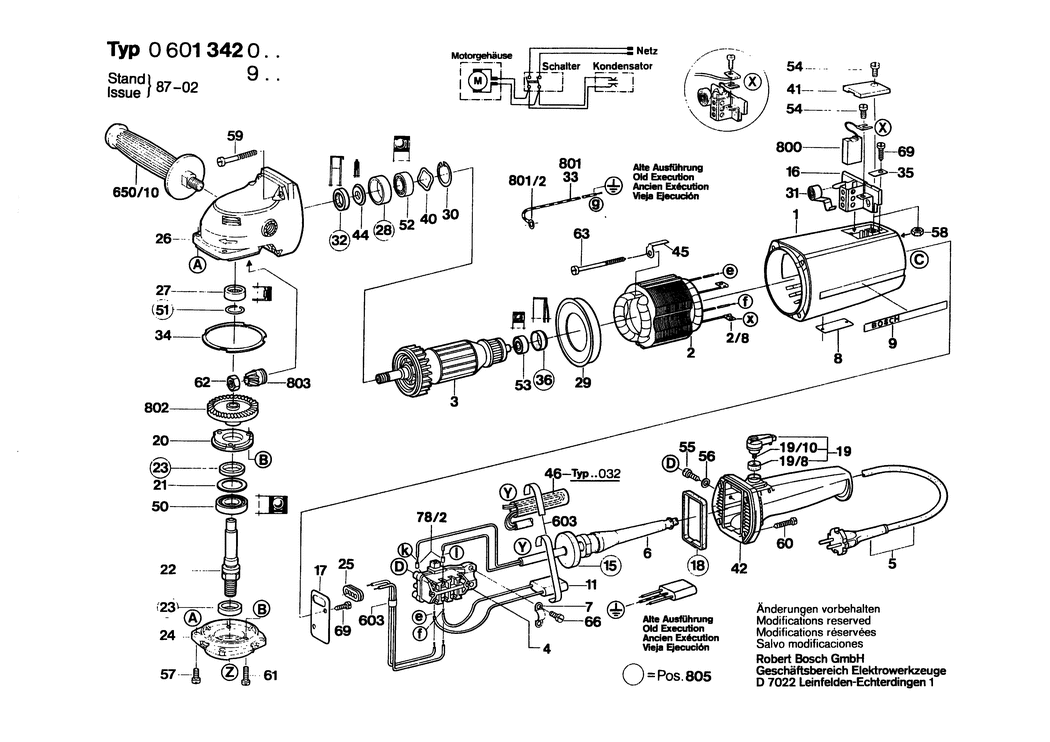

1 - MOTOR HOUSING
BSD-1605108124.A57
1605108124
|
-
|
|
|
|
2 - FIELD 240V
BSD-1604220248.A1
1604220248
|
-
|
|
|
|
2/8 - TERMINAL LUG 1.5-4x4
BSD-1901350003.A193
1901350003
|
£1.75
|
£2.10
|
|
|
3 - ARMATURE 220-240V
BSD-1604012047.A7
1604012047
|
-
|
|
|
|
6 - GROMMET dia9.2-dia12x120 MM
BSD-3600703011.A896
3600703011
|
£2.80
|
£3.36
|
|
|
7 - FASTENING CLAMP
BSD-1601302013.A113
1601302013
|
£1.75
|
£2.10
|
|
|
8 - NAMEPLATE
BSD-160111A3H3.A840
160111A3H3
|
£2.61
|
£3.13
|
|
|
9 - MANUFACTURER'S NAMEPLATE
BSD-1601110003.A42
1601110003
|
-
|
|
|
|
11 - SUPPRESSION FILTER
BSD-1607328034.A397
1607328034
|
£4.26
|
£5.11
|
|
|
15 - SEAL
BSD-1600113002.A331
1600113002
|
£1.75
|
£2.10
|
|
|
16 - BRUSH HOLDER
BSD-1604336008.A86
1604336008
|
£21.52
|
£25.83
|
|
|
17 - COVER PLATE
BSD-1601037006.A87
1601037006
|
-
|
|
|
|
18 - PROFILE STRIP 3.4x7x240 MM
BSD-1601014005.A167
1601014005
|
-
|
|
|
|
19 - CONTROL LEVER
BSD-1602026041.A81
1602026041
|
-
|
|
|
|
19/8 - FELT WASHER
BSD-1600205019.A238
1600205019
|
£1.75
|
£2.10
|
|
|
20 - BEARING COVER
BSD-1605808054.A98
1605808054
|
-
|
|
|
|
21 - COVER DISC
BSD-1600102012.A48
1600102012
|
-
|
|
|
|
22 - GRINDING SPINDLE M14x1.5 MM
BSD-1603523032.A229
1603523032
|
£37.27
|
£44.72
|
|
|
23 - SEALING DISK
BSD-1600108055.A210
1600108055
|
£1.75
|
£2.10
|
|
|
25 - GROMMET
BSD-1600306001.A344
1600306001
|
£2.61
|
£3.13
|
|
|
26 - GEAR HOUSING
BSD-1605806394.A11
1605806394
|
-
|
|
|
|
27 - NEEDLE BEARING dia22x11.3 MM
BSD-1600910010.A116
1600910010
|
£45.67
|
£54.80
|
|
|
28 - RETAINING SNAP RING
BSD-1600206019.A45
1600206019
|
-
|
|
|
|
29 - GUIDE PULLEY
BSD-1600502013.A43
1600502013
|
-
|
|
|
|
30 - SPRING RETAINING RING
BSD-1600119004.A6
1600119004
|
£2.80
|
£3.36
|
|
|
31 - SPIRAL SPRING
BSD-1604652015.A227
1604652015
|
£2.80
|
£3.36
|
|
|
32 - ROTARY SHAFT LIP SEAL
BSD-1600290008.A174
1600290008
|
£2.61
|
£3.13
|
|
|
34 - SHIM 0.1 MM
BSD-1600190004.A207
1600190004
|
-
|
|
|
|
34 - SHIM 0.2 MM
BSD-1600190005.A76
1600190005
|
£1.32
|
£1.58
|
|
|
35 - TAB WASHER
BSD-1601030022.A186
1601030022
|
£1.75
|
£2.10
|
|
|
36 - RUBBER BUSHING
BSD-1600502006.A90
1600502006
|
£1.75
|
£2.10
|
|
|
40 - SPRING WASHER dia32.3xdia43.5x0.6 MM
BSD-1600150009.A70
1600150009
|
£2.80
|
£3.36
|
|
|
41 - SEALING CAP
BSD-1605500089.A232
1605500089
|
-
|
|
|
|
42 - HANDLE
BSD-1605132079.A126
1605132079
|
-
|
|
|
|
44 - FACEPLATE
BSD-1600120070.A7
1600120070
|
-
|
|
|
|
45 - HOLDING BRACKET
BSD-1601331032.A44
1601331032
|
-
|
|
|
|
50 - GROOVE BALL BEARING 6203-2 Z DIN 625
BSD-1900905227.A137
1900905227
|
-
|
|
|
|
51 - RETAINING RING dia22 MM
BSD-2916620011.A321
2916620011
|
£1.75
|
£2.10
|
|
|
52 - GROOVE BALL BEARING 6203-TH/C3 DIN 625
BSD-1900900413.A105
1900900413
|
-
|
|
|
|
53 - GROOVE BALL BEARING
BSD-1600900029.A148
1600900029
|
-
|
|
|
|
54 - SOCKET HEAD CAP SCREW DIN 84-AM4x8-8.8
BSD-2910021118.A1067
2910021118
|
£1.75
|
£2.10
|
|
|
55 - TAPPING SCREW DIN 7971-BZ2.9x13
BSD-2910211006.A666
2910211006
|
£1.75
|
£2.10
|
|
|
56 - PLAIN WASHER DIN 433-3.2-ST 50
BSD-2916011005.A522
2916011005
|
£1.75
|
£2.10
|
|
|
57 - SOCKET HEAD CAP SCREW DIN 84-AM5x15-5.8
BSD-2910011157.A17
2910011157
|
-
|
|
|
|
58 - HEX NUT DIN 934 -M4-m-8
BSD-2915011005.A548
2915011005
|
£1.75
|
£2.10
|
|
|
59 - SCREW B 4.8x45 MM
BSD-3603415560.A74
3603415560
|
£1.75
|
£2.10
|
|
|
60 - TAPPING SCREW DIN 7971-ST4.8x25-F
BSD-2910211036.A200
2910211036
|
£1.75
|
£2.10
|
|
|
61 - SOCKET HEAD CAP SCREW DIN 84-AM5x20-5.8
BSD-2910011162.A193
2910011162
|
£1.75
|
£2.10
|
|
|
62 - HEX NUT M12x1.5 MM
BSD-1603300009.A152
1603300009
|
£1.75
|
£2.10
|
|
|
63 - TAPPING SCREW B4.8x85 MM
BSD-1603429001.A96
1603429001
|
-
|
|
|
|
66 - SOCKET HEAD CAP SCREW DIN 84-AM4x12-8.8
BSD-2910021122.A638
2910021122
|
£2.16
|
£2.59
|
|
|
69 - TAPPING SCREW DIN 7971-BZ3.5x13
BSD-2910211011.A186
2910211011
|
£1.75
|
£2.10
|
|
|
650/10 - AUXILIARY HANDLE M14
BSD-1602025022.A232
1602025022
|
£13.41
|
£16.09
|
|
|
650/10 - AUXILIARY HANDLE M14. dia37x115 MM
BSD-1602025030.A467
1602025030
|
£18.96
|
£22.75
|
|
|
651 - SINGLE-HEAD ENG. WRENCH SW17
BSD-2607950511.A778
2607950511
|
£4.26
|
£5.11
|
|
|
652 - PROTECTIVE COVER dia 230 MM
BSD-2605510082.A2
2605510082
|
-
|
|
|
|
652/20 - HEX SOCKET HEAD CAP SCREW DIN 912-M8x18-8.8
BSD-2910141240.A181
2910141240
|
£1.32
|
£1.58
|
|
|
653 - OFFSET SCREWDRIVER DIN 911-4
BSD-2607950004.A53
2607950004
|
£1.75
|
£2.10
|
|
|
654 - CLAMPING-FLANGE dia45 MM
BSD-2600501006.A211
2600501006
|
£16.43
|
£19.72
|
|
|
655 - ROUND NUT M14
BSD-2603345004.A238
2603345004
|
£6.52
|
£7.83
|
|
|
656 - OFFSET SCREWDRIVER DIN 911;SW6
BSD-1907950007.A423
1907950007
|
£5.30
|
£6.36
|
|
|
700 - PARTS SET
BSD-1607000151.A16
1607000151
|
-
|
|
|
|
702 - TENSIONER PARTS SET
BSD-1607000030.A32
1607000030
|
-
|
|
|
|
712 - PARTS SET dia 230 MM
BSD-1607000175.A30
1607000175
|
-
|
|
|
|
800 - CARBON-BRUSH SET
BSD-1607014103.A189
1607014103
|
£14.91
|
£17.89
|
|
|
801 - CONNECTING CABLE
BSD-1604440004.A153
1604440004
|
-
|
|
|
|
801/2 - TERMINAL LUG
BSD-1601353003.A108
1601353003
|
-
|
|
|
|
802 - CROWN GEAR Z=55
BSD-1606333208.A10
1606333208
|
-
|
|
|
|
803 - BEVEL GEAR Z=15
BSD-1606333151.A0
1606333151
|
-
|
|
|
|
804 - PARTS SET
BSD-1607000037.A3
1607000037
|
-
|
|
|
|
804/010 - PAN HEAD SCREW DIN 85-AM4x8-4.8
BSD-2910091118.A443
2910091118
|
£1.75
|
£2.10
|
|
|
805 - SEAL KIT
BSD-1607000060.A11
1607000060
|
-
|
|
|
|
817 - BEARING FLANGE
BSD-1607000229.A40
1607000229
|
-
|
|
|
|
817/029 - O-RING 79.0x1.78 MM
BSD-1600210033.A338
1600210033
|
£1.75
|
£2.10
|
|
|
835 - POWER SUPPLY CORD EU 4.15m 2 x 1.5mm H07 RN-F
BSD-1607000228.A628
1607000228
|
£23.86
|
£28.63
|
|
|
835/020 - END SPLICE
BSD-3604477009.A291
3604477009
|
£2.61
|
£3.13
|
|
