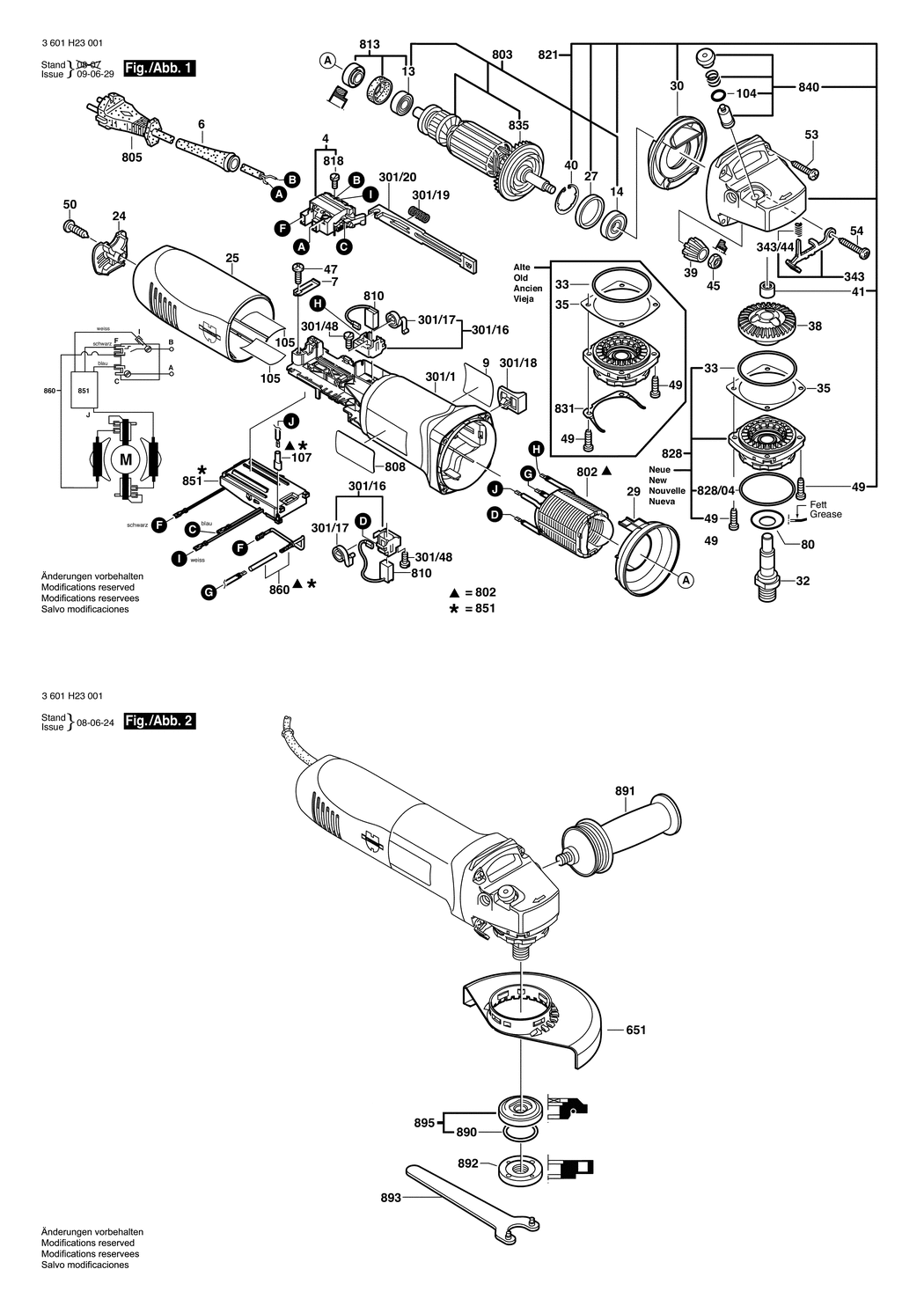

4 - SWITCH
BSD-1607200199.A7
1607200199
|
£16.41
|
£19.69
|
|
|
5 - POWER SUPPLY CORD
BSD-1604460474.A1
1604460474
|
£31.64
|
£37.97
|
|
|
6 - GROMMET
BSD-1600703041.A8
1600703041
|
£1.75
|
£2.10
|
|
|
7 - FASTENING CLAMP
BSD-1601302024.A6
1601302024
|
£1.75
|
£2.10
|
|
|
9 - MANUFACTURER'S NAMEPLATE
BSD-1601118M04.A0
1601118M04
|
£1.75
|
£2.10
|
|
|
13 - BALL BEARING 7x19x6
BSD-2600905032.A624
2600905032
|
£5.30
|
£6.36
|
|
|
14 - GROOVE BALL BEARING 8x22x7
BSD-1600905032.A278
1600905032
|
£5.58
|
£6.70
|
|
|
24 - COVER
BSD-1605500031.A5
1605500031
|
£4.26
|
£5.11
|
|
|
25 - HOUSING COVER
BSD-1600508032.A8
1600508032
|
£5.87
|
£7.04
|
|
|
27 - RUBBER RING
BSD-1600206025.A642
1600206025
|
£2.16
|
£2.59
|
|
|
29 - AIR-DEFLECTOR RING
BSD-1600591025.A144
1600591025
|
£2.61
|
£3.13
|
|
|
30 - AIR-DEFLECTOR RING
BSD-1600591014.A338
1600591014
|
£2.61
|
£3.13
|
|
|
32 - GRINDING SPINDLE
BSD-1607000D6A.A77
1607000D6A
|
£7.36
|
£8.83
|
|
|
33 - O-RING 46.0x1.1 MM
BSD-1600210035.A190
1600210035
|
£1.75
|
£2.10
|
|
|
35 - SHIM 0.1 MM
BSD-1600136013.A322
1600136013
|
£2.61
|
£3.13
|
|
|
35 - SHIM 0.15 MM
BSD-1600136020.A196
1600136020
|
£3.72
|
£4.47
|
|
|
35 - SHIM 0.2 MM
BSD-1600136014.A198
1600136014
|
£2.61
|
£3.13
|
|
|
35 - SHIM 0.3 MM
BSD-1600136015.A322
1600136015
|
£2.61
|
£3.13
|
|
|
38 - CROWN GEAR Z=38
BSD-1606333616.A116
1606333616
|
£9.49
|
£11.39
|
|
|
39 - BEVEL GEAR Z=11
BSD-1606333617.A4
1606333617
|
-
|
|
|
|
40 - RETAINING CLIP
BSD-1600119011.A393
1600119011
|
£2.16
|
£2.59
|
|
|
41 - PLAIN BEARING
BSD-1600200029.A236
1600200029
|
£4.26
|
£5.11
|
|
|
45 - HEX NUT M7. SW10
BSD-1603300016.A220
1603300016
|
£1.75
|
£2.10
|
|
|
47 - TORX OVAL-HEAD SCREW 4x12
BSD-2603490021.A529
2603490021
|
£1.75
|
£2.10
|
|
|
49 - THREAD-FORMING TAP. SCREW M4x16
BSD-2914491410.A107
2914491410
|
£1.75
|
£2.10
|
|
|
50 - TORX OVAL-HEAD SCREW 4x20
BSD-2603490023.A1362
2603490023
|
£1.75
|
£2.10
|
|
|
53 - TORX OVAL-HEAD SCREW
BSD-1603435078.A188
1603435078
|
£1.75
|
£2.10
|
|
|
54 - TORX OVAL-HEAD SCREW 4x30
BSD-1603414026.A62
1603414026
|
£1.75
|
£2.10
|
|
|
80 - SEALING DISK
BSD-3600150021.A180
3600150021
|
£3.80
|
£4.56
|
|
|
104 - O-RING 4.5x1.0 MM
BSD-1600210044.A158
1600210044
|
£1.75
|
£2.10
|
|
|
105 - INSULATING PLATE
BSD-1601008005.A129
1601008005
|
£4.26
|
£5.11
|
|
|
107 - INSULATING PART
BSD-1600712030.A100
1600712030
|
£1.75
|
£2.10
|
|
|
301/1 - MOTOR HOUSING
BSD-1605108257.A6
1605108257
|
£12.04
|
£14.45
|
|
|
301/16 - BRUSH HOLDER
BSD-1601323025.A164
1601323025
|
£3.72
|
£4.47
|
|
|
301/17 - SPIRAL SPRING
BSD-1604652013.A649
1604652013
|
£1.75
|
£2.10
|
|
|
301/18 - SWITCH HANDLE
BSD-1602026089.A9
1602026089
|
£1.75
|
£2.10
|
|
|
301/19 - COMPRESSION SPRING
BSD-1604611026.A338
1604611026
|
£1.75
|
£2.10
|
|
|
301/20 - ADJUSTING SLIDE
BSD-1602319010.A99
1602319010
|
£1.75
|
£2.10
|
|
|
301/48 - LENS HEAD SCREW 3x10 ST
BSD-1613435034.A126
1613435034
|
£1.75
|
£2.10
|
|
|
343 - CATCH LEVER
BSD-1607000742.A92
1607000742
|
£7.36
|
£8.83
|
|
|
343/44 - COMPRESSION SPRING
BSD-1604611042.A165
1604611042
|
£1.75
|
£2.10
|
|
|
651 - PROTECTIVE COVER dia 125 MM
BSD-1605510384.A4
1605510384
|
£16.41
|
£19.69
|
|
|
802 - FIELD 220-240V
BSD-1607000395.A13
1607000395
|
£33.45
|
£40.14
|
|
|
803 - ARMATURE WITH FAN 220-240V
BSD-1604010A21.A7
1604010A21
|
£51.22
|
£61.47
|
|
|
805 - POWER SUPPLY CORD
BSD-1617000723.A23
1617000723
|
£27.23
|
£32.68
|
|
|
808 - NAMEPLATE
BSD-160111A3HC.A40
160111A3HC
|
£2.61
|
£3.13
|
|
|
810 - CARBON-BRUSH SET
BSD-1607014176.A204
1607014176
|
£13.12
|
£15.75
|
|
|
813 - PARTS SET
BSD-1607000378.A28
1607000378
|
£6.52
|
£7.83
|
|
|
818 - PAN HEAD SCREW DIN 85-AM3x6-CUZN
BSD-2910110048.A387
2910110048
|
£1.75
|
£2.10
|
|
|
821 - GEAR HOUSING
BSD-1605806520.A2
1605806520
|
£37.27
|
£44.72
|
|
|
828 - BEARING FLANGE
BSD-1607000D6C.A50
1607000D6C
|
£12.04
|
£14.45
|
|
|
828/04 - O-RING 47.0x1.5 MM
BSD-3600210109.A119
3600210109
|
£2.16
|
£2.59
|
|
|
831 - SPRING ELEMENT
BSD-1601290013.A27
1601290013
|
£1.75
|
£2.10
|
|
|
835 - FAN
BSD-1606610129.A139
1606610129
|
£2.16
|
£2.59
|
|
|
840 - PUSH-BUTTON
BSD-1607000253.A73
1607000253
|
£2.49
|
£2.99
|
|
|
851 - SPEED GOVERNOR 220-240V
BSD-1607233290.A0
1607233290
|
£40.80
|
£48.96
|
|
|
860 - CONNECTING CABLE
BSD-1604448023.A29
1604448023
|
£1.75
|
£2.10
|
|
|
890 - O-RING 20.35x1.78 MM
BSD-1600210039.A91
1600210039
|
£2.16
|
£2.59
|
|
|
891 - AUXILIARY HANDLE
BSD-160202507C.A3
160202507C
|
£21.52
|
£25.83
|
|
|
892 - ROUND NUT M14
BSD-1603345043.A969
1603345043
|
£8.67
|
£10.41
|
|
|
893 - PIN-TYPE FACE-WRENCH
BSD-1607950052.A176
1607950052
|
£3.72
|
£4.47
|
|
|
895 - CLAMPING FLANGE dia22.3xdia42 MM
BSD-2605703014.A893
2605703014
|
£7.36
|
£8.83
|
|
