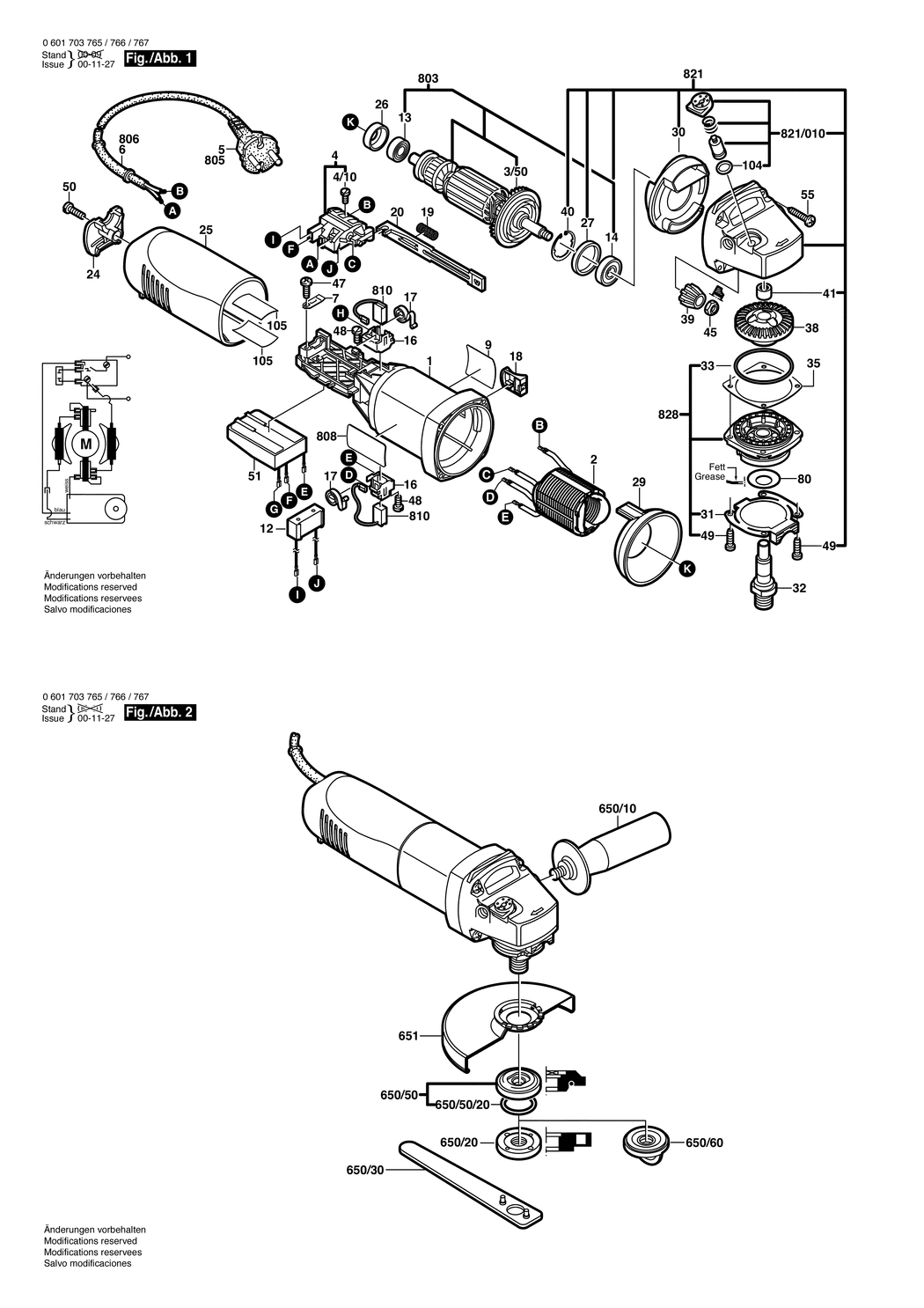

1 - MOTOR HOUSING
BSD-1605108904.A5
1605108904
|
-
|
|
|
|
2 - FIELD 220-240V
BSD-1604220301.A22
1604220301
|
£30.28
|
£36.33
|
|
|
3/50 - FAN
BSD-1606610129.A41
1606610129
|
£2.16
|
£2.59
|
|
|
4 - ON-OFF SWITCH
BSD-1607200086.A109
1607200086
|
£11.30
|
£13.56
|
|
|
4/10 - PAN HEAD SCREW DIN 85-AM3x6-CUZN
BSD-2910110048.A83
2910110048
|
£1.75
|
£2.10
|
|
|
7 - FASTENING CLAMP
BSD-1601302017.A87
1601302017
|
£1.75
|
£2.10
|
|
|
9 - MANUFACTURER'S NAMEPLATE
BSD-1601118E54.A2
1601118E54
|
-
|
|
|
|
12 - SUPPRESSION FILTER
BSD-1607328042.A3
1607328042
|
£6.52
|
£7.83
|
|
|
13 - BALL BEARING 7x19x6
BSD-2600905032.A1587
2600905032
|
£5.30
|
£6.36
|
|
|
14 - GROOVE BALL BEARING 8x22x7
BSD-1600905032.A58
1600905032
|
£5.58
|
£6.70
|
|
|
16 - BRUSH HOLDER
BSD-1601323025.A41
1601323025
|
£3.72
|
£4.47
|
|
|
17 - SPIRAL SPRING
BSD-1604652013.A361
1604652013
|
£1.75
|
£2.10
|
|
|
18 - SWITCH HANDLE
BSD-1602026089.A20
1602026089
|
£1.75
|
£2.10
|
|
|
19 - COMPRESSION SPRING
BSD-1604611026.A66
1604611026
|
£1.75
|
£2.10
|
|
|
20 - ADJUSTING SLIDE
BSD-1602319010.A38
1602319010
|
£1.75
|
£2.10
|
|
|
24 - COVER
BSD-1605500031.A3
1605500031
|
£4.26
|
£5.11
|
|
|
25 - HOUSING COVER
BSD-1600508032.A17
1600508032
|
£5.87
|
£7.04
|
|
|
26 - RUBBER RING
BSD-1600206036.A307
1600206036
|
£1.75
|
£2.10
|
|
|
27 - RUBBER RING
BSD-1600206025.A357
1600206025
|
£2.16
|
£2.59
|
|
|
29 - AIR-DEFLECTOR RING
BSD-1600591025.A225
1600591025
|
£2.61
|
£3.13
|
|
|
30 - AIR-DEFLECTOR RING
BSD-1600591014.A121
1600591014
|
£2.61
|
£3.13
|
|
|
31 - CLAMPING SPRING
BSD-1601290007.A122
1601290007
|
£5.30
|
£6.36
|
|
|
32 - GRINDING SPINDLE
BSD-1607000D6A.A710
1607000D6A
|
£7.36
|
£8.83
|
|
|
33 - O-RING 46.0x1.1 MM
BSD-1600210035.A294
1600210035
|
£1.75
|
£2.10
|
|
|
35 - SHIM 0.1 MM
BSD-1600136013.A118
1600136013
|
£2.61
|
£3.13
|
|
|
35 - SHIM 0.15 MM
BSD-1600136020.A352
1600136020
|
£3.72
|
£4.47
|
|
|
35 - SHIM 0.2 MM
BSD-1600136014.A402
1600136014
|
£2.61
|
£3.13
|
|
|
35 - SHIM 0.3 MM
BSD-1600136015.A118
1600136015
|
£2.61
|
£3.13
|
|
|
38 - CROWN GEAR Z=38
BSD-1606333616.A37
1606333616
|
£9.49
|
£11.39
|
|
|
39 - BEVEL GEAR Z=11
BSD-1606333617.A83
1606333617
|
-
|
|
|
|
40 - RETAINING CLIP
BSD-1600119011.A91
1600119011
|
£2.16
|
£2.59
|
|
|
41 - PLAIN BEARING
BSD-1600200029.A31
1600200029
|
£4.26
|
£5.11
|
|
|
45 - HEX NUT M7. SW10
BSD-1603300016.A593
1603300016
|
£1.75
|
£2.10
|
|
|
47 - TAPPING SCREW DIN7981-ST3.9x13-C-Z
BSD-2912401018.A228
2912401018
|
£1.75
|
£2.10
|
|
|
48 - TAPPING SCREW DIN7981-ST2.9x9.5C-Z
BSD-2912401005.A158
2912401005
|
£1.75
|
£2.10
|
|
|
49 - THREAD-FORMING TAP. SCREW
BSD-1603435026.A254
1603435026
|
£2.16
|
£2.59
|
|
|
50 - TAPPING SCREW DIN7981-ST3.9x19-F-Z
BSD-2912401420.A420
2912401420
|
£1.75
|
£2.10
|
|
|
51 - SPEED GOVERNOR 230V
BSD-1607233113.A10
1607233113
|
-
|
|
|
|
55 - OVAL-HEAD SCREW
BSD-1603415005.A51
1603415005
|
£1.75
|
£2.10
|
|
|
80 - SEALING DISK
BSD-3600150021.A457
3600150021
|
£3.80
|
£4.56
|
|
|
104 - O-RING 4.5x1.0 MM
BSD-1600210044.A480
1600210044
|
£1.75
|
£2.10
|
|
|
105 - INSULATING PLATE
BSD-1601008005.A216
1601008005
|
£4.26
|
£5.11
|
|
|
650/10 - AUXILIARY HANDLE M10. dia32.5x105 MM
BSD-160202509T.A96
160202509T
|
£3.72
|
£4.47
|
|
|
650/50 - CLAMPING FLANGE dia22.3xdia42 MM
BSD-2605703014.A11
2605703014
|
£7.36
|
£8.83
|
|
|
650/50/20 - O-RING 20.35x1.78 MM
BSD-1600210039.A1205
1600210039
|
£2.16
|
£2.59
|
|
|
650/60 - FAST LOCKING FLANGE
BSD-1603340041.A1
1603340041
|
£46.82
|
£56.18
|
|
|
651 - PROTECTIVE COVER dia 125 MM
BSD-1605510246.A4
1605510246
|
£13.41
|
£16.09
|
|
|
803 - ARMATURE WITH FAN 220-240V
BSD-1604010640.A52
1604010640
|
£59.53
|
£71.44
|
|
|
805 - POWER SUPPLY CORD EU 4.15m 2 x 1.0mm H07 RN-F
BSD-1607000227.A428
1607000227
|
£23.86
|
£28.63
|
|
|
806 - GROMMET dia7.3-dia8.6x67 MM
BSD-1600703031.A49
1600703031
|
£2.80
|
£3.36
|
|
|
808 - NAMEPLATE
BSD-160111A3HC.A213
160111A3HC
|
£2.61
|
£3.13
|
|
|
810 - CARBON-BRUSH SET
BSD-1607014176.A23
1607014176
|
£13.12
|
£15.75
|
|
|
821 - GEAR HOUSING
BSD-1605806505.A3
1605806505
|
-
|
|
|
|
821/010 - PUSH-BUTTON
BSD-1607000297.A6
1607000297
|
-
|
|
|
|
828 - BEARING FLANGE
BSD-1605805079.A123
1605805079
|
£18.96
|
£22.75
|
|
