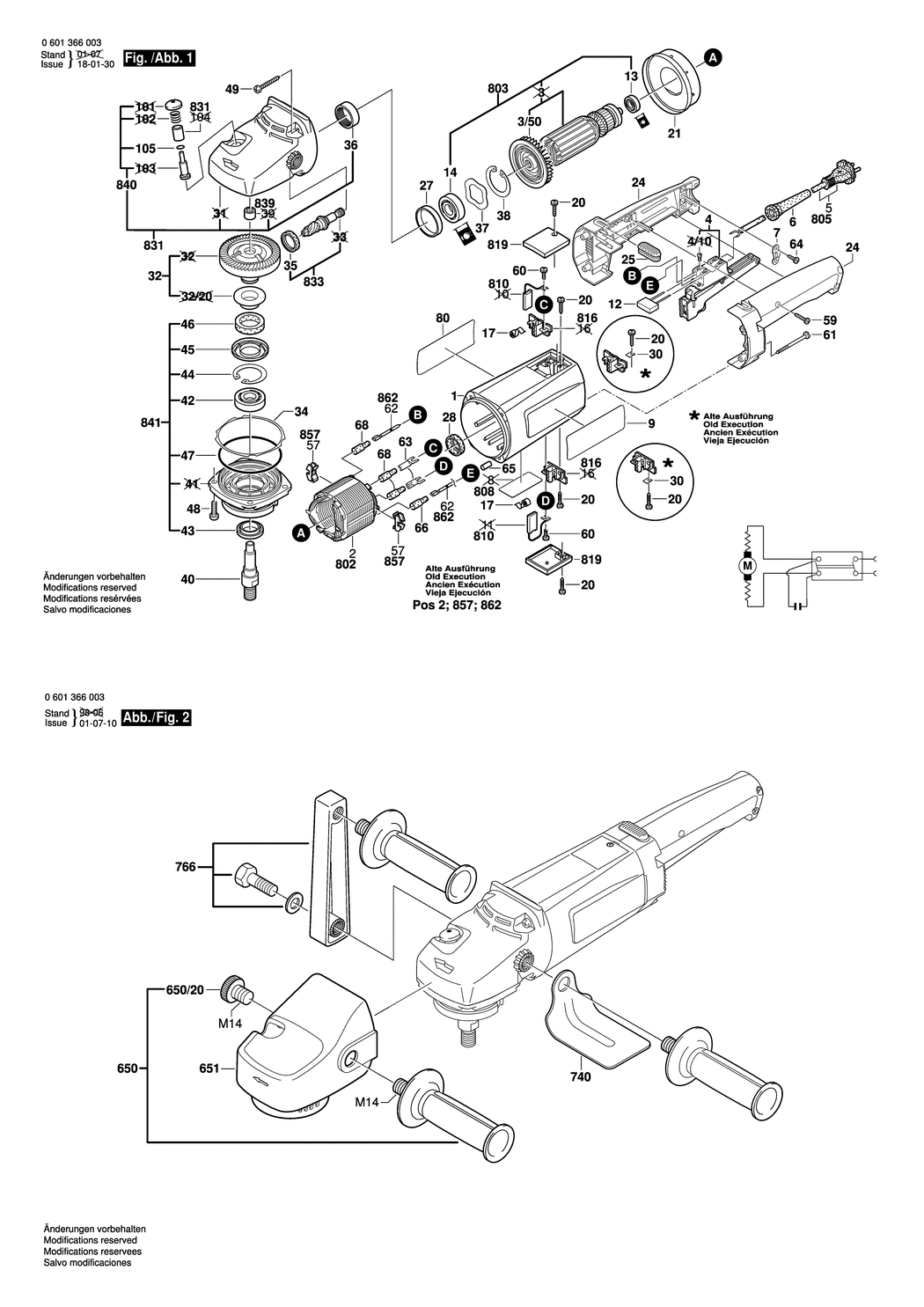

1 - MOTOR HOUSING
BSD-3605108129.A6
3605108129
|
£27.23
|
£32.68
|
|
|
2 - FIELD 240V
BSD-1604220356.A15
1604220356
|
£27.23
|
£32.68
|
|
|
3/50 - FAN
BSD-1606610126.A7
1606610126
|
£7.36
|
£8.83
|
|
|
4 - SWITCH
BSD-1607200080.A17
1607200080
|
£37.27
|
£44.72
|
|
|
5 - POWER SUPPLY CORD GB 230V 4.15m 2 x 1.0mm H07 RN-F
BSD-1604460144.A35
1604460144
|
£37.27
|
£44.72
|
|
|
6 - GROMMET dia9.2-dia12x120 MM
BSD-3600703011.A10
3600703011
|
£2.80
|
£3.36
|
|
|
7 - FASTENING CLAMP
BSD-1601302014.A561
1601302014
|
£2.61
|
£3.13
|
|
|
9 - MANUFACTURER'S NAMEPLATE
BSD-3601110275.A3
3601110275
|
-
|
|
|
|
12 - SUPPRESSION FILTER
BSD-1607328034.A222
1607328034
|
£4.26
|
£5.11
|
|
|
13 - BALL BEARING 7x19x6
BSD-2600905032.A2059
2600905032
|
£5.30
|
£6.36
|
|
|
14 - GROOVE BALL BEARING 9x26x8
BSD-3600905131.A11
3600905131
|
£11.30
|
£13.56
|
|
|
17 - SPIRAL SPRING
BSD-1604652006.A340
1604652006
|
£1.75
|
£2.10
|
|
|
20 - TAPPING SCREW DIN 7971-ST3.9x16-F
BSD-2910211019.A880
2910211019
|
£1.75
|
£2.10
|
|
|
21 - AIR-DEFLECTOR RING
BSD-3600421002.A6
3600421002
|
£2.52
|
£3.02
|
|
|
24 - HANDLE
BSD-3605132062.A4
3605132062
|
£16.41
|
£19.69
|
|
|
25 - STORAGE LEDGE
BSD-1602388029.A322
1602388029
|
£1.75
|
£2.10
|
|
|
27 - INTERMEDIATE RING
BSD-1600206026.A124
1600206026
|
£1.75
|
£2.10
|
|
|
28 - INTERMEDIATE RING
BSD-1600502011.A305
1600502011
|
£2.61
|
£3.13
|
|
|
30 - TAB WASHER
BSD-1601030022.A569
1601030022
|
£1.75
|
£2.10
|
|
|
32 - CROWN GEAR Z=69
BSD-3606333063.A1
3606333063
|
-
|
|
|
|
34 - SHIM 0.15 MM
BSD-1600190020.A214
1600190020
|
£1.75
|
£2.10
|
|
|
34 - SHIM 0.3 MM
BSD-1600190021.A613
1600190021
|
£2.61
|
£3.13
|
|
|
34 - SHIM 0.1 MM
BSD-1600190022.A215
1600190022
|
£1.75
|
£2.10
|
|
|
35 - SEAL RING
BSD-3600290039.A11
3600290039
|
£5.01
|
£6.01
|
|
|
36 - THREADED RING
BSD-3600200026.A6
3600200026
|
£11.30
|
£13.56
|
|
|
37 - SPRING WASHER
BSD-1600150026.A7
1600150026
|
£2.80
|
£3.36
|
|
|
38 - SPRING RETAINING RING
BSD-1600119009.A3
1600119009
|
£1.75
|
£2.10
|
|
|
40 - GRINDING SPINDLE M14. SW17
BSD-1603523100.A146
1603523100
|
£14.91
|
£17.89
|
|
|
42 - GROOVE BALL BEARING
BSD-3600905134.A155
3600905134
|
£11.30
|
£13.56
|
|
|
43 - SEAL RING
BSD-1600290020.A135
1600290020
|
£1.75
|
£2.10
|
|
|
44 - RETAINING CLIP
BSD-1600119010.A504
1600119010
|
£1.75
|
£2.10
|
|
|
45 - RETAINING SNAP RING
BSD-1600290019.A487
1600290019
|
£1.75
|
£2.10
|
|
|
46 - FELT WASHER
BSD-1600205034.A192
1600205034
|
£1.75
|
£2.10
|
|
|
47 - O-RING 79.0x1.78 MM
BSD-1600210033.A775
1600210033
|
£1.75
|
£2.10
|
|
|
48 - THREAD-FORMING TAP. SCREW TT M5x18 MM
BSD-1603435023.A87
1603435023
|
£2.16
|
£2.59
|
|
|
49 - TAPPING SCREW DIN 7981-4.8x38-C-Z-ST
BSD-2912401038.A78
2912401038
|
£1.75
|
£2.10
|
|
|
57 - WIRE GUIDE
BSD-3601025003.A42
3601025003
|
£1.75
|
£2.10
|
|
|
59 - TAPPING SCREW DIN 7971-ST3.9x22-F
BSD-2910211021.A500
2910211021
|
£1.75
|
£2.10
|
|
|
60 - SOCKET HEAD CAP SCREW DIN 84-AM4x8-8.8
BSD-2910021118.A920
2910021118
|
£1.75
|
£2.10
|
|
|
61 - TAPPING SCREW DIN 7971-ST4.8x38-F
BSD-2910211038.A87
2910211038
|
£1.75
|
£2.10
|
|
|
62 - CONNECTING CABLE
BSD-3604438028.A10
3604438028
|
£4.26
|
£5.11
|
|
|
63 - BLADE TERMINAL
BSD-1604477001.A7
1604477001
|
£1.75
|
£2.10
|
|
|
64 - TAPPING SCREW DIN 7971-ST3.9x13-F
BSD-2910211018.A432
2910211018
|
£1.75
|
£2.10
|
|
|
65 - END SPLICE DIN 46 228-A2.5-7
BSD-1900452003.A70
1900452003
|
£2.61
|
£3.13
|
|
|
66 - SHRINKABLE TUBE
BSD-3600707022.A64
3600707022
|
£3.72
|
£4.47
|
|
|
68 - SHRINKABLE TUBE
BSD-3600707022.A65
3600707022
|
£3.72
|
£4.47
|
|
|
80 - REFERENCE PLATE
BSD-3601110189.A7
3601110189
|
£3.34
|
£4.01
|
|
|
105 - O-RING 4.0x1.0 MM
BSD-1600210034.A59
1600210034
|
£1.75
|
£2.10
|
|
|
650 - AUXILIARY HANDLE
BSD-3602025017.A4
3602025017
|
£13.12
|
£15.75
|
|
|
650/20 - KNURLED THUMBSCREW M 14
BSD-2603481001.A2
2603481001
|
£2.61
|
£3.13
|
|
|
651 - HANDLE COVER
BSD-9618089612.A1
9618089612
|
£13.12
|
£15.75
|
|
|
740 - PROTECTING COVER
BSD-1601329013.A66
1601329013
|
£11.37
|
£13.64
|
|
|
766 - PARTS SET
BSD-2607001190.A20
2607001190
|
-
|
|
|
|
802 - FIELD 240V
BSD-3604220136.A1
3604220136
|
£54.42
|
£65.30
|
|
|
803 - ARMATURE 220-240V
BSD-3607031329.A6
3607031329
|
£154.03
|
£184.84
|
|
|
808 - NAMEPLATE
BSD-160111A3H3.A5172
160111A3H3
|
£2.61
|
£3.13
|
|
|
810 - CARBON-BRUSH SET
BSD-1607014106.A58
1607014106
|
£18.96
|
£22.75
|
|
|
816 - BRUSH HOLDER
BSD-3604336012.A189
3604336012
|
£5.58
|
£6.70
|
|
|
819 - SEALING CAP
BSD-3605500063.A161
3605500063
|
£4.26
|
£5.11
|
|
|
831 - GEAR HOUSING
BSD-3605806172.A4
3605806172
|
-
|
|
|
|
833 - BEVEL GEAR Z=5
BSD-3606333062.A0
3606333062
|
-
|
|
|
|
839 - NEEDLE-ROLLER BEARING dia14 MM
BSD-2600910001.A476
2600910001
|
£4.26
|
£5.11
|
|
|
840 - PUSH-BUTTON
BSD-1607000206.A238
1607000206
|
£11.30
|
£13.56
|
|
|
841 - BEARING FLANGE
BSD-3607000108.A8
3607000108
|
£33.74
|
£40.49
|
|
|
857 - WIRE GUIDE
BSD-1601025001.A140
1601025001
|
£1.75
|
£2.10
|
|
|
862 - CONNECTING CABLE
BSD-3604438002.A1
3604438002
|
-
|
|
|
