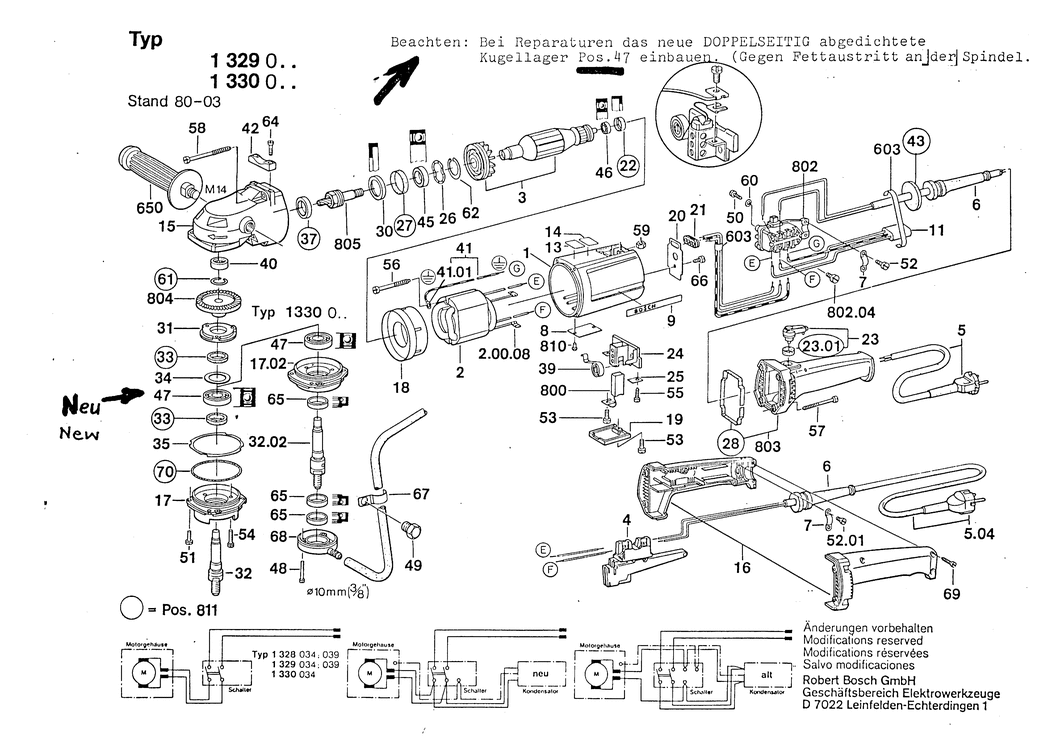

1 - MOTOR HOUSING
BSD-3605108145.A43
3605108145
|
£27.23
|
£32.68
|
|
|
2 - FIELD 100-110V
BSD-1604220136.A2
1604220136
|
-
|
|
|
|
3 - ARMATURE 100-110V
BSD-1604010154.A0
1604010154
|
-
|
|
|
|
5 - POWER SUPPLY CORD GB 110V 4.15m 2 x 1.5mm H07RN-F
BSD-1604460203.A27
1604460203
|
£33.74
|
£40.49
|
|
|
6 - GROMMET dia9.2-dia12x120 MM
BSD-3600703011.A1327
3600703011
|
£2.80
|
£3.36
|
|
|
8 - NAMEPLATE
BSD-160111A3H3.A1874
160111A3H3
|
£2.61
|
£3.13
|
|
|
9 - STICKER
BSD-1601110046.A17
1601110046
|
£1.75
|
£2.10
|
|
|
11 - SUPPRESSION FILTER
BSD-1607328034.A282
1607328034
|
£4.26
|
£5.11
|
|
|
15 - GEAR HOUSING
BSD-1605806339.A15
1605806339
|
-
|
|
|
|
17 - FLANGED BEARING
BSD-1605805051.A26
1605805051
|
-
|
|
|
|
17/02 - BEARING FLANGE
BSD-1607000229.A93
1607000229
|
-
|
|
|
|
18 - AIR-DEFLECTOR RING
BSD-1600502012.A18
1600502012
|
-
|
|
|
|
19 - SEALING CAP
BSD-1605500127.A18
1605500127
|
-
|
|
|
|
20 - COVER PLATE
BSD-1601037007.A26
1601037007
|
-
|
|
|
|
21 - GROMMET
BSD-1600306001.A208
1600306001
|
£2.61
|
£3.13
|
|
|
22 - INTERMEDIATE RING
BSD-1600502011.A218
1600502011
|
£2.61
|
£3.13
|
|
|
23 - CONTROL LEVER
BSD-1602026030.A230
1602026030
|
£10.10
|
£12.12
|
|
|
23/01 - FELT WASHER
BSD-1600205008.A54
1600205008
|
£1.75
|
£2.10
|
|
|
24 - BRUSH HOLDER
BSD-1604336017.A156
1604336017
|
£7.36
|
£8.83
|
|
|
25 - TAB WASHER
BSD-1601030022.A104
1601030022
|
£1.75
|
£2.10
|
|
|
26 - SPRING WASHER dia27.5xdia34.8x0.5 MM
BSD-1600150008.A15
1600150008
|
-
|
|
|
|
28 - SEALING CORD
BSD-1601014000.A196
1601014000
|
£2.80
|
£3.36
|
|
|
30 - SPACER BUSHING
BSD-1600500022.A10
1600500022
|
-
|
|
|
|
31 - BEARING COVER
BSD-1605808054.A46
1605808054
|
-
|
|
|
|
32 - GRINDING SPINDLE M14. L=101 MM
BSD-1603523090.A30
1603523090
|
-
|
|
|
|
32/02 - GRINDING SPINDLE 5/8-UNC-2A
BSD-1603523092.A1
1603523092
|
-
|
|
|
|
34 - COVER DISC
BSD-1600102012.A115
1600102012
|
-
|
|
|
|
35 - SHIM 0.1 MM
BSD-1600190023.A4
1600190023
|
-
|
|
|
|
35 - SHIM 0.2 MM
BSD-1600190024.A10
1600190024
|
-
|
|
|
|
39 - SPIRAL SPRING
BSD-1604652006.A35
1604652006
|
£1.75
|
£2.10
|
|
|
40 - NEEDLE-ROLLER BEARING dia14 MM
BSD-2600910001.A637
2600910001
|
£4.26
|
£5.11
|
|
|
41 - CONNECTING CABLE L=260 MM
BSD-1604440008.A11
1604440008
|
-
|
|
|
|
41/01 - TERMINAL LUG
BSD-1601353003.A195
1601353003
|
-
|
|
|
|
43 - SEAL
BSD-1600113013.A29
1600113013
|
£1.32
|
£1.58
|
|
|
45 - GROOVE BALL BEARING 15x32x9
BSD-1600905008.A12
1600905008
|
-
|
|
|
|
46 - BALL BEARING 7x19x6
BSD-2600905032.A944
2600905032
|
£5.30
|
£6.36
|
|
|
47 - GROOVE BALL BEARING 17x40x12
BSD-1900905281.A53
1900905281
|
£31.64
|
£37.97
|
|
|
48 - SOCKET HEAD CAP SCREW DIN 84-AM5x25-5.8
BSD-2910011164.A193
2910011164
|
-
|
|
|
|
49 - HEX SCREW DIN 933-M 14x16-5.8
BSD-2911051382.A23
2911051382
|
-
|
|
|
|
50 - TAPPING SCREW DIN 7971-BZ2.9x13
BSD-2910211006.A516
2910211006
|
£1.75
|
£2.10
|
|
|
51 - SOCKET HEAD CAP SCREW DIN 84-AM5x15-5.8
BSD-2910011157.A179
2910011157
|
-
|
|
|
|
52 - SOCKET HEAD CAP SCREW DIN 84-AM4x12-8.8
BSD-2910021122.A905
2910021122
|
£2.16
|
£2.59
|
|
|
53 - SOCKET HEAD CAP SCREW DIN 84-AM4x8-8.8
BSD-2910021118.A1539
2910021118
|
£1.75
|
£2.10
|
|
|
54 - SOCKET HEAD CAP SCREW DIN 84-AM5x20-5.8
BSD-2910011162.A63
2910011162
|
£1.75
|
£2.10
|
|
|
55 - TAPPING SCREW DIN 7971-BZ3.5x13
BSD-2910211011.A7
2910211011
|
£1.75
|
£2.10
|
|
|
56 - TAPPING SCREW B4.8x65 MM
BSD-1603435005.A10
1603435005
|
-
|
|
|
|
57 - TAPPING SCREW DIN 7971-ST4.8x38-F
BSD-2910211038.A95
2910211038
|
£1.75
|
£2.10
|
|
|
58 - SCREW B 4.8x45 MM
BSD-3603415560.A40
3603415560
|
£1.75
|
£2.10
|
|
|
59 - HEX NUT DIN 934 -M4-m-8
BSD-2915011005.A462
2915011005
|
£1.75
|
£2.10
|
|
|
60 - PLAIN WASHER DIN 433-3.2-ST 50
BSD-2916011005.A692
2916011005
|
£1.75
|
£2.10
|
|
|
62 - SPRING RETAINING RING DIN 472 35x1.5 MM
BSD-2916660014.A537
2916660014
|
£1.75
|
£2.10
|
|
|
65 - ROTARY SHAFT LIP SEAL dia35x22x6/6.5 MM
BSD-1600283004.A40
1600283004
|
£7.36
|
£8.83
|
|
|
66 - TAPPING SCREW DIN 7971-BZ-3.5x6.5
BSD-2910211009.A15
2910211009
|
-
|
|
|
|
67 - CLAMP
BSD-1601300004.A34
1601300004
|
£2.16
|
£2.59
|
|
|
68 - CONNECTING FLANGE
BSD-1605703061.A39
1605703061
|
-
|
|
|
|
70 - SPIRAL SPRING
BSD-1604652006.A38
1604652006
|
£1.75
|
£2.10
|
|
|
650 - AUXILIARY HANDLE M14
BSD-1602025022.A935
1602025022
|
£13.41
|
£16.09
|
|
|
650 - AUXILIARY HANDLE M14. dia37x115 MM
BSD-1602025030.A132
1602025030
|
£18.96
|
£22.75
|
|
|
651 - SINGLE-HEAD ENG. WRENCH SW17
BSD-2607950511.A502
2607950511
|
£4.26
|
£5.11
|
|
|
800 - CARBON-BRUSH SET
BSD-1607014126.A54
1607014126
|
£16.41
|
£19.69
|
|
|
802 - SWITCH KIT
BSD-1607000034.A128
1607000034
|
-
|
|
|
|
802/04 - PAN HEAD SCREW DIN 85-AM4x8-4.8
BSD-2910091118.A370
2910091118
|
£1.75
|
£2.10
|
|
|
803 - HANDLE
BSD-3605132048.A238
3605132048
|
£63.50
|
£76.20
|
|
|
804 - CROWN GEAR Z=74
BSD-1606333168.A10
1606333168
|
-
|
|
|
|
805 - PARTS SET
BSD-1607000230.A10
1607000230
|
-
|
|
|
|
810 - ROUND-HEAD GROOVED PIN
BSD-1603133000.A29
1603133000
|
-
|
|
|
|
811 - SEAL KIT
BSD-1607000065.A8
1607000065
|
-
|
|
|
