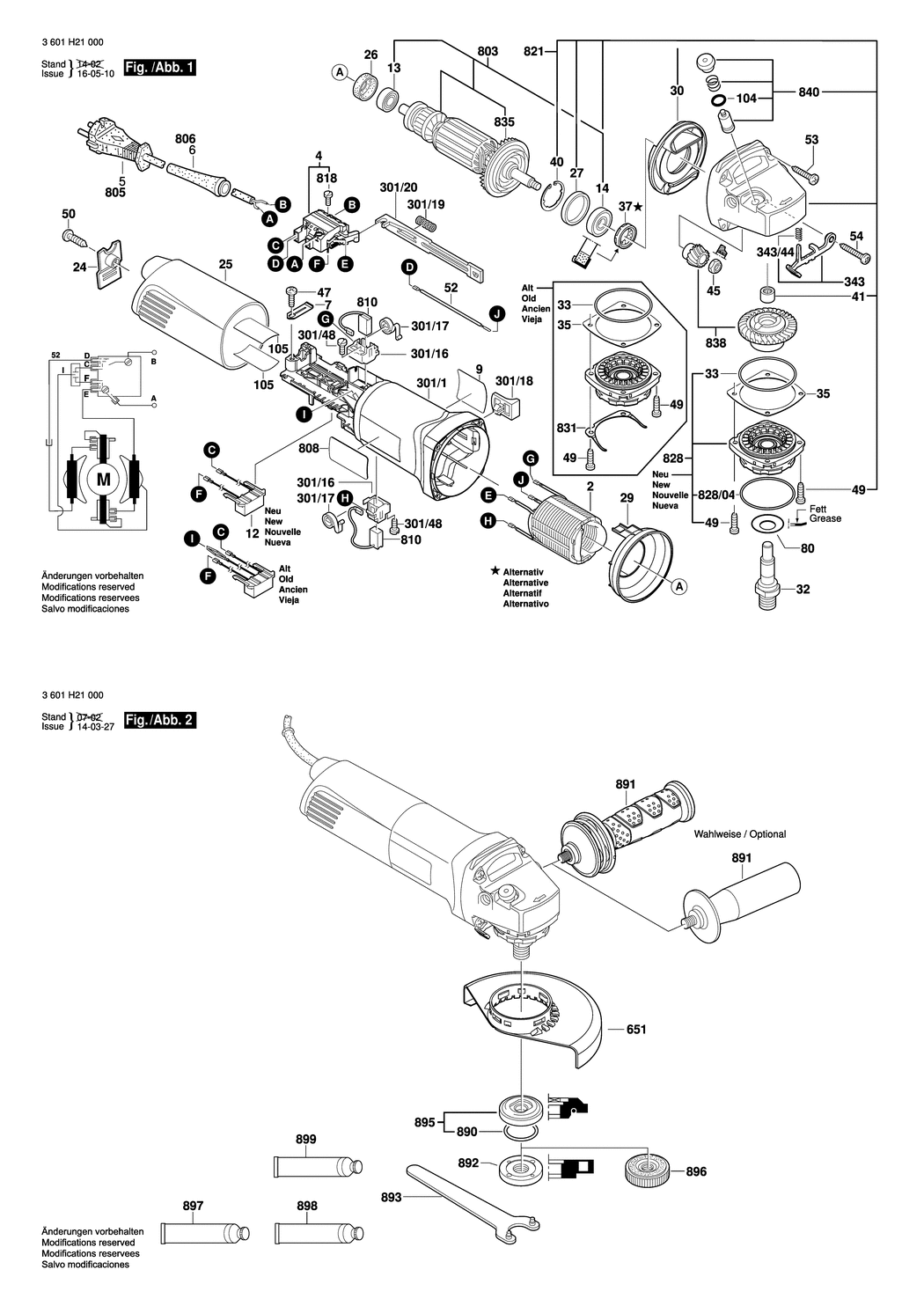

2 - FIELD 220-240V
BSD-1604220283.A18
1604220283
|
£27.31
|
£32.77
|
|
|
4 - ON-OFF SWITCH
BSD-1607200086.A427
1607200086
|
£11.30
|
£13.56
|
|
|
5 - POWER SUPPLY CORD GB 230V 4.15m 2 x 1.0mm H05 RN-F
BSD-2604460244.A31
2604460244
|
£27.23
|
£32.68
|
|
|
7 - FASTENING CLAMP
BSD-1601302017.A629
1601302017
|
£1.75
|
£2.10
|
|
|
9 - MANUFACTURER'S NAMEPLATE GWS 1000
BSD-1601118G95.A8
1601118G95
|
£2.61
|
£3.13
|
|
|
12 - SUPPRESSION CAPACITOR
BSD-1607328074.A10
1607328074
|
£6.52
|
£7.83
|
|
|
13 - BALL BEARING 7x19x6
BSD-2600905032.A596
2600905032
|
£5.30
|
£6.36
|
|
|
14 - GROOVE BALL BEARING 8x22x7
BSD-1600905032.A304
1600905032
|
£5.58
|
£6.70
|
|
|
24 - COVER
BSD-1605500228.A36
1605500228
|
£2.80
|
£3.36
|
|
|
25 - HOUSING COVER
BSD-1605500251.A15
1605500251
|
£7.36
|
£8.83
|
|
|
26 - RUBBER RING
BSD-1600206036.A27
1600206036
|
£1.75
|
£2.10
|
|
|
27 - RUBBER RING
BSD-1600206025.A621
1600206025
|
£2.16
|
£2.59
|
|
|
29 - AIR-DEFLECTOR RING
BSD-1600591025.A118
1600591025
|
£2.61
|
£3.13
|
|
|
30 - AIR-DEFLECTOR RING
BSD-1600591014.A363
1600591014
|
£2.61
|
£3.13
|
|
|
32 - GRINDING SPINDLE
BSD-1607000D6A.A46
1607000D6A
|
£7.36
|
£8.83
|
|
|
33 - O-RING 46.0x1.1 MM
BSD-1600210035.A171
1600210035
|
£1.75
|
£2.10
|
|
|
35 - SHIM 0.1 MM
BSD-1600136013.A343
1600136013
|
£2.61
|
£3.13
|
|
|
35 - SHIM 0.15 MM
BSD-1600136020.A175
1600136020
|
£3.72
|
£4.47
|
|
|
35 - SHIM 0.2 MM
BSD-1600136014.A178
1600136014
|
£2.61
|
£3.13
|
|
|
35 - SHIM 0.3 MM
BSD-1600136015.A342
1600136015
|
£2.61
|
£3.13
|
|
|
37 - ROTARY SHAFT LIP SEAL
BSD-1600290016.A366
1600290016
|
£2.61
|
£3.13
|
|
|
40 - RETAINING CLIP
BSD-1600119011.A372
1600119011
|
£2.16
|
£2.59
|
|
|
41 - PLAIN BEARING
BSD-1600200029.A257
1600200029
|
£4.26
|
£5.11
|
|
|
45 - HEX NUT M7. SW10
BSD-1603300016.A175
1603300016
|
£1.75
|
£2.10
|
|
|
47 - TORX OVAL-HEAD SCREW 4x12
BSD-2603490021.A570
2603490021
|
£1.75
|
£2.10
|
|
|
49 - THREAD-FORMING TAP. SCREW M4x16
BSD-2914491410.A84
2914491410
|
£1.75
|
£2.10
|
|
|
50 - TORX OVAL-HEAD SCREW 4x20
BSD-2603490023.A1326
2603490023
|
£1.75
|
£2.10
|
|
|
52 - CONNECTING CABLE L=90 MM
BSD-1604448013.A40
1604448013
|
£2.16
|
£2.59
|
|
|
53 - TORX OVAL-HEAD SCREW
BSD-1603435078.A138
1603435078
|
£1.75
|
£2.10
|
|
|
54 - TORX OVAL-HEAD SCREW 4x30
BSD-1603414026.A111
1603414026
|
£1.75
|
£2.10
|
|
|
80 - SEALING DISK
BSD-3600150021.A146
3600150021
|
£3.80
|
£4.56
|
|
|
97 - WARNING PLATE
BSD-1601118T27.A7
1601118T27
|
£2.61
|
£3.13
|
|
|
104 - O-RING 4.5x1.0 MM
BSD-1600210044.A140
1600210044
|
£1.75
|
£2.10
|
|
|
105 - INSULATING PLATE
BSD-1601008005.A103
1601008005
|
£4.26
|
£5.11
|
|
|
301/1 - MOTOR HOUSING
BSD-1605108249.A23
1605108249
|
£11.30
|
£13.56
|
|
|
301/16 - BRUSH HOLDER
BSD-1601323023.A27
1601323023
|
£3.72
|
£4.47
|
|
|
301/17 - SPIRAL SPRING
BSD-1604652013.A698
1604652013
|
£1.75
|
£2.10
|
|
|
301/18 - SWITCH HANDLE
BSD-1602026088.A57
1602026088
|
£1.75
|
£2.10
|
|
|
301/19 - COMPRESSION SPRING
BSD-1604611026.A334
1604611026
|
£1.75
|
£2.10
|
|
|
301/20 - ADJUSTING SLIDE
BSD-1602319011.A71
1602319011
|
£1.75
|
£2.10
|
|
|
301/48 - LENS HEAD SCREW 3x10 ST
BSD-1613435034.A182
1613435034
|
£1.75
|
£2.10
|
|
|
343 - CATCH LEVER
BSD-1607000742.A77
1607000742
|
£7.36
|
£8.83
|
|
|
343/44 - COMPRESSION SPRING
BSD-1604611042.A117
1604611042
|
£1.75
|
£2.10
|
|
|
651 - PROTECTIVE COVER
BSD-1600A00XK9.A41
1600A00XK9
|
£14.72
|
£17.67
|
|
|
803 - ARMATURE WITH FAN 230V
BSD-1604010A20.A8
1604010A20
|
£57.02
|
£68.42
|
|
|
806 - GROMMET
BSD-1600703040.A44
1600703040
|
£2.16
|
£2.59
|
|
|
808 - NAMEPLATE
BSD-160111A3H3.A80
160111A3H3
|
£2.61
|
£3.13
|
|
|
810 - CARBON-BRUSH SET
BSD-1607014176.A252
1607014176
|
£13.12
|
£15.75
|
|
|
810 - CARBON-BRUSH SET 10 x 1 607 014 176
BSD-1607000482.A48
1607000482
|
£93.88
|
£112.65
|
|
|
818 - PAN HEAD SCREW DIN 85-AM3x6-CUZN
BSD-2910110048.A406
2910110048
|
£1.75
|
£2.10
|
|
|
821 - GEAR HOUSING
BSD-16058065SC.A31
16058065SC
|
£27.31
|
£32.77
|
|
|
828 - BEARING FLANGE
BSD-1607000D6C.A78
1607000D6C
|
£12.04
|
£14.45
|
|
|
828/04 - O-RING 47.0x1.5 MM
BSD-3600210109.A152
3600210109
|
£2.16
|
£2.59
|
|
|
831 - SPRING ELEMENT
BSD-1601290013.A26
1601290013
|
£1.75
|
£2.10
|
|
|
835 - FAN
BSD-1606610132.A69
1606610132
|
£2.16
|
£2.59
|
|
|
838 - GEAR UNIT
BSD-1607000D4Y.A8
1607000D4Y
|
£21.42
|
£25.71
|
|
|
840 - PUSH-BUTTON
BSD-1607000A71.A39
1607000A71
|
£3.72
|
£4.47
|
|
|
890 - O-RING 20.35x1.78 MM
BSD-1600210039.A109
1600210039
|
£2.16
|
£2.59
|
|
|
891 - AUXILIARY HANDLE M10. dia32.5x105 MM
BSD-160202509T.A930
160202509T
|
£3.72
|
£4.47
|
|
|
891 - AUXILIARY HANDLE M10 ANTI-VIBRATION
BSD-16020250A0.A55
16020250A0
|
£21.42
|
£25.71
|
|
|
892 - ROUND NUT M14
BSD-1603345043.A920
1603345043
|
£8.67
|
£10.41
|
|
|
893 - PIN-TYPE FACE-WRENCH
BSD-1607950052.A127
1607950052
|
£3.72
|
£4.47
|
|
|
895 - CLAMPING FLANGE dia22.3xdia42 MM
BSD-2605703014.A874
2605703014
|
£7.36
|
£8.83
|
|
|
896 - FAST LOCKING FLANGE M14. SDS-CLIC
BSD-1603340027.A745
1603340027
|
£46.82
|
£56.18
|
|
|
897 - GREASE TUBE 225 ML
BSD-1605430003.A70
1605430003
|
£33.74
|
£40.49
|
|
|
898 - GREASE TUBE 225 ML
BSD-1615430020.A92
1615430020
|
£21.52
|
£25.83
|
|
|
899 - OIL 1000 ML
BSD-3605430008.A23
3605430008
|
£27.23
|
£32.68
|
|
