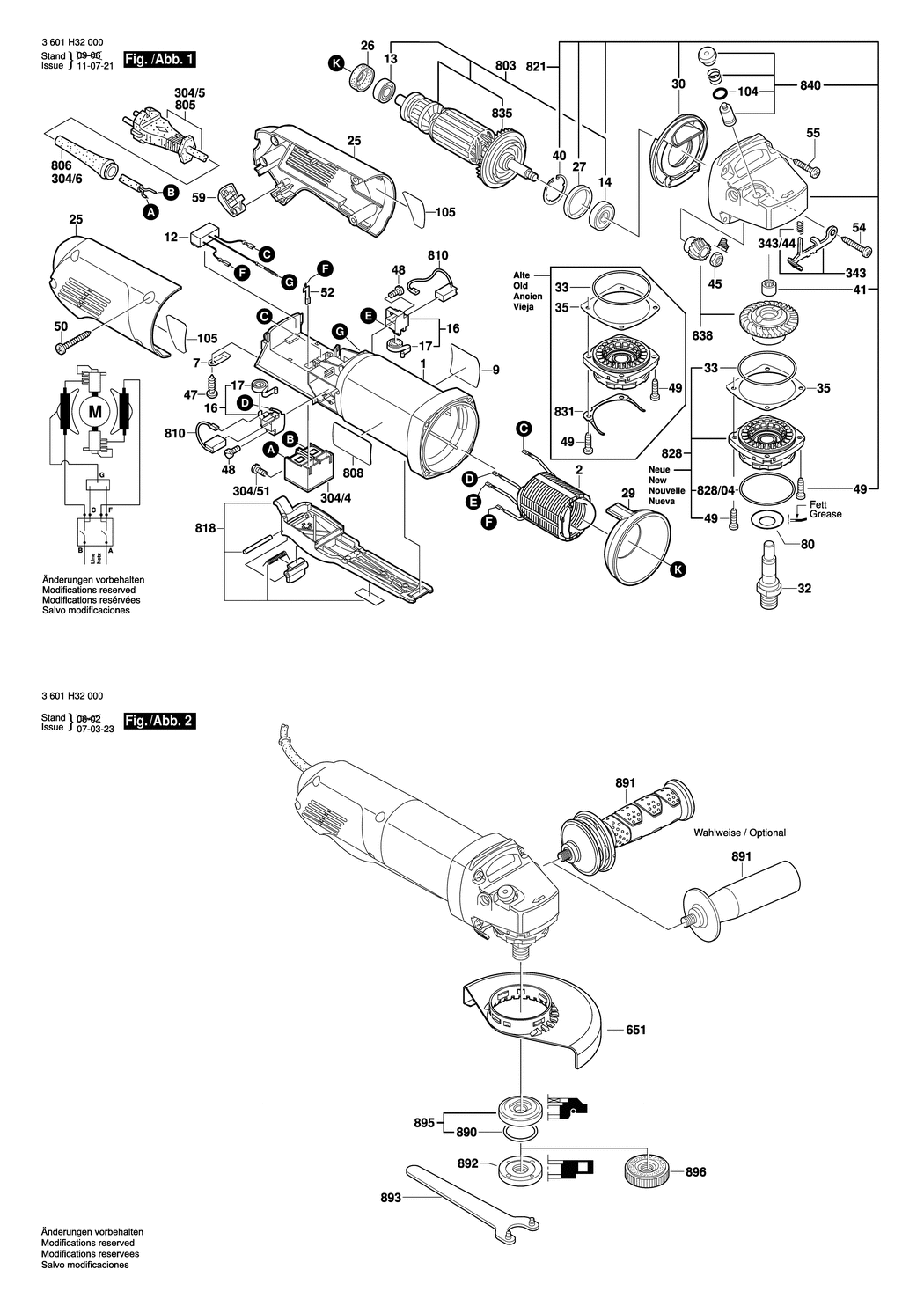

1 - MOTOR HOUSING
BSD-1605108221.A0
1605108221
|
£10.82
|
£12.99
|
|
|
2 - FIELD 220-240V
BSD-1604220283.A27
1604220283
|
£27.31
|
£32.77
|
|
|
7 - FASTENING CLAMP
BSD-1601302017.A590
1601302017
|
£1.75
|
£2.10
|
|
|
9 - MANUFACTURER'S NAMEPLATE
BSD-1601118K22.A0
1601118K22
|
£3.72
|
£4.47
|
|
|
12 - SUPPRESSION FILTER
BSD-1607328070.A1
1607328070
|
£3.80
|
£4.56
|
|
|
13 - BALL BEARING 7x19x6
BSD-2600905032.A650
2600905032
|
£5.30
|
£6.36
|
|
|
14 - GROOVE BALL BEARING 8x22x7
BSD-1600905032.A403
1600905032
|
£5.58
|
£6.70
|
|
|
16 - BRUSH HOLDER
BSD-1601323025.A124
1601323025
|
£3.72
|
£4.47
|
|
|
17 - SPIRAL SPRING
BSD-1604652013.A719
1604652013
|
£1.75
|
£2.10
|
|
|
25 - HOUSING COVER
BSD-1600508031.A2
1600508031
|
£11.30
|
£13.56
|
|
|
26 - RUBBER RING
BSD-1600206036.A0
1600206036
|
£1.75
|
£2.10
|
|
|
27 - RUBBER RING
BSD-1600206025.A504
1600206025
|
£2.16
|
£2.59
|
|
|
29 - AIR-DEFLECTOR RING
BSD-1600591038.A0
1600591038
|
£2.33
|
£2.80
|
|
|
30 - AIR-DEFLECTOR RING
BSD-1600591014.A301
1600591014
|
£2.61
|
£3.13
|
|
|
32 - GRINDING SPINDLE
BSD-1607000D6A.A124
1607000D6A
|
£7.36
|
£8.83
|
|
|
33 - O-RING 46.0x1.1 MM
BSD-1600210035.A53
1600210035
|
£1.75
|
£2.10
|
|
|
35 - SHIM 0.1 MM
BSD-1600136013.A502
1600136013
|
£2.61
|
£3.13
|
|
|
35 - SHIM 0.15 MM
BSD-1600136020.A17
1600136020
|
£3.72
|
£4.47
|
|
|
35 - SHIM 0.2 MM
BSD-1600136014.A18
1600136014
|
£2.61
|
£3.13
|
|
|
35 - SHIM 0.3 MM
BSD-1600136015.A502
1600136015
|
£2.61
|
£3.13
|
|
|
40 - RETAINING CLIP
BSD-1600119011.A213
1600119011
|
£2.16
|
£2.59
|
|
|
41 - PLAIN BEARING
BSD-1600200029.A156
1600200029
|
£4.26
|
£5.11
|
|
|
45 - HEX NUT M7. SW10
BSD-1603300016.A63
1603300016
|
£1.75
|
£2.10
|
|
|
47 - TORX OVAL-HEAD SCREW 4x12
BSD-2603490021.A654
2603490021
|
£1.75
|
£2.10
|
|
|
48 - LENS HEAD SCREW 3x10 ST
BSD-1613435034.A191
1613435034
|
£1.75
|
£2.10
|
|
|
49 - THREAD-FORMING TAP. SCREW
BSD-1603435026.A20
1603435026
|
£2.16
|
£2.59
|
|
|
50 - TAPPING SCREW ST3.9x32
BSD-1603435051.A10
1603435051
|
£1.95
|
£2.34
|
|
|
52 - CONNECTION PART
BSD-1604478015.A2
1604478015
|
£1.75
|
£2.10
|
|
|
54 - THREAD-FORMING TAP. SCREW M4x16
BSD-2914491410.A20
2914491410
|
£1.75
|
£2.10
|
|
|
55 - TORX OVAL-HEAD SCREW
BSD-1603435078.A244
1603435078
|
£1.75
|
£2.10
|
|
|
59 - PLUG
BSD-1602025082.A2
1602025082
|
£2.80
|
£3.36
|
|
|
80 - SEALING DISK
BSD-3600150021.A80
3600150021
|
£3.80
|
£4.56
|
|
|
104 - O-RING 4.5x1.0 MM
BSD-1600210044.A42
1600210044
|
£1.75
|
£2.10
|
|
|
105 - INSULATING PLATE
BSD-1601071000.A0
1601071000
|
£1.75
|
£2.10
|
|
|
304/4 - SWITCH
BSD-1607200155.A1
1607200155
|
£14.91
|
£17.89
|
|
|
304/51 - LENS HEAD SCREW
BSD-1603415004.A23
1603415004
|
£1.75
|
£2.10
|
|
|
343 - CATCH LEVER
BSD-1607000742.A6
1607000742
|
£7.36
|
£8.83
|
|
|
343/44 - COMPRESSION SPRING
BSD-1604611042.A218
1604611042
|
£1.75
|
£2.10
|
|
|
651 - PROTECTIVE COVER
BSD-1600A00XK9.A0
1600A00XK9
|
£14.72
|
£17.67
|
|
|
803 - ARMATURE WITH FAN 220-240V
BSD-1604010660.A12
1604010660
|
£68.42
|
£82.10
|
|
|
805 - POWER SUPPLY CORD
BSD-1607000391.A53
1607000391
|
£18.96
|
£22.75
|
|
|
806 - GROMMET
BSD-1600703040.A55
1600703040
|
£2.16
|
£2.59
|
|
|
808 - NAMEPLATE
BSD-160111A3H3.A183
160111A3H3
|
£2.61
|
£3.13
|
|
|
810 - CARBON-BRUSH SET
BSD-1607014176.A154
1607014176
|
£13.12
|
£15.75
|
|
|
810 - CARBON-BRUSH SET 10 x 1 607 014 176
BSD-1607000482.A30
1607000482
|
£93.88
|
£112.65
|
|
|
818 - SWITCH-PAWL
BSD-1607000744.A0
1607000744
|
£10.10
|
£12.12
|
|
|
821 - GEAR HOUSING
BSD-16058065SC.A38
16058065SC
|
£27.31
|
£32.77
|
|
|
828 - BEARING FLANGE
BSD-1607000D6C.A6
1607000D6C
|
£12.04
|
£14.45
|
|
|
828/04 - O-RING 47.0x1.5 MM
BSD-3600210109.A185
3600210109
|
£2.16
|
£2.59
|
|
|
831 - SPRING ELEMENT
BSD-1601290013.A75
1601290013
|
£1.75
|
£2.10
|
|
|
835 - FAN
BSD-1606610132.A198
1606610132
|
£2.16
|
£2.59
|
|
|
838 - GEAR UNIT
BSD-1607000D4Y.A26
1607000D4Y
|
£21.42
|
£25.71
|
|
|
840 - PUSH-BUTTON
BSD-1607000253.A70
1607000253
|
£2.49
|
£2.99
|
|
|
890 - O-RING 20.35x1.78 MM
BSD-1600210039.A188
1600210039
|
£2.16
|
£2.59
|
|
|
891 - AUXILIARY HANDLE M10 ANTI-VIBRATION
BSD-16020250A0.A14
16020250A0
|
£21.42
|
£25.71
|
|
|
891 - AUXILIARY HANDLE M10. dia32.5x105 MM
BSD-160202509T.A1015
160202509T
|
£3.72
|
£4.47
|
|
|
892 - ROUND NUT M14
BSD-1603345043.A646
1603345043
|
£8.67
|
£10.41
|
|
|
893 - PIN-TYPE FACE-WRENCH
BSD-1607950052.A221
1607950052
|
£3.72
|
£4.47
|
|
|
895 - CLAMPING FLANGE dia22.3xdia42 MM
BSD-2605703014.A1023
2605703014
|
£7.36
|
£8.83
|
|
|
896 - FAST LOCKING FLANGE M14. SDS-CLIC
BSD-1603340027.A508
1603340027
|
£46.82
|
£56.18
|
|
