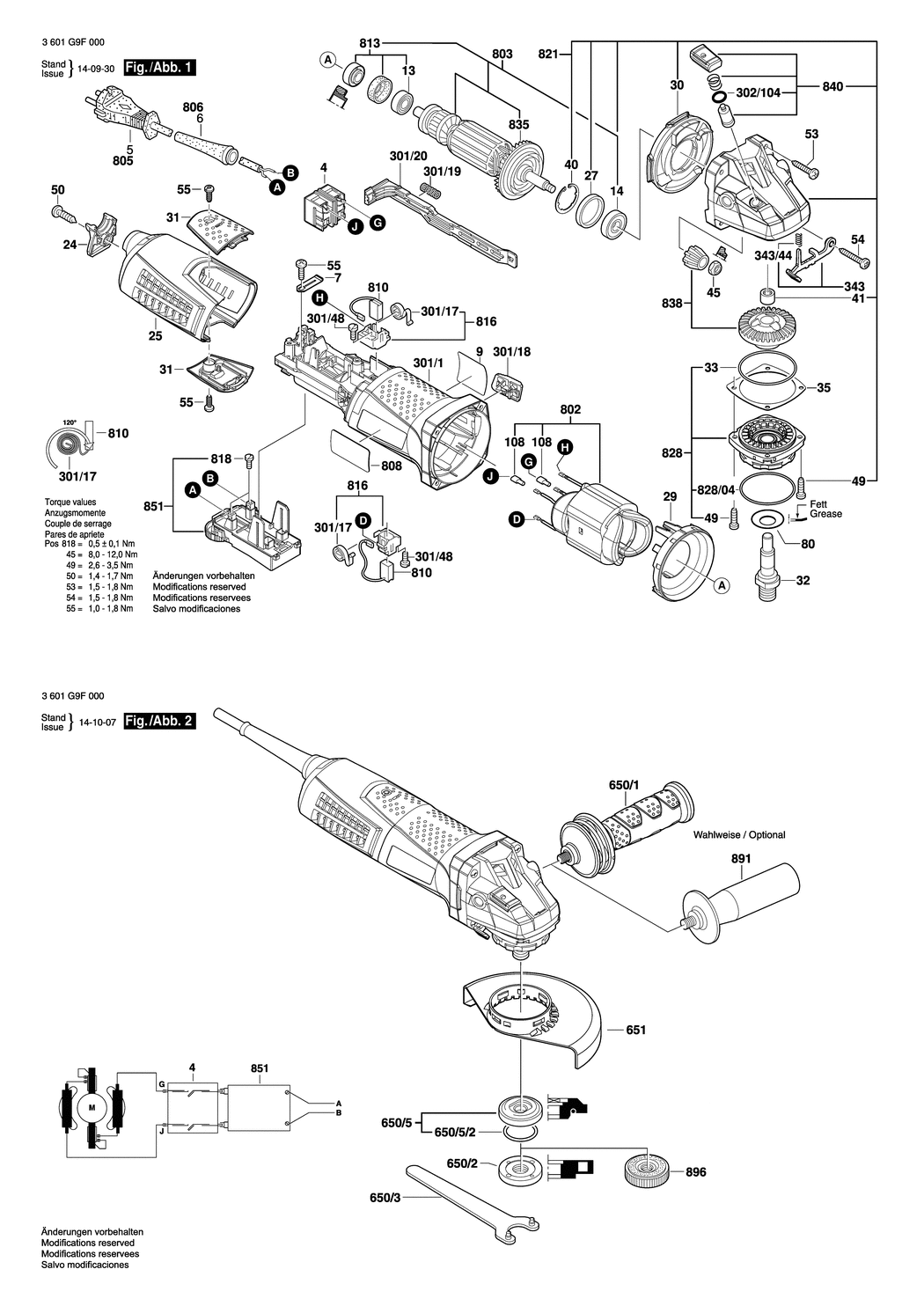

4 - SWITCH
BSD-1607200256.A11
1607200256
|
£12.04
|
£14.45
|
|
|
5 - POWER SUPPLY CORD CH 230V 4.15m 2 x 1.0mm H05 RN-F
BSD-1604460401.A72
1604460401
|
£19.45
|
£23.34
|
|
|
6 - GROMMET
BSD-1600703042.A11
1600703042
|
£2.61
|
£3.13
|
|
|
7 - FASTENING CLAMP
BSD-1601302017.A683
1601302017
|
£1.75
|
£2.10
|
|
|
9 - MANUFACTURER'S NAMEPLATE GWS 13-125 CIE
BSD-160111C07Y.A0
160111C07Y
|
£2.61
|
£3.13
|
|
|
13 - BALL BEARING 7x19x6
BSD-2600905032.A541
2600905032
|
£5.30
|
£6.36
|
|
|
14 - GROOVE BALL BEARING 8x22x7
BSD-1600905032.A345
1600905032
|
£5.58
|
£6.70
|
|
|
24 - COVER
BSD-1605500275.A9
1605500275
|
£2.80
|
£3.36
|
|
|
25 - HOUSING COVER
BSD-1605500276.A27
1605500276
|
£8.67
|
£10.41
|
|
|
27 - RUBBER RING
BSD-1600206025.A595
1600206025
|
£2.16
|
£2.59
|
|
|
29 - AIR-DEFLECTOR RING
BSD-1600591047.A46
1600591047
|
£2.16
|
£2.59
|
|
|
30 - AIR DISTRIBUTOR
BSD-1600591048.A39
1600591048
|
£2.61
|
£3.13
|
|
|
31 - BRUSH-COVER
BSD-1605500277.A36
1605500277
|
£2.16
|
£2.59
|
|
|
32 - GRINDING SPINDLE
BSD-1607000D6A.A4
1607000D6A
|
£7.36
|
£8.83
|
|
|
33 - O-RING 46.0x1.1 MM
BSD-1600210035.A112
1600210035
|
£1.75
|
£2.10
|
|
|
35 - SHIM 0.1 MM
BSD-1600136013.A369
1600136013
|
£2.61
|
£3.13
|
|
|
35 - SHIM 0.2 MM
BSD-1600136014.A151
1600136014
|
£2.61
|
£3.13
|
|
|
35 - SHIM 0.3 MM
BSD-1600136015.A369
1600136015
|
£2.61
|
£3.13
|
|
|
35 - SHIM 0.15 MM
BSD-1600136020.A149
1600136020
|
£3.72
|
£4.47
|
|
|
40 - RETAINING CLIP
BSD-1600119011.A346
1600119011
|
£2.16
|
£2.59
|
|
|
41 - PLAIN BEARING
BSD-1600200029.A275
1600200029
|
£4.26
|
£5.11
|
|
|
45 - HEX NUT M7. SW10
BSD-1603300016.A115
1603300016
|
£1.75
|
£2.10
|
|
|
49 - THREAD-FORMING TAP. SCREW M4x16
BSD-2914491410.A142
2914491410
|
£1.75
|
£2.10
|
|
|
50 - TORX OVAL-HEAD SCREW 4x20
BSD-2603490023.A1275
2603490023
|
£1.75
|
£2.10
|
|
|
53 - TORX OVAL-HEAD SCREW
BSD-1603435078.A87
1603435078
|
£1.75
|
£2.10
|
|
|
54 - TORX OVAL-HEAD SCREW 4x30
BSD-1603414026.A197
1603414026
|
£1.75
|
£2.10
|
|
|
55 - TORX OVAL-HEAD SCREW 4x12
BSD-2603490021.A622
2603490021
|
£1.75
|
£2.10
|
|
|
80 - SEALING DISK
BSD-3600150021.A196
3600150021
|
£3.80
|
£4.56
|
|
|
108 - INSULATING PART
BSD-1600712030.A60
1600712030
|
£1.75
|
£2.10
|
|
|
301/1 - MOTOR HOUSING
BSD-1605108285.A13
1605108285
|
£13.12
|
£15.75
|
|
|
301/17 - SPIRAL SPRING
BSD-1604652021.A42
1604652021
|
£1.75
|
£2.10
|
|
|
301/18 - SWITCH HANDLE
BSD-1602026091.A4
1602026091
|
£1.75
|
£2.10
|
|
|
301/19 - COMPRESSION SPRING
BSD-1604611031.A96
1604611031
|
£2.80
|
£3.36
|
|
|
301/20 - ADJUSTING SLIDE
BSD-1602319025.A7
1602319025
|
£2.16
|
£2.59
|
|
|
301/48 - LENS HEAD SCREW 3x10 ST
BSD-1613435034.A99
1613435034
|
£1.75
|
£2.10
|
|
|
302/104 - O-RING 4.5x1.0 MM
BSD-1600210044.A90
1600210044
|
£1.75
|
£2.10
|
|
|
343 - CATCH LEVER
BSD-1607000742.A156
1607000742
|
£7.36
|
£8.83
|
|
|
343/44 - COMPRESSION SPRING
BSD-1604611042.A78
1604611042
|
£1.75
|
£2.10
|
|
|
650/1 - AUXILIARY HANDLE M10 ANTI-VIBRATION
BSD-16020250A0.A151
16020250A0
|
£21.42
|
£25.71
|
|
|
650/2 - ROUND NUT M14
BSD-1603345043.A862
1603345043
|
£8.67
|
£10.41
|
|
|
650/3 - PIN-TYPE FACE-WRENCH
BSD-1607950052.A102
1607950052
|
£3.72
|
£4.47
|
|
|
650/5 - CLAMPING FLANGE dia22.3xdia42 MM
BSD-2605703014.A928
2605703014
|
£7.36
|
£8.83
|
|
|
650/5/2 - O-RING 20.35x1.78 MM
BSD-1600210039.A144
1600210039
|
£2.16
|
£2.59
|
|
|
651 - PROTECTIVE COVER
BSD-1600A00XK9.A72
1600A00XK9
|
£14.72
|
£17.67
|
|
|
802 - FIELD ASSEMBLY 230V
BSD-160422052Z.A12
160422052Z
|
£27.31
|
£32.77
|
|
|
803 - ARMATURE WITH FAN 230V
BSD-1607000V33.A8
1607000V33
|
£58.76
|
£70.51
|
|
|
808 - NAMEPLATE
BSD-160111A5AX.A0
160111A5AX
|
£2.61
|
£3.13
|
|
|
810 - CARBON-BRUSH SET
BSD-1607000V37.A3
1607000V37
|
£14.91
|
£17.89
|
|
|
813 - GROOVE BALL BEARING
BSD-1607000V38.A71
1607000V38
|
£7.36
|
£8.83
|
|
|
816 - BRUSH HOLDER
BSD-1607000V43.A31
1607000V43
|
£3.72
|
£4.47
|
|
|
818 - PAN HEAD SCREW
BSD-1607000V42.A56
1607000V42
|
£1.75
|
£2.10
|
|
|
821 - GEAR HOUSING
BSD-1607000V39.A0
1607000V39
|
£31.64
|
£37.97
|
|
|
828 - BEARING FLANGE
BSD-1607000D6C.A114
1607000D6C
|
£12.04
|
£14.45
|
|
|
828/04 - O-RING 47.0x1.5 MM
BSD-3600210109.A102
3600210109
|
£2.16
|
£2.59
|
|
|
835 - FAN
BSD-1606610132.A86
1606610132
|
£2.16
|
£2.59
|
|
|
838 - SET OF GEARWHEELS
BSD-1607000D4Y.A248
1607000D4Y
|
£21.42
|
£25.71
|
|
|
840 - PUSH-BUTTON
BSD-1607000V41.A25
1607000V41
|
£4.26
|
£5.11
|
|
|
851 - SPEED GOVERNOR
BSD-1607233471.A5
1607233471
|
£37.72
|
£45.27
|
|
|
891 - AUXILIARY HANDLE M10. dia32.5x105 MM
BSD-160202509T.A879
160202509T
|
£3.72
|
£4.47
|
|
|
896 - FAST LOCKING FLANGE M14. SDS-CLIC
BSD-1603340027.A784
1603340027
|
£46.82
|
£56.18
|
|
