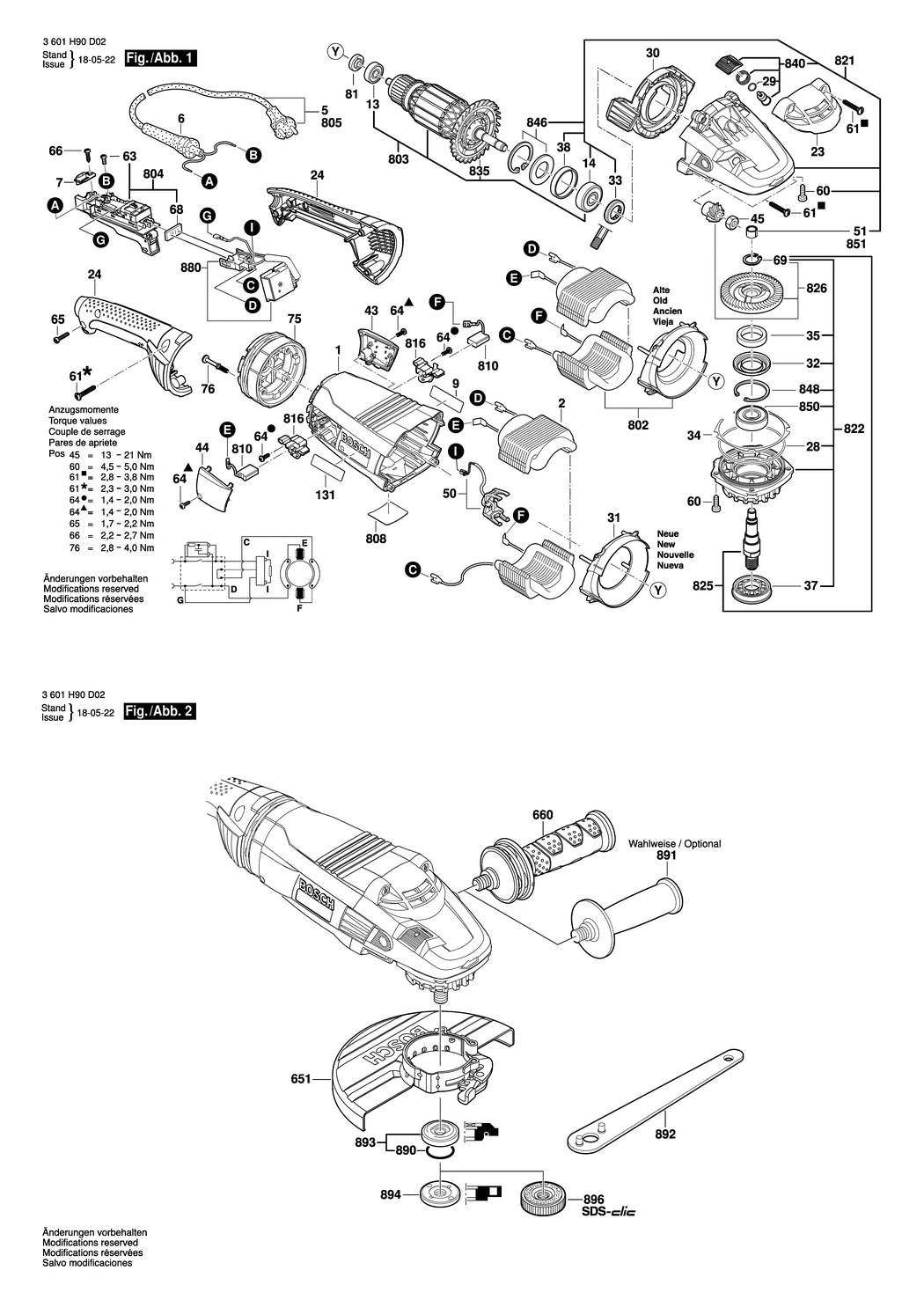

1 - MOTOR HOUSING
BSD-1605108264.A35
1605108264
|
£21.52
|
£25.83
|
|
|
2 - FIELD 110-120V
BSD-1604220423.A0
1604220423
|
£45.67
|
£54.80
|
|
|
5 - POWER SUPPLY CORD GB 110V 2.65m 2 x 2.5mm H07RN-F
BSD-1604460219.A11
1604460219
|
£21.68
|
£26.01
|
|
|
6 - GROMMET
BSD-1600703037.A3
1600703037
|
£2.16
|
£2.59
|
|
|
7 - FASTENING CLAMP
BSD-1601302019.A47
1601302019
|
£1.75
|
£2.10
|
|
|
9 - MANUFACTURER'S NAMEPLATE GWS 22-230 LVI
BSD-160111C281.A9
160111C281
|
£2.33
|
£2.80
|
|
|
13 - GROOVE BALL BEARING 9x26x8
BSD-1600905034.A39
1600905034
|
£5.30
|
£6.36
|
|
|
14 - GROOVE BALL BEARING 12x37x12
BSD-1600905035.A21
1600905035
|
£10.10
|
£12.12
|
|
|
23 - COVER
BSD-1605500266.A18
1605500266
|
£2.16
|
£2.59
|
|
|
24 - HANDLE
BSD-1605132155.A5
1605132155
|
£10.82
|
£12.99
|
|
|
28 - O-RING 79.0x1.78 MM
BSD-1600210033.A451
1600210033
|
£1.75
|
£2.10
|
|
|
29 - O-RING 8.0x1.0 MM
BSD-1600210045.A360
1600210045
|
£1.75
|
£2.10
|
|
|
30 - AIR DISTRIBUTOR
BSD-1600591041.A41
1600591041
|
£2.61
|
£3.13
|
|
|
31 - AIR-DEFLECTOR RING
BSD-160059105U.A6
160059105U
|
£2.80
|
£3.36
|
|
|
32 - RETAINING SNAP RING
BSD-1600290019.A456
1600290019
|
£1.75
|
£2.10
|
|
|
33 - ROTARY SHAFT LIP SEAL 16 MM
BSD-1600290064.A17
1600290064
|
£2.16
|
£2.59
|
|
|
34 - SHIM 0.15 MM
BSD-1600190020.A549
1600190020
|
£1.75
|
£2.10
|
|
|
34 - SHIM 0.3 MM
BSD-1600190021.A278
1600190021
|
£2.61
|
£3.13
|
|
|
34 - SHIM 0.1 MM
BSD-1600190022.A549
1600190022
|
£1.75
|
£2.10
|
|
|
34 - SHIM 0.2 MM
BSD-1600190037.A187
1600190037
|
£1.75
|
£2.10
|
|
|
34 - SHIM 0.25 MM
BSD-1600190038.A200
1600190038
|
£1.75
|
£2.10
|
|
|
34 - SHIM 0.35 MM
BSD-1600190039.A187
1600190039
|
£1.75
|
£2.10
|
|
|
34 - SHIM 0.4 MM
BSD-1600190040.A200
1600190040
|
£1.75
|
£2.10
|
|
|
35 - FELT WASHER
BSD-1600205034.A440
1600205034
|
£1.75
|
£2.10
|
|
|
37 - SEAL RING
BSD-1618B00903.A15
1618B00903
|
-
|
|
|
|
38 - RUBBER RING
BSD-1600206037.A47
1600206037
|
£1.75
|
£2.10
|
|
|
43 - SEALING CAP
BSD-1605500264.A20
1605500264
|
£1.75
|
£2.10
|
|
|
44 - SEALING CAP
BSD-1605500265.A27
1605500265
|
£1.75
|
£2.10
|
|
|
45 - HEX NUT M10. SW14
BSD-1603300019.A468
1603300019
|
£1.75
|
£2.10
|
|
|
50 - ROTATIONAL SPEED SENSOR
BSD-1607001007.A39
1607001007
|
£8.67
|
£10.41
|
|
|
51 - PLAIN BEARING dia14 MM
BSD-1600200031.A129
1600200031
|
£2.80
|
£3.36
|
|
|
60 - THREAD-FORMING TAP. SCREW TT M5x18 MM
BSD-1603435023.A523
1603435023
|
£2.16
|
£2.59
|
|
|
61 - TORX OVAL-HEAD SCREW
BSD-1603490005.A29
1603490005
|
£1.75
|
£2.10
|
|
|
63 - PAN HEAD SCREW M4x10 MM
BSD-1603410014.A417
1603410014
|
£1.75
|
£2.10
|
|
|
64 - TORX OVAL-HEAD SCREW 4x12
BSD-2603490021.A674
2603490021
|
£1.75
|
£2.10
|
|
|
65 - TORX OVAL-HEAD SCREW 4x20
BSD-2603490023.A1416
2603490023
|
£1.75
|
£2.10
|
|
|
66 - TAPPING SCREW DIN 7971-ST3.9x16-F
BSD-2910211019.A1454
2910211019
|
£1.75
|
£2.10
|
|
|
68 - SEALING PLATE
BSD-1601006011.A279
1601006011
|
£2.61
|
£3.13
|
|
|
69 - SPRING RETAINING RING
BSD-2916650905.A49
2916650905
|
£1.75
|
£2.10
|
|
|
75 - DAMPER
BSD-1600290060.A40
1600290060
|
£16.41
|
£19.69
|
|
|
76 - COLLAR SCREW
BSD-1603414025.A29
1603414025
|
£1.75
|
£2.10
|
|
|
81 - MAGNET
BSD-1600190048.A8
1600190048
|
£2.80
|
£3.36
|
|
|
131 - MANUFACTURER'S NAMEPLATE GWS 22-230 LVI
BSD-160111C282.A5
160111C282
|
£3.34
|
£4.01
|
|
|
651 - PROTECTIVE COVER
BSD-1600A01R96.A53
1600A01R96
|
£37.26
|
£44.71
|
|
|
660 - AUXILIARY HANDLE M14
BSD-1602025051.A78
1602025051
|
£27.23
|
£32.68
|
|
|
802 - ASSEMBLY
BSD-1607000C4P.A1
1607000C4P
|
£41.62
|
£49.95
|
|
|
803 - ARMATURE 110-120V
BSD-1604011299.A2
1604011299
|
£88.07
|
£105.68
|
|
|
804 - ON-OFF SWITCH
BSD-1607000C16.A0
1607000C16
|
£31.64
|
£37.97
|
|
|
808 - NAMEPLATE
BSD-160111A3H6.A11
160111A3H6
|
£2.61
|
£3.13
|
|
|
810 - CARBON-BRUSH SET
BSD-1607014194.A23
1607014194
|
£26.18
|
£31.42
|
|
|
816 - BRUSH HOLDER
BSD-1604336053.A53
1604336053
|
£5.58
|
£6.70
|
|
|
821 - GEAR HOUSING
BSD-1607000C17.A32
1607000C17
|
£48.38
|
£58.06
|
|
|
822 - BEARING FLANGE
BSD-1607000CP2.A16
1607000CP2
|
£33.74
|
£40.49
|
|
|
825 - GRINDING SPINDLE
BSD-1607000CU5.A13
1607000CU5
|
£13.12
|
£15.75
|
|
|
826 - BEVEL GEAR SET
BSD-1607000CN7.A12
1607000CN7
|
£36.62
|
£43.95
|
|
|
835 - FAN
BSD-1606610150.A36
1606610150
|
£2.61
|
£3.13
|
|
|
840 - PUSH-BUTTON
BSD-1607000431.A34
1607000431
|
£4.26
|
£5.11
|
|
|
846 - RETAINING WASHER
BSD-1607000432.A13
1607000432
|
£5.30
|
£6.36
|
|
|
848 - RETAINING CLIP
BSD-1600119010.A342
1600119010
|
£1.75
|
£2.10
|
|
|
850 - GROOVE BALL BEARING 17 x 40 x 12
BSD-1600900079.A13
1600900079
|
-
|
|
|
|
851 - NEEDLE-ROLLER BEARING dia14 MM
BSD-2600910001.A1257
2600910001
|
£4.26
|
£5.11
|
|
|
880 - SPEED GOVERNOR
BSD-1607233330.A2
1607233330
|
-
|
|
|
|
890 - O-RING 20.35x1.78 MM
BSD-1600210039.A410
1600210039
|
£2.16
|
£2.59
|
|
|
891 - AUXILIARY HANDLE M14
BSD-1602025022.A491
1602025022
|
£13.41
|
£16.09
|
|
|
892 - PIN-TYPE FACE-WRENCH
BSD-1607950061.A319
1607950061
|
£5.42
|
£6.50
|
|
|
893 - CLAMPING FLANGE dia22.3xdia42 MM
BSD-2605703014.A1103
2605703014
|
£7.36
|
£8.83
|
|
|
894 - ROUND NUT M14
BSD-1603345043.A725
1603345043
|
£8.67
|
£10.41
|
|
|
896 - FAST LOCKING FLANGE M14. SDS-CLIC
BSD-1603340027.A609
1603340027
|
£46.82
|
£56.18
|
|
