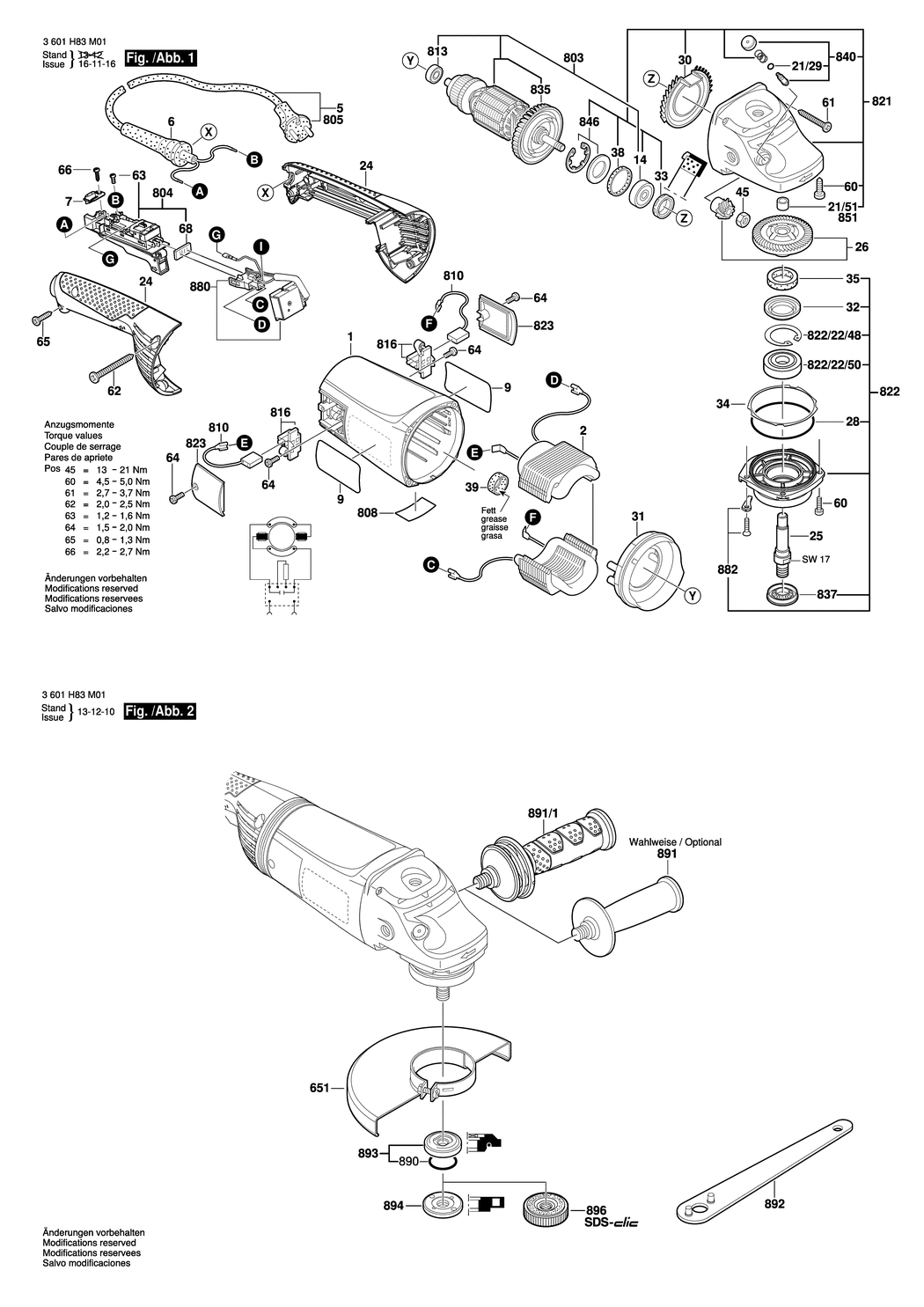

1 - MOTOR HOUSING
BSD-1605108275.A18
1605108275
|
£16.41
|
£19.69
|
|
|
2 - FIELD 230V
BSD-1604220467.A5
1604220467
|
£40.80
|
£48.96
|
|
|
5 - POWER SUPPLY CORD CH 230V 4.15m 2 x 1.0mm H05 RN-F
BSD-1604460440.A95
1604460440
|
£21.52
|
£25.83
|
|
|
6 - GROMMET dia10.5-dia11.0x100 MM
BSD-1600703036.A193
1600703036
|
£2.16
|
£2.59
|
|
|
7 - FASTENING CLAMP
BSD-1601302018.A310
1601302018
|
£1.75
|
£2.10
|
|
|
9 - MANUFACTURER'S NAMEPLATE
BSD-1601118T48.A10
1601118T48
|
£2.33
|
£2.80
|
|
|
14 - GROOVE BALL BEARING 10x35x11
BSD-1600905023.A28
1600905023
|
£12.04
|
£14.45
|
|
|
21/29 - O-RING 8.0x1.0 MM
BSD-1600210045.A407
1600210045
|
£1.75
|
£2.10
|
|
|
21/51 - PLAIN BEARING dia14 MM
BSD-1600200031.A144
1600200031
|
£2.80
|
£3.36
|
|
|
24 - HANDLE
BSD-1605132149.A109
1605132149
|
£10.82
|
£12.99
|
|
|
25 - GRINDING SPINDLE
BSD-160312305U.A155
160312305U
|
£13.12
|
£15.75
|
|
|
26 - BEVEL GEAR SET
BSD-1600A012VU.A70
1600A012VU
|
-
|
|
|
|
28 - O-RING 79.0x1.78 MM
BSD-1600210033.A500
1600210033
|
£1.75
|
£2.10
|
|
|
30 - AIR DISTRIBUTOR
BSD-1600591029.A113
1600591029
|
£2.61
|
£3.13
|
|
|
31 - AIR-DEFLECTOR RING
BSD-1600591028.A257
1600591028
|
£2.33
|
£2.80
|
|
|
32 - RETAINING SNAP RING
BSD-1600290019.A408
1600290019
|
£1.75
|
£2.10
|
|
|
33 - ROTARY SHAFT LIP SEAL 16 MM
BSD-1600290064.A59
1600290064
|
£2.16
|
£2.59
|
|
|
34 - SHIM 0.15 MM
BSD-1600190020.A559
1600190020
|
£1.75
|
£2.10
|
|
|
34 - SHIM 0.3 MM
BSD-1600190021.A268
1600190021
|
£2.61
|
£3.13
|
|
|
34 - SHIM 0.1 MM
BSD-1600190022.A559
1600190022
|
£1.75
|
£2.10
|
|
|
34 - SHIM 0.2 MM
BSD-1600190037.A177
1600190037
|
£1.75
|
£2.10
|
|
|
34 - SHIM 0.25 MM
BSD-1600190038.A210
1600190038
|
£1.75
|
£2.10
|
|
|
34 - SHIM 0.35 MM
BSD-1600190039.A177
1600190039
|
£1.75
|
£2.10
|
|
|
34 - SHIM 0.4 MM
BSD-1600190040.A210
1600190040
|
£1.75
|
£2.10
|
|
|
35 - FELT WASHER
BSD-1600205034.A424
1600205034
|
£1.75
|
£2.10
|
|
|
38 - RUBBER RING 7 MM
BSD-1600206020.A316
1600206020
|
£1.75
|
£2.10
|
|
|
39 - RUBBER RING
BSD-1600206030.A637
1600206030
|
£1.75
|
£2.10
|
|
|
45 - HEX NUT M10. SW14
BSD-1603300019.A431
1603300019
|
£1.75
|
£2.10
|
|
|
60 - THREAD-FORMING TAP. SCREW TT M5x18 MM
BSD-1603435023.A555
1603435023
|
£2.16
|
£2.59
|
|
|
61 - TAPPING SCREW DIN 7981-4.8x38-C-Z-ST
BSD-2912401038.A435
2912401038
|
£1.75
|
£2.10
|
|
|
62 - TAPPING SCREW 4.8x55
BSD-1603435060.A24
1603435060
|
£1.75
|
£2.10
|
|
|
63 - PAN HEAD SCREW M4x10 MM
BSD-1603410014.A454
1603410014
|
£1.75
|
£2.10
|
|
|
64 - PLASTIC-CUTTING SCREW St3.9x12
BSD-1603435042.A342
1603435042
|
£1.75
|
£2.10
|
|
|
65 - TAPPING SCREW DIN 7981-3.9x19-C-Z-ST
BSD-2912401020.A1194
2912401020
|
£2.16
|
£2.59
|
|
|
66 - TAPPING SCREW DIN 7971-ST3.9x16-F
BSD-2910211019.A1428
2910211019
|
£1.75
|
£2.10
|
|
|
68 - SEALING PLATE
BSD-1601006011.A215
1601006011
|
£2.61
|
£3.13
|
|
|
651 - PROTECTIVE COVER
BSD-1600A00XM0.A108
1600A00XM0
|
£21.68
|
£26.01
|
|
|
803 - ARMATURE
BSD-1604011304.A7
1604011304
|
£72.18
|
£86.62
|
|
|
804 - ON-OFF SWITCH
BSD-1607000C14.A21
1607000C14
|
£30.28
|
£36.33
|
|
|
808 - NAMEPLATE
BSD-160111A3H3.A227
160111A3H3
|
£2.61
|
£3.13
|
|
|
810 - CARBON-BRUSH SET
BSD-1607014171.A284
1607014171
|
£14.91
|
£17.89
|
|
|
810 - CARBON-BRUSH SET 10 x 1 607 014 171
BSD-1607000480.A101
1607000480
|
£102.57
|
£123.08
|
|
|
813 - GROOVE BALL BEARING 8x22x7
BSD-1600905011.A353
1600905011
|
£5.58
|
£6.70
|
|
|
816 - BRUSH HOLDER
BSD-1604336048.A39
1604336048
|
£7.36
|
£8.83
|
|
|
821 - GEAR HOUSING
BSD-1607000C32.A9
1607000C32
|
£40.80
|
£48.96
|
|
|
822 - BEARING FLANGE dia230 MM
BSD-1607000C22.A82
1607000C22
|
£30.28
|
£36.33
|
|
|
822/22/48 - RETAINING CLIP
BSD-1600119010.A331
1600119010
|
£1.75
|
£2.10
|
|
|
822/22/50 - GROOVE BALL BEARING 17x40x12
BSD-1600905026.A122
1600905026
|
£8.67
|
£10.41
|
|
|
823 - SEALING CAP
BSD-1605500206.A284
1605500206
|
£4.26
|
£5.11
|
|
|
835 - FAN
BSD-1600A00J93.A186
1600A00J93
|
£2.80
|
£3.36
|
|
|
837 - SEAL RING
BSD-1600290036.A257
1600290036
|
£2.16
|
£2.59
|
|
|
840 - PUSH-BUTTON
BSD-1607000354.A194
1607000354
|
£6.52
|
£7.83
|
|
|
846 - RETAINING WASHER
BSD-1607000342.A144
1607000342
|
£3.72
|
£4.47
|
|
|
851 - NEEDLE-ROLLER BEARING dia14 MM
BSD-2600910001.A1231
2600910001
|
£4.26
|
£5.11
|
|
|
880 - ELECTRONICS MODULE
BSD-1607233319.A48
1607233319
|
£40.80
|
£48.96
|
|
|
882 - STOPPER
BSD-1619P06597.A88
1619P06597
|
£4.26
|
£5.11
|
|
|
890 - O-RING 20.35x1.78 MM
BSD-1600210039.A361
1600210039
|
£2.16
|
£2.59
|
|
|
891 - AUXILIARY HANDLE M14
BSD-1602025022.A527
1602025022
|
£13.41
|
£16.09
|
|
|
891/1 - AUXILIARY HANDLE M14. dia37x115 MM
BSD-1602025030.A820
1602025030
|
£18.96
|
£22.75
|
|
|
892 - PIN-TYPE FACE-WRENCH
BSD-1607950061.A277
1607950061
|
£5.42
|
£6.50
|
|
|
893 - CLAMPING FLANGE dia22.3xdia42 MM
BSD-2605703014.A1129
2605703014
|
£7.36
|
£8.83
|
|
|
894 - ROUND NUT M14
BSD-1603345043.A689
1603345043
|
£8.67
|
£10.41
|
|
|
896 - FAST LOCKING FLANGE M14. SDS-CLIC
BSD-1603340027.A646
1603340027
|
£46.82
|
£56.18
|
|
