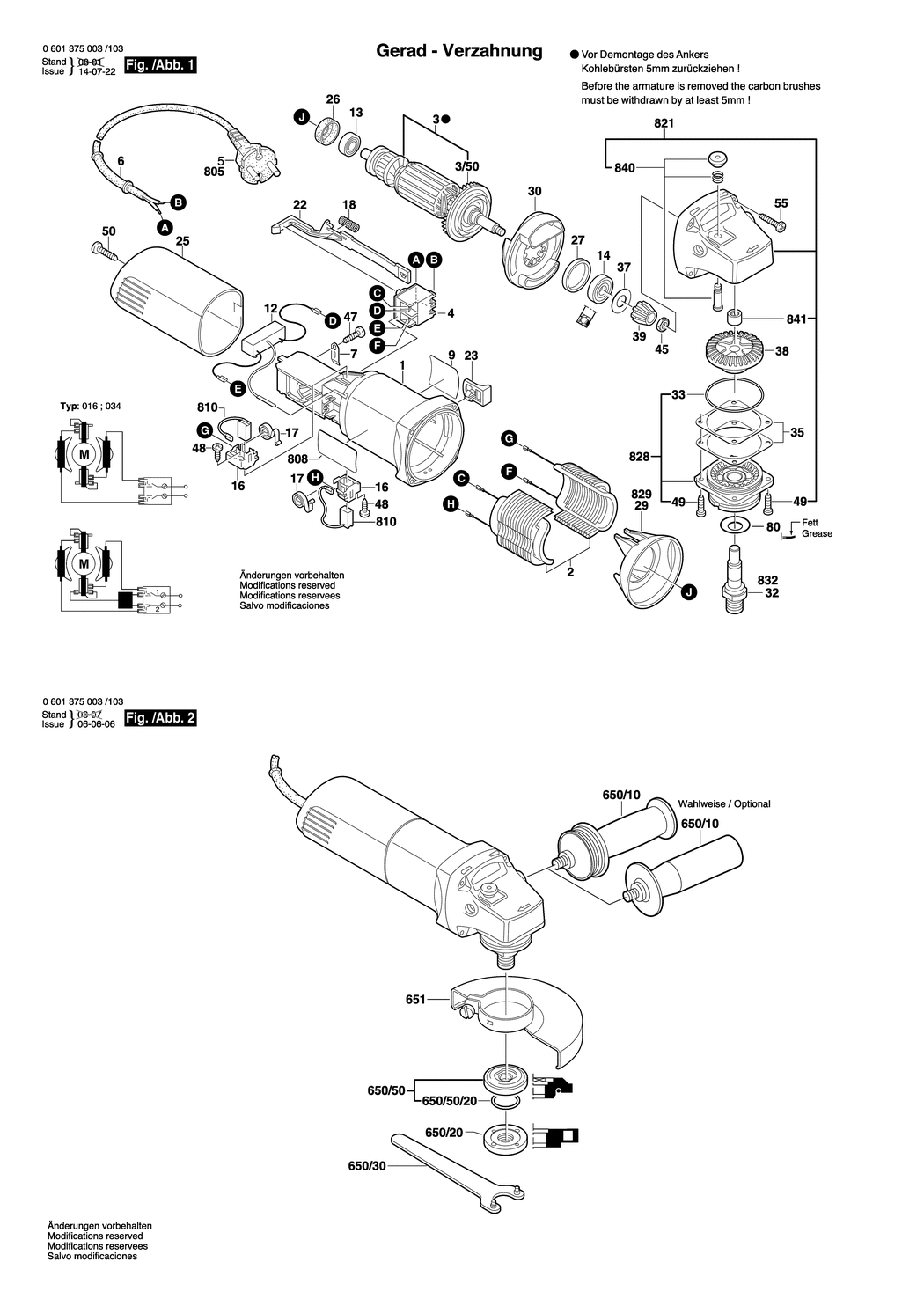

1 - MOTOR HOUSING
BSD-1619P09772.A28
1619P09772
|
£13.12
|
£15.75
|
|
|
2 - FIELD 220-240V
BSD-1604220328.A17
1604220328
|
£21.52
|
£25.83
|
|
|
3 - ARMATURE 220-240V
BSD-1604010626.A3
1604010626
|
£31.64
|
£37.97
|
|
|
3/50 - FAN
BSD-1606610141.A6
1606610141
|
£4.26
|
£5.11
|
|
|
4 - ON-OFF SWITCH
BSD-1607200179.A33
1607200179
|
£10.59
|
£12.71
|
|
|
5 - POWER SUPPLY CORD
BSD-1604460431.A3
1604460431
|
£11.30
|
£13.56
|
|
|
6 - GROMMET dia6.5-dia6.9x95 MM
BSD-2600703012.A1255
2600703012
|
£2.80
|
£3.36
|
|
|
7 - FASTENING CLAMP
BSD-1601302017.A539
1601302017
|
£1.75
|
£2.10
|
|
|
9 - MANUFACTURER'S NAMEPLATE GWS 6-115
BSD-2609130620.A1
2609130620
|
£3.72
|
£4.47
|
|
|
12 - SUPPRESSION FILTER
BSD-1619P07647.A25
1619P07647
|
£6.52
|
£7.83
|
|
|
13 - BALL BEARING 7x19x6 MM
BSD-1619P00456.A47
1619P00456
|
£2.80
|
£3.36
|
|
|
14 - BALL BEARING
BSD-1619P00455.A27
1619P00455
|
£3.72
|
£4.47
|
|
|
16 - BRUSH HOLDER
BSD-1619P01811.A35
1619P01811
|
£2.80
|
£3.36
|
|
|
17 - SPIRAL SPRING
BSD-1604652013.A536
1604652013
|
£1.75
|
£2.10
|
|
|
18 - COMPRESSION SPRING
BSD-1604611031.A3
1604611031
|
£2.80
|
£3.36
|
|
|
22 - ADJUSTING SLIDE
BSD-1602319009.A52
1602319009
|
£2.80
|
£3.36
|
|
|
23 - SWITCH HANDLE
BSD-1602026068.A50
1602026068
|
£2.61
|
£3.13
|
|
|
25 - HOUSING COVER
BSD-1605500194.A33
1605500194
|
£5.30
|
£6.36
|
|
|
26 - INTERMEDIATE RING
BSD-1600502023.A234
1600502023
|
£2.16
|
£2.59
|
|
|
27 - RUBBER RING
BSD-1600206025.A464
1600206025
|
£2.16
|
£2.59
|
|
|
30 - AIR-DEFLECTOR RING
BSD-1600591024.A43
1600591024
|
£3.72
|
£4.47
|
|
|
33 - O-RING 42.0x1.1 MM
BSD-1600210041.A48
1600210041
|
£2.61
|
£3.13
|
|
|
35 - SHIM 0.1 MM
BSD-1600136016.A13
1600136016
|
£2.61
|
£3.13
|
|
|
35 - SHIM 0.2 MM
BSD-1600136017.A99
1600136017
|
£2.61
|
£3.13
|
|
|
37 - COVER DISC
BSD-1600100033.A71
1600100033
|
£2.61
|
£3.13
|
|
|
38 - CONVERSION GEAR
BSD-2609110150.A42
2609110150
|
£6.52
|
£7.83
|
|
|
39 - PINION
BSD-2609110149.A78
2609110149
|
£4.26
|
£5.11
|
|
|
45 - HEX NUT DIN 934-M6-8-A
BSD-2915011007.A1094
2915011007
|
-
|
|
|
|
47 - SPECIAL SCREW
BSD-2609110052.A98
2609110052
|
£1.75
|
£2.10
|
|
|
48 - TORX OVAL-HEAD SCREW 3x10
BSD-1619P00220.A155
1619P00220
|
£1.75
|
£2.10
|
|
|
49 - THREAD-FORMING TAP. SCREW DIN 7500. M4x10. SR10.2
BSD-1603435068.A116
1603435068
|
£1.75
|
£2.10
|
|
|
50 - TAPPING SCREW DIN 7981-ST3.9x19-C-H
BSD-2910611020.A289
2910611020
|
£1.75
|
£2.10
|
|
|
55 - TAPPING SCREW DIN 7981-ST3.9x25-C-H
BSD-2910611022.A57
2910611022
|
-
|
|
|
|
80 - SEALING DISK
BSD-3600150021.A31
3600150021
|
£3.80
|
£4.56
|
|
|
650/10 - AUXILIARY HANDLE M10. dia37x115 MM
BSD-1602025031.A80
1602025031
|
£18.96
|
£22.75
|
|
|
650/10 - AUXILIARY HANDLE M10. dia32.5x105 MM
BSD-160202509T.A755
160202509T
|
£3.72
|
£4.47
|
|
|
650/20 - ROUND NUT M14
BSD-1603345043.A361
1603345043
|
£8.67
|
£10.41
|
|
|
650/30 - PIN-TYPE FACE-WRENCH
BSD-1607950052.A5
1607950052
|
£3.72
|
£4.47
|
|
|
650/50 - CLAMPING FLANGE dia22.3xdia42 MM
BSD-2605703014.A619
2605703014
|
£7.36
|
£8.83
|
|
|
650/50/20 - O-RING 20.35x1.78 MM
BSD-1600210039.A694
1600210039
|
£2.16
|
£2.59
|
|
|
651 - PROTECTIVE COVER dia 115 MM
BSD-1605510249.A3
1605510249
|
-
|
|
|
|
808 - NAMEPLATE
BSD-1619P00635.A0
1619P00635
|
-
|
|
|
|
810 - CARBON-BRUSH SET
BSD-1607014145.A41
1607014145
|
£10.10
|
£12.12
|
|
|
810 - CARBON-BRUSH SET 10 x 1 607 014 145
BSD-1607000483.A2
1607000483
|
£63.50
|
£76.20
|
|
|
821 - GEAR HOUSING
BSD-1605806466.A44
1605806466
|
£16.41
|
£19.69
|
|
|
828 - BEARING FLANGE
BSD-1605805090.A19
1605805090
|
£16.41
|
£19.69
|
|
|
829 - AIR-DEFLECTOR RING
BSD-1600591023.A58
1600591023
|
£2.61
|
£3.13
|
|
|
832 - GRINDING SPINDLE
BSD-1607000D6A.A321
1607000D6A
|
£7.36
|
£8.83
|
|
|
840 - PUSH-BUTTON
BSD-1607000298.A55
1607000298
|
£4.26
|
£5.11
|
|
|
841 - NEEDLE BEARING dia8xdia12x8 MM
BSD-1600910018.A705
1600910018
|
£5.30
|
£6.36
|
|
