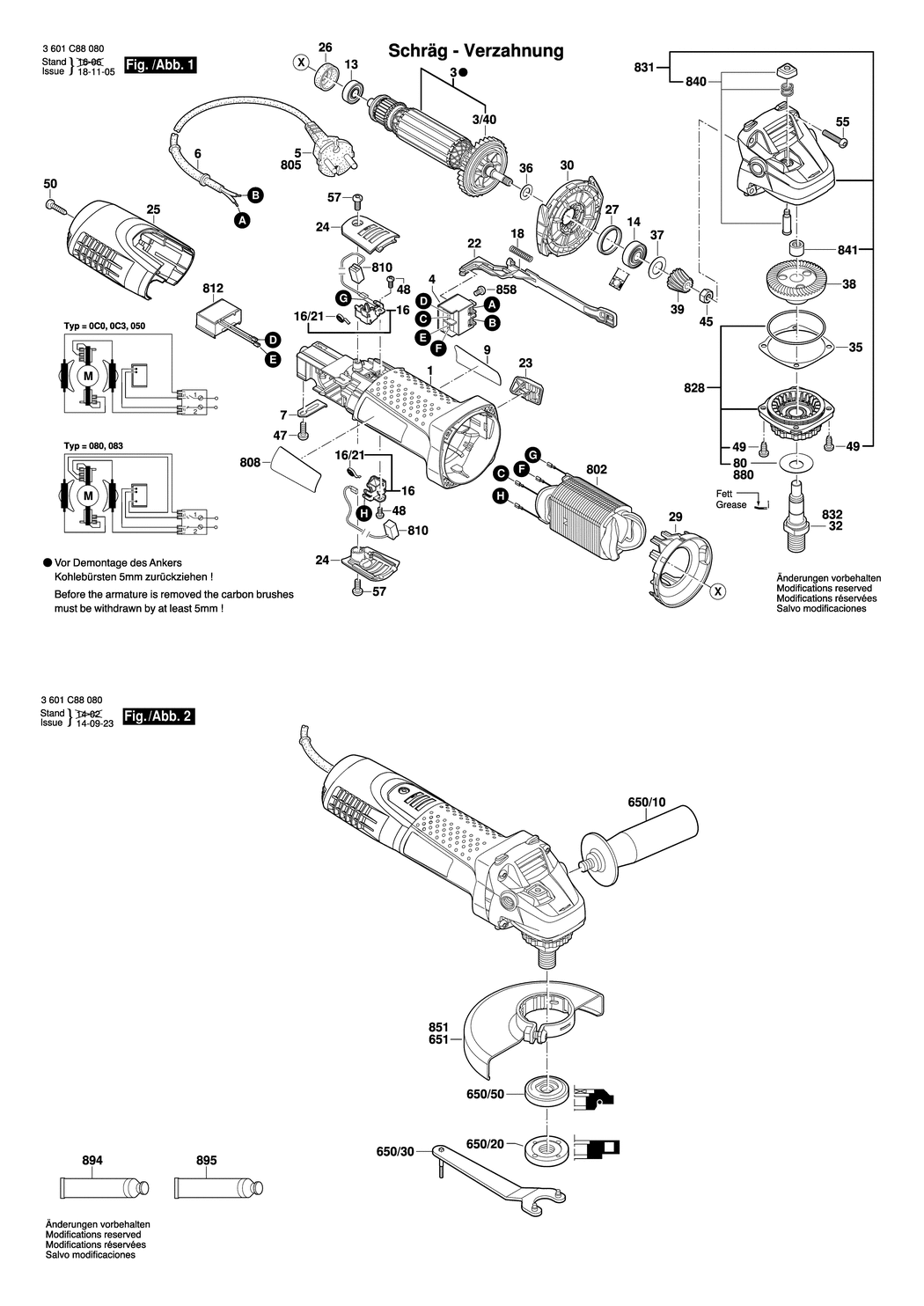

1 - MOTOR HOUSING
BSD-1619P09415.A10
1619P09415
|
£8.67
|
£10.41
|
|
|
3 - ARMATURE 220-230V
BSD-1619P05210.A20
1619P05210
|
£30.28
|
£36.33
|
|
|
3/40 - FAN
BSD-1619P02801.A19
1619P02801
|
£1.75
|
£2.10
|
|
|
4 - ON-OFF SWITCH
BSD-1607200179.A88
1607200179
|
£10.59
|
£12.71
|
|
|
5 - POWER SUPPLY CORD GB 230V 2.65m 2 x 0.75mm H05 VV-F
BSD-1604460260.A4
1604460260
|
£11.30
|
£13.56
|
|
|
6 - GROMMET dia6.5-dia6.9x95 MM
BSD-2600703012.A531
2600703012
|
£2.80
|
£3.36
|
|
|
7 - FASTENING CLAMP
BSD-1601302017.A194
1601302017
|
£1.75
|
£2.10
|
|
|
9 - MANUFACTURER'S NAMEPLATE GWS 7-100
BSD-1619P02853.A2
1619P02853
|
£2.61
|
£3.13
|
|
|
13 - BALL BEARING 7x19x6 MM
BSD-1619P00456.A26
1619P00456
|
£2.80
|
£3.36
|
|
|
14 - BALL BEARING
BSD-1619P00455.A48
1619P00455
|
£3.72
|
£4.47
|
|
|
16 - BRUSH HOLDER
BSD-1619P02845.A30
1619P02845
|
£2.80
|
£3.36
|
|
|
16/21 - SPIRAL SPRING
BSD-1619P02809.A14
1619P02809
|
£1.75
|
£2.10
|
|
|
18 - COMPRESSION SPRING
BSD-1604611031.A210
1604611031
|
£2.80
|
£3.36
|
|
|
22 - ADJUSTING SLIDE
BSD-1619P02811.A18
1619P02811
|
£1.75
|
£2.10
|
|
|
23 - SWITCH BUTTON
BSD-1619P09290.A11
1619P09290
|
-
|
|
|
|
24 - BRUSH-COVER
BSD-1619P02828.A28
1619P02828
|
£1.75
|
£2.10
|
|
|
25 - HOUSING COVER
BSD-1619P09922.A5
1619P09922
|
£3.80
|
£4.56
|
|
|
26 - INTERMEDIATE RING
BSD-1600502023.A76
1600502023
|
£2.16
|
£2.59
|
|
|
27 - RUBBER RING
BSD-1600206025.A178
1600206025
|
£2.16
|
£2.59
|
|
|
29 - AIR-DEFLECTOR RING
BSD-1619P02818.A14
1619P02818
|
£1.75
|
£2.10
|
|
|
30 - AIR DISTRIBUTOR
BSD-1619P02819.A7
1619P02819
|
£1.75
|
£2.10
|
|
|
32 - GRINDING SPINDLE M10. SW12
BSD-1603523111.A4
1603523111
|
£6.52
|
£7.83
|
|
|
35 - SHIM 0.1 MM
BSD-1619P02821.A30
1619P02821
|
£1.75
|
£2.10
|
|
|
35 - SHIM 0.2 MM
BSD-1619P02822.A43
1619P02822
|
£1.75
|
£2.10
|
|
|
36 - WASHER
BSD-1619P00987.A44
1619P00987
|
£1.75
|
£2.10
|
|
|
37 - COVER DISC
BSD-1600100033.A170
1600100033
|
£2.61
|
£3.13
|
|
|
38 - CROWN GEAR
BSD-1619P02823.A29
1619P02823
|
£8.67
|
£10.41
|
|
|
39 - BEVEL GEAR
BSD-1619P02825.A31
1619P02825
|
£5.30
|
£6.36
|
|
|
45 - HEX NUT DIN 934-M6-8-A
BSD-2915011007.A401
2915011007
|
-
|
|
|
|
47 - SPECIAL SCREW
BSD-2609110052.A35
2609110052
|
£1.75
|
£2.10
|
|
|
48 - TORX OVAL-HEAD SCREW 3x8
BSD-1619P02849.A31
1619P02849
|
£1.75
|
£2.10
|
|
|
49 - THREAD-FORMING TAP. SCREW DIN 7500. M4x10. SR10.2
BSD-1603435068.A190
1603435068
|
£1.75
|
£2.10
|
|
|
50 - TORX OVAL-HEAD SCREW 4x20
BSD-1619P00105.A34
1619P00105
|
£1.75
|
£2.10
|
|
|
55 - TORX OVAL-HEAD SCREW 4x25
BSD-1619P01066.A66
1619P01066
|
£1.75
|
£2.10
|
|
|
57 - TORX OVAL-HEAD SCREW 4x12
BSD-1619P02848.A11
1619P02848
|
£1.75
|
£2.10
|
|
|
131 - HEX SCREW DRIVER 4x95
BSD-1619P01598.A54
1619P01598
|
£2.61
|
£3.13
|
|
|
132 - KEY HOLDER
BSD-3602311050.A53
3602311050
|
£2.16
|
£2.59
|
|
|
132 - KEY HOLDER
BSD-3602311050.A54
3602311050
|
£2.16
|
£2.59
|
|
|
650/10 - AUXILIARY HANDLE M10. dia32.5x105 MM
BSD-160202509T.A197
160202509T
|
£3.72
|
£4.47
|
|
|
650/20 - ROUND NUT WITH 2 HOLES
BSD-1619P09976.A10
1619P09976
|
£2.16
|
£2.59
|
|
|
650/30 - PIN-TYPE FACE-WRENCH
BSD-2609110015.A6
2609110015
|
£2.61
|
£3.13
|
|
|
650/50 - CLAMPING-FLANGE M10. 16-20 MM
BSD-1605703113.A11
1605703113
|
£1.75
|
£2.10
|
|
|
651 - PROTECTIVE COVER dia100 MM
BSD-1600A00XU5.A6
1600A00XU5
|
£8.67
|
£10.41
|
|
|
802 - FIELD 220-230V
BSD-1619P07239.A26
1619P07239
|
£21.52
|
£25.83
|
|
|
808 - NAMEPLATE
BSD-1619P30230.A0
1619P30230
|
£2.61
|
£3.13
|
|
|
810 - CARBON-BRUSH SET
BSD-1619P02870.A10
1619P02870
|
£8.67
|
£10.41
|
|
|
812 - SUPPRESSION CAPACITOR
BSD-1619P07240.A2
1619P07240
|
£6.52
|
£7.83
|
|
|
828 - BEARING FLANGE
BSD-1619P07452.A39
1619P07452
|
£10.10
|
£12.12
|
|
|
831 - GEAR HOUSING
BSD-1619P02872.A13
1619P02872
|
£16.41
|
£19.69
|
|
|
840 - PUSH-BUTTON
BSD-1619P02873.A12
1619P02873
|
£2.16
|
£2.59
|
|
|
841 - NEEDLE BEARING dia8xdia12x8 MM
BSD-1600910018.A212
1600910018
|
£5.30
|
£6.36
|
|
|
858 - OVAL-HEAD SCREW DIN7985-M3.5x5-4.8-H
BSD-2910641081.A111
2910641081
|
-
|
|
|
|
880 - SEALING DISK
BSD-3600150021.A547
3600150021
|
£3.80
|
£4.56
|
|
|
894 - GREASE TUBE 225 ML
BSD-1615430020.A50
1615430020
|
£21.52
|
£25.83
|
|
|
895 - GREASE TUBE 225 ML
BSD-1605430003.A279
1605430003
|
£33.74
|
£40.49
|
|
