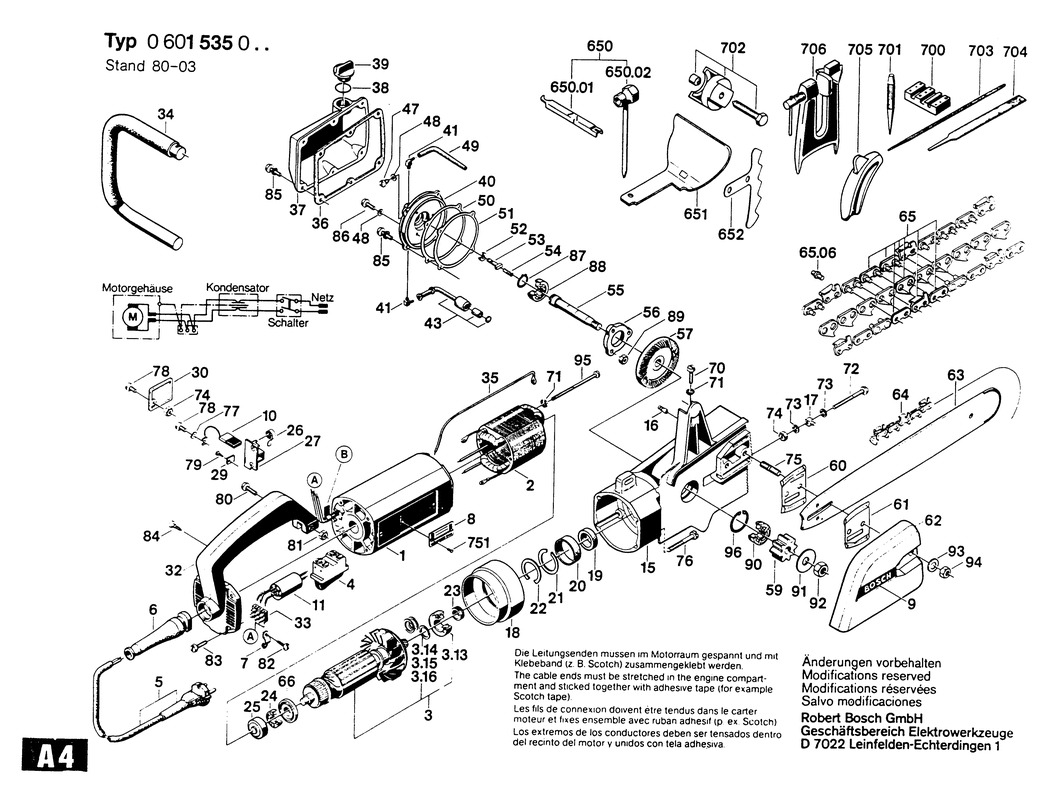

1 - ASSEMBLY OF SERVICE PARTS
BSD-1605108902.A98
1605108902
|
-
|
|
|
|
2 - FIELD 220V
BSD-1604220109.A26
1604220109
|
-
|
|
|
|
3 - ARMATURE 220V
BSD-1604011240.A6
1604011240
|
-
|
|
|
|
3/13 - GROOVE BALL BEARING 17x35x10
BSD-1600900020.A101
1600900020
|
-
|
|
|
|
3/14 - SHIM 0.05 MM
BSD-1600101650.A77
1600101650
|
£2.61
|
£3.13
|
|
|
3/15 - SHIM 0.1 MM
BSD-1600101648.A77
1600101648
|
£1.75
|
£2.10
|
|
|
3/16 - SHIM 0.15 MM
BSD-1600101649.A10
1600101649
|
-
|
|
|
|
4 - ON-OFF SWITCH
BSD-1609200060.A2
1609200060
|
-
|
|
|
|
5 - POWER SUPPLY CORD EU 4.15m 2 x 1.5mm H07 RN-F
BSD-1607000228.A428
1607000228
|
£23.86
|
£28.63
|
|
|
6 - GROMMET dia9.2-dia12x120 MM
BSD-3600703011.A1363
3600703011
|
£2.80
|
£3.36
|
|
|
7 - FASTENING CLAMP
BSD-1601302013.A207
1601302013
|
£1.75
|
£2.10
|
|
|
8 - NAMEPLATE
BSD-160111A3H3.A1763
160111A3H3
|
£2.61
|
£3.13
|
|
|
9 - MANUFACTURER'S NAMEPLATE
BSD-1601110016.A54
1601110016
|
-
|
|
|
|
10 - CARBON-BRUSH SET
BSD-1607014013.A1
1607014013
|
-
|
|
|
|
11 - SUPPRESSION FILTER
BSD-1607328034.A329
1607328034
|
£4.26
|
£5.11
|
|
|
15 - GEAR HOUSING
BSD-1609251028.A3
1609251028
|
-
|
|
|
|
16 - HOSE FITTING
BSD-1609233048.A3
1609233048
|
-
|
|
|
|
17 - SQUARE NUT
BSD-1609233049.A3
1609233049
|
-
|
|
|
|
18 - AIR-DEFLECTOR RING
BSD-1600502007.A80
1600502007
|
-
|
|
|
|
19 - ROTARY SHAFT LIP SEAL
BSD-1600290008.A127
1600290008
|
£2.61
|
£3.13
|
|
|
20 - RUBBER RING 10 MM
BSD-1600206014.A55
1600206014
|
£1.75
|
£2.10
|
|
|
21 - RETAINING RING
BSD-1600116002.A27
1600116002
|
-
|
|
|
|
22 - RETAINING RING
BSD-1600116004.A12
1600116004
|
-
|
|
|
|
23 - THREADED RING
BSD-1603344051.A10
1603344051
|
-
|
|
|
|
24 - GROOVE BALL BEARING 10x26x8
BSD-1900900407.A32
1900900407
|
-
|
|
|
|
25 - RUBBER BUSHING
BSD-1600502006.A7
1600502006
|
£1.75
|
£2.10
|
|
|
26 - SPIRAL SPRING
BSD-1604652015.A167
1604652015
|
£2.80
|
£3.36
|
|
|
27 - BRUSH HOLDER
BSD-1604336008.A27
1604336008
|
£21.52
|
£25.83
|
|
|
29 - TAB WASHER
BSD-1601030022.A61
1601030022
|
£1.75
|
£2.10
|
|
|
30 - SEALING CAP
BSD-1605500089.A330
1605500089
|
-
|
|
|
|
32 - HANDLE
BSD-1609251029.A3
1609251029
|
-
|
|
|
|
33 - SOCKET-TERMINAL STRIP
BSD-1609210017.A5
1609210017
|
-
|
|
|
|
34 - STRAP-SHAPED HANDLE
BSD-1609207011.A4
1609207011
|
-
|
|
|
|
35 - CONNECTING CABLE
BSD-1604440005.A2
1604440005
|
-
|
|
|
|
35 - CONNECTING CABLE
BSD-1604414010.A4
1604414010
|
-
|
|
|
|
36 - SEAL
BSD-1609210016.A1
1609210016
|
-
|
|
|
|
37 - GEAR COVER
BSD-1609255030.A1
1609255030
|
-
|
|
|
|
38 - SEAL RING
BSD-1609202013.A4
1609202013
|
-
|
|
|
|
39 - SCREW PLUG
BSD-1609234031.A4
1609234031
|
-
|
|
|
|
40 - GEAR COVER
BSD-1609258011.A3
1609258011
|
-
|
|
|
|
41 - ELBOW
BSD-1609233050.A3
1609233050
|
-
|
|
|
|
43 - EXTRACTOR HEAD
BSD-1609207012.A2
1609207012
|
-
|
|
|
|
47 - SOCKET HEAD CAP SCREW
BSD-1609234030.A2
1609234030
|
-
|
|
|
|
48 - SEAL RING
BSD-1609201016.A1
1609201016
|
-
|
|
|
|
49 - PRESSURE LINE
BSD-1609207013.A4
1609207013
|
-
|
|
|
|
50 - SHIM 0.10 MM
BSD-1609201017.A5
1609201017
|
-
|
|
|
|
51 - STOP DISC 0.20 MM
BSD-1609201018.A1
1609201018
|
-
|
|
|
|
52 - SEAL RING
BSD-1609202014.A2
1609202014
|
-
|
|
|
|
53 - PUMP PISTON
BSD-1609287000.A1
1609287000
|
-
|
|
|
|
54 - COMPRESSION SPRING
BSD-1609246018.A2
1609246018
|
-
|
|
|
|
55 - DRIVE SHAFT
BSD-1609231016.A3
1609231016
|
-
|
|
|
|
56 - BEARING COVER
BSD-1609255032.A2
1609255032
|
-
|
|
|
|
57 - BEVEL GEAR Z=61
BSD-1606333158.A25
1606333158
|
-
|
|
|
|
59 - SPROCKET WHEEL Z=8
BSD-1609263007.A0
1609263007
|
-
|
|
|
|
60 - GUIDE PLATE
BSD-1609213014.A6
1609213014
|
-
|
|
|
|
61 - GUIDE PLATE
BSD-1609213013.A0
1609213013
|
-
|
|
|
|
62 - PROTECTIVE COVER
BSD-1609255031.A6
1609255031
|
-
|
|
|
|
63 - STRIKER BAR
BSD-1609280045.A5
1609280045
|
-
|
|
|
|
64 - CHAIN
BSD-1609200061.A6
1609200061
|
-
|
|
|
|
65 - PARTS SET
BSD-1609200063.A6
1609200063
|
-
|
|
|
|
65 - RIVET-HEADED PIN
BSD-1609231015.A5
1609231015
|
-
|
|
|
|
66 - COVER DISC
BSD-1600190007.A0
1600190007
|
-
|
|
|
|
70 - HEX SOCKET HEAD CAP SCREW M5x25 DIN 912-10.9
BSD-2910151164.A30
2910151164
|
£1.75
|
£2.10
|
|
|
71 - SPRING LOCK WASHER DIN 127-B 5
BSD-2916680006.A460
2916680006
|
-
|
|
|
|
72 - SOCKET HEAD CAP SCREW DIN 84-AM4x55-5.8
BSD-2910061144.A0
2910061144
|
-
|
|
|
|
73 - SPRING WASHER DIN 137-A 4-ST
BSD-2916060005.A163
2916060005
|
£1.75
|
£2.10
|
|
|
74 - HEX NUT DIN 934 -M4-m-8
BSD-2915011005.A495
2915011005
|
£1.75
|
£2.10
|
|
|
75 - STUD
BSD-1609200062.A0
1609200062
|
-
|
|
|
|
76 - TAPPING SCREW ST-4.8x57.5-TORX.T20
BSD-1613435009.A369
1613435009
|
£1.75
|
£2.10
|
|
|
77 - SPRING WASHER DIN 137-A4
BSD-1600150006.A149
1600150006
|
-
|
|
|
|
78 - SOCKET HEAD CAP SCREW DIN 84-AM4x8-8.8
BSD-2910021118.A1515
2910021118
|
£1.75
|
£2.10
|
|
|
79 - TAPPING SCREW DIN 7971-BZ3.5x13
BSD-2910211011.A56
2910211011
|
£1.75
|
£2.10
|
|
|
80 - MICROENCAPSULATED SCREW DIN 84 M6x30-8.8
BSD-2914551114.A17
2914551114
|
£2.61
|
£3.13
|
|
|
81 - HEX NUT AM 6 DIN 439-04
BSD-2915051006.A5
2915051006
|
-
|
|
|
|
82 - TAPPING SCREW DIN 7971-BZ4.2x13
BSD-2910211025.A156
2910211025
|
£1.75
|
£2.10
|
|
|
83 - TORX OVAL-HEAD SCREW
BSD-2914201529.A70
2914201529
|
£1.75
|
£2.10
|
|
|
83 - SOCKET HEAD CAP SCREW DIN 84-AM5x20-5.8
BSD-2910011162.A39
2910011162
|
£1.75
|
£2.10
|
|
|
84 - TAPPING SCREW DIN 7971 BZ4.2x22
BSD-2910211028.A5
2910211028
|
-
|
|
|
|
85 - SOCKET HEAD CAP SCREW DIN 84-AM5x15-5.8
BSD-2910011157.A197
2910011157
|
-
|
|
|
|
86 - SOCKET HEAD CAP SCREW DIN 84-AM5x20-5.8
BSD-2910011162.A38
2910011162
|
£1.75
|
£2.10
|
|
|
87 - RETAINING CLIP DIN 471-15x1-FSt
BSD-2916650006.A396
2916650006
|
£1.75
|
£2.10
|
|
|
88 - GROOVE BALL BEARING
BSD-1600905003.A0
1600905003
|
-
|
|
|
|
89 - HEX NUT DIN 934-M 5-m-8
BSD-2915011006.A28
2915011006
|
-
|
|
|
|
90 - GROOVE BALL BEARING
BSD-1600905002.A6
1600905002
|
-
|
|
|
|
91 - FRICTION WASHER
BSD-1609200099.A6
1609200099
|
-
|
|
|
|
92 - HEX NUT
BSD-1609200064.A0
1609200064
|
-
|
|
|
|
93 - SPRING WASHER DIN 137-A8-ST
BSD-2916063008.A0
2916063008
|
-
|
|
|
|
94 - HEX NUT DIN 934-M8-8-A
BSD-2915011009.A6
2915011009
|
£2.61
|
£3.13
|
|
|
95 - TAPPING SCREW B4.8x90 MM
BSD-1603435006.A0
1603435006
|
-
|
|
|
|
96 - RETAINING CLIP DIN 472-32x1.2 MM
BSD-2916660013.A149
2916660013
|
£2.16
|
£2.59
|
|
|
650 - SET OF TOOLS
BSD-1609270023.A6
1609270023
|
-
|
|
|
|
650/01 - MEASURING DEVICE
BSD-1609279004.A0
1609279004
|
-
|
|
|
|
650/02 - ASSEMBLY WRENCH
BSD-1609279003.A6
1609279003
|
-
|
|
|
|
651 - PROFILE BEADING
BSD-1609200901.A0
1609200901
|
-
|
|
|
|
652 - PROTECTING COVER
BSD-1609200902.A6
1609200902
|
-
|
|
|
|
700 - DISASSEMBLY TOOL
BSD-1609223015.A0
1609223015
|
-
|
|
|
|
701 - PUNCH FOR RIVETS
BSD-1609279002.A0
1609279002
|
-
|
|
|
|
702 - PULLER
BSD-1609281003.A0
1609281003
|
-
|
|
|
|
703 - BLUNT FLAT-FILE
BSD-1609286069.A6
1609286069
|
-
|
|
|
|
704 - ROUND FILE
BSD-1609286068.A0
1609286068
|
-
|
|
|
|
705 - HANDLE
BSD-1609251030.A6
1609251030
|
-
|
|
|
|
706 - TENSIONING DEVICE
BSD-1609280044.A0
1609280044
|
-
|
|
|
