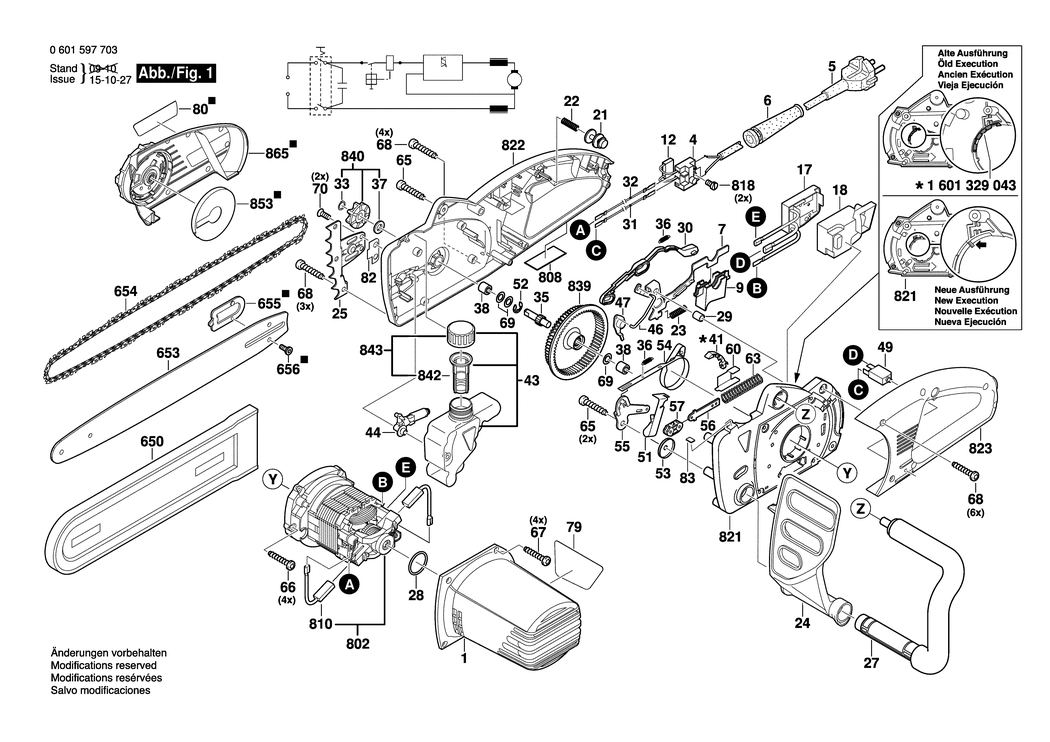

An exploded drawing and listing for the Bosch GKE 35 BCE / 06015976A0 / EU 230 Volt
Ex VAT Inc VAT
1 - MOTOR HOUSING BSD-1605190195.A4 1605190195 £21.68 £26.01
4 - SWITCH BSD-1607200193.A5 1607200193 £12.04 £14.45
5 - POWER SUPPLY CORD EU 2.65m 2 x 1.0mm H07RN-F BSD-1604460301.A2 1604460301 £16.41 £19.69
6 - GROMMET BSD-2609005766.A5 2609005766 £2.80 £3.36
7 - LEVER BSD-1602002008.A25 1602002008 £6.52 £7.83
9 - PUSH-BUTTON BSD-1603231020.A4 1603231020 £1.95 £2.34
12 - SUPPRESSION FILTER BSD-1607328028.A714 1607328028 £5.30 £6.36
17 - SPEED GOVERNOR 230-240V BSD-1607233154.A4 1607233154 £33.74 £40.49
18 - HOUSING BSD-1605108241.A5 1605108241 £5.58 £6.70
21 - LOCKING BOLT BSD-1600390019.A1 1600390019 £1.75 £2.10
22 - COMPRESSION SPRING BSD-1604617008.A5 1604617008 £1.75 £2.10
23 - COMPRESSION SPRING BSD-1604617015.A11 1604617015 £1.75 £2.10
24 - PROTECTIVE SHIELD BSD-1605510315.A32 1605510315 £10.10 £12.12
25 - SPIKED BUMPER BSD-1601098008.A22 1601098008 £5.58 £6.70
27 - HANDLE BSD-1605133045.A23 1605133045 £14.91 £17.89
28 - INTERMEDIATE RING BSD-1600206035.A2 1600206035 £1.75 £2.10
29 - BUSHING BSD-1600300096.A26 1600300096 £1.75 £2.10
30 - PUSHER BSD-1602319019.A5 1602319019 £2.80 £3.36
31 - CONNECTING CABLE BSD-1604431005.A5 1604431005 £1.75 £2.10
32 - CONNECTING CABLE BSD-1604431006.A2 1604431006 £1.75 £2.10
33 - SPRING RETAINING RING DIN 471-10x1MM-FSt BSD-2916650001.A605 2916650001 £2.61 £3.13
35 - SHAFT BSD-1606100039.A21 1606100039 £14.91 £17.89
36 - EXTENSION SPRING BSD-1604650016.A2 1604650016 £1.75 £2.10
37 - FELT WASHER BSD-1600205037.A21 1600205037 £1.75 £2.10
38 - NEEDLE BEARING BSD-2600917006.A64 2600917006 £3.72 £4.47
43 - OIL RESERVOIR BSD-1605405004.A2 1605405004 £16.41 £19.69
44 - OIL PUMP BSD-1605437003.A43 1605437003 £16.41 £19.69
46 - ROD BSD-1603023003.A2 1603023003 £5.30 £6.36
47 - SWIVELLING LEVER BSD-1600590014.A32 1600590014 £5.58 £6.70
49 - SWITCH BSD-1607200195.A2 1607200195 £21.52 £25.83
51 - CLAMP SPRING BSD-1604651013.A27 1604651013 £2.80 £3.36
52 - LOCKING WASHER DIN 6799-9-FSt BSD-2916080012.A177 2916080012 £1.75 £2.10
53 - COLLAR DISC BSD-1600328030.A2 1600328030 £1.75 £2.10
54 - BRAKE BAND BSD-1604652020.A1 1604652020 £5.30 £6.36
55 - LEVER ARM BSD-1600590019.A2 1600590019 £2.80 £3.36
56 - SPRING GUIDE BSD-1600590016.A5 1600590016 £2.16 £2.59
57 - LEVER CARRIER BSD-1600390018.A43 1600390018 £2.80 £3.36
60 - PRESSURE PLATE BSD-1600590012.A5 1600590012 £1.75 £2.10
63 - COMPRESSION SPRING BSD-1604617017.A27 1604617017 £1.75 £2.10
65 - OVAL-HEAD SCREW 5x22 BSD-2914211528.A44 2914211528 £1.75 £2.10
66 - OVAL-HEAD SCREW 5x22 BSD-2914211528.A45 2914211528 £1.75 £2.10
67 - OVAL-HEAD SCREW 4x18 MM.TORX T20 BSD-2914201506.A91 2914201506 £1.75 £2.10
68 - OVAL-HEAD SCREW 4x18 MM.TORX T20 BSD-2914201506.A92 2914201506 £1.75 £2.10
69 - FRICTION WASHER BSD-1600100038.A2 1600100038 £1.75 £2.10
70 - TAPPING SCREW 4.2x13 BSD-2910601325.A22 2910601325 £1.75 £2.10
79 - REFERENCE PLATE BSD-1601118K70.A6 1601118K70 £2.61 £3.13
80 - MANUFACTURER'S NAMEPLATE BSD-1601118A85.A1 1601118A85 £3.34 £4.01
82 - SEAL STRIP BSD-1601010009.A43 1601010009 £2.16 £2.59
83 - STICKER BSD-1601118A64.A2 1601118A64 £3.72 £4.47
650 - CHAIN GUARD BSD-1605510329.A6 1605510329 £10.10 £12.12
653 - GUIDE RAIL 350 MM BSD-1602317011.A4 1602317011 £37.27 £44.72
654 - SAW CHAIN 350 MM BSD-2609006250.A2 2609006250 £31.64 £37.97
655 - ADJUSTING PLATE BSD-1601015035.A23 1601015035 £5.58 £6.70
656 - COUNTERSUNK-HEAD SCREW BSD-1603421003.A22 1603421003 £1.75 £2.10
802 - ALTERNATING-CURRENT MOTOR BSD-1607000A38.A6 1607000A38 £156.22 £187.46
808 - NAMEPLATE BSD-160111A3H3.A1161 160111A3H3 £2.61 £3.13
810 - CARBON-BRUSH SET BSD-1607014170.A22 1607014170 £18.96 £22.75
818 - SOCKET HEAD CAP SCREW M3x6.5-4.8 BSD-2603410001.A697 2603410001 £1.75 £2.10
821 - HOUSING SECTION BSD-1607000A87.A6 1607000A87 £21.68 £26.01
822 - HOUSING SECTION BSD-1607000A36.A1 1607000A36 £59.53 £71.44
823 - HANDLE COVER BSD-1605133047.A6 1605133047 £16.41 £19.69
839 - RING GEAR BSD-1607000A06.A23 1607000A06 £21.52 £25.83
840 - SPROCKET WHEEL BSD-1607000885.A39 1607000885 £5.58 £6.70
842 - STRAINER BSD-1607431000.A23 1607431000 £5.30 £6.36
843 - RESERVOIR CAP BSD-1607000A47.A39 1607000A47 £6.52 £7.83
853 - DUST-PROTECTION COVER BSD-1605190190.A18 1605190190 £2.80 £3.36
865 - PROTECTIVE COVER BSD-1605510333.A1 1605510333 £31.64 £37.97
