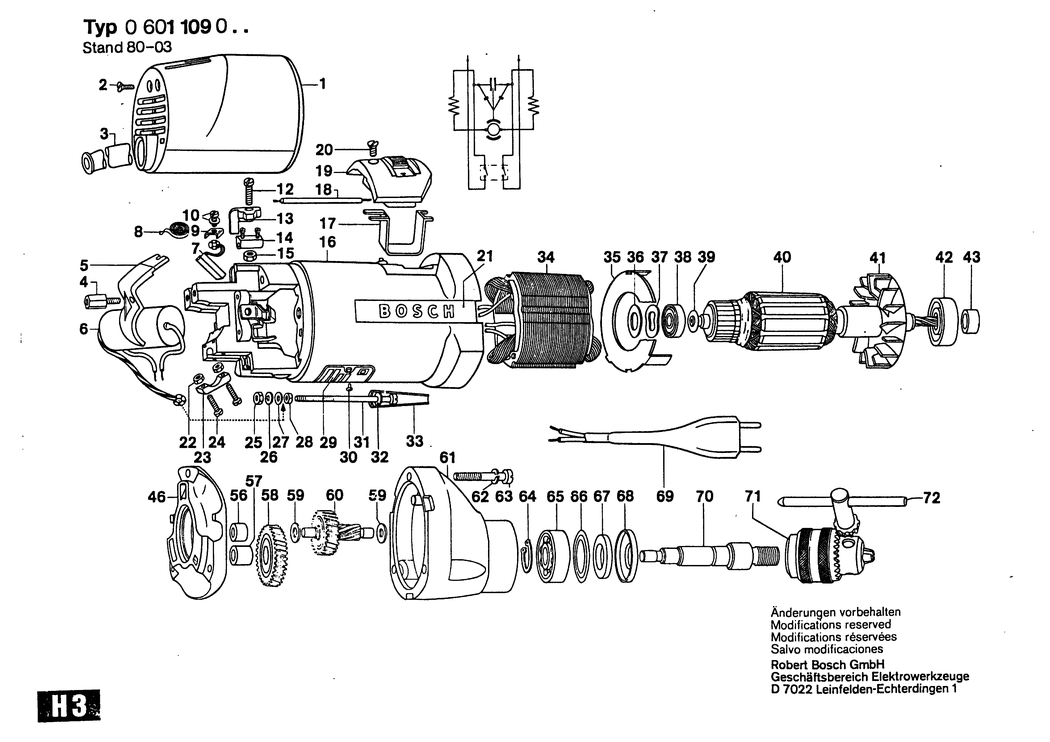

An exploded drawing and listing for the Bosch ---- / 0601109003 / EU 220 Volt
Ex VAT Inc VAT
1 - HOUSING COVER BSD-3600508023.A83 3600508023 £13.41 £16.09
2 - COUNTERSUNK-HEAD SCREW DIN 63-AM3.5x8-5.8 BSD-2910501084.A67 2910501084 -
3 - GROMMET dia9.5 MM BSD-2600703006.A9 2600703006 -
3 - GROMMET dia7 MM BSD-2600703007.A386 2600703007 -
3 - GROMMET dia8.2 MM BSD-2600703008.A13 2600703008 £1.75 £2.10
4 - HEX SCREW BSD-2603527004.A61 2603527004 £1.75 £2.10
5 - FASTENING CLAMP BSD-2601301002.A61 2601301002 £2.16 £2.59
6 - SUPPRESSION FILTER BSD-2607329048.A51 2607329048 -
7 - CARBON-BRUSH SET BSD-2604320905.A63 2604320905 -
8 - SPIRAL SPRING BSD-2604652000.A239 2604652000 -
9 - CLAMPING SADDLE BSD-2601321005.A57 2601321005 -
10 - SOCKET HEAD CAP SCREW BSD-2603410010.A328 2603410010 -
12 - SOCKET HEAD CAP SCREW M 2.6x5 DIN 84 BSD-2910011028.A31 2910011028 -
13 - CLAMPING PIECE BSD-2602305034.A24 2602305034 -
14 - CONNECTING TERMINAL BSD-2604490003.A46 2604490003 -
15 - HEX NUT M 2.6 DIN 934-M-6 BSD-2915011002.A48 2915011002 -
16 - MOTOR HOUSING BSD-2605108032.A61 2605108032 -
17 - INSULATING PART BSD-2601322002.A67 2601322002 £1.75 £2.10
18 - CABLE BSD-2604411061.A5 2604411061 -
19 - SWITCH BSD-2607200045.A35 2607200045 -
20 - COUNTERSUNK-HEAD SCREW M 3x6 DIN 63-5.8 BSD-2910501048.A30 2910501048 -
21 - MANUFACTURER'S NAMEPLATE BSD-2601007003.A269 2601007003 -
22 - HEX NUT M 2.6 DIN 934-M-6 BSD-2915011002.A49 2915011002 -
23 - CABLE CLIP BSD-2601035005.A8 2601035005 £1.75 £2.10
24 - SOCKET HEAD CAP SCREW DIN 84-AM2.6x15-5.8 BSD-2910011033.A19 2910011033 -
25 - HEX NUT DIN 439-BM 3 BSD-2915051103.A36 2915051103 £1.75 £2.10
26 - SPRING LOCK WASHER A3-FSt BSD-2916690001.A176 2916690001 -
27 - PLAIN WASHER DIN 433-3.2-ST 50 BSD-2916011005.A267 2916011005 £1.75 £2.10
28 - HEX NUT DIN 934-M 3-m-8 BSD-2915011003.A79 2915011003 £1.75 £2.10
29 - NAMEPLATE BSD-2601100038.A97 2601100038 -
29 - NAMEPLATE BSD-160111A3H3.A4814 160111A3H3 £2.61 £3.13
30 - ROUND-HEAD GROOVED PIN 2x3 DIN 1476 ST BSD-2917724031.A46 2917724031 -
31 - SOCKET HEAD CAP SCREW DIN 84-BM3x50-5.8 BSD-2910011074.A88 2910011074 £1.75 £2.10
32 - PLAIN WASHER DIN 433-3.2-ST 50 BSD-2916011005.A268 2916011005 £1.75 £2.10
33 - CABLE CLIP BSD-2601099015.A13 2601099015 £1.75 £2.10
34 - FIELD 220-230V BSD-2604220269.A40 2604220269 -
35 - SEAL RING BSD-2600113019.A36 2600113019 £2.80 £3.36
36 - SHIM BSD-2600100699.A61 2600100699 £1.75 £2.10
37 - SHIM BSD-2600150002.A89 2600150002 -
38 - GROOVE BALL BEARING 625-2Z DIN 625 BSD-1900905015.A6 1900905015 £30.42 £36.51
39 - SHIM 0.3 MM BSD-2600100612.A96 2600100612 £2.61 £3.13
40 - ARMATURE 220-230V BSD-2604010275.A12 2604010275 -
41 - FAN BSD-2606610038.A18 2606610038 -
42 - GROOVE BALL BEARING 609-ZY DIN 625 BSD-1900905007.A130 1900905007 -
43 - BEARING SLEEVE BSD-2600300044.A40 2600300044 -
46 - MOTOR FLANGE BSD-2605700133.A7 2605700133 -
56 - SINTERED-METAL BUSHING BSD-1900301005.A11 1900301005 -
58 - CYLINDRICAL GEAR Z=39 BSD-2606319046.A7 2606319046 -
59 - SHIM 0.3 MM BSD-2600100612.A97 2600100612 £2.61 £3.13
60 - SPINDLE WITH GEAR Z= 8/27 BSD-2606100047.A2 2606100047 -
61 - ASSEMBLY OF SERVICE PARTS BSD-2605806947.A8 2605806947 -
62 - SPRING LOCK WASHER DIN 128-A4-FST BSD-2916690003.A983 2916690003 £1.75 £2.10
63 - SOCKET HEAD CAP SCREW DIN 84-AM4x25-8.8 BSD-2910021132.A45 2910021132 £1.75 £2.10
64 - SPRING RETAINING RING DIN 471-10x1MM-FSt BSD-2916650001.A154 2916650001 £2.61 £3.13
65 - GROOVE BALL BEARING 6000 Z DIN 625 BSD-1900905100.A58 1900905100 -
66 - SEALING DISK BSD-2600108031.A34 2600108031 -
67 - THREADED RING M 28x1 MM BSD-3603344013.A37 3603344013 £11.78 £14.13
69 - POWER SUPPLY CORD EU 4.15m 2 x 1.0mm H07 RN-F BSD-1607000227.A789 1607000227 £23.86 £28.63
70 - DRILLING SPINDLE 3/8-24 UNF-2 BSD-3603124002.A29 3603124002 -
71 - KEY CHUCK dia1-10 MM. 3/8 BSD-1608571020.A61 1608571020 -
72 - CHUCK WRENCH SG2 BSD-2607950007.A134 2607950007 £6.52 £7.83
73 - SUSPENSION LOOP BSD-1604682003.A18 1604682003 -
