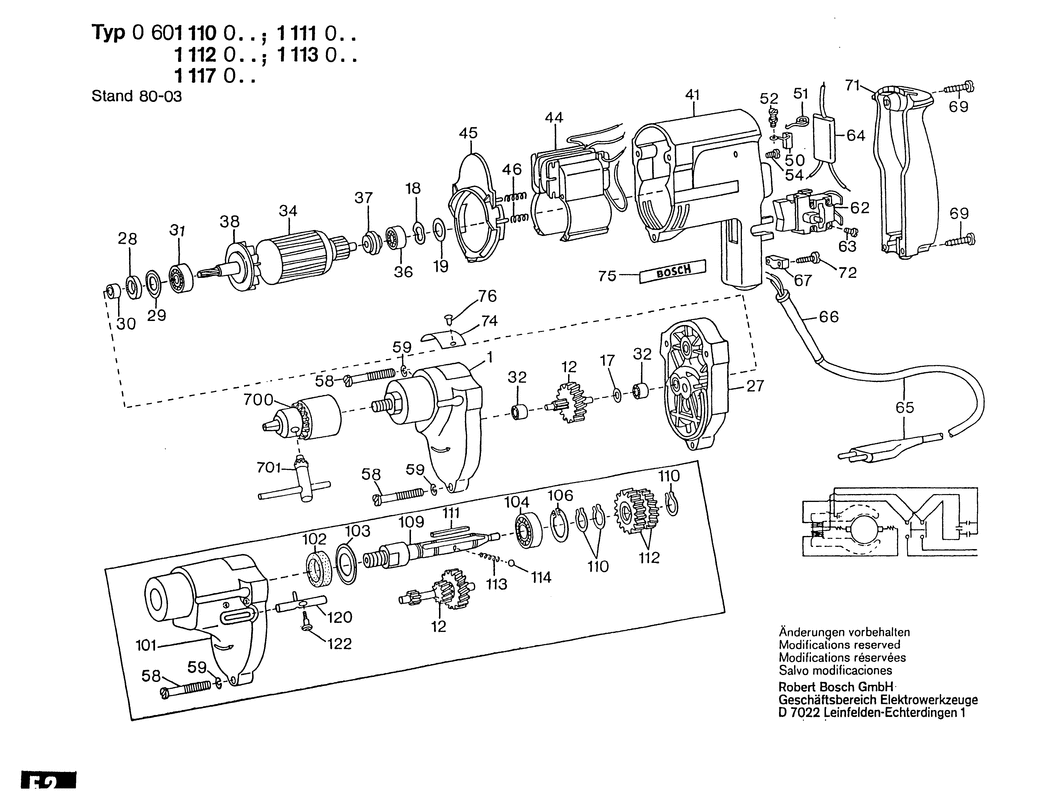

1 - GEAR HOUSING
BSD-2605806904.A5
2605806904
|
-
|
|
|
|
12 - SPINDLE WITH GEAR Z= 37/13
BSD-2606100904.A4
2606100904
|
-
|
|
|
|
17 - SHIM 0.3 MM
BSD-2600100570.A36
2600100570
|
£1.75
|
£2.10
|
|
|
18 - SHIM
BSD-2600150003.A42
2600150003
|
£2.16
|
£2.59
|
|
|
19 - SHIM 0.2 MM
BSD-2600101022.A66
2600101022
|
£1.75
|
£2.10
|
|
|
19 - SHIM 0.3 MM
BSD-2600101023.A481
2600101023
|
£1.75
|
£2.10
|
|
|
19 - SHIM 0.5 MM
BSD-2600101020.A566
2600101020
|
£1.75
|
£2.10
|
|
|
27 - FLANGED BEARING
BSD-2605700904.A16
2605700904
|
-
|
|
|
|
28 - FELT DISC
BSD-2600108020.A64
2600108020
|
-
|
|
|
|
29 - CUPPED WASHER
BSD-2600500008.A103
2600500008
|
-
|
|
|
|
30 - RECEPTACLE
BSD-2600400020.A29
2600400020
|
-
|
|
|
|
31 - GROOVE BALL BEARING 10 MM DIN 625
BSD-2600905007.A61
2600905007
|
-
|
|
|
|
32 - NEEDLE BEARING
BSD-2600914004.A151
2600914004
|
£4.26
|
£5.11
|
|
|
34 - ARMATURE WITH FAN 110-115V
BSD-2604010345.A8
2604010345
|
-
|
|
|
|
36 - BALL BEARING 7x22x7
BSD-1900905018.A227
1900905018
|
£18.96
|
£22.75
|
|
|
37 - ARMATURE PLATE
BSD-2600121002.A62
2600121002
|
-
|
|
|
|
38 - FAN
BSD-2606610011.A51
2606610011
|
-
|
|
|
|
41 - MOTOR HOUSING
BSD-2605104903.A28
2605104903
|
-
|
|
|
|
44 - POLE SHOE 110-115V
BSD-2604222239.A4
2604222239
|
-
|
|
|
|
45 - COVER DISC
BSD-2601328021.A4
2601328021
|
-
|
|
|
|
46 - COMPRESSION SPRING
BSD-2604611026.A29
2604611026
|
-
|
|
|
|
50 - CARBON-BRUSH SET
BSD-2604320906.A44
2604320906
|
-
|
|
|
|
51 - SPIRAL SPRING
BSD-2604652002.A34
2604652002
|
-
|
|
|
|
52 - SOCKET HEAD CAP SCREW
BSD-2603410010.A364
2603410010
|
-
|
|
|
|
54 - TAPPING SCREW DIN 7971-BZ2.9x6.5
BSD-2910211004.A250
2910211004
|
-
|
|
|
|
58 - PAN HEAD SCREW
BSD-2603410026.A55
2603410026
|
-
|
|
|
|
59 - SPRING LOCK WASHER DIN 128-A4-FST
BSD-2916690003.A1026
2916690003
|
£1.75
|
£2.10
|
|
|
62 - ON-OFF SWITCH
BSD-2607200043.A81
2607200043
|
-
|
|
|
|
63 - SOCKET HEAD CAP SCREW M3x10 MM
BSD-2603410023.A240
2603410023
|
-
|
|
|
|
64 - SUPPRESSION FILTER
BSD-2607329051.A129
2607329051
|
-
|
|
|
|
65 - ELEC. CABLE W/CONNECTION CH 2.65m 2 x 1.0mm H05 VV-F
BSD-2604460053.A145
2604460053
|
-
|
|
|
|
66 - GROMMET dia8.3-dia9.4x95 MM
BSD-2600703011.A814
2600703011
|
£2.80
|
£3.36
|
|
|
66 - GROMMET dia6.5-dia6.9x95 MM
BSD-2600703012.A334
2600703012
|
£2.80
|
£3.36
|
|
|
66 - GROMMET dia7.6-dia8.2x95 MM
BSD-2600703013.A784
2600703013
|
£2.61
|
£3.13
|
|
|
67 - CABLE CLIP
BSD-2601035001.A1782
2601035001
|
£1.75
|
£2.10
|
|
|
69 - TAPPING SCREW DIN 7971-ST3.9x22-F
BSD-2910211021.A411
2910211021
|
£1.75
|
£2.10
|
|
|
71 - HOUSING COVER
BSD-2605132007.A82
2605132007
|
-
|
|
|
|
72 - TAPPING SCREW DIN 7971-ST3.9x16-F
BSD-2910211019.A846
2910211019
|
£1.75
|
£2.10
|
|
|
74 - NAMEPLATE
BSD-2601100038.A116
2601100038
|
-
|
|
|
|
75 - MANUFACTURER'S NAMEPLATE
BSD-2601007003.A287
2601007003
|
-
|
|
|
|
76 - GROOVED NAIL 2x4 DIN 1476-ST
BSD-2917724032.A87
2917724032
|
-
|
|
|
|
657 - AUXILIARY HANDLE dia43 MM
BSD-2602025032.A31
2602025032
|
-
|
|
|
|
700 - KEY CHUCK dia0.8-10 MM. 1/2
BSD-1608571005.A89
1608571005
|
-
|
|
|
|
701 - CHUCK WRENCH SG2
BSD-2607950007.A173
2607950007
|
£6.52
|
£7.83
|
|
